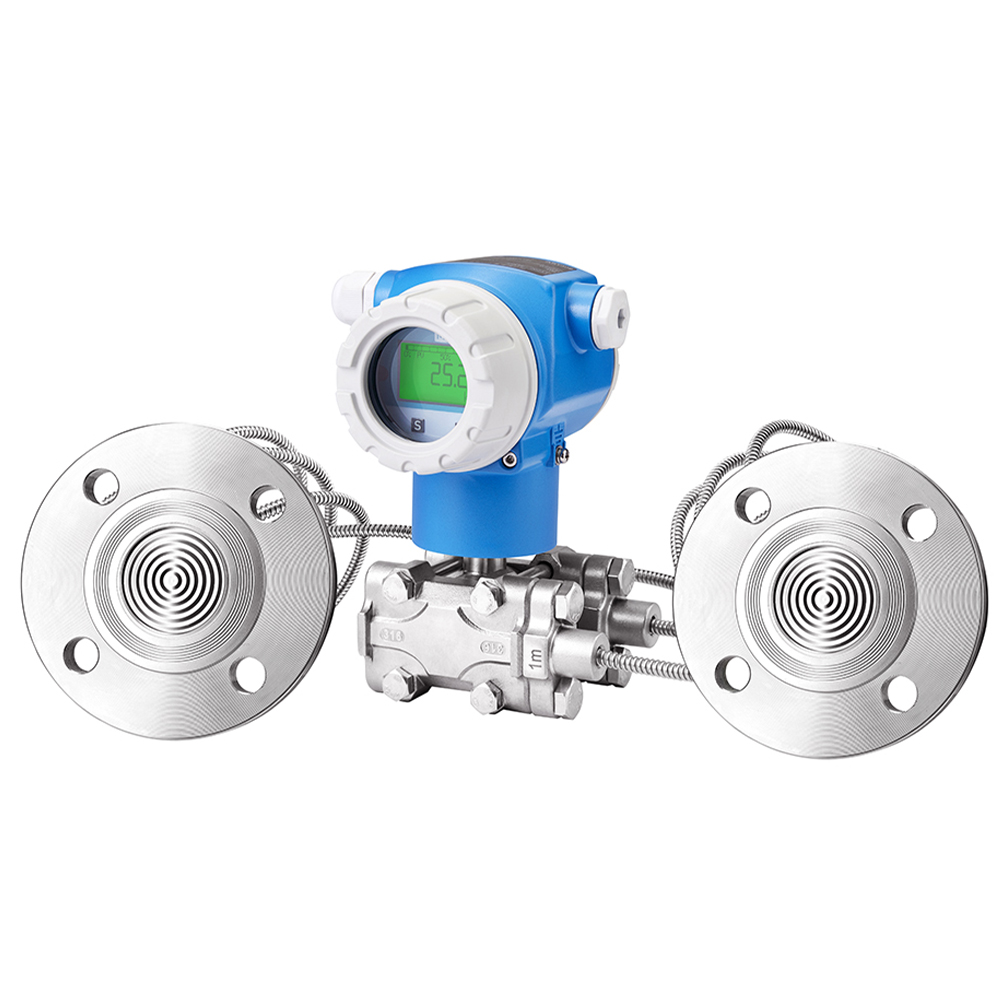

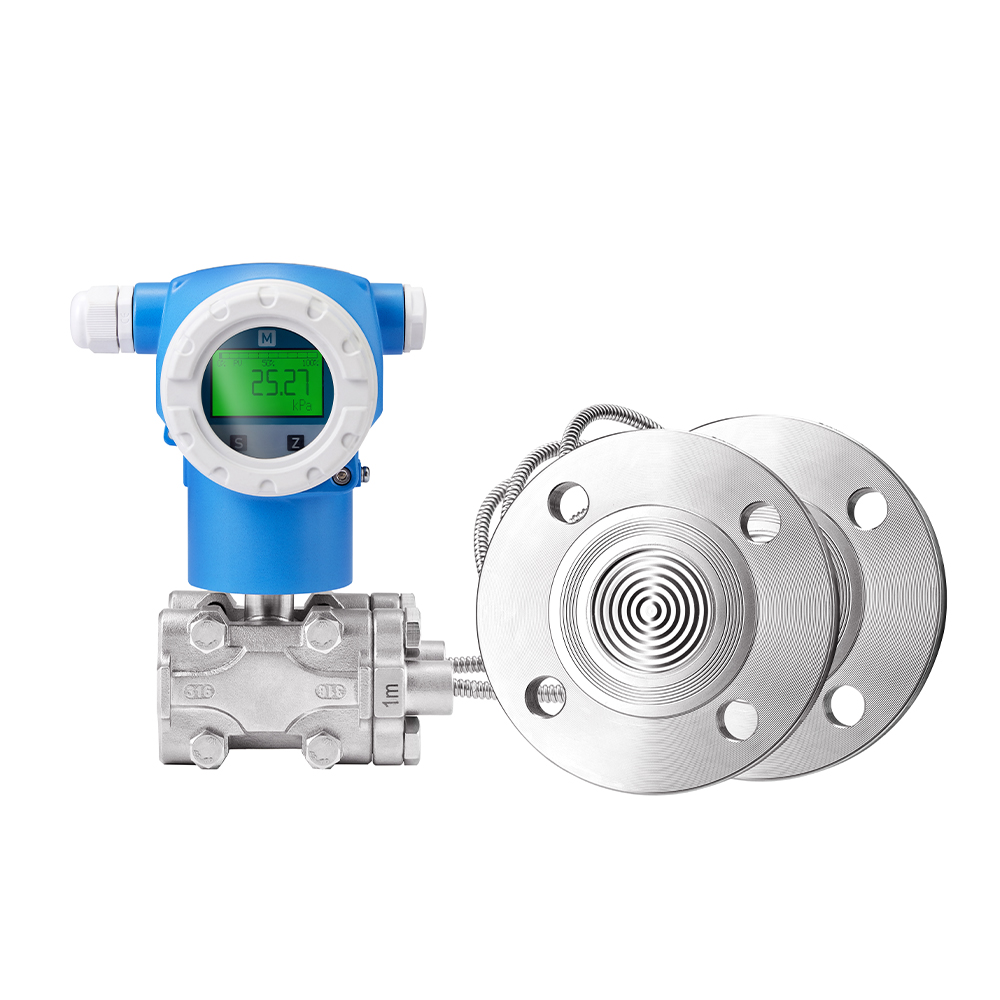

Double flange differential level transmitter consists of differential pressure transmitter, capillary tube and double flange with sealed diaphragm. When the diaphragm is pressurized to produce a small deformation, the deformation displacement is transmitted to the transmitter through the liquid of the capillary tube. In order to prevent the measured medium from influencing the measurement results through the pilot tube, a filling liquid such as silicone oil is used to transfer the pressure between the flange and the sensor. The measured medium through the pilot tube on the measurement of the impact caused by: crystallization solidification vaporization (boiling), condensation, fractionation (heavy change) and so on.
| Model Number | AED28 |
| Accuracy | ±0.2% |
| Output signal | 4-20mA, 4-20mA HART, ModBus RS485 |
| Power supply | 10～32VDC, two-wire system When HART communication is required, power supply≥ 18.5V |
| Overload Presure Limit(OPL) | Single High Side Max 16 Mpa |
| Process Temperature | -40℃ ~ 315℃ (depending on the medium) |
| Ambient Temperature | -40℃ ~ 85℃ or -20℃ ~ 70℃(with LCD) |
| Measuring range | 0-3MPa |
| Ambient temperature influence | ≤ ±0.1% F.S/ 10℃ |
| Long-term stability | ≤ ±0.2%/URL (12 months) |
| Influence of static pressure | ≤ ±0.1%/ range/ 1MPa |
| Response time | 0.25s |
| Power supply influence | ≤ ±0.005% / URL/ V |
| Vibration influence | ≤ ±0.005% / URL/ g |
| Protection grade | IP65 (factory default); IP67 (optional) |
| Explosion-proof grade | NEPSI Ex db IIC T6 Gb |
| Housing material | Cast aluminum alloy; SUS304 |
| Diaphragm material | SUS316L; Hastelloy C; Tantalum; SUS316L gold plated; SUS316L PTFE coating |
| Filling fluid | Normal temperature silicone oil; High temperature silicone oils; Fluorine oils; Vegetable oils |
| Sensor sealing ring material | Nitrile rubber; Fluorosilicone; PTFE |
High accuracy: The pressure transmitter can perform high-accuracy measurements within the measurement range of 0-3MPa.
Standard accuracy: ±0.2%; no linearity adjustment is required when the positive and negative zero points migrate;
Excellent environmental adaptability: The advanced floating diaphragm box protects the sensor from the influence of temperature and overpressure, and controls the comprehensive measurement error on site to a minimum.
Excellent operability and easy usability: All ranges meet explosion-proof requirements; stainless steel transmission housing is available; various corrosion-resistant materials are available;
HART communication protocol, FOUNDATION fieldbus, and PROFIBUS bus are used for communication.
It can accurately measure pressure and convert it into a DC4~20mA output signal. It uses a silicon microcapacitive sensor and a microprocessor made by micromachining technology. Features and functions: small, lightweight, excellent environmental adaptability, suitable for all fields.
Application fields: Double flange differential pressure transmitters are widely used in various industrial fields. Here are some common application scenarios:
1. Petrochemical: In petrochemical processes, double flange differential pressure transmitters are used to measure the pressure difference in fluid media to control flow, monitor pipeline blockage, detect leaks, etc.
2. Power engineering: In power engineering, double flange differential pressure transmitters are used to measure the pressure difference in boilers to ensure the normal operation of boilers and improve thermal efficiency.
3. Automation control: Double flange differential pressure transmitters play an important role in automation control systems. It can convert pressure differences into electrical signals for controlling and adjusting the working status of the system, such as automated process control, liquid level control, etc.
Open tank liquid level measurement: Install the instrument below the lowest measurement point, and connect the negative pressure side directly to the atmospheric pressure.
Closed tank liquid level measurement: Install the instrument below the lowest measurement point, connect the negative pressure side through the pressure pipe, and ensure that the connection point on the pressure pipe is always higher than the highest liquid level.
Gas measurement
When measuring gas, the pressure port should be opened on the side or top of the process pipeline, and the transmitter should be installed above the process pipeline so that the accumulated liquid can easily flow into the process pipeline. For transmitters with a relief valve in the pressure chamber, the relief port of the relief valve should be placed downward. In order to discharge the accumulated liquid in the measured medium.
Liquid measurement
When measuring liquid, the pressure port should be opened on the side of the process pipeline to avoid slag deposition. At the same time, the transmitter should be installed below the pressure port so that bubbles can be discharged into the process pipeline. For transmitters with a relief valve in the pressure chamber, the relief port of the relief valve should be placed upward to discharge the gas in the measured medium.
Steam measurement
When measuring steam, the pressure tapping port should be opened on the side of the process pipeline, and the transmitter should be installed below the pressure tapping port so that the condensate can be filled in the pressure pipe.
Double flange differential level transmitter consists of differential pressure transmitter, capillary tube and double flange with sealed diaphragm. When the diaphragm is pressurized to produce a small deformation, the deformation displacement is transmitted to the transmitter through the liquid of the capillary tube. In order to prevent the measured medium from influencing the measurement results through the pilot tube, a filling liquid such as silicone oil is used to transfer the pressure between the flange and the sensor. The measured medium through the pilot tube on the measurement of the impact caused by: crystallization solidification vaporization (boiling), condensation, fractionation (heavy change) and so on.
| Model Number | AED28 |
| Accuracy | ±0.2% |
| Output signal | 4-20mA, 4-20mA HART, ModBus RS485 |
| Power supply | 10～32VDC, two-wire system When HART communication is required, power supply≥ 18.5V |
| Overload Presure Limit(OPL) | Single High Side Max 16 Mpa |
| Process Temperature | -40℃ ~ 315℃ (depending on the medium) |
| Ambient Temperature | -40℃ ~ 85℃ or -20℃ ~ 70℃(with LCD) |
| Measuring range | 0-3MPa |
| Ambient temperature influence | ≤ ±0.1% F.S/ 10℃ |
| Long-term stability | ≤ ±0.2%/URL (12 months) |
| Influence of static pressure | ≤ ±0.1%/ range/ 1MPa |
| Response time | 0.25s |
| Power supply influence | ≤ ±0.005% / URL/ V |
| Vibration influence | ≤ ±0.005% / URL/ g |
| Protection grade | IP65 (factory default); IP67 (optional) |
| Explosion-proof grade | NEPSI Ex db IIC T6 Gb |
| Housing material | Cast aluminum alloy; SUS304 |
| Diaphragm material | SUS316L; Hastelloy C; Tantalum; SUS316L gold plated; SUS316L PTFE coating |
| Filling fluid | Normal temperature silicone oil; High temperature silicone oils; Fluorine oils; Vegetable oils |
| Sensor sealing ring material | Nitrile rubber; Fluorosilicone; PTFE |
High accuracy: The pressure transmitter can perform high-accuracy measurements within the measurement range of 0-3MPa.
Standard accuracy: ±0.2%; no linearity adjustment is required when the positive and negative zero points migrate;
Excellent environmental adaptability: The advanced floating diaphragm box protects the sensor from the influence of temperature and overpressure, and controls the comprehensive measurement error on site to a minimum.
Excellent operability and easy usability: All ranges meet explosion-proof requirements; stainless steel transmission housing is available; various corrosion-resistant materials are available;
HART communication protocol, FOUNDATION fieldbus, and PROFIBUS bus are used for communication.
It can accurately measure pressure and convert it into a DC4~20mA output signal. It uses a silicon microcapacitive sensor and a microprocessor made by micromachining technology. Features and functions: small, lightweight, excellent environmental adaptability, suitable for all fields.
Application fields: Double flange differential pressure transmitters are widely used in various industrial fields. Here are some common application scenarios:
1. Petrochemical: In petrochemical processes, double flange differential pressure transmitters are used to measure the pressure difference in fluid media to control flow, monitor pipeline blockage, detect leaks, etc.
2. Power engineering: In power engineering, double flange differential pressure transmitters are used to measure the pressure difference in boilers to ensure the normal operation of boilers and improve thermal efficiency.
3. Automation control: Double flange differential pressure transmitters play an important role in automation control systems. It can convert pressure differences into electrical signals for controlling and adjusting the working status of the system, such as automated process control, liquid level control, etc.
Open tank liquid level measurement: Install the instrument below the lowest measurement point, and connect the negative pressure side directly to the atmospheric pressure.
Closed tank liquid level measurement: Install the instrument below the lowest measurement point, connect the negative pressure side through the pressure pipe, and ensure that the connection point on the pressure pipe is always higher than the highest liquid level.
Gas measurement
When measuring gas, the pressure port should be opened on the side or top of the process pipeline, and the transmitter should be installed above the process pipeline so that the accumulated liquid can easily flow into the process pipeline. For transmitters with a relief valve in the pressure chamber, the relief port of the relief valve should be placed downward. In order to discharge the accumulated liquid in the measured medium.
Liquid measurement
When measuring liquid, the pressure port should be opened on the side of the process pipeline to avoid slag deposition. At the same time, the transmitter should be installed below the pressure port so that bubbles can be discharged into the process pipeline. For transmitters with a relief valve in the pressure chamber, the relief port of the relief valve should be placed upward to discharge the gas in the measured medium.
Steam measurement
When measuring steam, the pressure tapping port should be opened on the side of the process pipeline, and the transmitter should be installed below the pressure tapping port so that the condensate can be filled in the pressure pipe.
