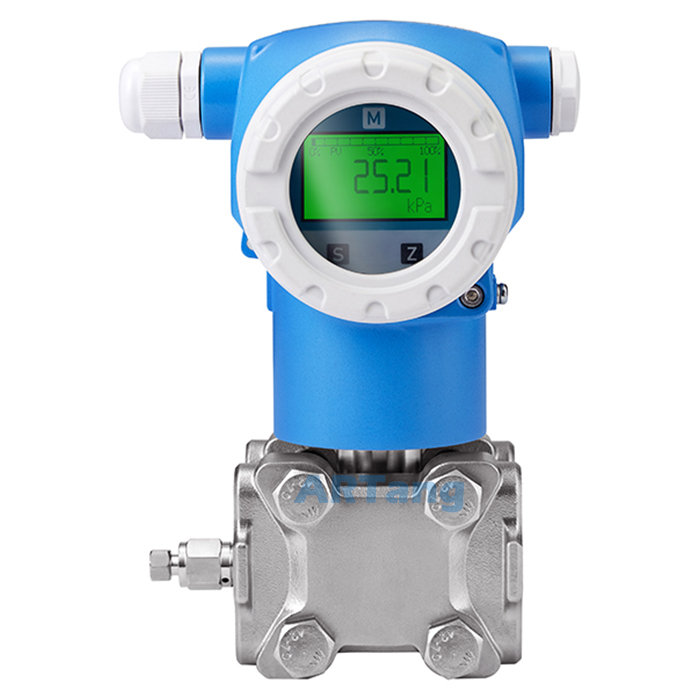

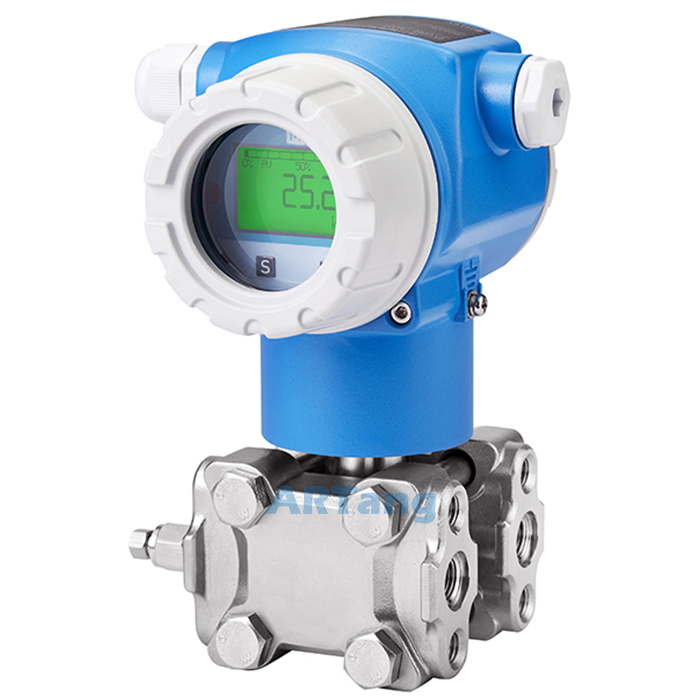

Pressure transmitters are used to measure the pressure or level of gas, liquid or steam, and convert the measured signal into a 4-20mA standard current signal output through a digital amplifier.
There are many ways to debug pressure transmitters. In addition to local keypad debugging, HART handheld operator and HART transmitter debugging software can configure and set the parameters of the transmitter.
The self-diagnosis and remote diagnosis functions of pressure transmitters include sensor fault monitoring, internal inspection of various memories, watchdog monitoring, etc. Data will not be lost even in the event of a power outage. All these functions provide convenience for the daily maintenance of the transmitter, and also provide a basis for fault judgment and maintenance of the transmitter.
Explosion-proof protection grade: The transmitter is encapsulated in a sealed cast aluminum metal shell, suitable for various harsh environments and flammable and explosive environments, and the explosion-proof protection mark: Exd IIC T6; Exia IIC T6;
| Model Number | AEA18 |
| Application | Gauge Pressure, Liquid Level |
| Connection Process | Thread |
| Measuring Range | 0~40 Mpa |
| Overload Presure Limit(OPL) | Max 60 Mpa |
| Process Temperature | -40℃ ~ 105℃ |
| Storage temperature | -40～85℃ |
| Storage humidity | ≤95% RH |
| Ambient Temperature | -40℃ ~ 85℃ or -20℃ ~ 70℃(with LCD) |
| Reference Measurement Accuracy | ±0.2%URL or ±0.1%URL or ±0.075%URL(Optional) |
| Power Supply Voltage | 10~32 VDC |
| Output | 4~20 mA or 4~20mA+HART or MODBUS RS485 |
| Housing material | Cast aluminum alloy; SUS304; SUS316 |
| Diaphragm material | SUS316L ；Hastelloy C；Tantalum ; SUS316L gold plated |
| Filling fluid | Silicone oil; Fluorine oil |
| Sensor sealing ring material | Nitrile rubber; Fluorosilicone ; PTFE |
| Certificate | CE, NEPSI |
| Explosion-proof grade | Exd IIC T6; Exia IIC T6 |
| Waterproof Grade | IP67 |
Intelligent digital display double explosion-proof structure design, the transmitter is encapsulated in a sealed cast aluminum metal shell, suitable for various harsh environments and flammable and explosive environments;
Various structural forms, widely used: used for pressure, differential pressure and liquid level measurement of gas, steam and liquid;
It can be matched with remote sealing device to realize high temperature, viscous, granular and crystalline medium measurement;
Various materials for contacting liquid: standard: 316L stainless steel diaphragm; customized: Hastelloy, tantalum, platinum diaphragm;
Easy to operate: 5-digit backlit LCD display, multiple measurement unit display (KPa, MPa, bar, %, psi, mmH2o,) built-in button adjustment;
Intelligent temperature compensation, improve the transmitter's resistance to temperature drift, and ensure comprehensive measurement accuracy;
There are two optional structural types: display and non-display; support anti-corrosion, anti-pressure, explosion-proof and other requirements;
In addition to local button debugging, HART handheld operator and HART transmitter debugging software can configure and set the parameters of the transmitter;
Excellent environmental adaptability: intelligent static pressure compensation and temperature compensation, protecting the transmitter from the influence of temperature, static pressure and overpressure;
Explosion-proof mark: Exd IIC T6; Exia IIC T6, explosion-proof certificate number: GYB23.3299X;
Support customer customization.
● Excellent repeatability and long-term stability.
● Accurate measurement, less susceptible to environmental influences.
● Simple operation, can quickly set functions, save time and improve efficiency.
● Wide choice of process connections and measuring ranges.
The transmitter has high measurement accuracy and long-term stability, and offers a variety of special materials for users to choose from, ensuring the highest process safety and measurement reliability.
Pressure transmitters are used to measure the pressure or level of gas, liquid or steam, and convert the measured signal into a 4-20mA standard current signal output through a digital amplifier.
There are many ways to debug pressure transmitters. In addition to local keypad debugging, HART handheld operator and HART transmitter debugging software can configure and set the parameters of the transmitter.
The self-diagnosis and remote diagnosis functions of pressure transmitters include sensor fault monitoring, internal inspection of various memories, watchdog monitoring, etc. Data will not be lost even in the event of a power outage. All these functions provide convenience for the daily maintenance of the transmitter, and also provide a basis for fault judgment and maintenance of the transmitter.
Explosion-proof protection grade: The transmitter is encapsulated in a sealed cast aluminum metal shell, suitable for various harsh environments and flammable and explosive environments, and the explosion-proof protection mark: Exd IIC T6; Exia IIC T6;
| Model Number | AEA18 |
| Application | Gauge Pressure, Liquid Level |
| Connection Process | Thread |
| Measuring Range | 0~40 Mpa |
| Overload Presure Limit(OPL) | Max 60 Mpa |
| Process Temperature | -40℃ ~ 105℃ |
| Storage temperature | -40～85℃ |
| Storage humidity | ≤95% RH |
| Ambient Temperature | -40℃ ~ 85℃ or -20℃ ~ 70℃(with LCD) |
| Reference Measurement Accuracy | ±0.2%URL or ±0.1%URL or ±0.075%URL(Optional) |
| Power Supply Voltage | 10~32 VDC |
| Output | 4~20 mA or 4~20mA+HART or MODBUS RS485 |
| Housing material | Cast aluminum alloy; SUS304; SUS316 |
| Diaphragm material | SUS316L ；Hastelloy C；Tantalum ; SUS316L gold plated |
| Filling fluid | Silicone oil; Fluorine oil |
| Sensor sealing ring material | Nitrile rubber; Fluorosilicone ; PTFE |
| Certificate | CE, NEPSI |
| Explosion-proof grade | Exd IIC T6; Exia IIC T6 |
| Waterproof Grade | IP67 |
Intelligent digital display double explosion-proof structure design, the transmitter is encapsulated in a sealed cast aluminum metal shell, suitable for various harsh environments and flammable and explosive environments;
Various structural forms, widely used: used for pressure, differential pressure and liquid level measurement of gas, steam and liquid;
It can be matched with remote sealing device to realize high temperature, viscous, granular and crystalline medium measurement;
Various materials for contacting liquid: standard: 316L stainless steel diaphragm; customized: Hastelloy, tantalum, platinum diaphragm;
Easy to operate: 5-digit backlit LCD display, multiple measurement unit display (KPa, MPa, bar, %, psi, mmH2o,) built-in button adjustment;
Intelligent temperature compensation, improve the transmitter's resistance to temperature drift, and ensure comprehensive measurement accuracy;
There are two optional structural types: display and non-display; support anti-corrosion, anti-pressure, explosion-proof and other requirements;
In addition to local button debugging, HART handheld operator and HART transmitter debugging software can configure and set the parameters of the transmitter;
Excellent environmental adaptability: intelligent static pressure compensation and temperature compensation, protecting the transmitter from the influence of temperature, static pressure and overpressure;
Explosion-proof mark: Exd IIC T6; Exia IIC T6, explosion-proof certificate number: GYB23.3299X;
Support customer customization.
● Excellent repeatability and long-term stability.
● Accurate measurement, less susceptible to environmental influences.
● Simple operation, can quickly set functions, save time and improve efficiency.
● Wide choice of process connections and measuring ranges.
The transmitter has high measurement accuracy and long-term stability, and offers a variety of special materials for users to choose from, ensuring the highest process safety and measurement reliability.
