| Quantity: | |
|---|---|

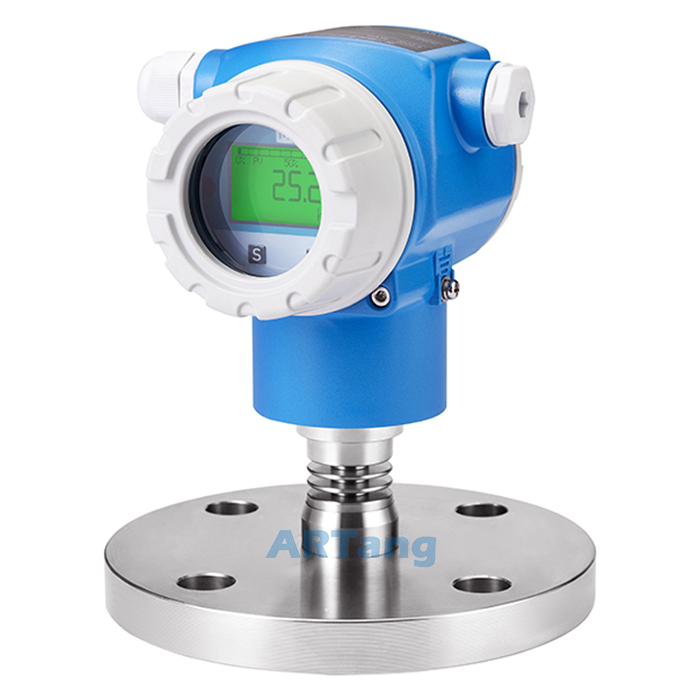

The flange mount pressure transmitter adopts single-crystal silicon technology and positions the pressure sensor away from the process medium to achieve mechanical and thermal isolation. This design enhances the flexibility of the electronic circuitry and improves protection against transient voltage surges, allowing reliable operation under complex chemical conditions and heavy mechanical loads. In addition, it offers strong resistance to electromagnetic interference, making it ideal for pressure, level, and flow measurement in harsh process industrial environments.
| Model Number | AEA17 |
| Application | Gauge Pressure, Liquid Level |
| Connection Process | Flange |
| Measuring Range | 0-35KPa .... 0-1MPa.....0-70MPa |
| Overload Presure Limit(OPL) | Max 140 Mpa |
| Process Temperature | -40℃ ~ 315℃ |
| Ambient Temperature | -40℃ ~ 85℃ or -20℃ ~ 70℃(with LCD) |
| Reference Measurement Accuracy | ±0.25% |
| Ambient Temperature Effect | ≤±0.2%F.S/10°C |
| Long-term Stability | ≤±0.2%/URL (12 months) |
| Response Time | 0.25s |
| Power Supply Influence | ≤±0.005%/URL/V |
| Vibration Effect | ≤±0.25%/URL/g |
| Power Supply Voltage | 10~32 VDC |
| Output | 4~20 mA or 4~20mA+HART or MODBUS RS485 |
| Certificate | CE, NEPSI |
| Waterproof Grade | IP65/IP67 |
1. Single-crystal silicon sensing element
High accuracy and strong overload capability
2. Single-flange structure
Resistant to high temperatures and corrosion, suitable for complex corrosive and high-temperature process media
3. 316L stainless steel, Hastelloy C, and Tantalum
Multiple diaphragm material options available for excellent corrosion and temperature resistance
4. Smart HART communication
Range, zero point, damping, and other parameters can be configured on site
The flange mount pressure transmitter adopts single-crystal silicon technology and positions the pressure sensor away from the process medium to achieve mechanical and thermal isolation. This design enhances the flexibility of the electronic circuitry and improves protection against transient voltage surges, allowing reliable operation under complex chemical conditions and heavy mechanical loads. In addition, it offers strong resistance to electromagnetic interference, making it ideal for pressure, level, and flow measurement in harsh process industrial environments.
| Model Number | AEA17 |
| Application | Gauge Pressure, Liquid Level |
| Connection Process | Flange |
| Measuring Range | 0-35KPa .... 0-1MPa.....0-70MPa |
| Overload Presure Limit(OPL) | Max 140 Mpa |
| Process Temperature | -40℃ ~ 315℃ |
| Ambient Temperature | -40℃ ~ 85℃ or -20℃ ~ 70℃(with LCD) |
| Reference Measurement Accuracy | ±0.25% |
| Ambient Temperature Effect | ≤±0.2%F.S/10°C |
| Long-term Stability | ≤±0.2%/URL (12 months) |
| Response Time | 0.25s |
| Power Supply Influence | ≤±0.005%/URL/V |
| Vibration Effect | ≤±0.25%/URL/g |
| Power Supply Voltage | 10~32 VDC |
| Output | 4~20 mA or 4~20mA+HART or MODBUS RS485 |
| Certificate | CE, NEPSI |
| Waterproof Grade | IP65/IP67 |
1. Single-crystal silicon sensing element
High accuracy and strong overload capability
2. Single-flange structure
Resistant to high temperatures and corrosion, suitable for complex corrosive and high-temperature process media
3. 316L stainless steel, Hastelloy C, and Tantalum
Multiple diaphragm material options available for excellent corrosion and temperature resistance
4. Smart HART communication
Range, zero point, damping, and other parameters can be configured on site
