Vortex Flowmeters

Vortex flow meters offer many advantages for flow measurement including easy installation without impulse lines, no moving parts to maintain or repair, less leak potential and a wide flow turndown range. Vortex meters also offer very low power consumption, allowing for use in remote areas. Additionally, Vortex meters are unique in that they can accommodate liquids, gasses, steam and corrosive applications. Vortex flow meters are also able to withstand high process pressures and temperatures.


  • Compressed Air Flowmeter Vortex Steam Flow Meter
    Nominal Diameter :DN15~DN400
    Nominal Pressure:PN40
    Process Temperature:-40℃ ~ 260℃
    Process Connection:Flange: GB, ANSI, DIN, JIS
    Volume Flow Accuracy: Liquid: ± 0.75%/Steam & Gas: ± 1%
    Mass Flow Accuracy: Liquid: ± 0.85% / Steam & Gas: ± 1.5%
    Output Signal:4~20mA Frequency / Pulse / Switch Output
    Communication:HART, Modbus RS485, PROFIBUS DP
    Current Input:4~20mA
    Protection Grade:IP66 / IP67
    Application:Electric-Power, Chemical and Food Industry

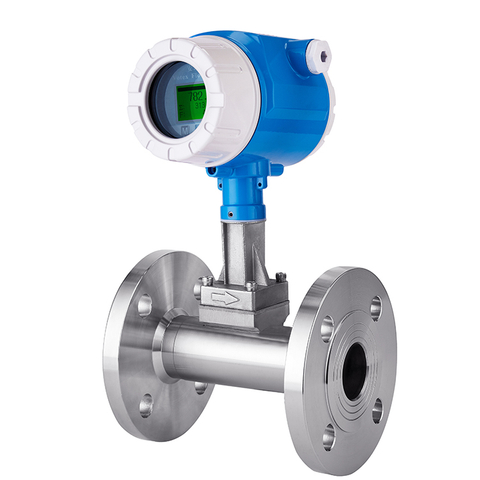

  • Steam Flow Meter — Gas & Liquid Vortex Flow Meter
    Steam flow meter adopt gas venturi nozzle system carry out the calibration,accuracy with ±1.0%, Insertion vortex flow meter with accuracy ±1.5%, every flow meter will be well calibrated before leave factory.
    Size: DN15-DN6000;
    Measured medium: liquid,gas,steam;
    Medium Temp: -40℃~250℃,-40℃~350℃,
    Nominal Pressure: 1.6MPa
    Accuracy:±1.0 % (Flange / wafer / thread / tri-clamp; ±1.5 % (Insertion type)
    Flow Range: Liquid:0.4-7.0m/s,Gas:4.0-60.0m/s,
    Steam:5.0-70.0m/s,
    Specifications: DN100-2000 (Insertion),
    Material: SS304(Standard),SS316(Optional)
    Vibration Acceleration Allowed:≤0.2g

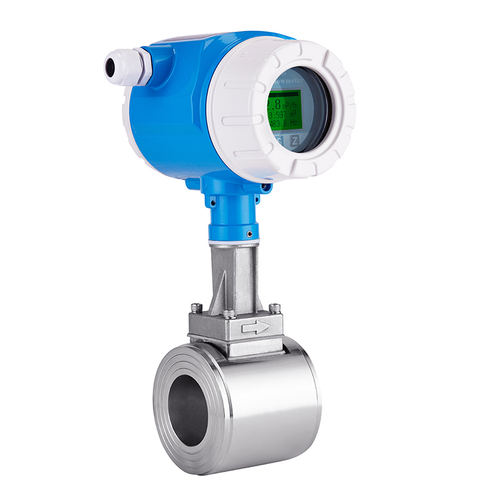

  • Vortex Flow Meter for Liquid/Gas/Steam, DN15-DN300
    Product name:Intelligent anti-vibration vortex flowmeter

    Measuring medium: gas, liquid, steam, thermal oil

    Nominal diameter: DN15-DN300

    Output signal: voltage frequency pulse, 4~20mA signal.

    Communication mode: RS485, HART optional

    Power supply: 24VDC±5%, lithium battery 3.6VDC

    Nominal pressure: flange mounted DN10-DN500 (preferred pressure level PN2.5MPa)

    Flange connection type DN10-DN80 (preferred pressure level PN2.5MPa)

    Flange connection type DN100-DN200 (preferred pressure level PN1.6MPa)

    Flange connection type DN250-DN300 (preferred pressure class PN1.0MPa)

    Accuracy level: gas uncompensated type: DN15-DN25 - 1.5 level, DN32-DN200 - 1.0 level, DN250-DN300 - 1.5 level;

       Liquid uncompensated type: DN15-DN300 - 1.0 grade;

       Temperature and pressure compensation type: DN25-DN300 - 1.5 level

    Medium temperature: -40℃~+260℃,-40℃~+300℃

    Protection grade: IP65

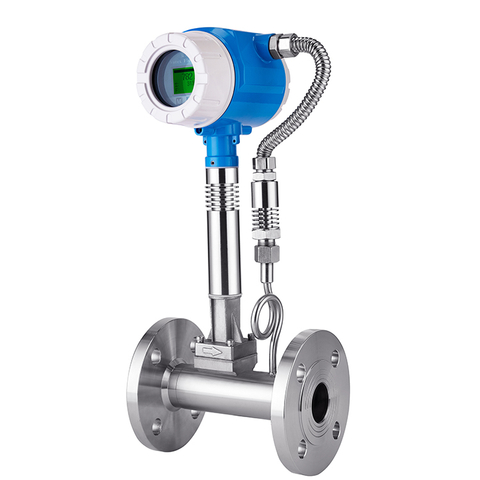

  • Compressed Air Remote Type Vortex Flow Meter
    Size: DN15-DN6000;
    Measured medium: liquid,gas,steam;
    Medium Temp: -40¡æ~250¡æ,-40¡æ~350¡æ,
    Nominal Pressure: 1.6MPa
    Accuracy: ¡À1.0 % (Flange / wafer / thread / tri-clamp; ¡À1.5 % (Insertion type)
    Flow Range: Liquid:0.4-7.0m/s,Gas:4.0-60.0m/s,
    Steam:5.0-70.0m/s,
    Specifications: DN100-2000 (Insertion),
    Material: SS304(Standard),SS316(Optional)
    Power Supply: DC 12-30V or 3.6V battery powered

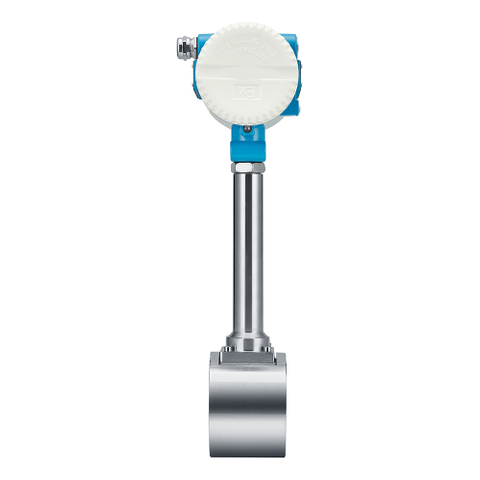

  • Aitex D Clamping Gas Vortex Shedding Flowmeter
    Vortex flowmeter has no moving parts, simple layout of measuring elements, reliable function and long service life. The volume flow of the vortex flowmeter is not affected by thermal parameters such as temperature, pressure, density or viscosity of the fluid being measured. It usually does not need to be calibrated on its own. It can measure the flow of liquid, gas or steam. The resulting pressure loss is small. In addition, the vortex flowmeter has the advantage of high accuracy.

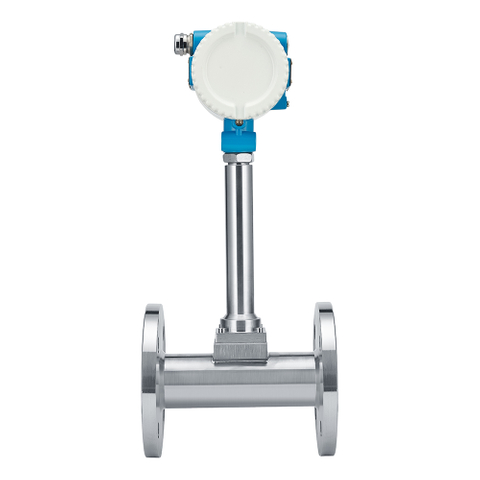

  • Aitex E Steam Flange Type Vortex Street Flow Meter
    Aitex E-type vortex flow meter is a steam vortex flow meter with excellent reliability and performance. ARTang Aitex E vortex flow meter adopts unique signal processing technology, and has better stability, accurate measurement. ARTang provides a wide range of products to meet all customer requirements.

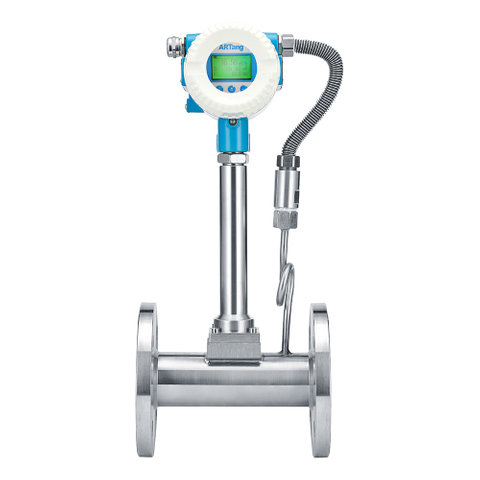

  • Aitex F Vortex Flowmeter with Temperature & Pressure Compensation
    Temperature & pressure compensation vortex flowmeter adopts Karman vortex street principle, and the sensor has built-in piezoelectric crystal and integrated temperature and pressure measurement function, which can measure gas temperature and pressure, ensure more accurate volume or mass flow.
