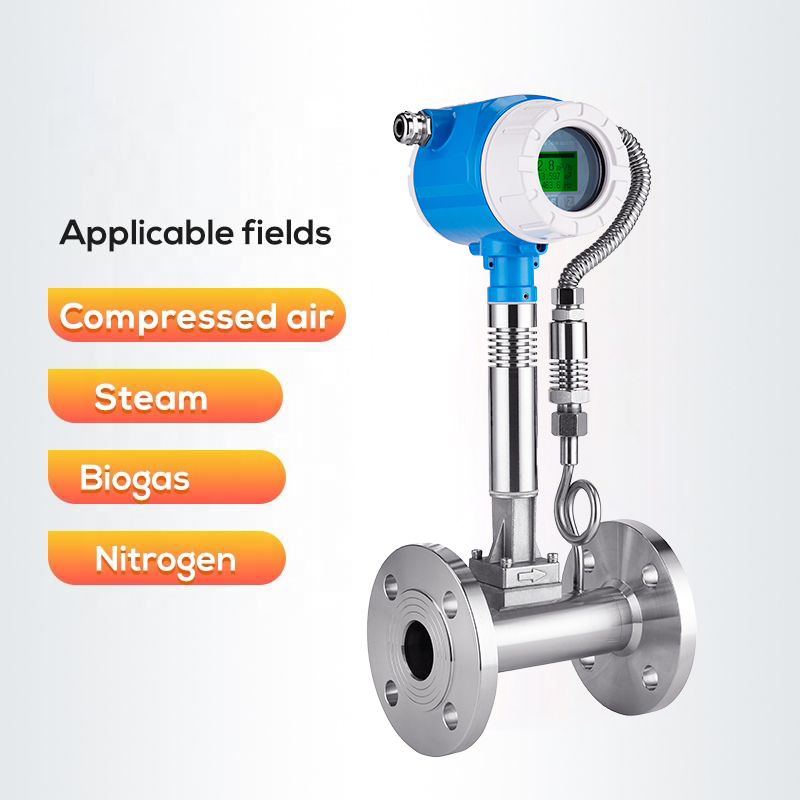

Compressed Air Remote Type Vortex Flow Meter

  • Size: DN15-DN6000;
  • Measured medium: liquid,gas,steam;
  • Medium Temp: -40¡æ~250¡æ,-40¡æ~350¡æ,
  • Nominal Pressure: 1.6MPa
  • Accuracy: ¡À1.0 % (Flange / wafer / thread / tri-clamp; ¡À1.5 % (Insertion type)
  • Flow Range: Liquid:0.4-7.0m/s,Gas:4.0-60.0m/s,
  • Steam:5.0-70.0m/s,
  • Specifications: DN100-2000 (Insertion),
  • Material: SS304(Standard),SS316(Optional)
  • Power Supply: DC 12-30V or 3.6V battery powered
facebook sharing button
twitter sharing button
line sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

Compressed Air Remote Type Vortex Flow Meter Product Features

  1. Low minimum flow value and wide flow range;

  2. Simple structure, no moving wear parts, so high reliability, so no additional energy loss;

  3. High measurement accuracy and reliability, no need for on-site debugging and low resistance loss;

  4. Convenient installation and easy maintenance;

  5. Complete sensor diameter, with 10MM~500MM 20 kinds of different diameter sensors;

  6. Can transmit the flow signal over a long distance and network with computer to realize centralized management;

  7. In the measurement of work volume flow rate is almost independent of the influence of fluid density, pressure, temperature, viscosity and other parameters;

  8. Vortex flowmeter using piezoelectric stress type sensor, high reliability, can be in -20 ℃ ~ +250 ℃ working temperature range;

  9. Fully intelligent, digital circuit design, can automatically compensate for the measured fluid density or standard volume.

Compressed Air Flowmeter Vortex Flow Meter Wide range of applications for a variety of working conditions

Widely used in petroleum, chemical, metallurgy, heat, textile, paper, and other industries for hot steam, saturated steam, compressed air and general gases, water and liquid measurement and control.
