Steam Flow Meter Gas & Liquid Vortex Flow Meter


  • Size: DN15-DN300;
  • Accuracy: ±1% /±1.5%
  • Flow Range: Liquid:0.4-7.0m/s,Gas:4.0-60.0m/s,
  • Nominal Pressure: 1.6MPa
  • Medium Temp: -40℃~250℃,-40℃~350℃,
  • Material: SS304(Standard),SS316(Optional)
Availability:
Quantity:
Inquire

facebook sharing button
twitter sharing button
line sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

|

 Specification

Model Number Aitex E
Nominal Diameter DN15 ~ DN150
Medium temperature -30℃～150℃; -50℃～250℃; -200℃～400℃
Power supply 12-32VDC
Process Connection Flange: GB, ANSI, DIN, JIS
Output Signal 4~20mA Frequency/Pulse/Switch Output
Communication HART, Modbus RS485, PROFIBUS DP
Volume Flow Accuracy Liquid: ±0.75% , Steam/Gas: ±1%
Application Gas, Liquid, Steam
Protection Grade IP66/ IP67

|

 Intelligent Flange Vortex Flowmeter for Gas/Steam Features:

  • The main body of the product has no moving parts, high reliability, long-term stability, simple structure and easy maintenance.

  • Higher accuracy, conventional liquid measurement accuracy of ± 1.0%; gas measurement accuracy of ± 1.5%.

  • Capable of measuring flow rates over a wide range. Range ratio: 1:8 to 1:30;

  • High operating temperature range: -40°C to 400°C;

  • Small pressure loss, wide measuring range and high precision.

  • It is almost not affected by parameters such as fluid density, pressure, temperature, and viscosity.

  • No moving parts, less susceptible to media contamination or particulates, simple maintenance, and long service life.

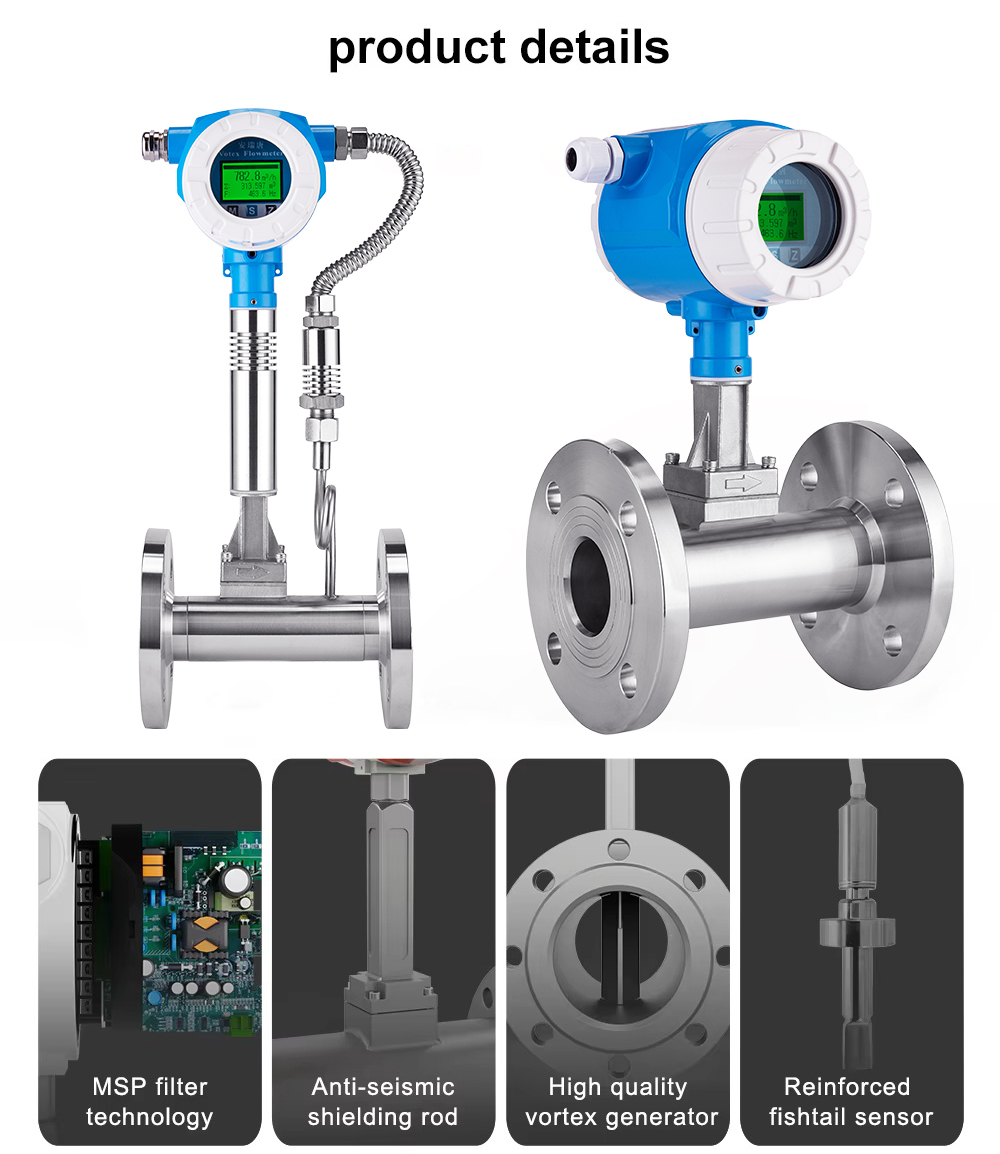

Compressed Air Flow Meter

|

 Application of Steam Flow Meters

Steam flow meters are commonly used in applications such as chemical processing, oil and gas, water and wastewater treatment, and food and beverage processing. They are used for measuring flow rates of liquids, gases, and steam in pipes and ducts. They can be used for batching and totalizing applications, where the total volume or mass of fluid over a period of time needs to be measured.

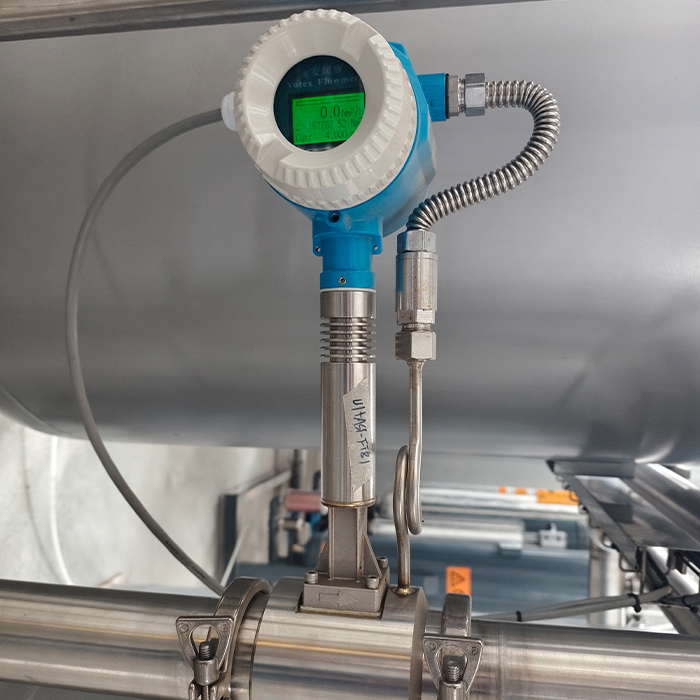

Gas & Vortex Flow Meter

Vortex Flowmeter for Gas

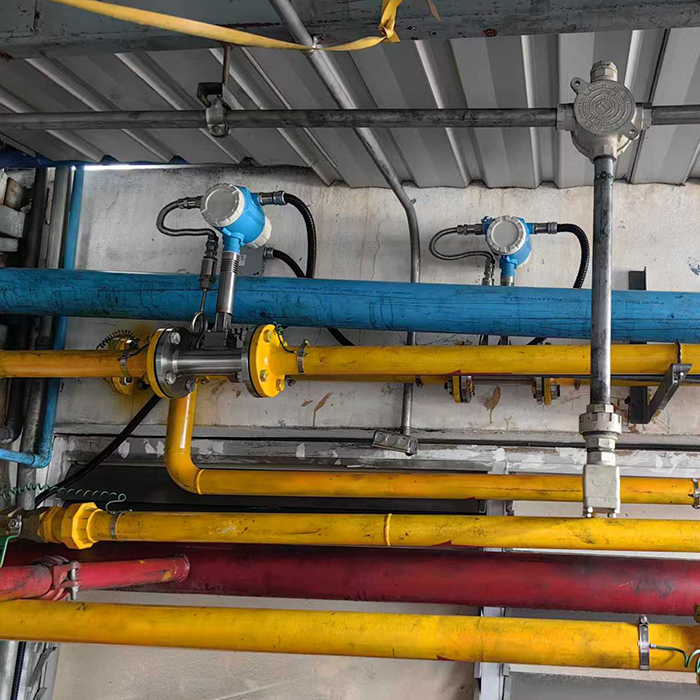

Vortex Flowmeter for Steam

Vortex Steam & Gas Flowmeter

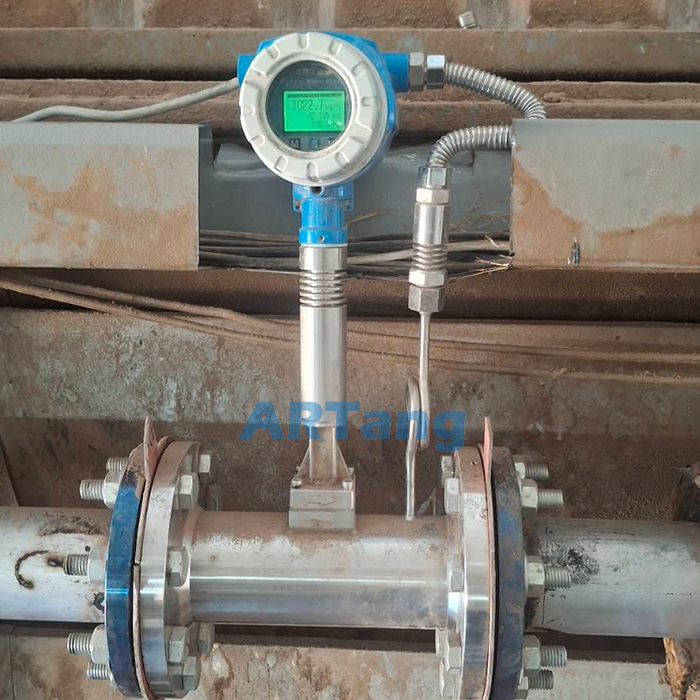

Steam flow meters

Steam flow meters
