Electromagnetic Flowmeters

Electromagnetic flow meters (or magmeters) are a type of velocity or volumetric flow meter that operate pursuant to Faraday's law of electromagnetic induction – which states that a voltage will be induced when a conductor moves through a magnetic field. Magmeters can detect the flow rate of conductive fluids only.

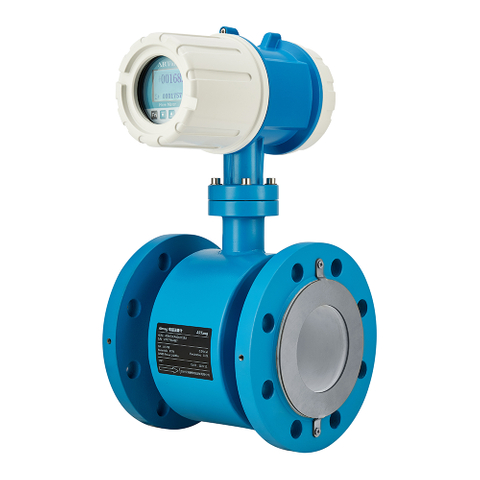

  • Digital Electromagnetic Flowmeter Liquid Water Magnetic Flow Water Meter
    Measurement is not affected by changes in fluid density, viscosity, temperature, pressure, and conductivity;
    Reasonable selection of electrode and lining materials means they have good corrosion resistance and wear resistance;
    Full digital processing, strong anti-interference ability, reliable measurement, high precision, and wide flow measurement range;
    There are no moving parts and no flow-blocking parts in the pipeline, so there is almost no additional pressure loss during measurement;

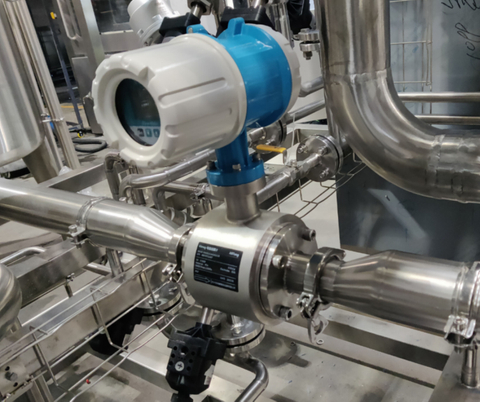

  • 3A Sanitary Type Tri Clamp Electromagnetic Flow Meter for Milk Beer Flow Meter
    Special sanitary electromagnetic flowmeter for food, pharmaceutical, beverage and other industries;
    The body is made of stainless steel, and the electrode and lining materials comply with sanitary standards;
    Full digital processing, strong anti-interference ability, high precision, wide flow measurement range;
    There are no moving parts and no flow-blocking parts in the pipeline, so there is almost no additional pressure loss during measurement;
  • Battery Powered Electromagnetic Flow Meter
    3.6V Battery operated electromagnetic flow meter like normal DC24V/AC220V magnetic flow meter, achieve high accuracy ±0.5% or± 0.2% of reading in measuremen. Accuracy: ±0.5% (Standard), ±0.2% (Optional)
    Ambient Temperature: -45℃~80℃
    Liner Material: PFA,F46,Neoprene,PTFE, FEP
    Electrode: 316L, Hastelloy C, Hastelloy B, Ti, Ta, Pt
    Protection Class: Incorporate type-----IP67 or Separate body-type----IP67/IP68

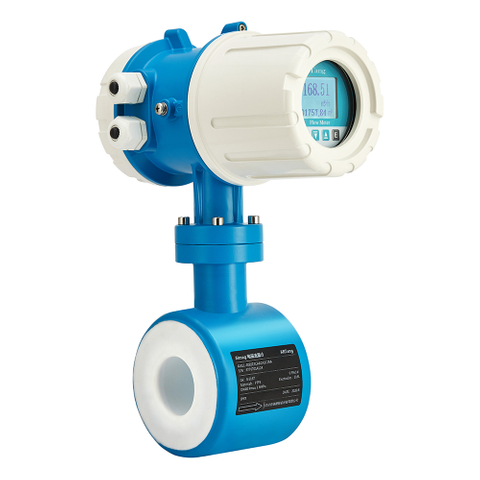

  • Aimag D Clamped Compact Type Water Liquid Magnetic Flow Meter
    Aimag D clamped electromagnetic flowmeter is specially designed for mediums with limited installation space. And it is widely used in flow measurement of raw water, drinking water, process water and sewage.
  • Aimag C Explosion-Proof Certificate IP68 Chemical Industry Electromagnetic Flow Meter for Corrosive Liquid
    Aimag C Electromagnetic flowmeter is specailly designed for corrosive liquid, such as acid, sulfuric acid, acetic acid, niteric ascid, brine, sea water, alcohol, ammonia liquid ect. Aimag C flow meter use chemical resistant electrodes and liner, and can withstand 40Mpa high pressure flow meter.
    Aimag C is best chemical-resistant flow meter for corrosive liquid. The diameter of the electromagnetic flowmeter ranges from DN6 to DN3000.
  • Waste Water Electromagnetic Flow Meter
    Size: 1/8″-120″
    Accuracy: ¡À0.5%
    Electrode: SUS316L, Hastelloy B, Hastelloy C
    Structure: compact, remote
    Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
    Output Signal: 4~20 mA, Pulse
    Communication: RS485, HART, PROFIBUS
    Protection Grade: IP65 std, IP68 optional for remote
    Velocity: 0.1~15 m/s
    Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm
    Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
    Size: DN3-DN3000
    Sensor material: carbon steel (std), SS304 / SS316 (optional)
    Flange: ANSI, DIN, JIS, etc.
    Measuring tube: SS304
    Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis
  • Aimag H 3-A Sanitary Standards 316L Medicine Milk Food & Beverage Industry Hygienic Electromagnetic Flowmeter
    The Sanitary Electromagnetic Flowmeter is also called hygienic magnetic flow meter and tri-clamp magnetic flow meter. It is a food grade flow mter and ideal for food, beverages, beer, milk and pharmaceutical industries. Sanitary flow meter can meet the hygienic demand and achieve accurate and reliable flow measurement.
  • Digital Electromagnetic Flowmeter Liquid Water Slurry Magnetic Flow Meter
    Accuracy: ±0.2%/±0.5%
    Size: DN3-DN3000
    Electrode: SUS316L, Hastelloy B, Hastelloy C
    Structure: compact, remote
    Liner: PFA,F46,Neoprene,PTFE, FEP
    PH electrode: 316 stainless steel, HC/HB, Ti, Da, Pt
    Output Signal: 4~20 mA, Pulse
    Communication: RS485, HART, PROFIBUS
    Protection Grade: IP65 std, IP68
    Ambient Temperature:-45℃~80℃
    Conductivity: > 5 μS/cm
    Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
    Sensor material: carbon steel (std), SS304 / SS316 (optional)
    Flange: ANSI, DIN, JIS, etc.
  • Aimag A Hot Sale Water Sewage Wastewater Electromagnetic Flowmeter
    Aimag A electromagnetic flow meters is a products that developed for sewage, water, wastewater flow measurement. Widely used in metering and custody transfer. And can display both instantaneous and cumulative flow, and supports analog output, communication output and relay control functions. The diameter of the electromagnetic flowmeter ranges from DN6 to DN3000.
    Accuracy: ±0.5% OR ±0.2%
    Theoretical value: Water: Min. 20μS/cm; Other liquid: Min. 5μS/cm
    Recommended value: >30μS/cm
    Power supply: 100-240VAC,50/60Hz; 22-26VDC
    Minimal Maintainice. Has no moving parts or flow obstructiions, which virtually eliminates maintenance and pressure drops
  • Aimag S Slurry Metallurgy Mining Pulp Electromagnetic Flowmeter
    Slurry magnetic flowmeter is specially designed for heavy-duty applications such as pulp & papermaking industries, slurries & sludges, mining industry, sewage and other industries.

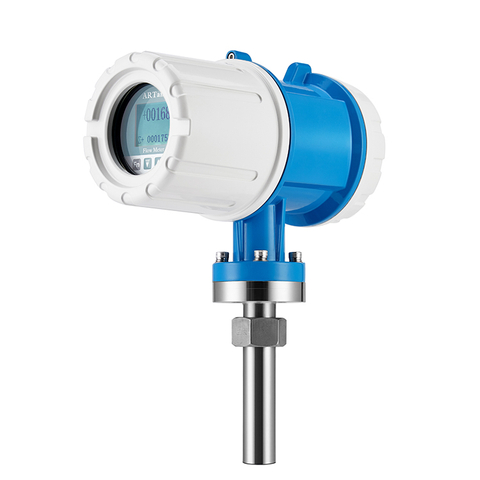

  • Insertion Type Electromagnetic Flow Meter
     Measurement is unaffected by changes in fluid density, viscosity, temperature, pressure, and conductivity.
    No flow-retarding parts, no pressure loss, low straight pipe section requirement, unique adaptability to slurry measurement.
    Series nominal diameter DN25 ~ DN3000, lining and electrode different configurations can measure strong corrosive and strong wear-resistant media.
    With self-test and self-diagnostic function, zero point stability, high accuracy
    High-definition backlit LCD display, full Chinese menu operation, simple and easy to understand.
    Insertion type electromagnetic flowmeter, construction of small quantities, can not flow with pressure installation, with absolute installation and price advantage;
  • Chemical Magnetic Flow Meter
    Various liners and electrodes satisfy most applications
    Wide diameter range: DN3mm-DN3000mm
    0.05m/s,Measurable Minimum Flow Rate
    5us/cm,The Minimum Conductivity of Liquid
    Solids Content Up to 80% By Weight
    Ambient Temperature Range -40℃~85°
    Automatic self-diagnosis
    Bi-directional flow measurement
    Max pressure 42Mpa available (customized)
    CE & ATEX & EAC & 3A approved
