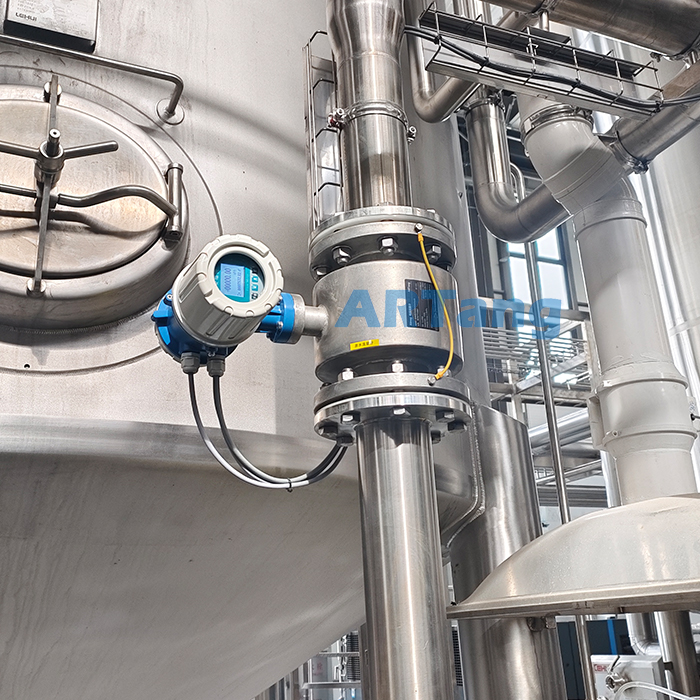

3A Sanitary Type Tri Clamp Electromagnetic Flow Meter for Milk Beer Flow Meter

  • Connection Size: DN6-DN150
  • Accuracy: ±0.5% optional (±0.2% can be customised)
  • Certificates:3-A,EAC,NEPSI,CNEX,CE
  • Ingress protection: IP67(IP68 optional)
  • Application: Special sanitary electromagnetic flowmeter for food, pharmaceutical, beverage and other industries;
  • The body is made of stainless steel, and the electrode and lining materials comply with sanitary standards;
  • Full digital processing, strong anti-interference ability, high precision, wide flow measurement range;
  • There are no moving parts and no flow-blocking parts in the pipeline, so there is almost no additional pressure loss during measurement;
facebook sharing button
twitter sharing button
line sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

Sanitary Type electromagnetic flowmeter is a flow measurement device specially designed for food, hygiene and chemical industry, which adopts new hygienic lining material and lining process to ensure compliance with hygienic requirements of food industry. It adopts stainless steel shell and stainless steel clamp connection, which is convenient for quick disassembly and cleaning of electromagnetic flowmeter. Therefore, the sanitary type electromagnetic flowmeter is not easy to contaminate in the process of use, can effectively prevent the measurement of liquid residue in the measurement tube. And electromagnetic flowmeter because of its high precision, good stability, not easily affected by the medium and other advantages, in dairy and beverage processing has been widely used.


  • One of the main advantages of sanitary electromagnetic flowmeters is that they can accurately measure regardless of the type of medium being measured, as well as its temperature, viscosity, and density, making them ideal for food processing applications.

  • The design of sanitary electromagnetic flowmeters meets food grade standards, and the suppliers of linings are the same as E+H and Krohne. The smooth, seamless design makes cleaning easier and less likely to breed bacteria, which better ensures a hygienic food environment.

  • The plastic parts of sanitary electromagnetic flowmeters are all FDA certified. Food hygiene requires a minimum metal material of stainless steel 304. We use stainless steel 316L with better hygiene requirements. It is a perfect choice for food and beverage processing plants.

Product Name Sanitary Electromagnetic Flowmeter
Size DN6mm-DN150mm
Accuracy ±0.5% or ±0.2%
Nominal Pressure 1.6Mpa
Media conductivity ≥5μS/cm
process temperature -40℃~135℃, PFA lining (integrated)
-40℃~180℃, PFA lining (separate type)
Explosion-proof grade NEPSI,CNEX Exdb eb ia IIC T3~T6 Gb
Liner PFA
Protection Class IP67/IP68

Power Supply
AC220V(Can be used for AC85-250V)
DC24V(Can be used for DC20-36V)
DC12V(Optional),Battery Powered 3.6V(Optional)
Electrode SUS316L, Hastelloy B, Hastelloy C,
Titanium, Tantalum, Platinum-iridium
Communication MODBUS RTU RS485, HART(Optional), GPRS/GSM(Optional)

Aimag H1

Magnetic Flowmeter Food Grade

Aimag H2

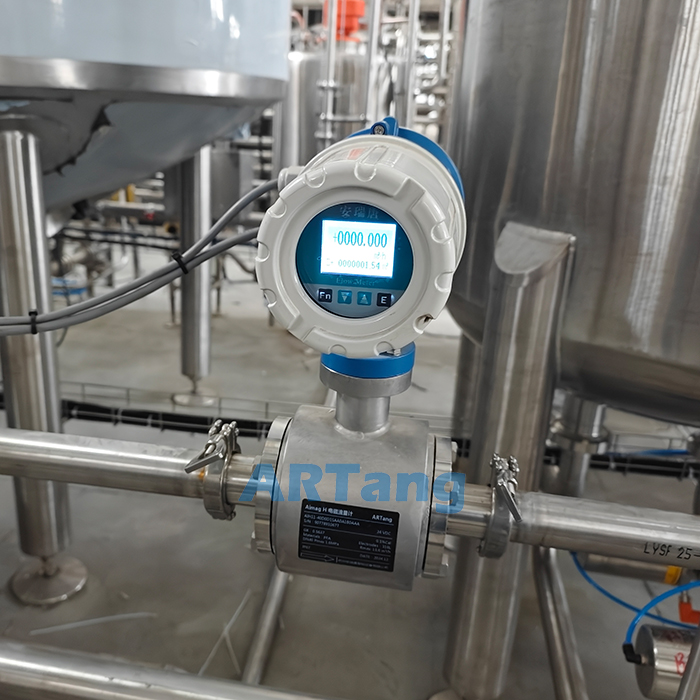

Tri Clamp Electromagnetic Flow Meter

Electromagnetic Flow Meter for Milk Beer Features

  1. Specially used in food, pharmaceutical, beverage and other industries;

  2. The measurement is not affected by changes in fluid density, viscosity, temperature, pressure, and conductivity;

  3. There are no moving parts or flow-blocking parts in the measuring tube, and there is almost no additional pressure loss during measurement;

  4. The instrument body is made of stainless steel (316L), and the electrode and lining materials meet sanitary standards;

  5. The use of foreign advanced structural optimization design greatly improves the accuracy and repeatability of the instrument;

  6. This series of sanitary electromagnetic flow meters has reached the international level of similar products and is an ideal measurement and control instrument for conductive liquids in sanitary industries.

  7. High-definition backlit LCD display, full Chinese menu operation, easy to use, simple to operate, easy to learn and understand.

  8. The only sanitary electromagnetic flowmeter manufacturer in China that has passed 3A certification.
