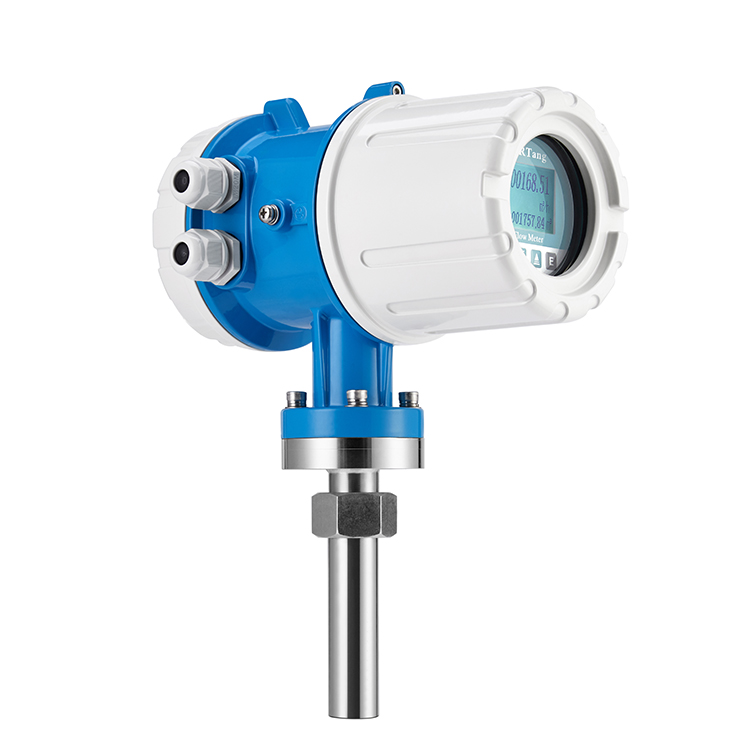

Insertion electromagnetic flowmeter is a new type of fluid flow meter developed on the basis of pipeline electromagnetic flowmeter. It is specially used to measure the flow rate of conductive liquids in large pipelines. This flowmeter is directly installed in the pipeline and measures the liquid flow rate by detecting the electromagnetic field generated by the flow. It consists of a probe inserted into the pipeline and a transmitter installed outside the pipeline.
Insertion electromagnetic flowmeters are usually used in large pipelines where flange electromagnetic flowmeters cannot be installed. They are usually used in industries such as water treatment, wastewater treatment and chemical processing. One of the advantages of insertion electromagnetic flowmeters is that they can be installed without shutting down the process, saving time and money. Electromagnetic flowmeters can be divided into integral type electromagnetic flowmeters, remote type electromagnetic flowmeters, clamping electromagnetic flowmeters and insertion electromagnetic flowmeters according to different needs and installation methods.
Model | Aimag I |
Applications | Water/Sewage |
Nominal Diameter | DN25~DN3000 |
Probe/Electrode Material | 316L,Customized |
Probe/Electrode Material Process Temperature | PVDF (-20℃~100℃) |
Process Connection | Welded, Flange, Threaded(Customize) |
Process Pressure | PN16 |
Accuracy | 士1.5%/1% |
Output | 4~20mA/Frequency/Pulse |
Communication | HART, Modbus RS485 PROFIBUS DP |
Certificates | CNEX, NEPSI CE,EAC |
Protection Grade | IP67 (IP68 optional) |
Features of Insertion Electromagnetic Flowmeter
Insertion electromagnetic flowmeter can be installed and disassembled without interrupting flow, which is convenient for users to maintain and repair.
The measurement is not affected by the material of the measured pipe.
There is no need for lining and grounding ring.
The manufacturing cost and installation cost are lower than those of general electromagnetic flowmeters, and it is particularly suitable for flow measurement in large and medium-diameter pipelines.
The online pluggable installation type product can be easily installed and disassembled without stopping water under low pressure or pressure.
It can be easily installed in existing pipelines, which is very suitable for adding flow measurement and monitoring points to existing pipelines.
It adopts advanced low-frequency square wave excitation, with stable zero point, strong anti-interference ability and reliable operation.
In addition to the advantages of general pipeline electromagnetic flowmeters, insertion-type electromagnetic flowmeters also have their own advantages, such as small size, light weight, easy installation and use, and low production and installation costs. Therefore, if the pipe diameter is large, the insertion connection is the best choice.
Insertion Type Magnetic Flow Meters
Plug-in Electromagnetic Flowmeter
Insertion Type Electromagnetic Flowmeter and Ordinary Electromagnetic Flowmeter Difference
Connection: insertion type electromagnetic flowmeter is convenient, no need to cut off the pipeline; directly in the pipeline hole; pipe section type, need to cut off the pipeline;
Accuracy: insertion type electromagnetic flowmeter accuracy is in ±1% or ±1.5%; pipe section electromagnetic flowmeter accuracy is in 0.5% ~ 0.2% leve
Cost: for large caliber, insertion type electromagnetic flowmeter cost is lower.
Ordinary electromagnetic flowmeter price in addition to lining and electrode materials, but also with the size of its caliber, the larger the caliber, the more expensive electromagnetic flowmeter, but the insertion of electromagnetic flowmeter price basically does not change with the diameter of the pipe, so in the measurement of the flow of large-caliber pipeline, especially suitable for the use of insertion-type electromagnetic flowmeter, which can greatly reduce the cost of equipment.
