Slurry Electromagnetic flow meter in addition to measuring the volume flow of general conductive liquids, can also be used to measure the strong acid, strong alkali and other strong corrosive liquids, as well as mud, pulp, pulp and other homogeneous liquid-solid two-phase suspended liquid volume flow. But it can not measure the flow of gas, steam and pure water.
In order to adapt to different application scenarios, electromagnetic flowmeter can be realized by replacing different electrode materials and electrode forms. Commonly used electrode materials are stainless steel, titanium, platinum-rhodium alloy, tungsten-carbon alloy, etc. In different working scenarios of electromagnetic flow meter, different electrode materials and electrode forms can be selected according to the corrosiveness and abrasiveness of the medium to better adapt to the measurement needs.
Model Number | Aimag S |
Application | Paper Making Industry and Many Solid Fluids |
Nominal Diameter | DN15 ~ DN600 |
Structure Type | Compact / Remote |
Electrode Material | Stainless Steel, Hastelloy, Tantalum, Titanium, Platinum |
Lining Material | PU, PTFE, PFA, CR |
Process connection | Flange: GB, ANSI, DIN, JIS |
Process Pressure | PN16 ~ 40 / CLASS 150/300 / JIS 10K/20K |
Accuracy | ± 0.5% / ±0.2% |
Output Signal | 4~20mA Frequency / Pulse |
Communication | HART, Modbus RS485, PROFIBUS DP |
Explosion Certification | CQEx, NEPSI |
Certification | CE, SIL |
Protection Grade | IP67 / IP68(optional) |

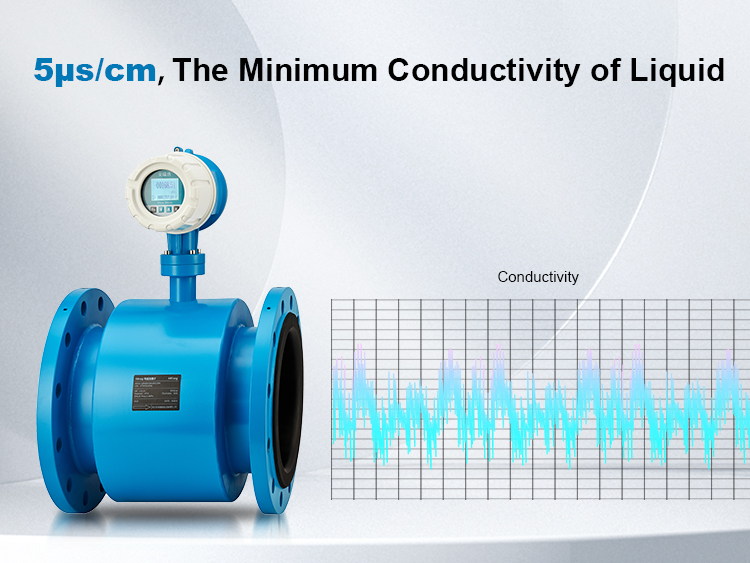

Consisting of a sensor and converter, the electromagnetic flow meter is suitable for measuring fluid mediums with a conductivity of ≥ 5μS/cm.
Measurement remains unaffected by changes in fluid density, viscosity, temperature, pressure, and conductivity.
Carefully selected electrode and lining materials enable the meter to measure various corrosive, abrasion-resistant conductive mediums effectively.
Stainless steel electromagnetic flow meter feature automatic flow direction identification, capable of measuring bidirectional flow. They offer current, frequency, pulse, and RS485 digital communication outputs, along with flow rate upper and lower limit alarms, and fault alarms.
Magnetic flow meters provide real-time display of flow rate, velocity, flow percentage, forward and reverse cumulative flow, and differential flow, facilitating easy reading.

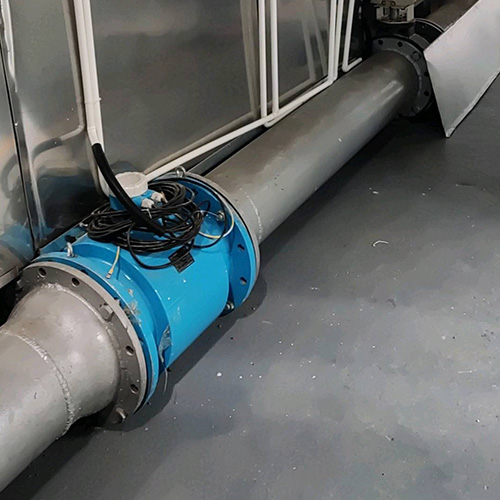

They are available in explosion-proof electromagnetic flow meter, sanitary electromagnetic flow meter, split electromagnetic flow meter, and integral electromagnetic flow meter configurations to suit installation requirements in different field environments.

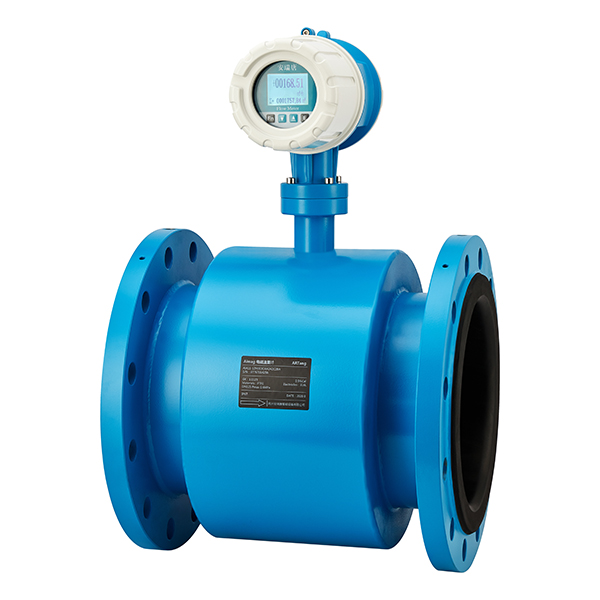

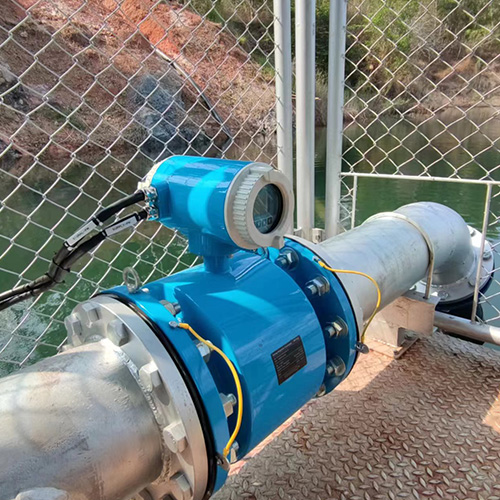

Slurry Electromagnetic Flowmeter

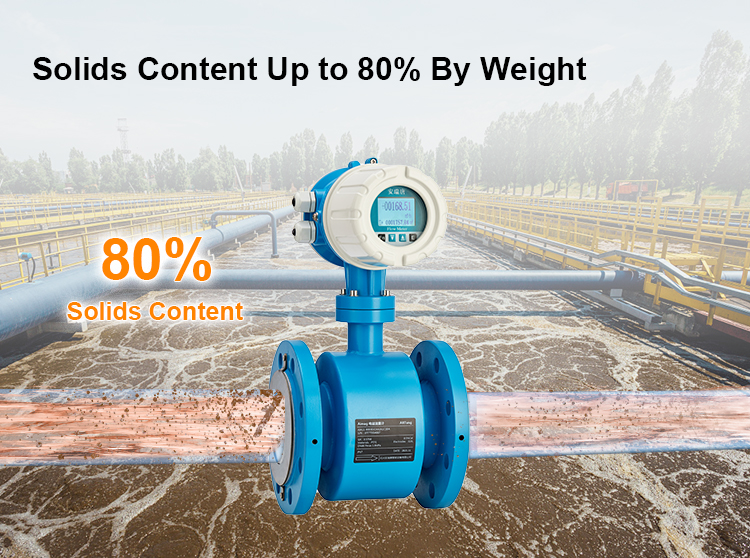

Sewage Electromagnetic Flow Meter
The accuracy of the electromagnetic flow meter can be chosen between ±0.2% and ±0.5%.
Wide range of pipe diameters, capable of measuring pipe diameters from DN15 to DN600.
The protection level of the electromagnetic flow meter can be chosen between IP67 and IP68. IP67 is water-resistant, meaning the instrument can be fully submerged in water. IP68 is submersible, capable of working underwater for long periods.
Installation methods: Flange installation (default); clamp installation (customized); ferrule installation (customized).
Selection of electrodes and linings:
Electrode types: 316L electrode (standard); HB/HC alloy electrode; titanium electrode; tantalum electrode; platinum-iridium electrode.
Lining materials: CR/F4/PFA/UR/F46.

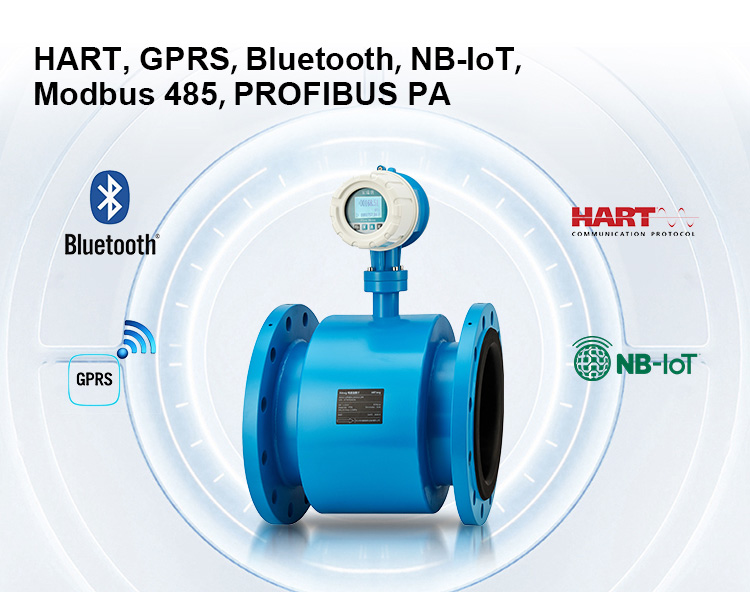

Multiple signal and communication outputs:
Output signals (4-20mA frequency/pulse)
Communication (HART/Modbus RS485/PROFIBUS DP)
Equipped with self-check, self-diagnosis, and alarm functions.
Medium temperature resistance:
Neoprene rubber: (-10~80)℃
Polyurethane rubber: (-20~65)℃
PTFE/FEP: (-40~130)℃ (integrated type)
PTFE/FEP: (-40~180)℃ (separate type)
PFA: (-20~130)℃ (integrated type)
PFA: (-20~180)℃ (separate type)
Slurry magnetic flowmeter in addition to measuring the volume flow of general conductive liquids, can also be used to measure strong acids and alkalis and other strong corrosive liquids and slurries, slurries, pulp and other conductive liquids and slurries of the volume flow of the measurement of Slurry magnetic flowmeter is widely used in the chemical industry, mining and metallurgy, water supply and drainage, papermaking, medicine, food, petrochemical, electric power, light industry, agricultural irrigation, water conservancy and other industries. , electric power, light industry, agricultural irrigation, water conservancy and other industries.

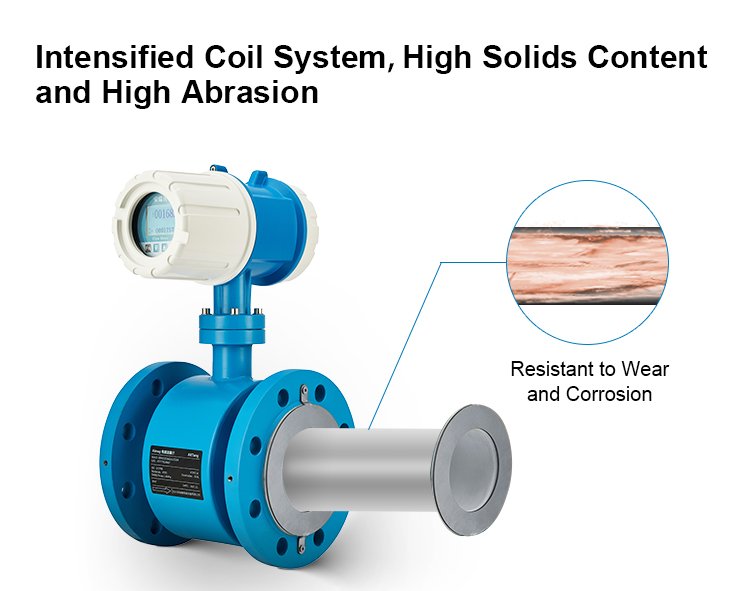

Aimag S electromagnetic flowmeter adopts unique high-frequency excitation technology. It can effectively reduce the signal noise, and realize stable measurement through unique signal processing technology and noise reduction algorithm. It is especially suitable for the application of abrasive and corrosive fluids.
ARTang - Chinese Instrument Manufacturer
Focus on customer value, climb the peak of science and technology, Hangzhou ARTant Intelligent Equipment Co., Ltd. is a technology-based enterprise that provides customers with instruments for the automation industry.
Hangzhou ARTang concentrates on independent R&D and self-innovation. The tenet of the company is R&D, Quality First, Excellent Service. We strive to provide customers with one-stop measurement solution for the process automation industry. These services include technical consultation, product application, parameter calibration and personnel training, etc.
Automatic Calibration Line
Endress+Hauser Master Calibration
Gravimetric Calibration
Machining Workshop
Welding Proccess
Flange Process
Accuracy Calibration
Packaging
