Diameter nominal: DN6-DN150
Accuracy: ±0.5%/±0.2%
Liner& Process Temperature: PFA: -40℃~160℃; PTFE: -40℃~130℃
Process pressure: max. 40 bar
Hygienic connection: Tri-clamp, Clamp, Thread, Welding
Certificates: FDA, 3A
Â
Â
Availability: | |
---|---|
Quantity: | |
|
Specification
Model Number | Aimag H |
Nominal Diameter | DN6 ~ DN150 |
Accuracy | ±0.5% / ±0.2% |
Electrode Material | Stainless Steel 316L; Hastelloy B; Hastelloy C; Platinum; Tantalum; Titanium |
Lining Material | PTFE; Neoprene; Hard Rubber; Polyurethane; PFA; FEP |
Ambient Temperature | -20℃~60℃, with display -40℃~60℃, without display |
Process temperature | -20℃~80℃, Neoprene -20℃~65℃, Polyurethane -40℃~130℃, PTFE -40℃~160℃, FEP -40℃~180℃, PFA high temperature |
Measuring Range | 0.1m/s~12m/s |
Conductivity | ≥2us/cm |
Output Signal | 4~20mA / Frequency / Pulse |
Communication | Modbus RS485(Standard), HART(Optional), GPRS/GSM (Optional) |
Explosion Certification | NEPSI Ex db eb ia IIC T3…T6 Gb |
Certification | ISO, EAC, 3A, CE, SIL |
Protection Grade | IP67 / IP68(optional) |

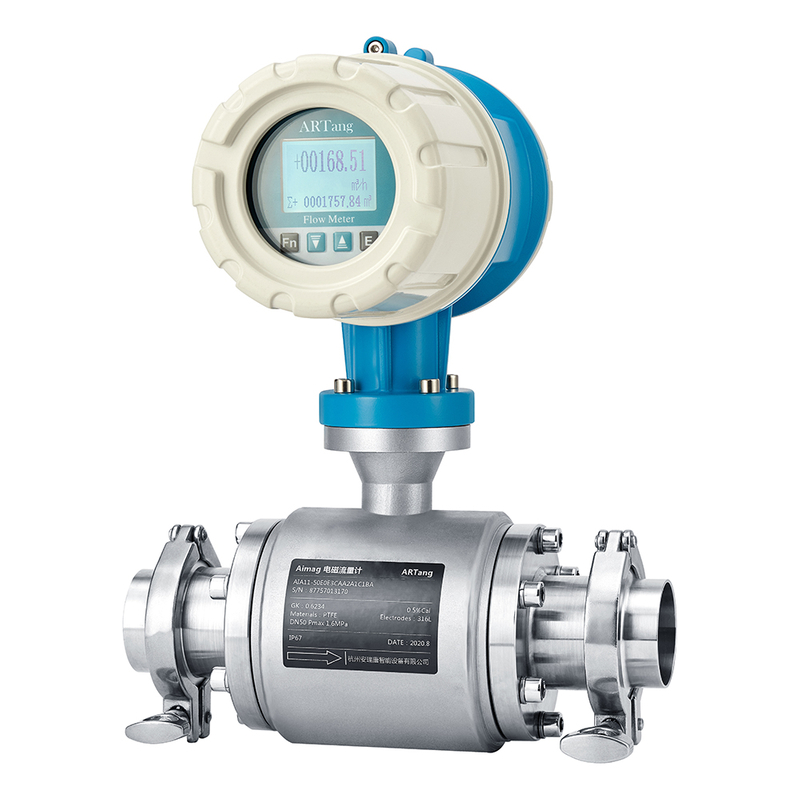

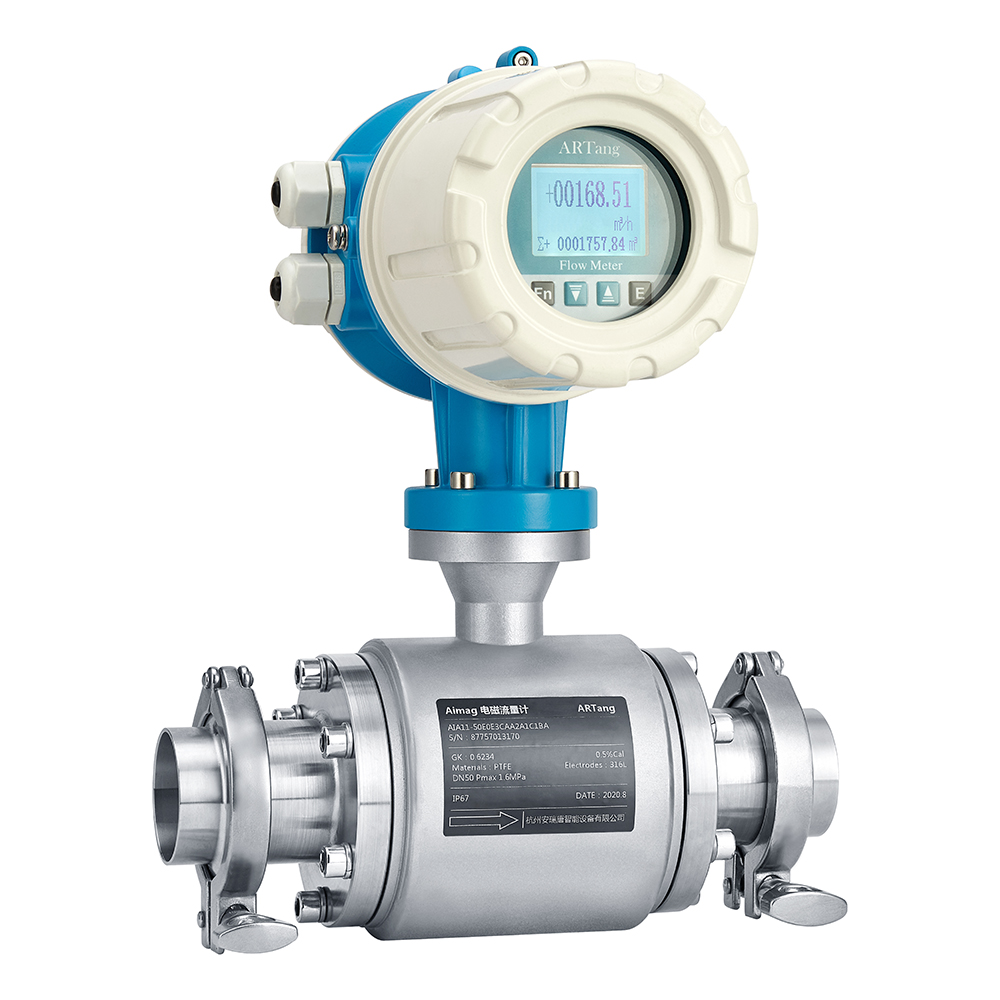

Product Description
Sanitary electromagnetic flowmeters are mainly used for flow measurement in the food, beverage and pharmaceutical industries. The PFA lining meets the sanitary design requirements of the US FDA (US Food and Drug Administration) CFR Title 21. The sensor is suitable for CIP/SIP cleaning, which allows the sensor to be seamlessly connected to the process pipeline. All stainless steel meter bodies are fully welded to prevent internal components and wiring from being damaged by high-pressure steam, water and sanitary chemicals.
|
Introduction
Accurate Measurement: Sanitary electromagnetic flowmeters provide accurate measurement regardless of medium type, temperature, viscosity or density, ideal for food processing.
Food Grade Design: Designed to meet food-grade standards with linings from the same suppliers as E+H and Krohne; smooth, seamless construction facilitates cleaning and prevents bacteria growth, ensuring a hygienic environment.
Durable Stainless Steel Housing: Compact, all-stainless steel housing offers superior protection against cleaning chemicals and harsh environments common in food processing facilities.
Enhanced Display Features: A standard backlit graphic display provides metering information through numbers, text, and images, allowing for a more intuitive and user-friendly programming experience.
Advanced PFA Liner: Inside, a PFA liner increasing pressure, temperature, and vacuum tolerance, making it suitable for high-temperature and aseptic applications.
Compact Design: Designed to fit into tight spaces, the ARTang compact size ensures flexible installation without sacrificing measurement performance.
3-A compliant: Third party verified in accordance with standard 28-04.
|
Advantages Of Sanitary Electromagnetic Flow Meters

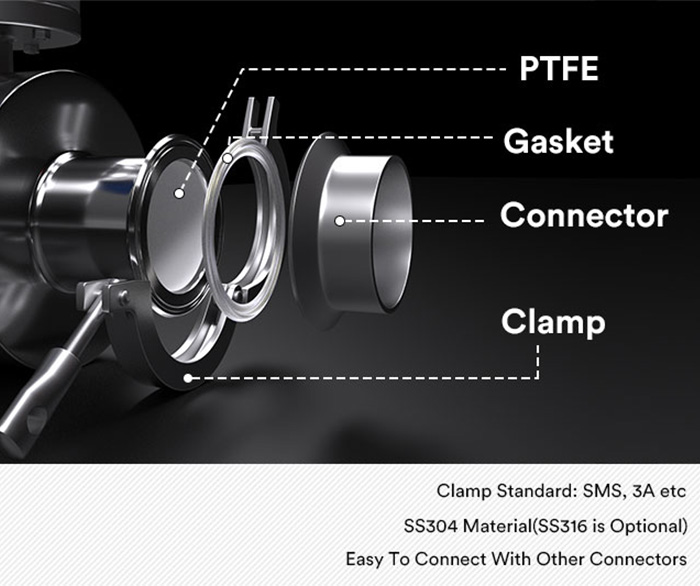

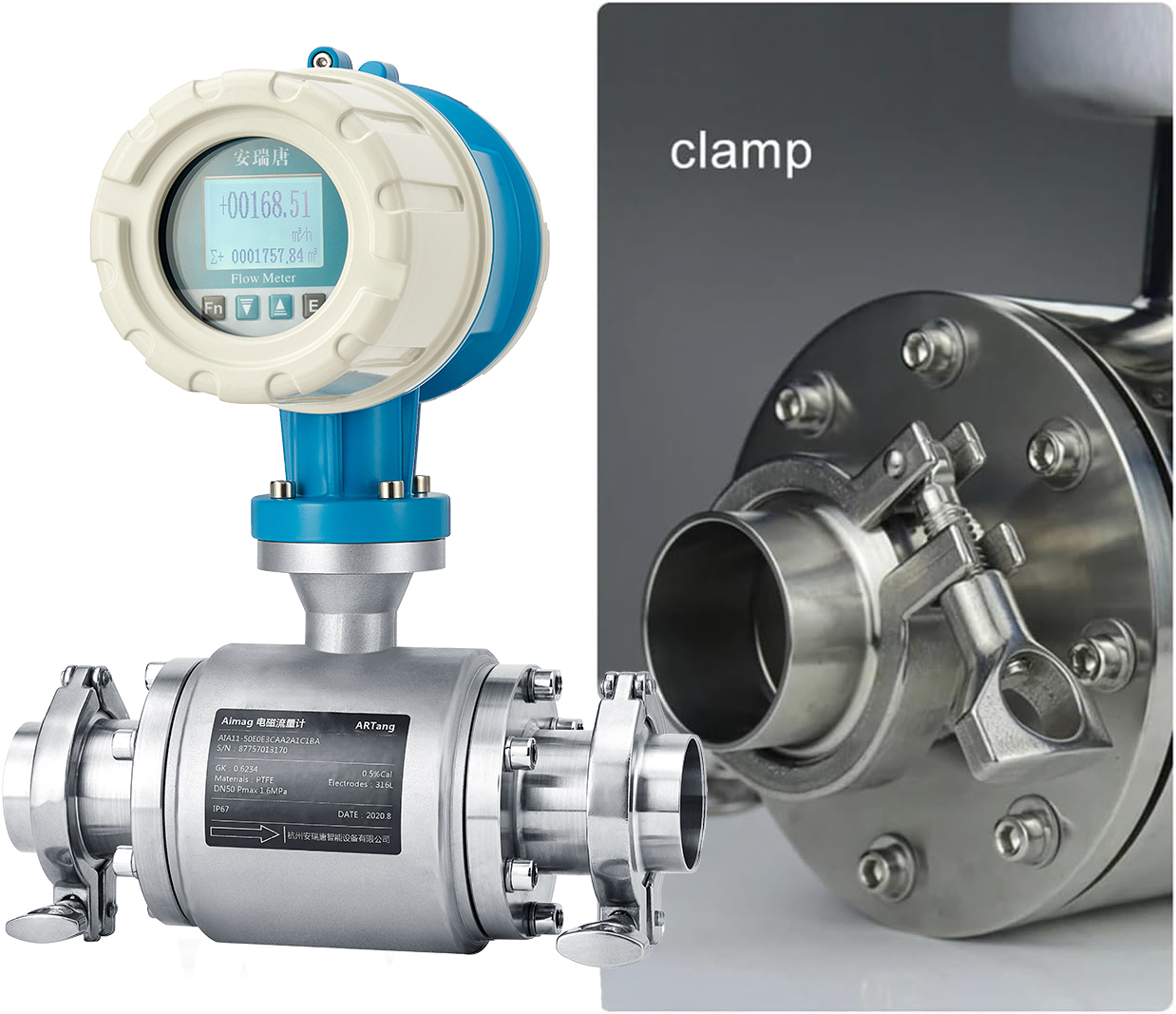

Hygienic connection
Tri-clamp, Clamp(DIN 32676), Clamp (ISO 2852), Thread (DIN 11851), Welding (DIN 11850) 3A certified, meets the hygienic standard.

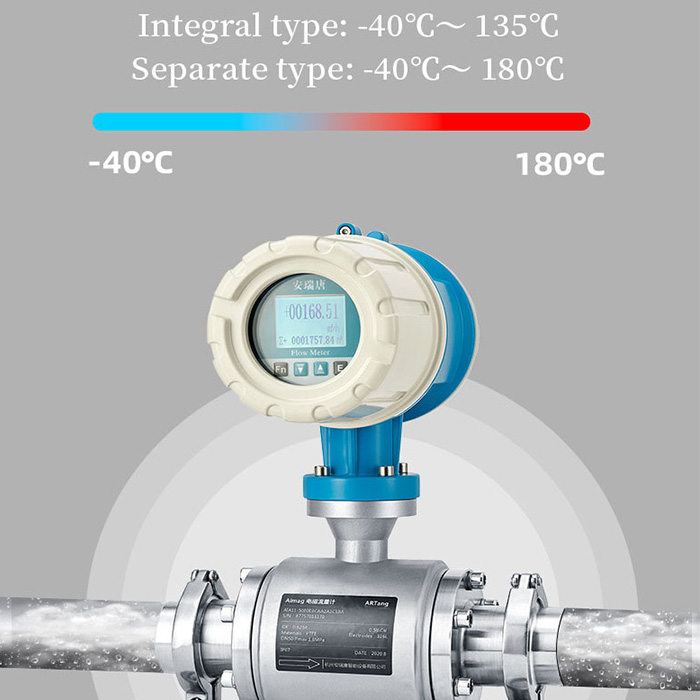

High temperature resistance
High temperature resistance, acid, alkali, Suitable for CIP cleaning process and SIP sterilization requirements

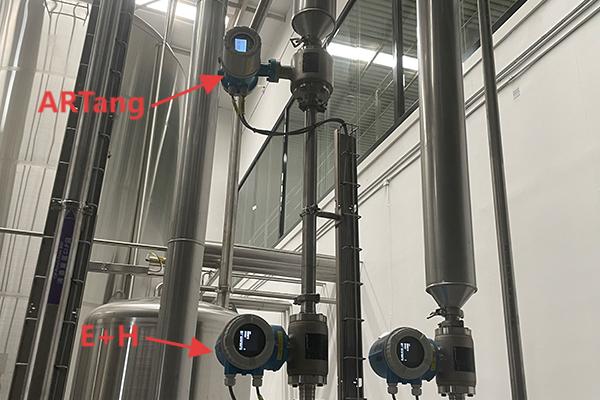

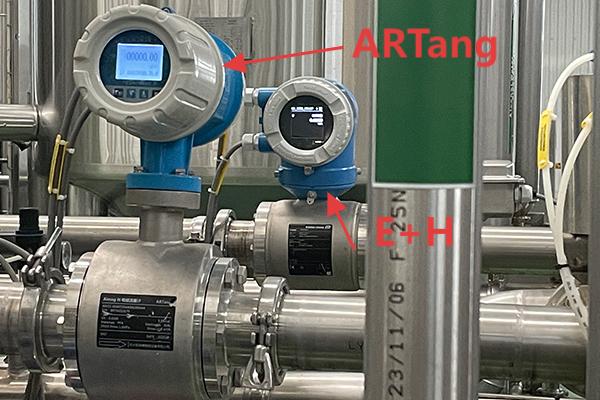

ARTang - Where Hygiene Meets Affordability
Use the same materials of internationally renowned first-tier brands
The process connection part is integrally formed to ensure that the roughness meets the hygienic requirements, with higher strength, more hygiene and safety.
The Wetted parts have passed FDA Certification
All relevant wetted plastic parts have passed FDA certification. All relevant wetted metal parts are tested using spectrometers and have material certificates;
Wetted materials 3A certified, meets the hygienic standard
The Only One Manufacturer Who Obtained 3-A Sanitary Standards Certificate for Flow Meters in China; Variants with 3-A Sanitary Standards, FDA compliance.
|

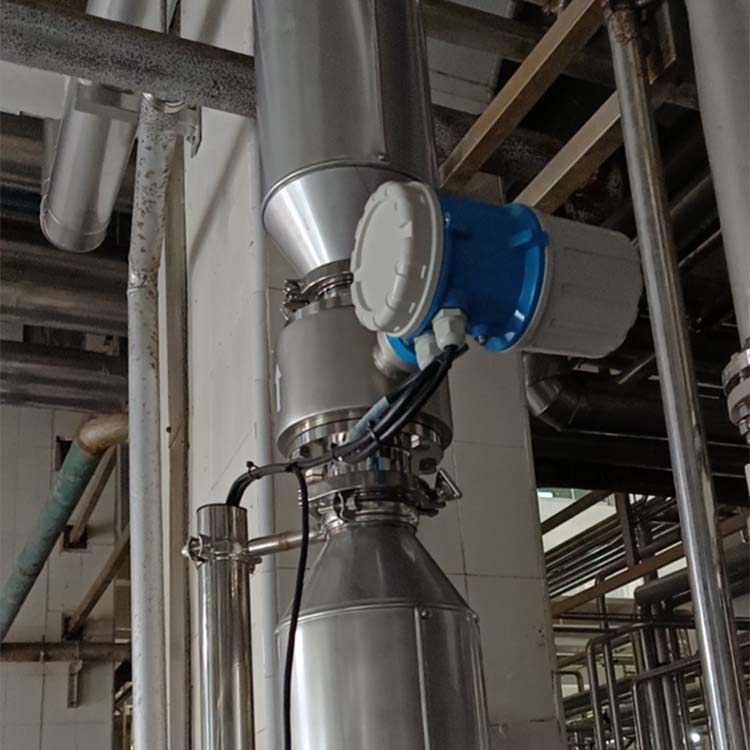

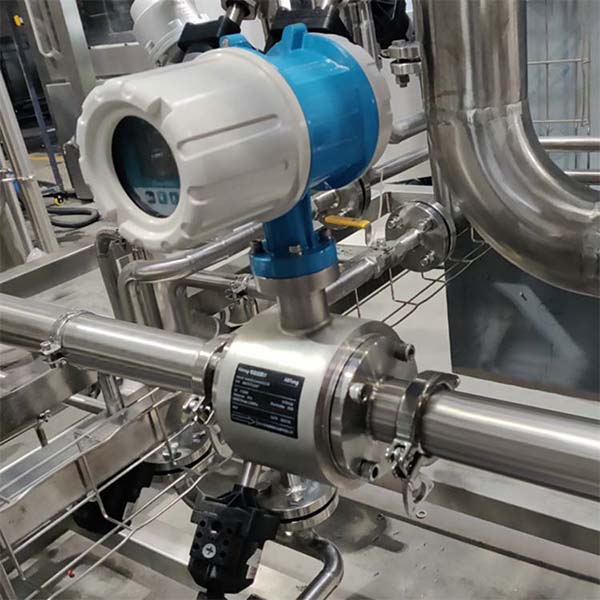

Application
Electromagnetic flow meters have been used throughout industries for more than 60 years. Ideal for diverse applications such as milk, cream, beer, tomato paste, sauces, molasses, yogurt, slurries, concentrates, and cleaning solutions, the ARTang operates with fluids of any viscosity, withstands temperatures up to 325°F.
Beverage
Milk
Food & Beverage
Beer
|
Automatic calibration line
|
Specification
Model Number | Aimag H |
Nominal Diameter | DN6 ~ DN150 |
Accuracy | ±0.5% / ±0.2% |
Electrode Material | Stainless Steel 316L; Hastelloy B; Hastelloy C; Platinum; Tantalum; Titanium |
Lining Material | PTFE; Neoprene; Hard Rubber; Polyurethane; PFA; FEP |
Ambient Temperature | -20℃~60℃, with display -40℃~60℃, without display |
Process temperature | -20℃~80℃, Neoprene -20℃~65℃, Polyurethane -40℃~130℃, PTFE -40℃~160℃, FEP -40℃~180℃, PFA high temperature |
Measuring Range | 0.1m/s~12m/s |
Conductivity | ≥2us/cm |
Output Signal | 4~20mA / Frequency / Pulse |
Communication | Modbus RS485(Standard), HART(Optional), GPRS/GSM (Optional) |
Explosion Certification | NEPSI Ex db eb ia IIC T3…T6 Gb |
Certification | ISO, EAC, 3A, CE, SIL |
Protection Grade | IP67 / IP68(optional) |
Product Description
Sanitary electromagnetic flowmeters are mainly used for flow measurement in the food, beverage and pharmaceutical industries. The PFA lining meets the sanitary design requirements of the US FDA (US Food and Drug Administration) CFR Title 21. The sensor is suitable for CIP/SIP cleaning, which allows the sensor to be seamlessly connected to the process pipeline. All stainless steel meter bodies are fully welded to prevent internal components and wiring from being damaged by high-pressure steam, water and sanitary chemicals.
|
Introduction
Accurate Measurement: Sanitary electromagnetic flowmeters provide accurate measurement regardless of medium type, temperature, viscosity or density, ideal for food processing.
Food Grade Design: Designed to meet food-grade standards with linings from the same suppliers as E+H and Krohne; smooth, seamless construction facilitates cleaning and prevents bacteria growth, ensuring a hygienic environment.
Durable Stainless Steel Housing: Compact, all-stainless steel housing offers superior protection against cleaning chemicals and harsh environments common in food processing facilities.
Enhanced Display Features: A standard backlit graphic display provides metering information through numbers, text, and images, allowing for a more intuitive and user-friendly programming experience.
Advanced PFA Liner: Inside, a PFA liner increasing pressure, temperature, and vacuum tolerance, making it suitable for high-temperature and aseptic applications.
Compact Design: Designed to fit into tight spaces, the ARTang compact size ensures flexible installation without sacrificing measurement performance.
3-A compliant: Third party verified in accordance with standard 28-04.
|
Advantages Of Sanitary Electromagnetic Flow Meters
Hygienic connection
Tri-clamp, Clamp(DIN 32676), Clamp (ISO 2852), Thread (DIN 11851), Welding (DIN 11850) 3A certified, meets the hygienic standard.
High temperature resistance
High temperature resistance, acid, alkali, Suitable for CIP cleaning process and SIP sterilization requirements
ARTang - Where Hygiene Meets Affordability
Use the same materials of internationally renowned first-tier brands
The process connection part is integrally formed to ensure that the roughness meets the hygienic requirements, with higher strength, more hygiene and safety.
The Wetted parts have passed FDA Certification
All relevant wetted plastic parts have passed FDA certification. All relevant wetted metal parts are tested using spectrometers and have material certificates;
Wetted materials 3A certified, meets the hygienic standard
The Only One Manufacturer Who Obtained 3-A Sanitary Standards Certificate for Flow Meters in China; Variants with 3-A Sanitary Standards, FDA compliance.
|
Application
Electromagnetic flow meters have been used throughout industries for more than 60 years. Ideal for diverse applications such as milk, cream, beer, tomato paste, sauces, molasses, yogurt, slurries, concentrates, and cleaning solutions, the ARTang operates with fluids of any viscosity, withstands temperatures up to 325°F.
Beverage
Milk
Food & Beverage
Beer
|
Automatic calibration line
About ARTang
ARTang is a global leader in measurement instrumentation, services and solutions for industrial process engineering that energizes the transformation of society and industry to achieve a more productive, sustainable future. We provide process solutions for flow, level, pressure, analytics and digital communications, optimizing processes in terms of economic efficiency, safety & environmental impact.
