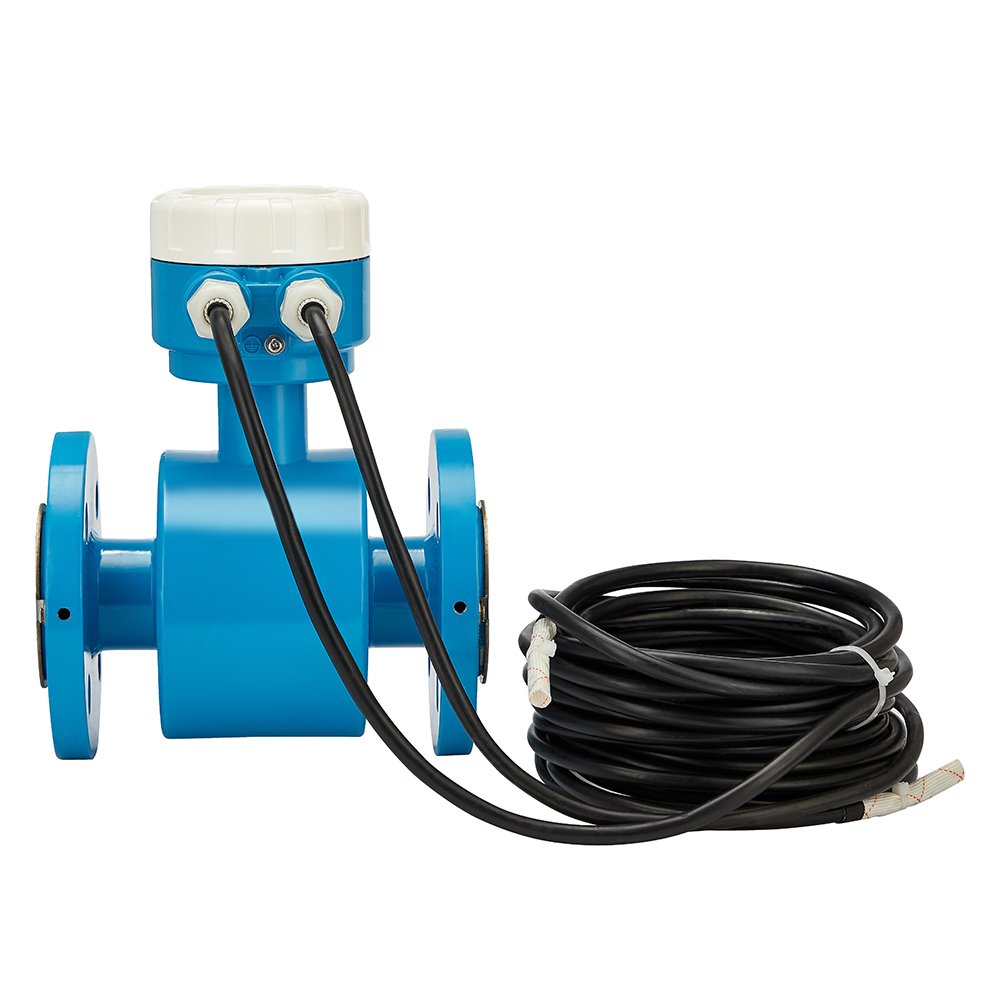

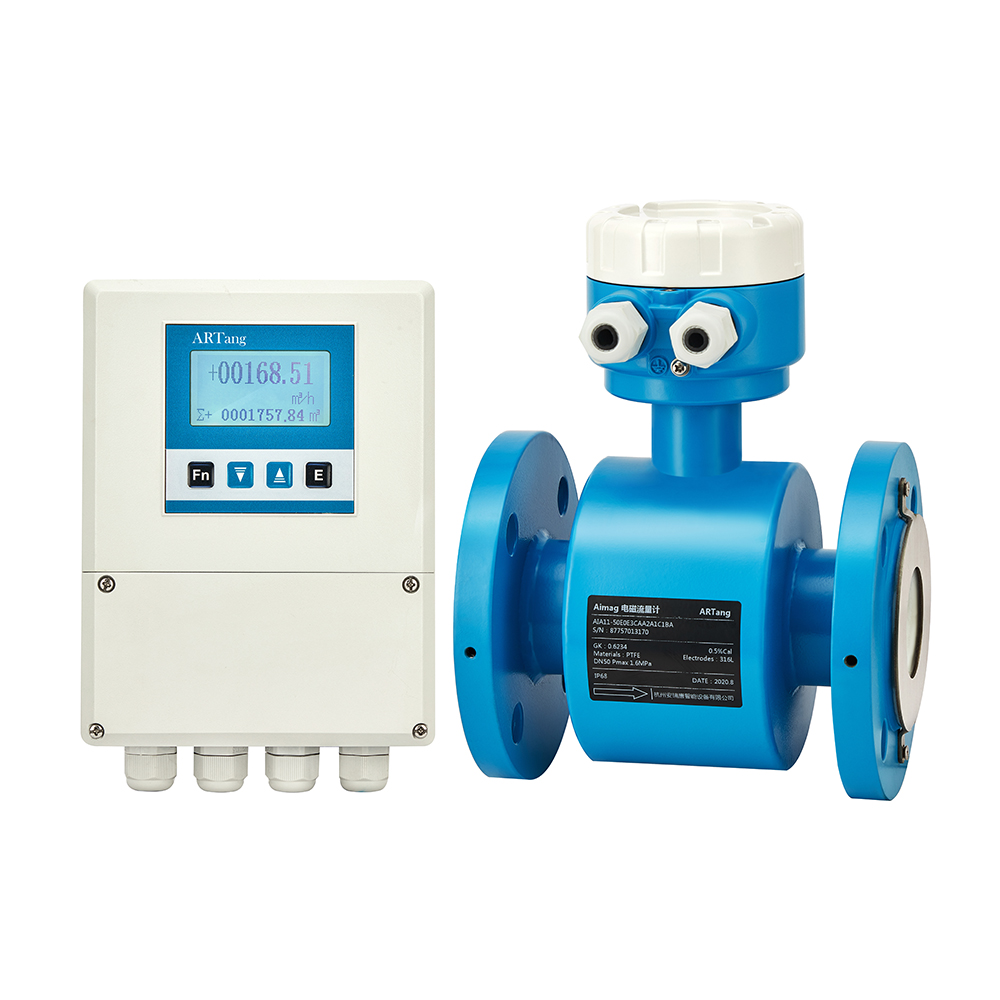

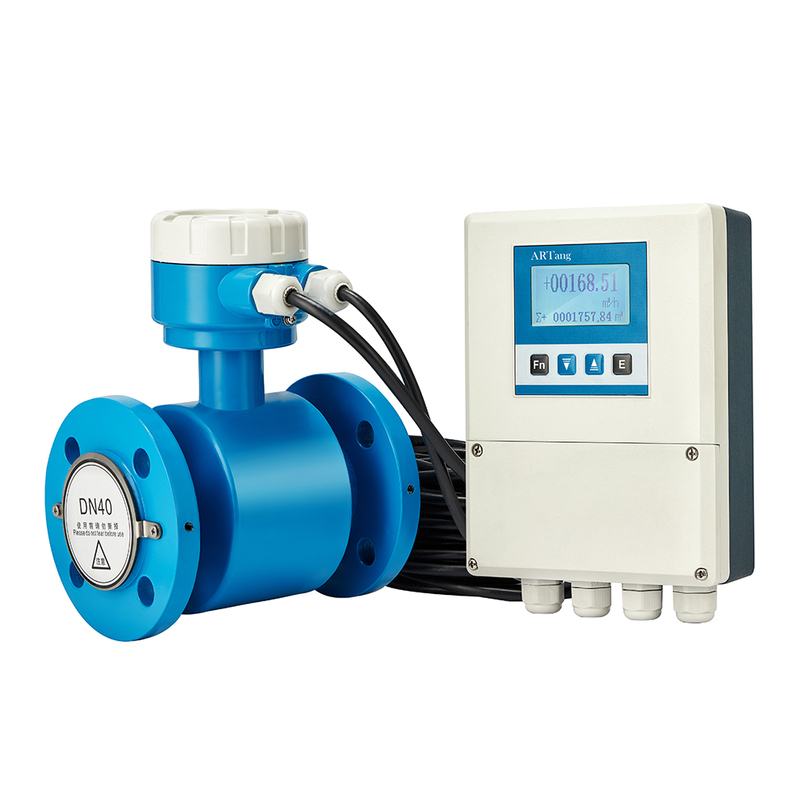

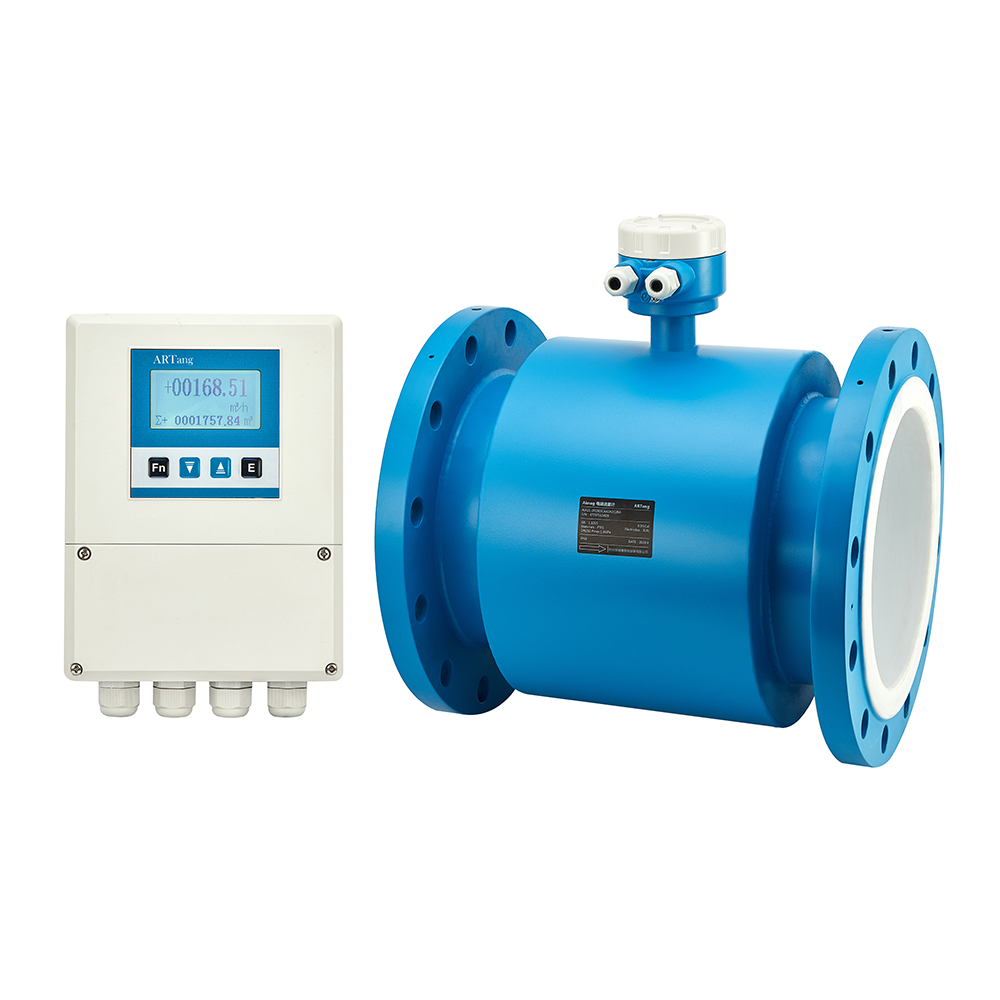

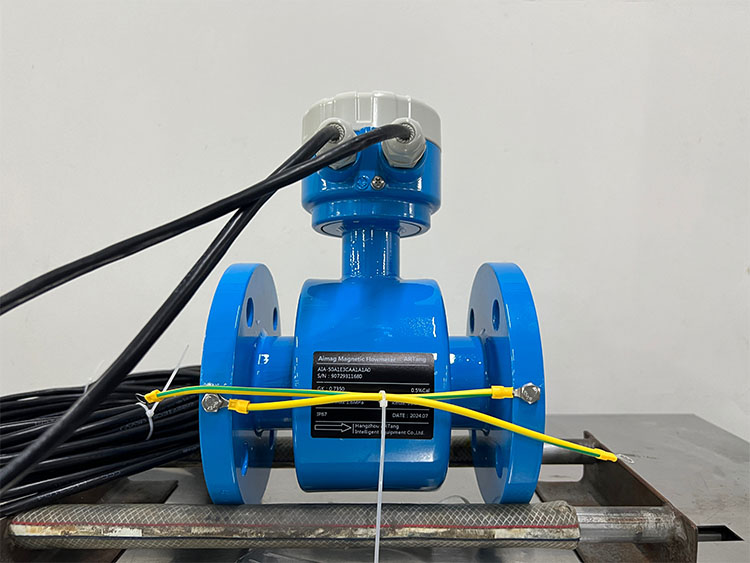

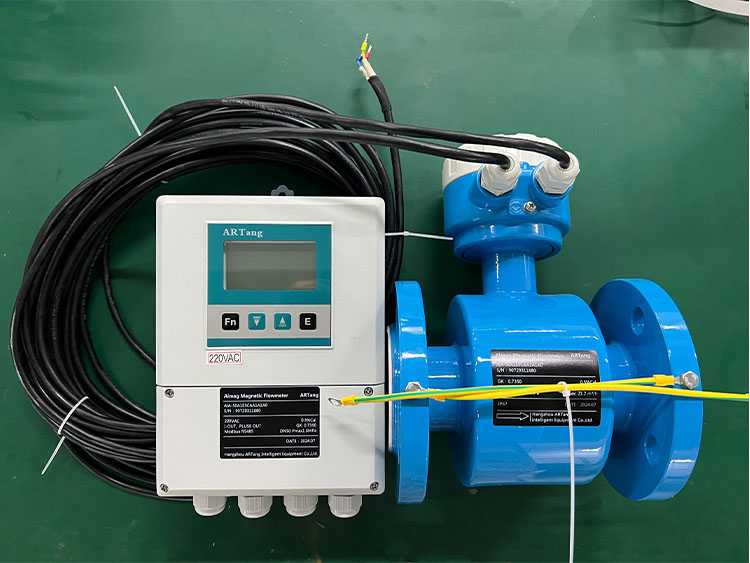

A split-type electromagnetic flowmeter features a split design where the sensor and the display controller are separate. The sensor is installed on the fluid pipeline, while the display controller can be flexibly positioned wherever needed. The converter is installed within 30 meters (or 100 meters) of the sensor, connected by a shielded cable. This design not only makes installation and maintenance more convenient but also reduces the impact on the pipeline structure, making it suitable for flow measurement requirements in various process applications.
The selection of a Split type electromagnetic flow meter is similar to that of other magnetic flow meters, with the measurement parameters of the field conditions being crucial for instrument selection. Key parameters include diameter, measurement medium, operating temperature, operating pressure, flow range, lining and electrode materials, and accuracy requirements.
| Model Number | Aimag C |
| Application | Chemical Industry |

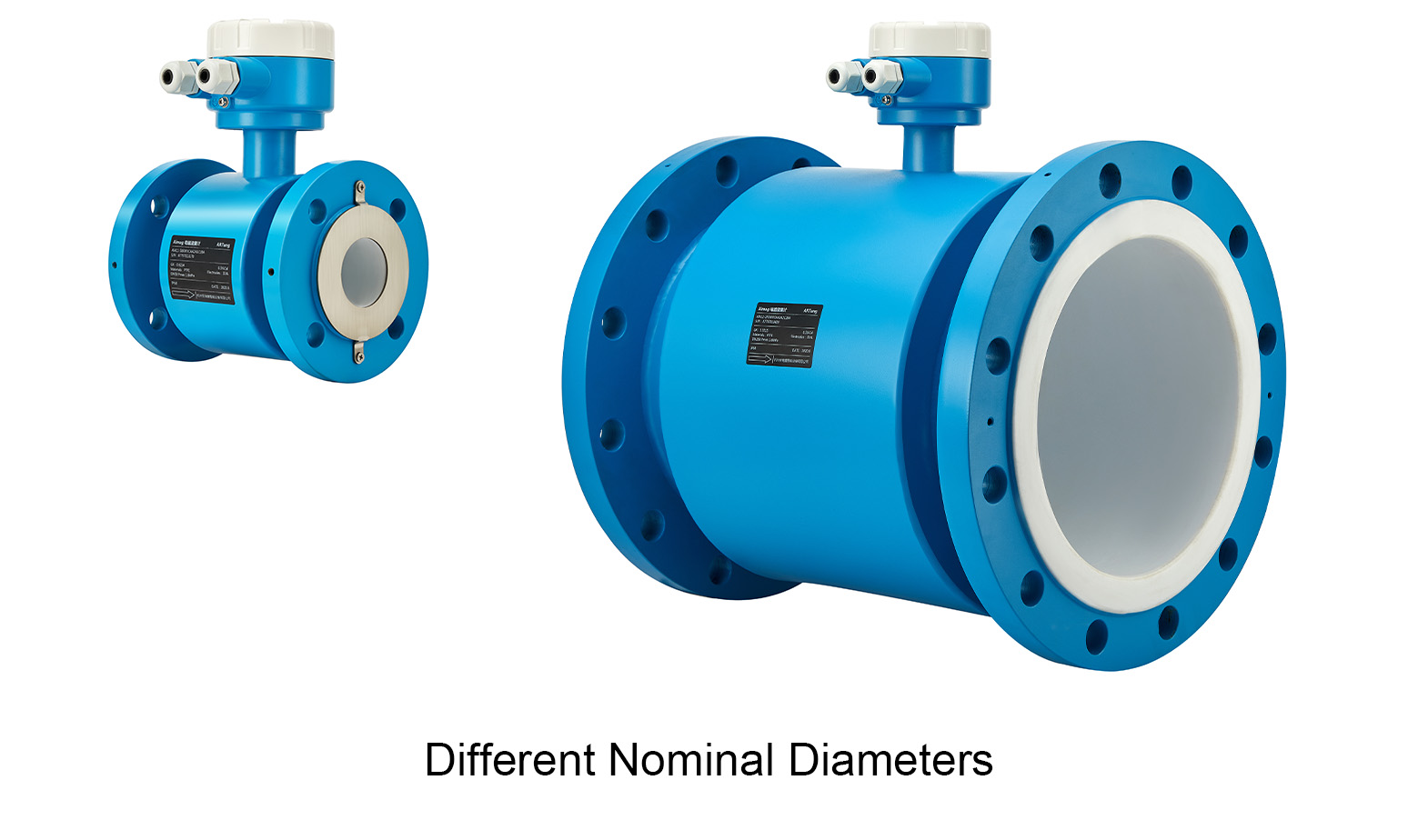

| Nominal Diameter | DN15 ~ DN600 |
| Structure Type | Remote |
| Electrode Material | Stainless Steel, Hastelloy, Tantalum, Titanium, Platinum |
| Lining Material | PU, PTFE, PFA, CR |
| Process connection | Flange: GB, ANSI, DIN, JIS |
| Process Pressure | PN16 ~ 40 / CLASS 150/300 / JIS 10K/20K |
| Accuracy | ± 0.5% / ±0.2% |
| Output Signal | 4~20mA Frequency / Pulse |
| Communication | HART, Modbus RS485, PROFIBUS DP |
| Explosion Certification | CQEx |
| Certification | CE, SIL |
| Protection Grade | IP67 / IP68(optional) |
Integrated type electromagnetic flowmeter: Generally chosen for conditions with favorable site and environment, where the sensor and converter are assembled into one unit.
Split electromagnetic flowmeter: The sensor and converter are installed in different locations, typically selected in the following situations:
Based on the temperature of the measured medium, an integrated electromagnetic flowmeter can withstand temperatures up to 80°C, while a split-type electromagnetic flowmeter can withstand temperatures up to 150°C. Choose the appropriate flowmeter according to the medium temperature.
Consider whether there are explosion-proof requirements; split-type electromagnetic flowmeters are typically used in harsher working environments, so they have a higher protection rating, usually IP68.
In conditions with significant pipeline vibrations.
In environments where the aluminum housing of the sensor would be severely corroded.
In areas with high humidity or corrosive gases.
When the flow meter is installed at high altitudes or underground where it is inconvenient to debug.
When ordering, the separation distance between the sensor and the converter should be specified, generally not exceeding 100 meters. The converter is wall-mounted.
● Wide variety of wetted materials.
● No moving parts, maintenance-free.
● Compact and remote version are available.
● Max. process pressure up to 26MPa.
● Meet GB3836 explosion-proof standards.

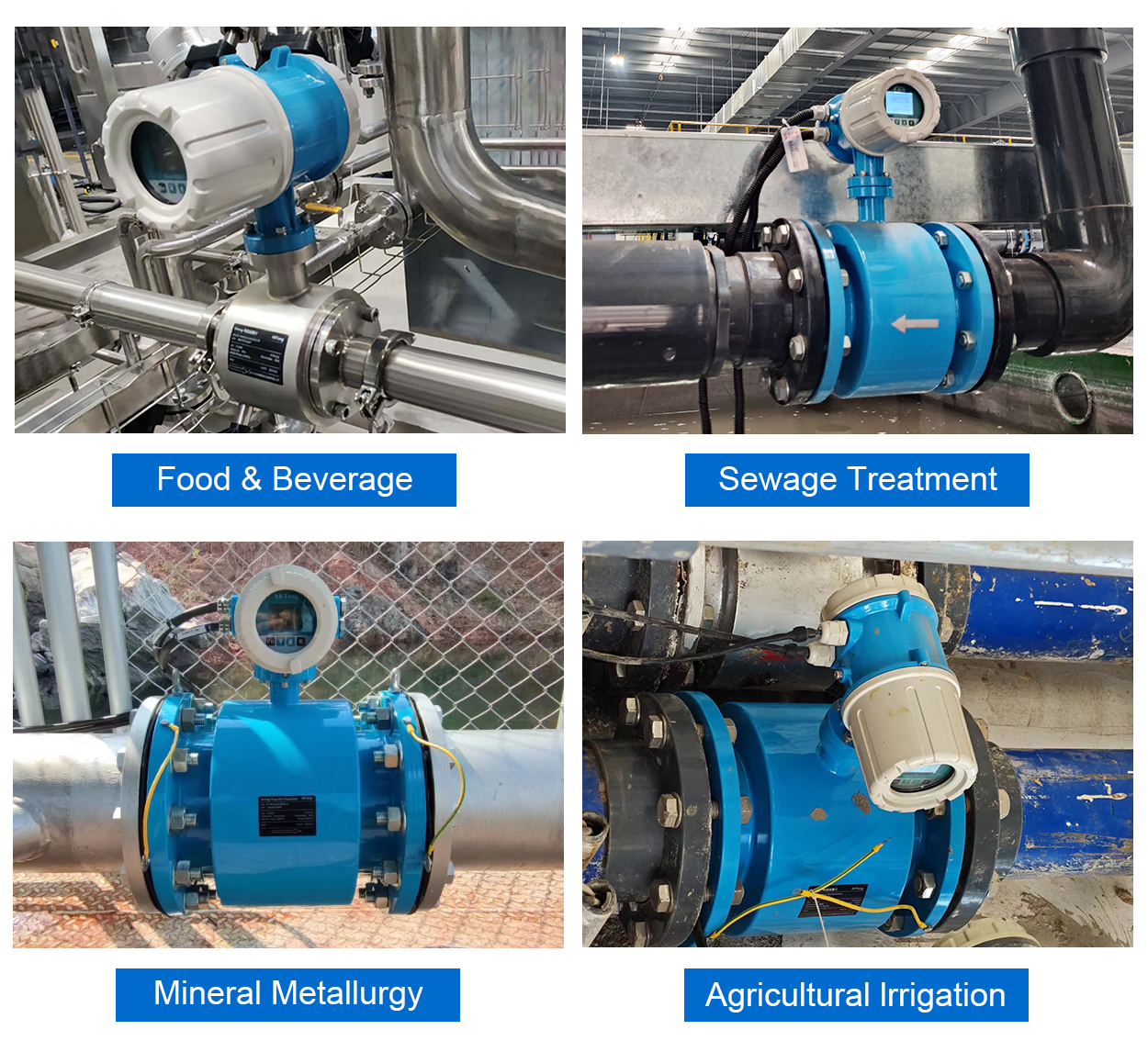

Typical Application - Oil-Field Development:
The accuracy of Aimag C electromagnetic flowmeter is up to 0.2%, which can effectively guarantees the accuracy of the measurement process. The maximum process pressure is up to 26MPa, which is especially suitable for the applications of high-pressure water injection and polymer injection in oil field development.
