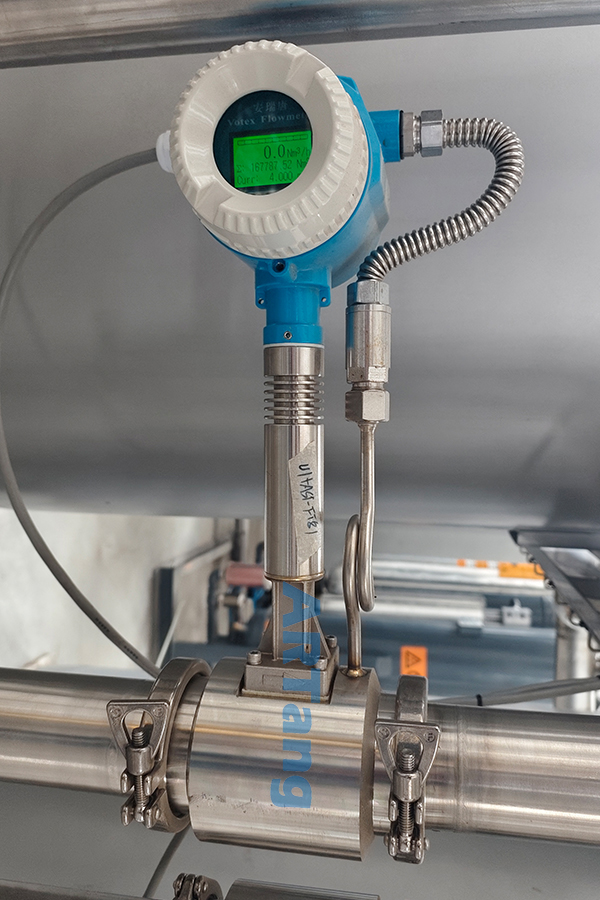

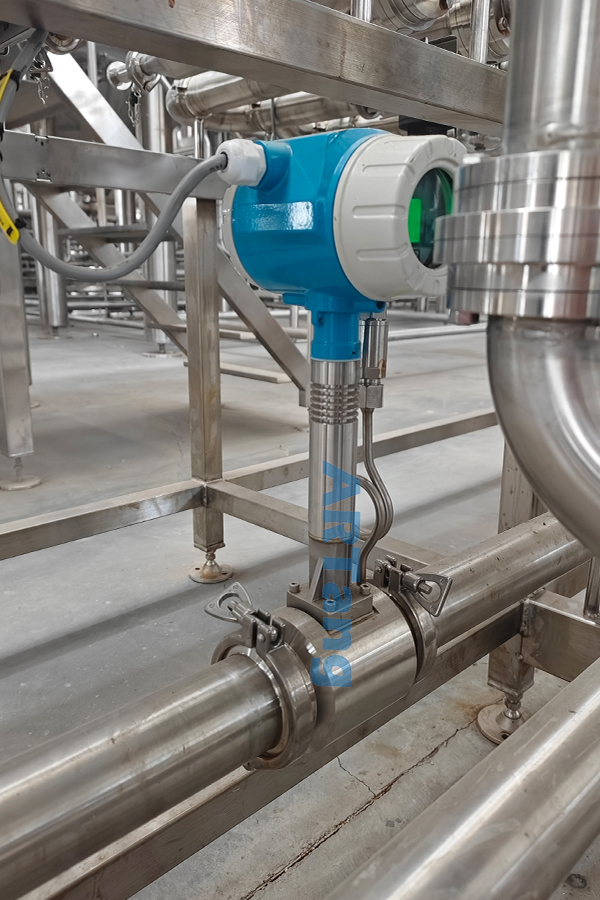

Aitex D Clamping Gas Vortex Shedding Flowmeter

Vortex flowmeter has no moving parts, simple layout of measuring elements, reliable function and long service life. The volume flow of the vortex flowmeter is not affected by thermal parameters such as temperature, pressure, density or viscosity of the fluid being measured. It usually does not need to be calibrated on its own. It can measure the flow of liquid, gas or steam. The resulting pressure loss is small. In addition, the vortex flowmeter has the advantage of high accuracy.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
Principles

涡街流量计原理2

Specification

Model Number Aitex D
Application Gas, Liquid, Steam
Nominal Diameter DN15 ~ DN200
Nominal Pressure PN40
Process Temperature -40℃ ~ 260℃
Process Connection Clamp-on
Output Signal 4~20mA  Frequency/Pulse/Switch output
Communication HART, Modbus RS485, PROFIBUS DP
Current Input 4~20mA
Protection Grade IP66/ IP67
Volume Flow Accuracy Liquid: ±0.75% , Steam/Gas: ±1%
Mass Flow Accuracy Liquid: ±0.85% , Steam/Gas: ±1.5%

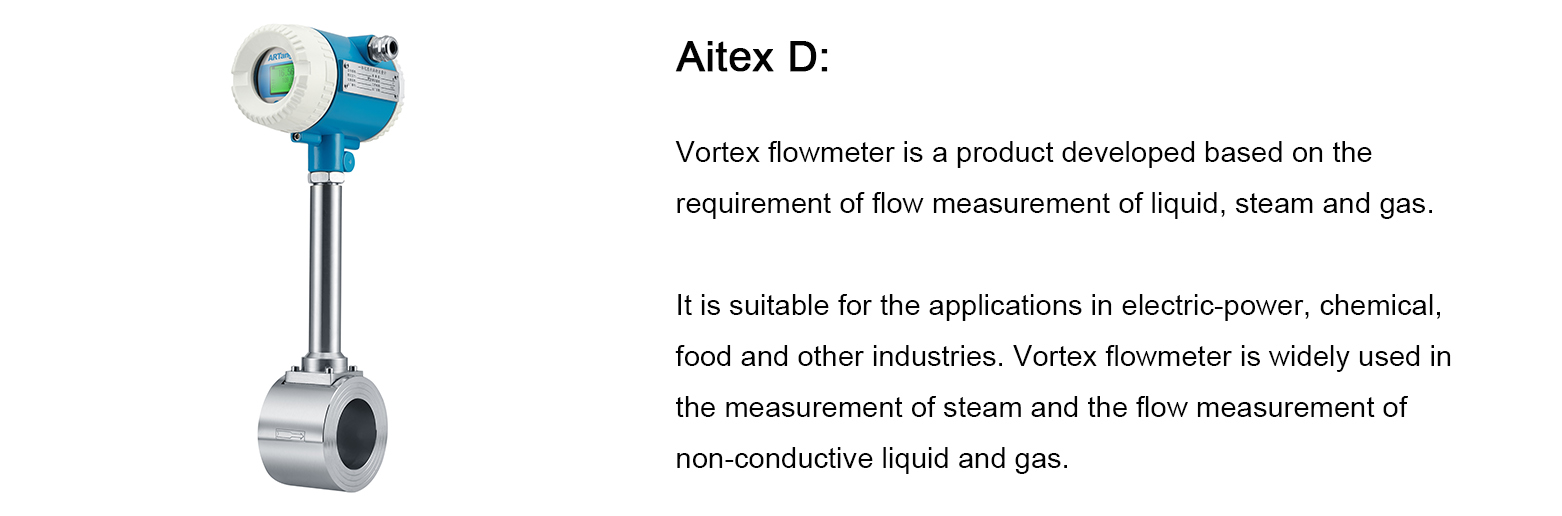

未标题-2
Features


● Friendly user interface, easy to operate.

● Multivariable measurement, saving time and cost.

● Integrated pressure and temperature measurement.

● Long-term stability and reliability.

● Particularly well suited to flow measurement of steam.

● Widely used in steam transmission and  distribution pipelines.


Application

1649208242(1) 拷贝


图文介绍 拷贝


1649208337(1) 拷贝

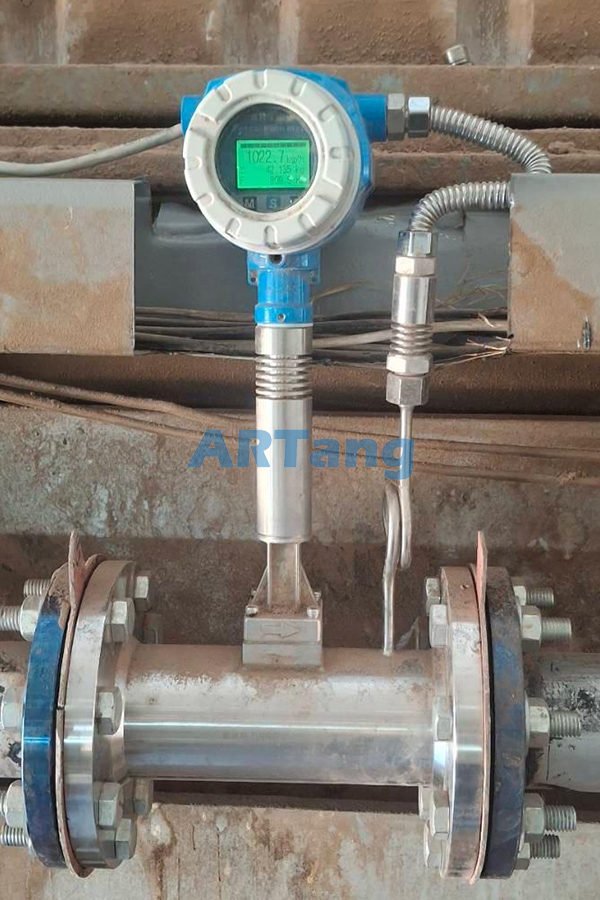

Typical Application - Steam Flow Measurement:

For superheated steam, Aitex D can measure the pressure and temperature of steam accurately. These parameters will be used as compensation, and the vortex flowmeter can directly output the mass flow of superheated steam.
