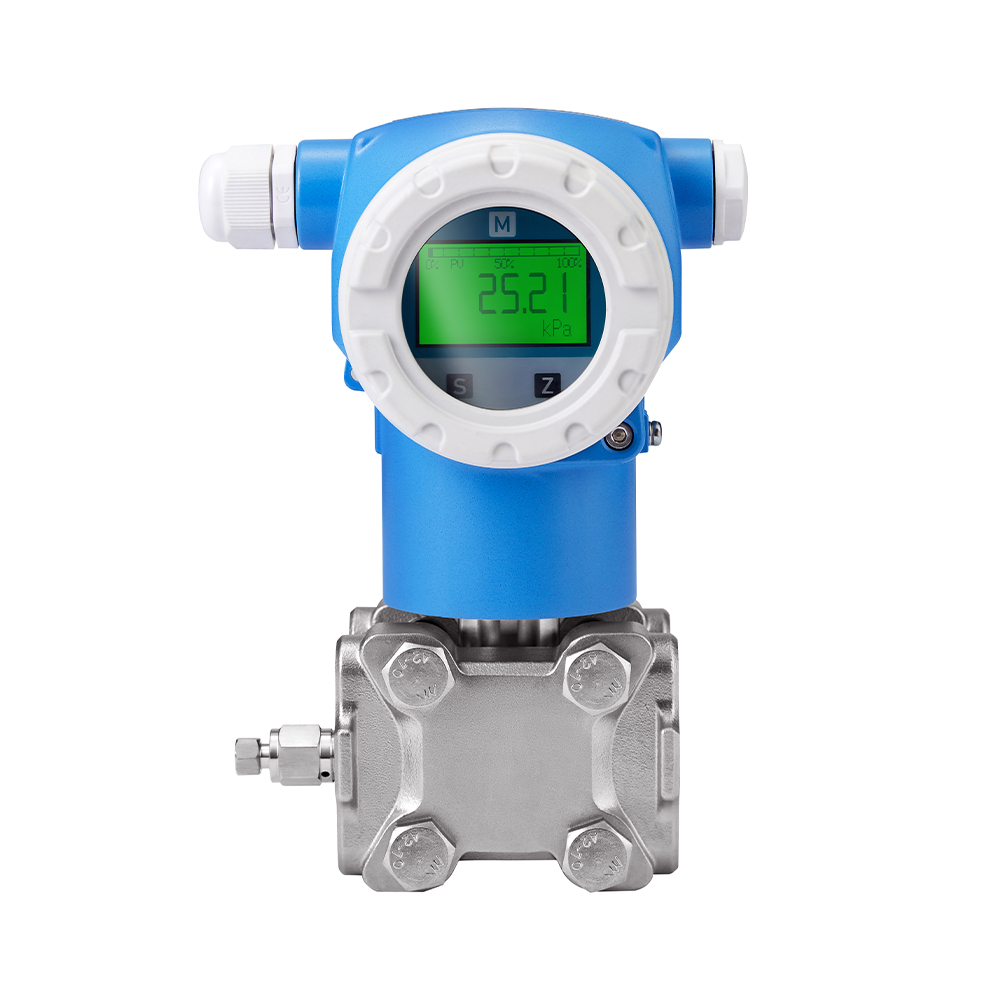

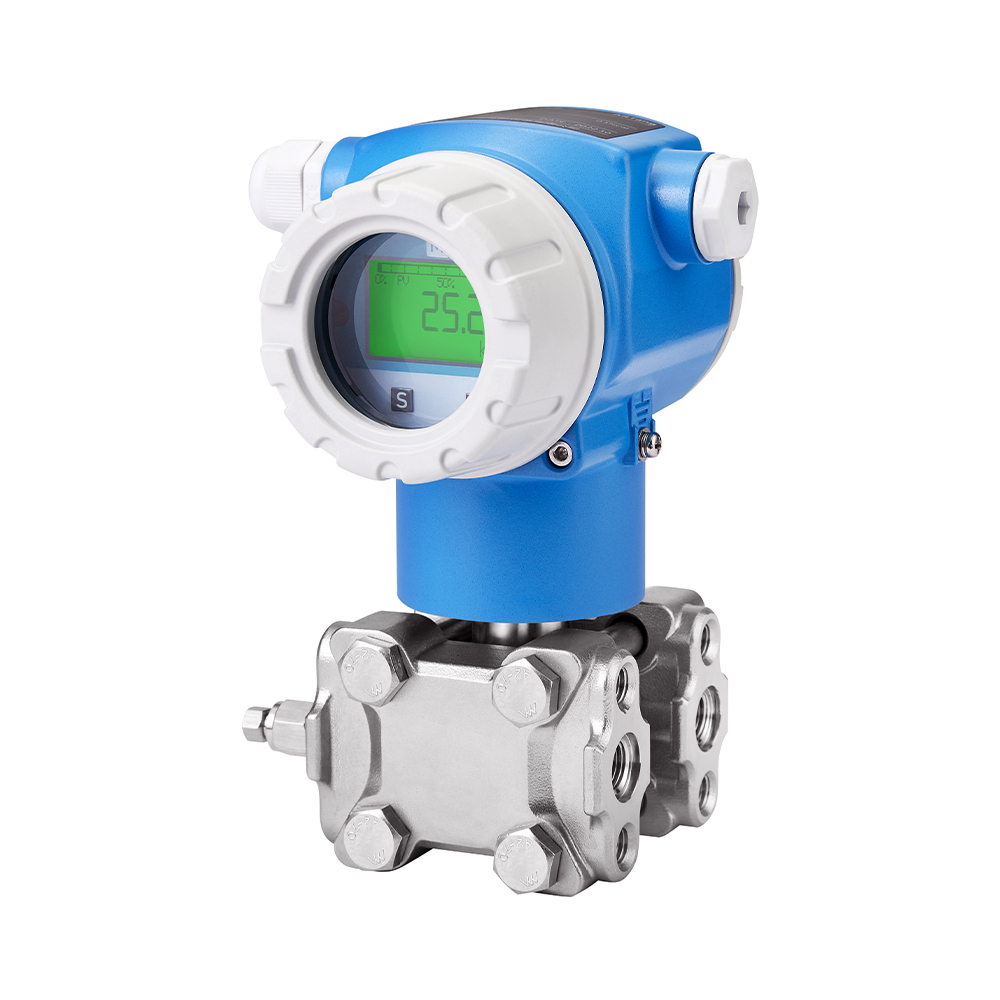

AED23 Thread Mount Differential Pressure Transmitter

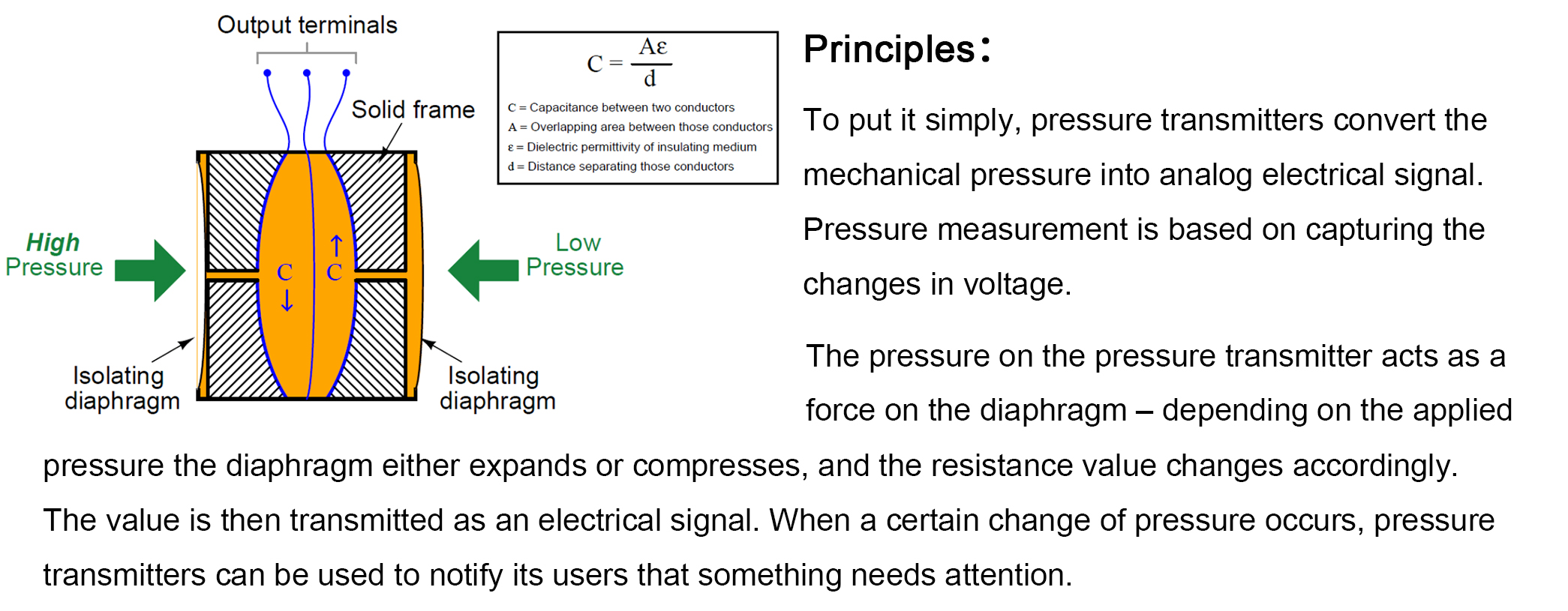

Differential Pressure (DP) is defined as the difference between two pressures. Differential Pressure Transmitters use a reference point called the low-side pressure and compare it to the high-side pressure. Ports in the instrument are marked high-side and low-side.
facebook sharing button
twitter sharing button
line sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button



Model Number AED23
Application Differential Pressure, Liquid Level
Connection Process Thread
Measuring Range 0~10 Mpa
Overload Presure Limit(OPL) Single High Side Max 16 Mpa
Process Temperature -40℃ ~ 105℃
Ambient Temperature -40℃ ~ 85℃ or -20℃ ~ 70℃(with LCD)
Reference Measurement Accuracy ±0.2%URL or ±0.1%URL or ±0.075%URL(Optional)
Power Supply Voltage 10~32 VDC
Output 4~20 mA or 4~20mA+HART or MODBUS RS485
Certificate CE, NEPSI
Waterproof Grade IP67

● Digital differential pressure transmitter, suitable for liquid, steam, gas and other media.

● Modular design, intuitive display of menus and control keys.

● Fully assembled, configured and leak tested for easy installation.

● Resistant to high temperature and strong corrosion conditions.

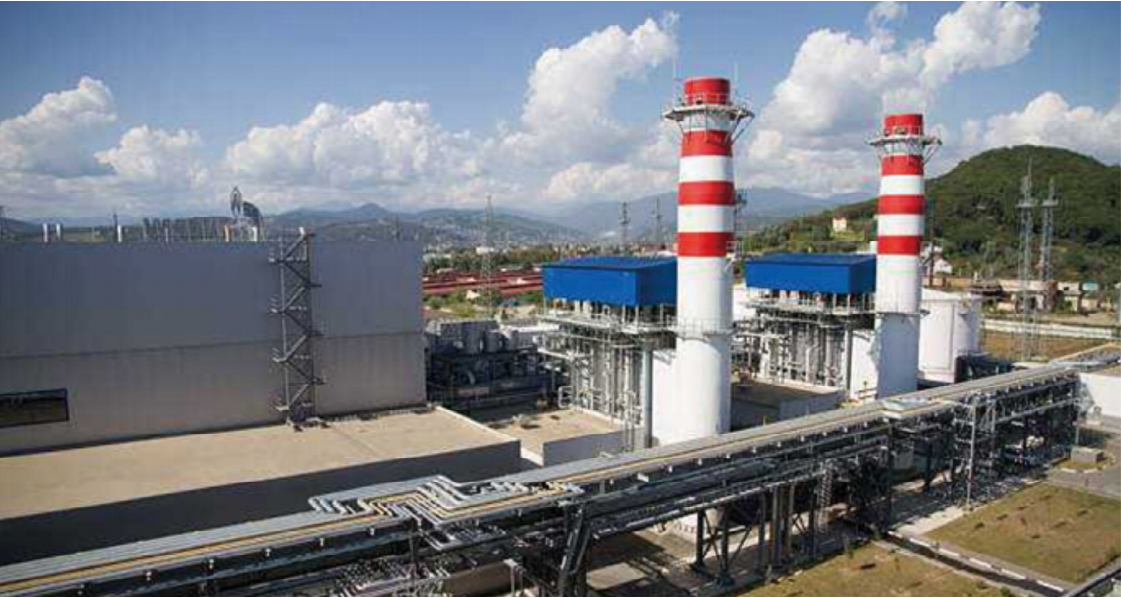

Typical Application - Pressure Measurement in Power Station Boiler:

The pressure transmitter is used to measure the pressure parameters of each part of the boiler, and transmit the signal to the PLC for display and control. Pressure transmitters provide support and guarantee for the control, use and safe operation of power station boilers.


The pressure transmitter is the main instrument used for the pressure parameter measurement and signal transmission of the boiler, we provide a variety of diaphragms (316L, AlloyC) and a variety of measurement methods (pressure, differential pressure, flow measurement) to ensure the stable and efficient operation of the boiler.
