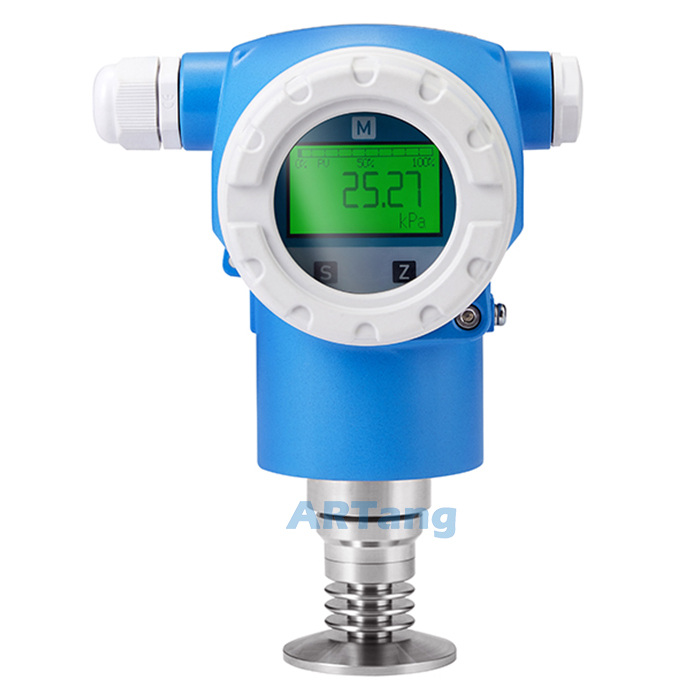

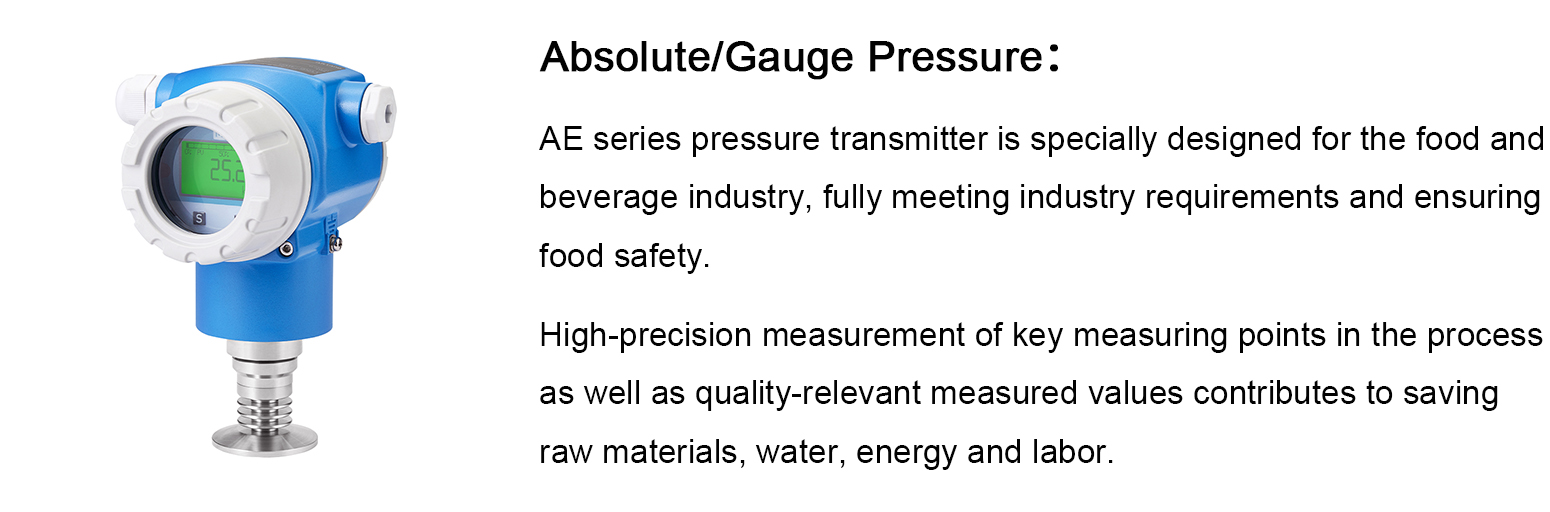

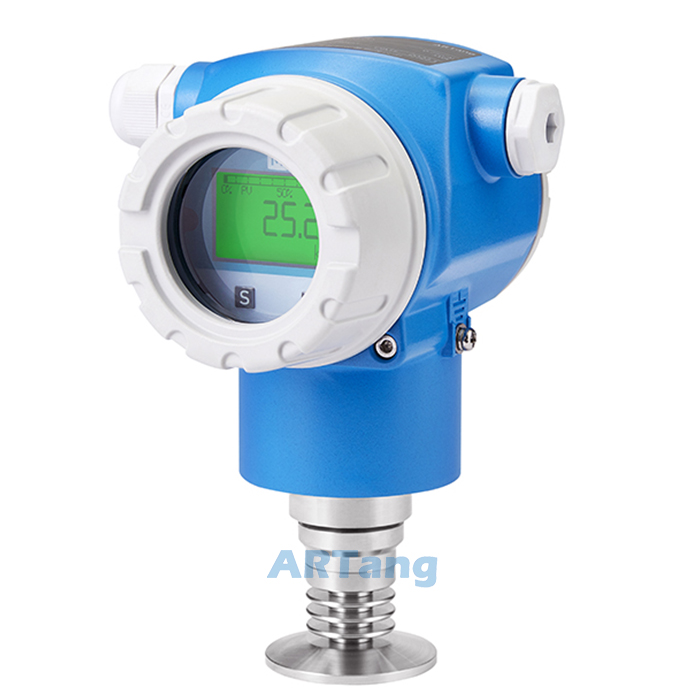

AEA15 Clamp Mount Pressure Transmitter is a sanitary pressure transmitter for food, beverage, pharmaceutical and bioengineering industries. The product explosion-proof grade Ex db IIC T6 Gb, the maximum extent to meet the health industry in the explosion-proof area of a variety of working conditions in the measurement and display needs; the transmitter process connection part of the whole welded and polished process, no hygiene dead ends, the relevant health design in line with FDA standards. The transmitter sensitive components are all imported silicon microfusion core, direct measurement of a variety of production processes -20 ~ 180 ℃, 0 ~ 16MPa range of liquid, gas and steam pressure, stable performance, high measurement accuracy; cleaning and autoclaving without disassembly, easy to use, simple operation. The transmitter outputs standard 4-20mA current signal or 0-10VDC voltage signal.
Model Number | AEA15 |
Application | Gauge Pressure, Liquid Level |
Connection Process | Clamp |
Measuring Range | 0~70 Mpa |
Overload Presure Limit(OPL) | Max 140 Mpa |
Process Temperature | -40℃ ~ 180℃ |
Ambient Temperature | -40℃ ~ 85℃ or -20℃ ~ 70℃(with LCD) |
Reference Measurement Accuracy | ±0.2%URL or ±0.1%URL or ±0.075%URL(Optional) |
Power Supply Voltage | 10~32 VDC |
Output | 4~20 mA or 4~20mA+HART or MODBUS RS485 |
Certificate | CE, NEPSI |
Catch material | 316L stainless steel as standard |
Ambient temperature effect | ≤±0.1%F.S/10℃ |
Long-term stability | ≤±0.2%/URL (12 months) |
Response time | 0.25s |
Power supply influence | ≤±0.005%/URL/V |
Vibration effect | ≤±0.25%/URL/g |
Operating temperature | -40 ~ 85 ℃ (maximum temperature 180 ℃) |
Storage temperature | -40~85℃ |
Explosion-proof grade | NEPSI Ex db IIC T6 Gb |
Waterproof Grade | IP67 |
Digital display explosion-proof structure design, to meet a variety of explosion-proof area process measurement;
The transmitter process connection part of the whole welding and polishing process, no health dead ends, the relevant health design in line with FDA standards;
The liquid material are 316L sanitary stainless steel material, surface roughness up to Ra 0.4;
CIP-SIP cleaning process control pressure measurement, high temperature resistance up to 150 ℃;
Cleaning and autoclaving without disassembly, easy to use, simple operation;
Intelligent digital amplifier, high measurement accuracy and strong anti-interference ability;
Support for display and non-display two types of structure optional; anti-corrosion, anti-pressure and other needs;
Output standard 4-20mA current signal or 0-10VDC voltage signal or digital 485 communication optional;
Process connection: support a variety of international standard process connection;
Suitable for hot media, corrosive media, high temperature viscous media or crystalline media measurement.
Support for customer customization
