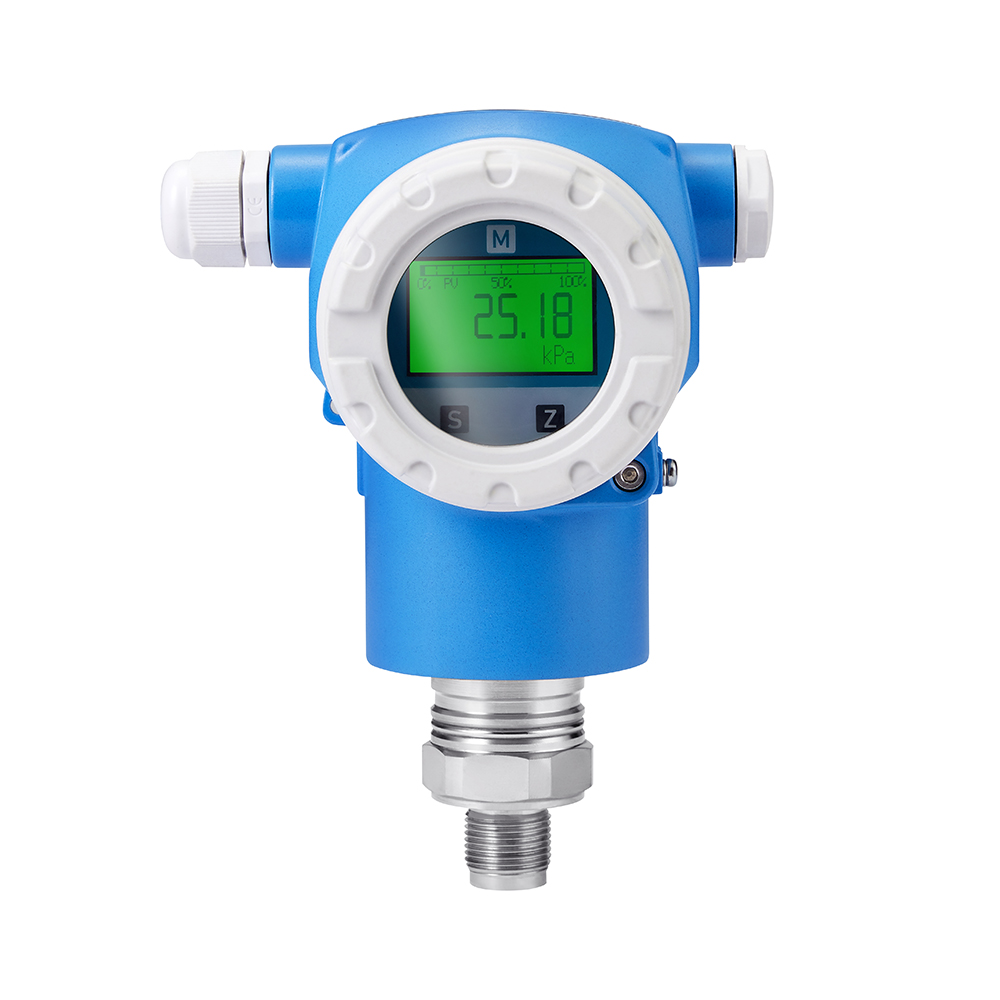

General-purpose intelligent pressure transmitter adopts high-performance imported diffusion silicon pressure sensing chip, with advanced circuit processing and temperature compensation technology, to convert pressure into linear current or voltage signal. Due to the full isolation circuit design, it greatly improves the stability and anti-interference ability of the whole machine.
In addition to the three basic functions of adjusting the zero position, range and zero pressure fine-tuning of other transmitters, it also has the functions of zero migration, setting and displaying the engineering quantity, linear and open-square conversion, setting the damping time, and fixed current output test.
This product is 3051 pressure transmitter series, belongs to the intelligent pressure transmitter, diffusion silicon or monocrystalline silicon optional, explosion-proof shell optional, 4~20mA 0~10V optional, MODBUS HART protocol optional.
| Model Number | AEA16 |
| Application | Gauge pressure, Absolute pressure, Liquid level |
| Connection Process | Thread, Flange, Clamp |
| Measuring Range | 0~40 Mpa |
| Overload Presure Limit(OPL) | Max 50 Mpa |
| Process Temperature | -40℃ ~ 315℃ |
| Ambient Temperature | -40℃ ~ 85℃ or -20℃ ~ 70℃(with LCD) |
| Reference Measurement Accuracy | ±0.1%URL or ±0.075%URL(Optional) |
| Power Supply Voltage | 10~32 VDC |
| Output | 4~20 mA or 4~20mA+HART or MODBUS RS485 |
| Certificate | CE, NEPSI |
| Zero drift | ≤±0.02 %FS/°C |
| Fullness drift | ≤±0.02 %FS/°C |
| Long-term stability | ≤±0.25 %FS/year |
| Overload capacity | 1.5 times the range |
| Housing material | Cast aluminum alloy; SUS304; SUS316 |
| Diaphragm material | SUS316L; Hastelloy C;Tantalum; SUS316L gold plated |
| Sealing ring material | Nitrile rubber |
| Waterproof Grade | IP67 |
Standard pressure housing for on-site commissioning and display
Excellent resistance to shock, overload, vibration and corrosion.
Highly efficient protection against lightning strikes, strong resistance to radio frequency and electromagnetic interference.
Advanced temperature digital compensation function, wide operating temperature range
High precision, high frequency response, good long-term stability
3-1/2 digit LED/LCD display, output 4~20mA at the same time.
Stable and reliable, long-term drift of ±0.1%FS/year;
Adjustable range ratio of up to 100:1.

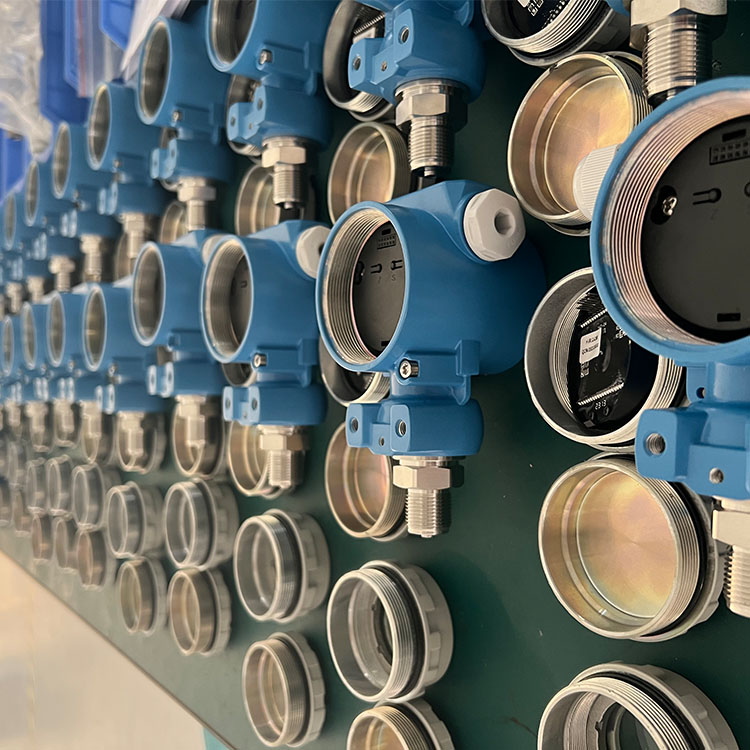

Intelligent Pressure Transmitter

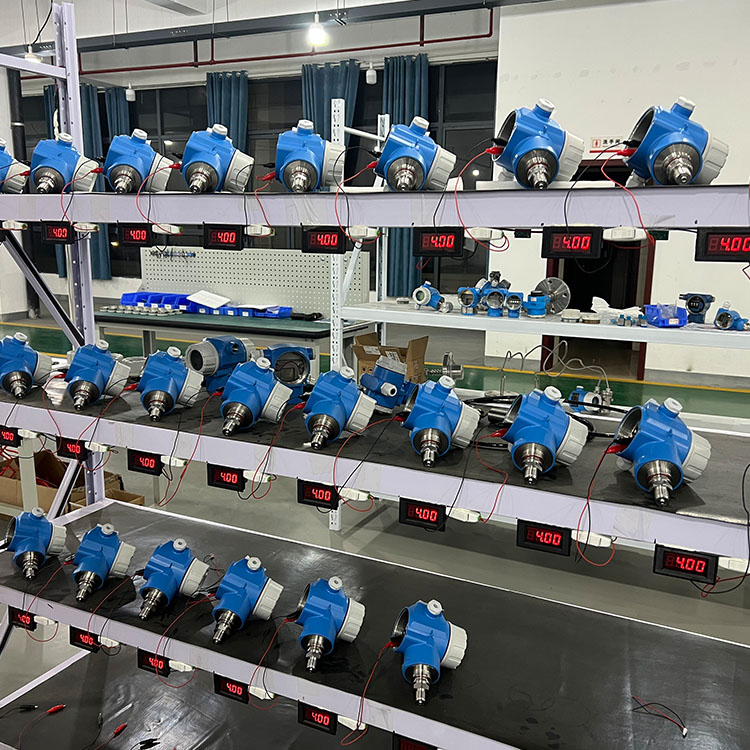

Pressure Transmitter Manufacturer & Supplier

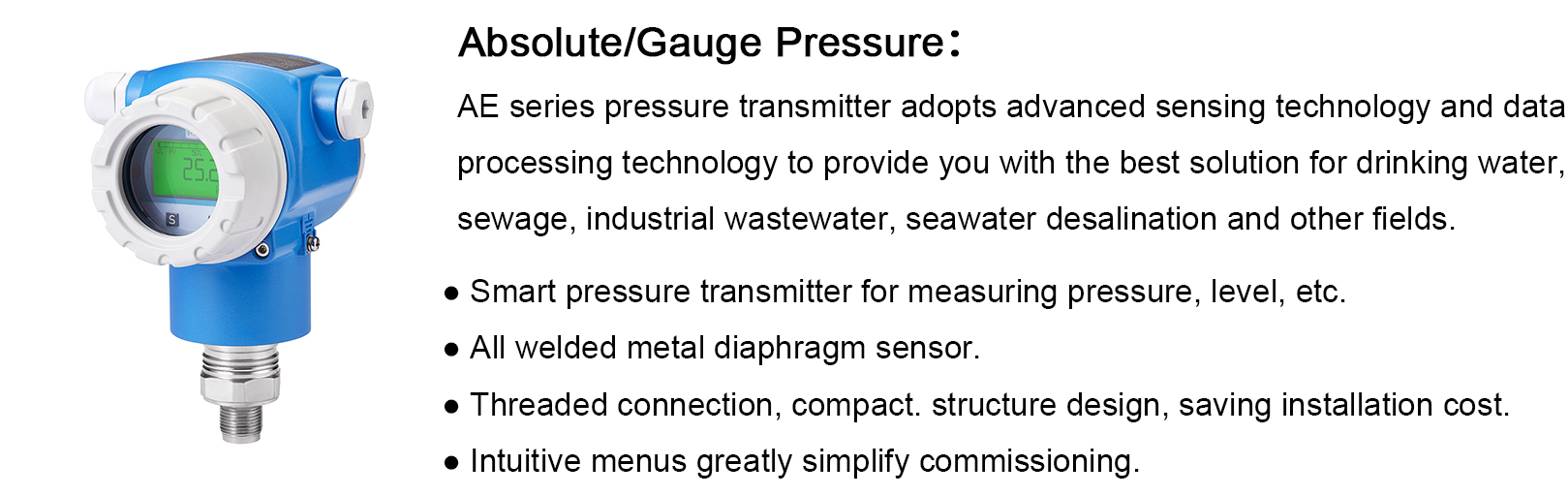

Pressure transmitters used in water and wastewater treatment plants, surface water, and groundwater applications must be robust and meet the environmental conditions required by the environmental protection industry
It is operated through the LCD screen, which is convenient for on-site debugging. The pressure transmitter adopts different diaphragm materials, flexible combination of a variety of economical products and services to meet the needs of various applications such as drinking water, sewage and wastewater, seawater desalination, etc.
General-purpose intelligent pressure transmitter adopts high-performance imported diffusion silicon pressure sensing chip, with advanced circuit processing and temperature compensation technology, to convert pressure into linear current or voltage signal. Due to the full isolation circuit design, it greatly improves the stability and anti-interference ability of the whole machine.
In addition to the three basic functions of adjusting the zero position, range and zero pressure fine-tuning of other transmitters, it also has the functions of zero migration, setting and displaying the engineering quantity, linear and open-square conversion, setting the damping time, and fixed current output test.
This product is 3051 pressure transmitter series, belongs to the intelligent pressure transmitter, diffusion silicon or monocrystalline silicon optional, explosion-proof shell optional, 4~20mA 0~10V optional, MODBUS HART protocol optional.
| Model Number | AEA16 |
| Application | Gauge pressure, Absolute pressure, Liquid level |
| Connection Process | Thread, Flange, Clamp |
| Measuring Range | 0~40 Mpa |
| Overload Presure Limit(OPL) | Max 50 Mpa |
| Process Temperature | -40℃ ~ 315℃ |
| Ambient Temperature | -40℃ ~ 85℃ or -20℃ ~ 70℃(with LCD) |
| Reference Measurement Accuracy | ±0.1%URL or ±0.075%URL(Optional) |
| Power Supply Voltage | 10~32 VDC |
| Output | 4~20 mA or 4~20mA+HART or MODBUS RS485 |
| Certificate | CE, NEPSI |
| Zero drift | ≤±0.02 %FS/°C |
| Fullness drift | ≤±0.02 %FS/°C |
| Long-term stability | ≤±0.25 %FS/year |
| Overload capacity | 1.5 times the range |
| Housing material | Cast aluminum alloy; SUS304; SUS316 |
| Diaphragm material | SUS316L; Hastelloy C;Tantalum; SUS316L gold plated |
| Sealing ring material | Nitrile rubber |
| Waterproof Grade | IP67 |
Standard pressure housing for on-site commissioning and display
Excellent resistance to shock, overload, vibration and corrosion.
Highly efficient protection against lightning strikes, strong resistance to radio frequency and electromagnetic interference.
Advanced temperature digital compensation function, wide operating temperature range
High precision, high frequency response, good long-term stability
3-1/2 digit LED/LCD display, output 4~20mA at the same time.
Stable and reliable, long-term drift of ±0.1%FS/year;
Adjustable range ratio of up to 100:1.
Intelligent Pressure Transmitter
Pressure Transmitter Manufacturer & Supplier
Pressure transmitters used in water and wastewater treatment plants, surface water, and groundwater applications must be robust and meet the environmental conditions required by the environmental protection industry
It is operated through the LCD screen, which is convenient for on-site debugging. The pressure transmitter adopts different diaphragm materials, flexible combination of a variety of economical products and services to meet the needs of various applications such as drinking water, sewage and wastewater, seawater desalination, etc.
