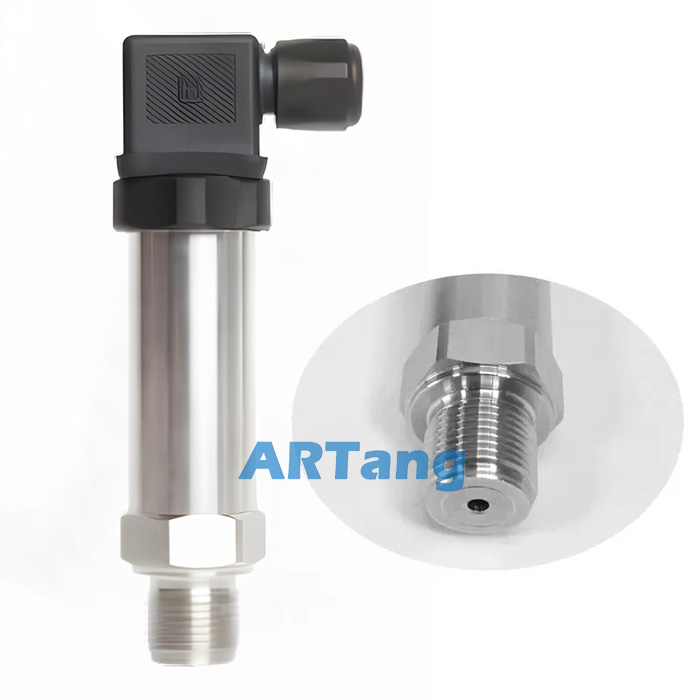

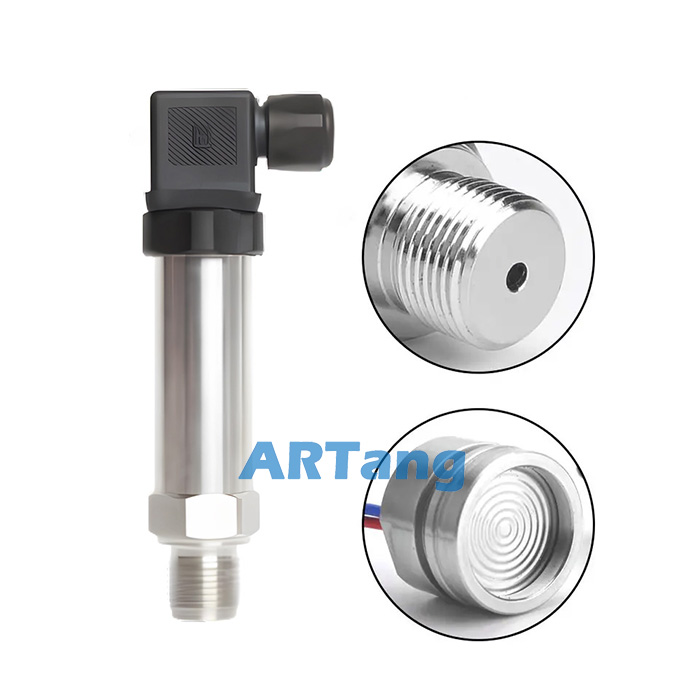

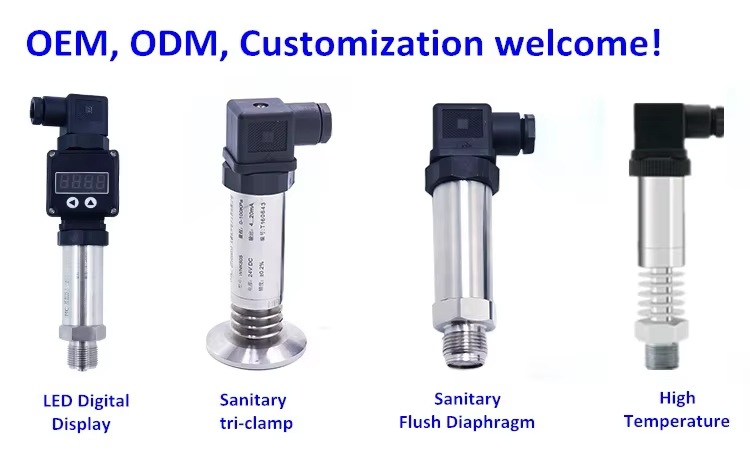

The Thread Mount Pressure Transducer utilizes a 316L diffusion silicon pressure core as its sensitive element. It has built-in processing circuitry, is automatically tested by computer, and uses laser trimming technology for wide temperature and sensitivity compensation. This allows the sensor’s millivolt signal to be converted into standard voltage or current output signals, which can be directly connected to computers, control instruments, and display instruments.
High-stability and high-reliability piezoresistive pressure sensors and high-performance transmitter-specific circuits are selected, ensuring stable and reliable overall performance, capable of long-distance signal transmission. The transmitter features an integrated all-stainless-steel structure, achieved through multiple stainless steel welds, resulting in a solid-state design. It is easy to install, vibration-resistant, and impact-resistant, making it suitable for long-term use in harsh environments.
| Model Number | AE11 |
| Application | Gauge Pressure, Absolute Pressure, Liquid Level |
| Connection Process | Thread |
| Measuring Range | 0~70 Mpa |
| Overload Presure Limit(OPL) | Max 100 Mpa |
| Process Temperature | -40℃ ~ 100℃ |
| Ambient Temperature | -40℃ ~ 85℃ |
| Reference Measurement Accuracy | ±0.5%URL or ±0.2%URL(Optional) |
| Power Supply Voltage | 10~32 VDC |
| Output | 4~20 mA or 4~20mA+HART or MODBUS RS485 |
| Zero drift | 50% of full range span. |
| Max overload | 200% of sensor range |
| Housing material | 304SS, 316L |
| Mechanical connection | Clamp,Flush and Flange |
| Certificate | CE, NEPSI |
| Waterproof Grade | IP67 |
China Pressure Transmitters supplier
Pressure Transducer from China
Pressure Medium:
The nature of the measured medium determines the selection. Choose the diaphragm material according to the corrosiveness of the medium. The diaphragm materials for pressure (differential pressure) transmitters include 304 stainless steel, 316/316L stainless steel, and tantalum.
Medium Temperature:
Consider the temperature of the measured medium when selecting a transmitter. If the temperature is high, reaching 200℃ to 400℃, choose a high-temperature pressure transmitter with a heat sink. Otherwise, the silicone oil may vaporize and expand, leading to inaccurate measurements.
Measurement Range Selection:
Typically, select 80% of the actual measured pressure as the measurement range. ARTang pressure transmitters can withstand a 300% instantaneous impact. If the instantaneous pressure is too high, a buffer can be used to reduce pressure spikes, although this will reduce the sensor's response speed. Therefore, when selecting a pressure transmitter, fully consider the pressure range, accuracy, and stability.
Accuracy Grade:
The standard accuracy for diffusion silicon pressure transmitters is 0.5%, with custom options available down to 0.3%. Monocrystalline silicon pressure transmitters have a standard accuracy of 0.075%, with custom options available down to 0.05% and 0.03%.
Output Signal:
Millivolt signals 4-20mA, 0-20mA, 1-5V, 0-5V, 1-10V, 0-10V; digital output RS485.
Preventing Pressure Overload:
Even if the pressure sensor's overload capacity can reach up to 50% (beyond the maximum range), from a safety perspective, avoid taking risks. Ideally, select a sensor where the measured pressure is within the range. Typically, the best range for the selected sensor should be twice the measured pressure. ARTang pressure transmitters can withstand a 300% instantaneous impact. This way, even under extremely high pressure, the sensor can avoid damage.
Industrial Pressure Sensor
Water And Air Pressure Transducer And Sensor
● Water and sewage industry standard application instrument.
● The sensor adopts the overall welding process, which is sturdy and durable.
● Extensive selection of process connections and measurement ranges.
● The instrument is easy to debug, operate and maintain.
● Improve operational efficiency.
Pressure transmitters used in water and wastewater treatment plants, surface water, and groundwater applications must be robust and meet the environmental conditions required by the environmental protection industry.
It is operated through the LCD screen, which is convenient for on-site debugging. The pressure transmitter adopts different diaphragm materials, flexible combination of a variety of economical products and services to meet the needs of various applications such as drinking water, sewage and wastewater, seawater desalination, etc.
The Thread Mount Pressure Transducer utilizes a 316L diffusion silicon pressure core as its sensitive element. It has built-in processing circuitry, is automatically tested by computer, and uses laser trimming technology for wide temperature and sensitivity compensation. This allows the sensor’s millivolt signal to be converted into standard voltage or current output signals, which can be directly connected to computers, control instruments, and display instruments.
High-stability and high-reliability piezoresistive pressure sensors and high-performance transmitter-specific circuits are selected, ensuring stable and reliable overall performance, capable of long-distance signal transmission. The transmitter features an integrated all-stainless-steel structure, achieved through multiple stainless steel welds, resulting in a solid-state design. It is easy to install, vibration-resistant, and impact-resistant, making it suitable for long-term use in harsh environments.
| Model Number | AE11 |
| Application | Gauge Pressure, Absolute Pressure, Liquid Level |
| Connection Process | Thread |
| Measuring Range | 0~70 Mpa |
| Overload Presure Limit(OPL) | Max 100 Mpa |
| Process Temperature | -40℃ ~ 100℃ |
| Ambient Temperature | -40℃ ~ 85℃ |
| Reference Measurement Accuracy | ±0.5%URL or ±0.2%URL(Optional) |
| Power Supply Voltage | 10~32 VDC |
| Output | 4~20 mA or 4~20mA+HART or MODBUS RS485 |
| Zero drift | 50% of full range span. |
| Max overload | 200% of sensor range |
| Housing material | 304SS, 316L |
| Mechanical connection | Clamp,Flush and Flange |
| Certificate | CE, NEPSI |
| Waterproof Grade | IP67 |
China Pressure Transmitters supplier
Pressure Transducer from China
Pressure Medium:
The nature of the measured medium determines the selection. Choose the diaphragm material according to the corrosiveness of the medium. The diaphragm materials for pressure (differential pressure) transmitters include 304 stainless steel, 316/316L stainless steel, and tantalum.
Medium Temperature:
Consider the temperature of the measured medium when selecting a transmitter. If the temperature is high, reaching 200℃ to 400℃, choose a high-temperature pressure transmitter with a heat sink. Otherwise, the silicone oil may vaporize and expand, leading to inaccurate measurements.
Measurement Range Selection:
Typically, select 80% of the actual measured pressure as the measurement range. ARTang pressure transmitters can withstand a 300% instantaneous impact. If the instantaneous pressure is too high, a buffer can be used to reduce pressure spikes, although this will reduce the sensor's response speed. Therefore, when selecting a pressure transmitter, fully consider the pressure range, accuracy, and stability.
Accuracy Grade:
The standard accuracy for diffusion silicon pressure transmitters is 0.5%, with custom options available down to 0.3%. Monocrystalline silicon pressure transmitters have a standard accuracy of 0.075%, with custom options available down to 0.05% and 0.03%.
Output Signal:
Millivolt signals 4-20mA, 0-20mA, 1-5V, 0-5V, 1-10V, 0-10V; digital output RS485.
Preventing Pressure Overload:
Even if the pressure sensor's overload capacity can reach up to 50% (beyond the maximum range), from a safety perspective, avoid taking risks. Ideally, select a sensor where the measured pressure is within the range. Typically, the best range for the selected sensor should be twice the measured pressure. ARTang pressure transmitters can withstand a 300% instantaneous impact. This way, even under extremely high pressure, the sensor can avoid damage.
Industrial Pressure Sensor
Water And Air Pressure Transducer And Sensor
● Water and sewage industry standard application instrument.
● The sensor adopts the overall welding process, which is sturdy and durable.
● Extensive selection of process connections and measurement ranges.
● The instrument is easy to debug, operate and maintain.
● Improve operational efficiency.
Pressure transmitters used in water and wastewater treatment plants, surface water, and groundwater applications must be robust and meet the environmental conditions required by the environmental protection industry.
It is operated through the LCD screen, which is convenient for on-site debugging. The pressure transmitter adopts different diaphragm materials, flexible combination of a variety of economical products and services to meet the needs of various applications such as drinking water, sewage and wastewater, seawater desalination, etc.
About ARTang
ARTang is a global leader in measurement instrumentation, services and solutions for industrial process engineering that energizes the transformation of society and industry to achieve a more productive, sustainable future. We provide process solutions for flow, level, pressure, analytics and digital communications, optimizing processes in terms of economic efficiency, safety & environmental impact.
