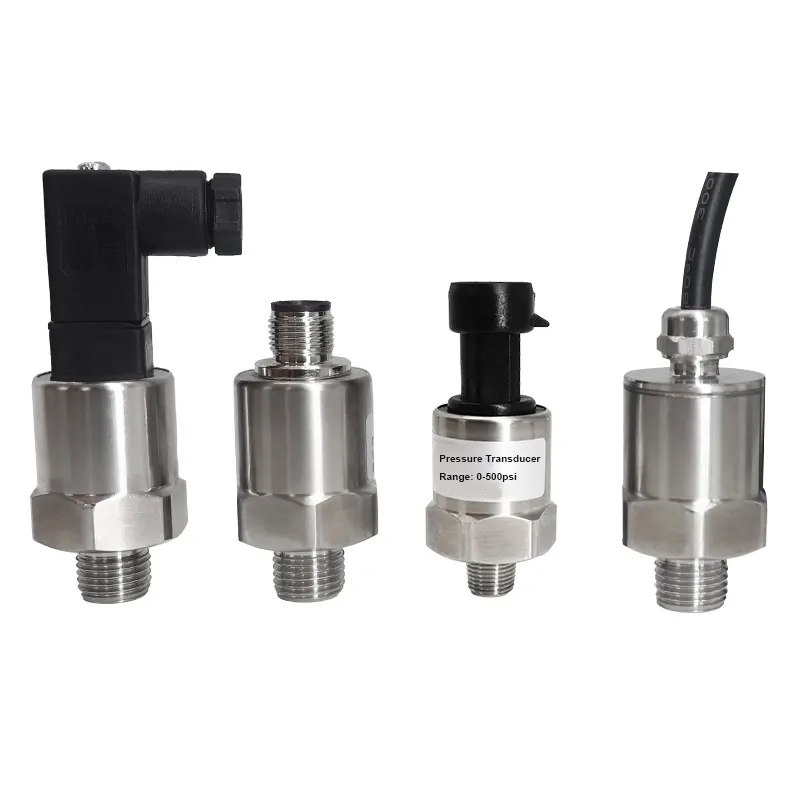

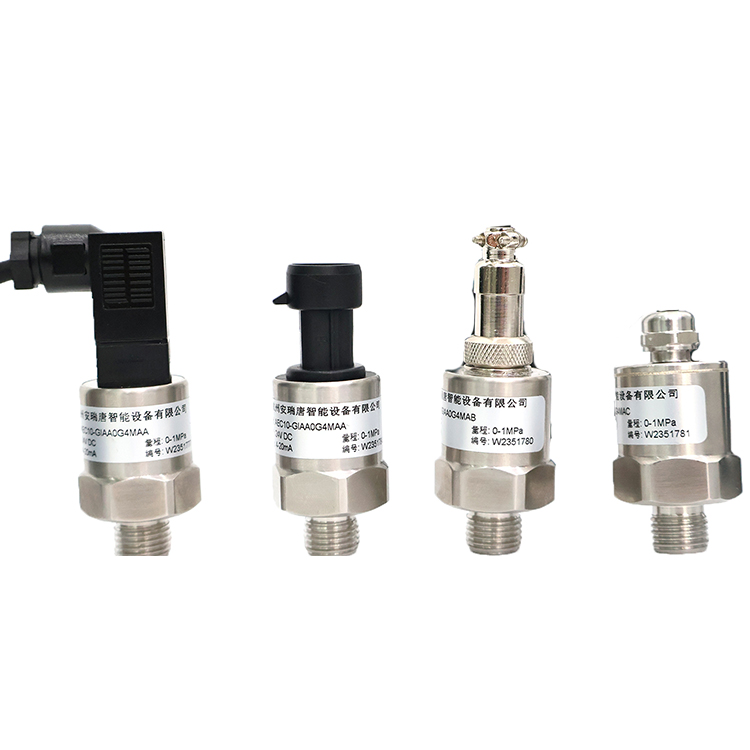

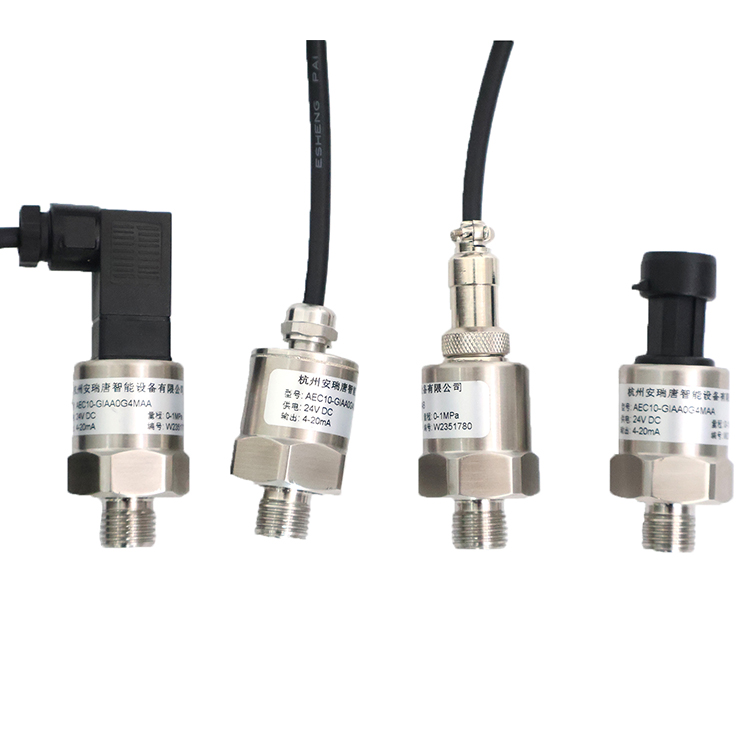

A compact pressure transmitter is a device that converts pressure signals into standard electrical signals. Its basic principle involves using a pressure-sensitive element to detect pressure changes, converting these changes into electrical signals, and then processing these signals through circuitry to produce a standard output signal proportional to the pressure, such as 4-20mA or 0-10V. This signal can be directly connected to control systems or display instruments for remote pressure monitoring and control.
| Model Number | AE10 |
| Application | Gauge Pressure, Absolute Pressure, Liquid Level |
| Connection Process | G1/4, 1/4NPT, 1/8NPT, M12*1.5, Customize |
| Measuring Range | 0~60 Bar |
| Applicable Media | Liquid, Gas |
| Compensation Temperature | -20...75℃ |
| Storage Temperature | -45 ... 85℃ |
| Ambient Temperature | -45 ... 85℃ |
| Medium Temperature | -40 ... 125℃ |
| Reference Measurement Accuracy | 0.2%, 0.5% |

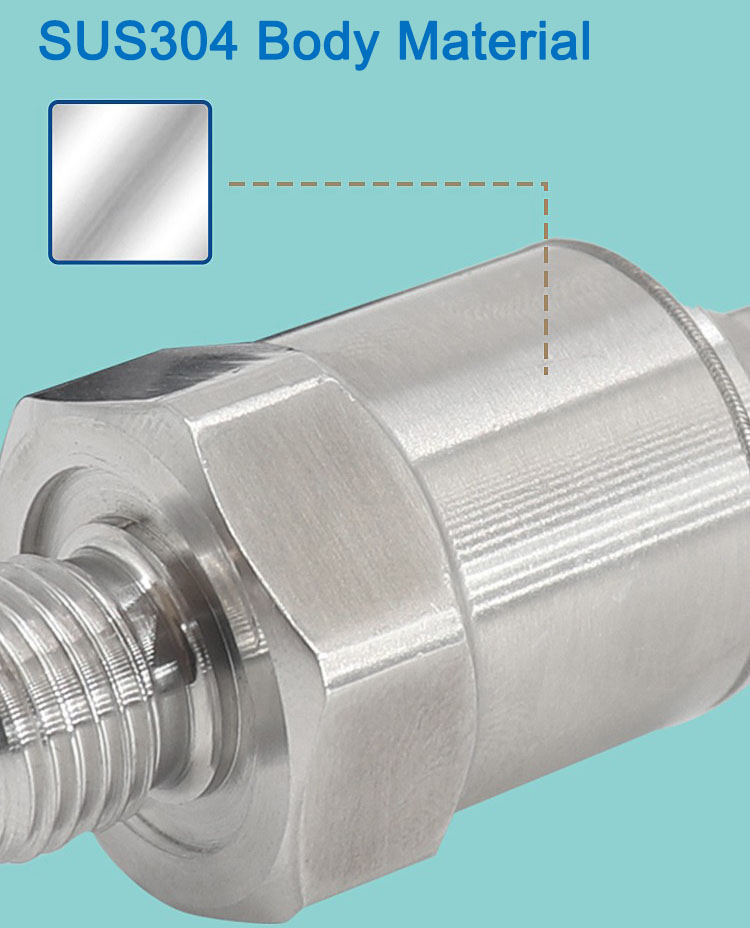

| Housing Material | 304 Stainless Steel (Inner Core is 316 Stainless Steel) |
| Output | 4~20 mA / 0.5-4.5V / 1 -5V / 0-10V / I2C |
| Certificate | CE,NEPSI |
| Waterproof Grade | IP65, IP67 |
Compact Size and Easy Installation: The compact pressure transmitter is designed to be small and lightweight, making it easy to install on various equipment and pipelines without taking up much space.
High Accuracy and Stability: It employs advanced pressure-sensitive elements and circuit processing technology, allowing for precise pressure measurement. It also has good stability, enabling long-term stable operation in harsh industrial environments.
Strong Anti-Interference Capability: With a specialized circuit design, the compact pressure transmitter has strong anti-interference abilities, effectively resisting external factors such as electromagnetic interference and mechanical vibration, ensuring accurate measurement results.

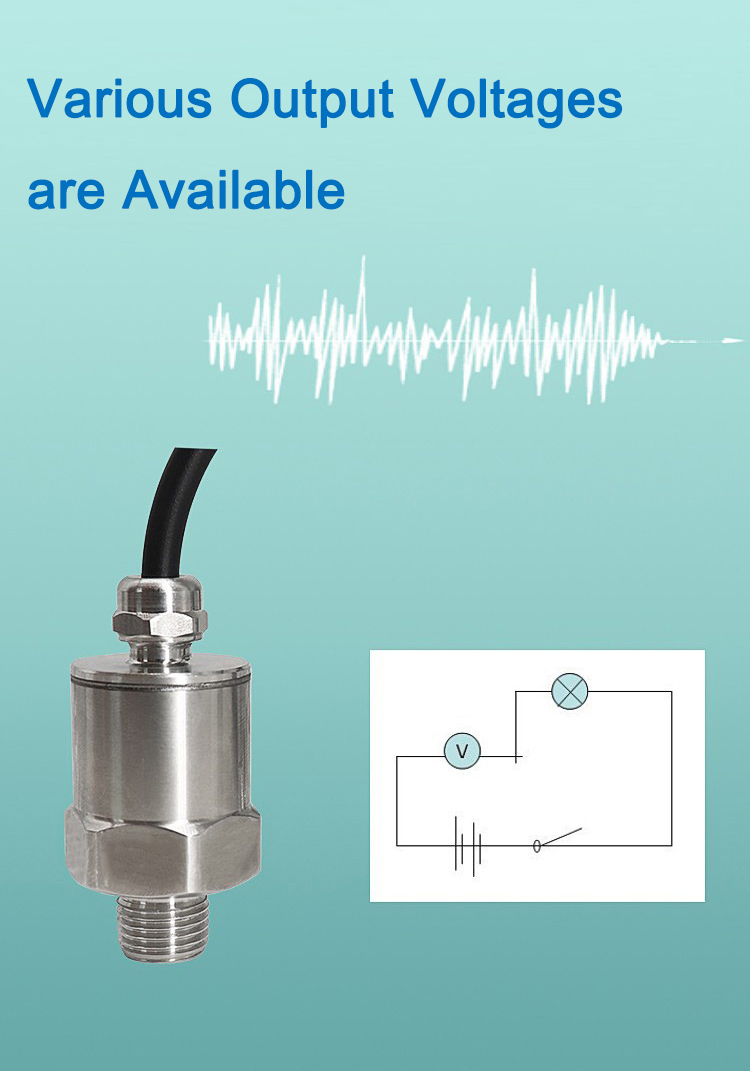

Multiple Output Signals Available: It supports various output signals, such as 4-20mA and 0-10V, making it adaptable to different control systems and display instrument requirements.
Optional Display: Available with or without a display according to user requirements.

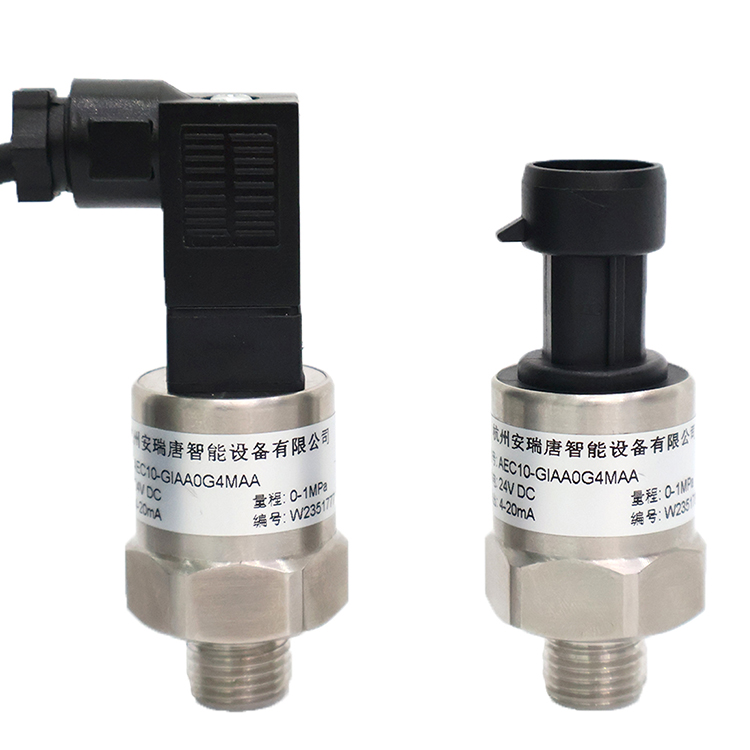

4-20mA Two-Wire Output: This feature allows for long transmission distances and strong anti-interference capabilities.
Wide Operating Temperature Range: Capable of operating in extreme environments, with a temperature range of -40°C to 125°C, making it suitable for both high and low-temperature applications.
Features
● Water and sewage industry standard application instrument.
● The sensor adopts the overall welding process, which is sturdy and durable.
● Extensive selection of process connections and measurement ranges.
● The instrument is easy to debug, operate and maintain.
● Improve operational efficiency.
Pressure sensor and transducer
pressure transmitters and sensors
Pressure transmitters used in water and wastewater treatment plants, surface water, and groundwater applications must be robust and meet the environmental conditions required by the environmental protection industry.
It is operated through the LCD screen, which is convenient for on-site debugging. The pressure transmitter adopts different diaphragm materials, flexible combination of a variety of economical products and services to meet the needs of various applications such as drinking water, sewage and wastewater, seawater desalination, etc.
Pressure Transducers and Pressure Transmitters
Pressure Transmitter for oil, air, water
A compact pressure transmitter is a device that converts pressure signals into standard electrical signals. Its basic principle involves using a pressure-sensitive element to detect pressure changes, converting these changes into electrical signals, and then processing these signals through circuitry to produce a standard output signal proportional to the pressure, such as 4-20mA or 0-10V. This signal can be directly connected to control systems or display instruments for remote pressure monitoring and control.
| Model Number | AE10 |
| Application | Gauge Pressure, Absolute Pressure, Liquid Level |
| Connection Process | G1/4, 1/4NPT, 1/8NPT, M12*1.5, Customize |
| Measuring Range | 0~60 Bar |
| Applicable Media | Liquid, Gas |
| Compensation Temperature | -20...75℃ |
| Storage Temperature | -45 ... 85℃ |
| Ambient Temperature | -45 ... 85℃ |
| Medium Temperature | -40 ... 125℃ |
| Reference Measurement Accuracy | 0.2%, 0.5% |
| Housing Material | 304 Stainless Steel (Inner Core is 316 Stainless Steel) |
| Output | 4~20 mA / 0.5-4.5V / 1 -5V / 0-10V / I2C |
| Certificate | CE,NEPSI |
| Waterproof Grade | IP65, IP67 |
Compact Size and Easy Installation: The compact pressure transmitter is designed to be small and lightweight, making it easy to install on various equipment and pipelines without taking up much space.
High Accuracy and Stability: It employs advanced pressure-sensitive elements and circuit processing technology, allowing for precise pressure measurement. It also has good stability, enabling long-term stable operation in harsh industrial environments.
Strong Anti-Interference Capability: With a specialized circuit design, the compact pressure transmitter has strong anti-interference abilities, effectively resisting external factors such as electromagnetic interference and mechanical vibration, ensuring accurate measurement results.
Multiple Output Signals Available: It supports various output signals, such as 4-20mA and 0-10V, making it adaptable to different control systems and display instrument requirements.
Optional Display: Available with or without a display according to user requirements.
4-20mA Two-Wire Output: This feature allows for long transmission distances and strong anti-interference capabilities.
Wide Operating Temperature Range: Capable of operating in extreme environments, with a temperature range of -40°C to 125°C, making it suitable for both high and low-temperature applications.
Features
● Water and sewage industry standard application instrument.
● The sensor adopts the overall welding process, which is sturdy and durable.
● Extensive selection of process connections and measurement ranges.
● The instrument is easy to debug, operate and maintain.
● Improve operational efficiency.
Pressure sensor and transducer
pressure transmitters and sensors
Pressure transmitters used in water and wastewater treatment plants, surface water, and groundwater applications must be robust and meet the environmental conditions required by the environmental protection industry.
It is operated through the LCD screen, which is convenient for on-site debugging. The pressure transmitter adopts different diaphragm materials, flexible combination of a variety of economical products and services to meet the needs of various applications such as drinking water, sewage and wastewater, seawater desalination, etc.
Pressure Transducers and Pressure Transmitters
Pressure Transmitter for oil, air, water
