3A Sanitary Flow Meters in Beer Manufacturing

3A Sanitary Flow Meters have been widely used in multiple industries, meeting the market demand for efficient and sanitary flow measurement solutions. For example, it is necessary to avoid bacterial growth, facilitate frequent cleaning, and withstand high temperature conditions. The specific requirements for disinfection of corrosive alkaline water and hydrogen peroxide are as follows:

• All materials of parts in contact with media meet the requirements of food hygiene, such as the requirements of FDA (U.S. Food and Drug Administration) and EHEDG (European Hygienic Equipment Design Group);

• Parts in contact with the medium can withstand the temperature shock and corrosion caused by steam, alkaline water and hydrogen peroxide cleaning;

• When used in filling process, it should have fast response performance and high measurement accuracy;

• It can adapt to low temperature (about 2℃) and humid working environment. Among many liquid flow meter products, electromagnetic flowmeter can meet the above requirements.

Use of 3A Sanitary Flow Meters in Beer Production Process

Raw material preparation: The main measurement parameters in the raw material preparation process of beer production are weight and level. There are no important flow measurement points, so they are not discussed here.

Wort production: Wort is an important intermediate raw material in beer production, and its measurement is extremely important for the handover and settlement between the previous and subsequent processes (workshops). Wort has a certain viscosity but there is no difficulty in measuring 3A Sanitary Flow Meters. What needs to be considered is the disinfection in the process. The flowmeter used at this measuring point can consider using an electromagnetic flowmeter with a PFA lining (or PTFE) and stainless steel electrodes. It can prevent corrosion from dilute hydrogen peroxide and alkaline water.

Fermentation: After fermentation and filtration, the sake will be transported to the next process - packaging through pipelines.

High-concentration dilution: Some beers are produced by blending high-concentration original wine. This requires strictly controlling the ratio of high-concentration original wine and sterile carbonated water to ensure the beer degree after mixing.In each production line, two electromagnetic flowmeters are required for proportioning flow control.

The fluid flow rate is above 1m/s, which makes the flow measurement within the best working range of the instrument. At the same time, the time constant of the flow meter should also be set smaller, generally between 1 and 3s, to improve the sensitivity of the control and ensure the accuracy of the ratio.

Filling: Filling is the last step in beer production, which requires accurate control (±10mL) of the filling volume of each bottle (can, barrel).The sanitary electromagnetic flowmeter has high accuracy and fast response performance and can quickly and accurately control the filling volume of each bottle of beer.Usually, this type of electromagnetic flowmeter has a smaller diameter, generally between DN2.5 and DN40, with a compact size and a response speed of 0.3s.

Some Application Considerations

Impact and treatment of operating process

Due to product hygiene requirements, the food industry needs to regularly disinfect process pipelines (including flow meters) with disinfecting media. The media used include hot water (above 85°C), steam, alkaline water (above 50°C) and hydrogen peroxide.In this regard, we need to pay attention to the above-mentioned disinfection process with a relatively high temperature medium. This is dangerous for 3A Sanitary Flow Meters with linings. If the operation is not careful, the instrument may be easily damaged.

From the perspective of corrosion resistance, temperature resistance and hygiene, 3A Sanitary Flow Meters uses PFA as the lining material, which is accepted by the majority of users in the food industry and can meet many demanding operating requirements.Effect and treatment of bubbles in the medium

Prevent insulation degradation caused by condensation

During the beer production process, the medium is at a relatively low temperature most of the time. For example, when beer is being filled, its temperature is often lower than room temperature, at around 2°C. At this time, condensation water is easily generated at the part of the process pipeline that comes into contact with the air.

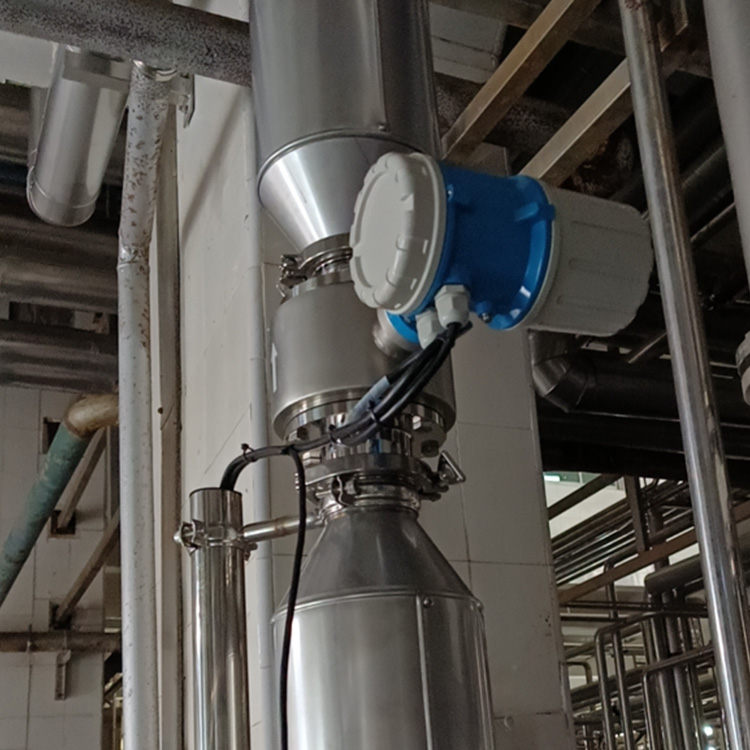

At this time, the correct method should be to choose 3A Sanitary Flow Meters with clamp connection, split type, and IP67 or IP68 protection level. Since the sensor of this protection level is completely sealed, no matter how harsh the environment is, there will be no worries about condensation water in the electromagnetic flow meter.

How do I choose the lining for my 3A Sanitary Flow Meters?

Lining material	Main performance	Scope of application
Polyethylene(PE)	Good resistance to chemical corrosion and stains	A:-40℃~85℃ B: Test water, sewage, mud, slurry,inorganic acid, inorganic salt, alkaline solution C:Can be used for sanitary media
Polypropylene(PS)	Resistant to organic acids, alkalis, salts, lower alcohols and their aqueous solutions	A:-20℃~60℃ B:Test general water, sewage, mud, coal slurry, inorganic acid, alkali, salt and other aqueous solutions
Polytetrafluoroethylene（PFA）	Chemical resistance, high temperature resistance, low temperature resistance, strong acid aqua regia resistance, strong alkali resistance	A:-80℃~250℃ B:Suitable for any strong corrosive media C:Can be used for sanitary media
Neoprene	It has excellent elasticity, toughness, wear resistance, and is resistant to corrosion by general low-concentration acids, alkalis, and salt media, but is not resistant to corrosion by oxidizing media.	A:<85℃ B:Test general water, sewage slurry, mineral slurry
Polyvinyl chloride(PVC)	Applicable to various alkalis, salts, sulfuric acid, nitric acid, phosphoric acid, etc. and their aqueous solutions	A:-25℃~70℃ B:Test general water, sewage slurry, coal slurry, mineral slurry C:General acid, alkali, salt solution

3A Sanitary Flow Meters in Beer Features：

1.  Specially used in food, pharmaceutical, beverage and other industries;

2. The measurement is not affected by changes in fluid density, viscosity, temperature, pressure, and conductivity;

3. There are no moving parts or flow-blocking parts in the measuring tube, and there is almost no additional pressure loss during measurement;

4. The instrument body is made of stainless steel (316L), and the electrode and lining materials meet sanitary standards;

5. The use of foreign advanced structural optimization design greatly improves the accuracy and repeatability of the instrument;

6. The supplier of the lining is the same as E+H and Cologne, and the process connections are formed in one piece to ensure that the roughness meets the requirements, the strength is higher, and it is more hygienic and safer;

The only sanitary electromagnetic flowmeter manufacturer in China that has passed 3A certification.

ARTang 3A Sanitary Flow Meters: Food-grade stainless steel and non-toxic lining materials to ensure zero contamination of the fluid, ± 0.2% high accuracy measurement without pressure loss, corrosion-resistant design to support CIP / SIP cleaning, suitable for milk, medicinal fluids and other conductive liquids to monitor the flow of meet the FDA / EHEDG certification for the food and beverage, beer, milk, pharmaceutical industries Provide accurate, safe and stable flow control solutions for food, beverage, beer, milk and pharmaceutical industries.
