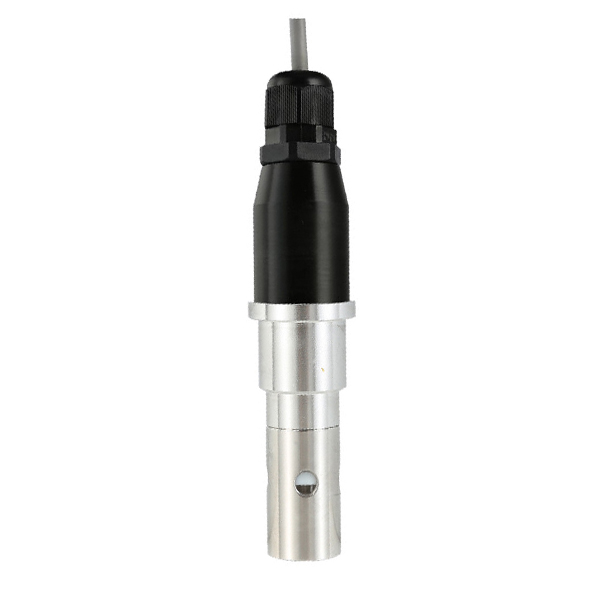

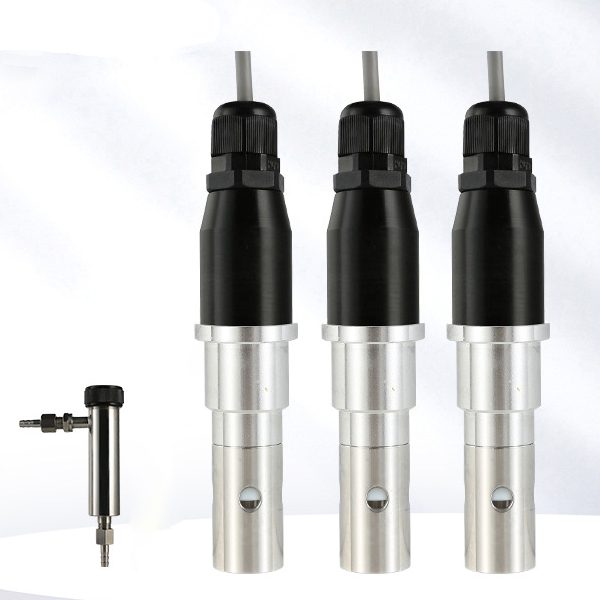

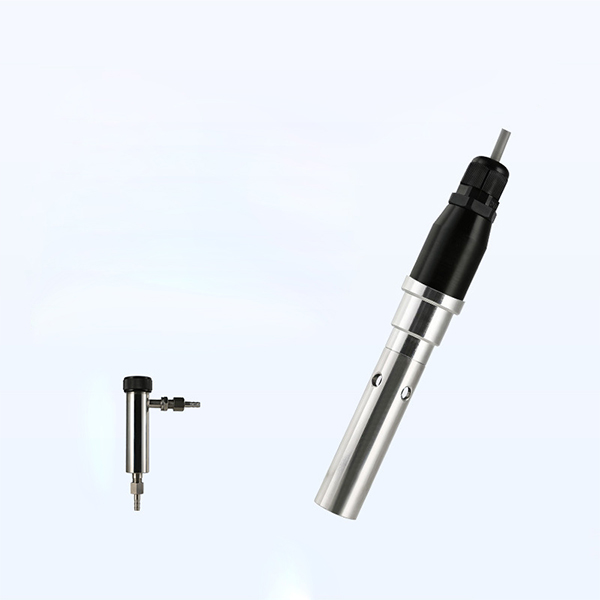

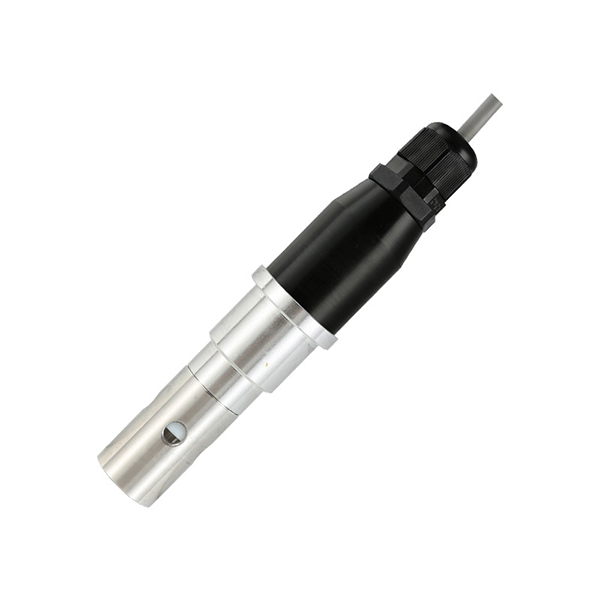

ACS12 Industrial Conductivity Electrode


Measure range :
k=0.01（0～20）μS/cm
k=0.1（0～200）μS/cm
k=1.0（0～2000）μS/cm
Max pressure:  0.3MPa
Accuracy: ±1%FS
Availability:
Quantity:
Inquire

facebook sharing button
twitter sharing button
line sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

|

 Specification

Product Industrial Conductivity Electrode
ModelACS12
Measure rangek=0.01（0～20）μS/cm
k=0.1（0～200）μS/cm
k=1.0（0～2000）μS/cm
Accuracy±2%FS
Process connection1/2NPT,3/4NPT
Pressure resistance<0.6MPa
Housing materialSS316L or Titanium Alloy
Working temperature 0～60℃
Temperature compensationNTC10k, Pt1000 (optional)
Protection gradeIP56


|

 Introduction

Industrial Conductivity Electrode stainless steel electrodes are specially designed for the measurement of conductivity values in pure water, water treatment, etc. They are particularly suitable for conductivity measurements in thermal power plants and water treatment industries.

Contact Conductivity Electrode

Double cylindrical structure, made of titanium alloy;

Electrode threads can be customized (NPT 3/4 or NPT 1/2);

The impermeable conductive surface is resistant to all liquids except fluorinated acids.
