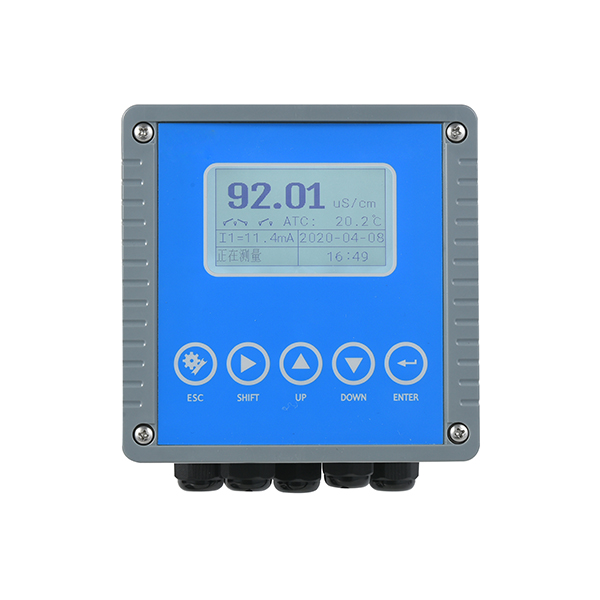

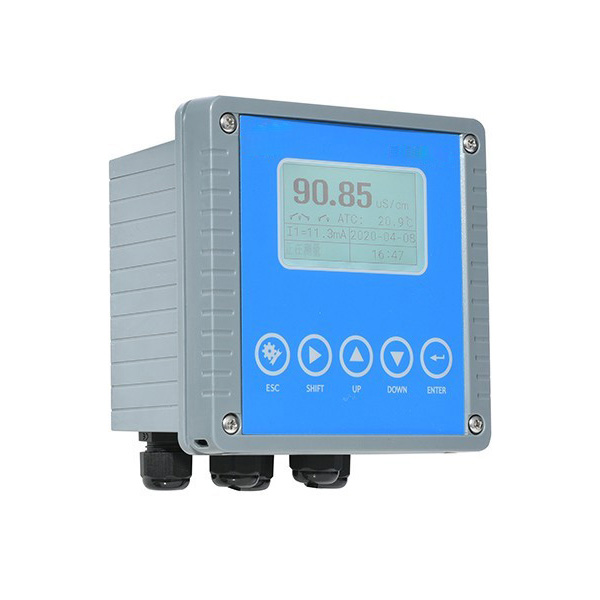

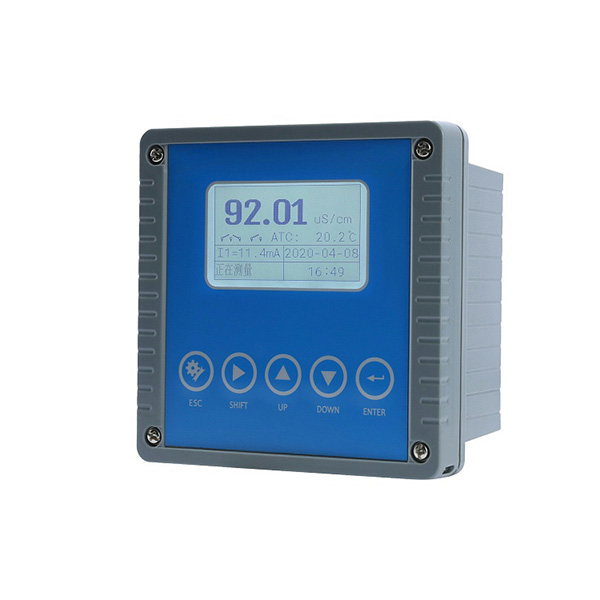

ACT11 Industrial Conductivity Meter

● Measuring Range: 0.01～20 uS/cm; 0.1～200 uS/cm; 1～2,000 uS/cm; 10～20 mS/cm; (Can be customized)

● Measure Parameters: Conductivity, TDS (Total Dissolved Solids), Salinity and Resistivity;

● ATC and MTC can be freely set;

● Dual relay for high and low limit alarms, with adjustable hysteresis;

● Support RS485 digital communication based on Modbus (RTU), 4-20mA output;

Availability:
Quantity:
Inquire

facebook sharing button
twitter sharing button
line sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

|

 Technical Parameters of Online Conductivity Meter

Product TDS meter, EC controller
ModelACT 11
Measure range0.01 electrode: 0-20.00us/cm
0.1 electrode: 0.2～200.0us/cm
1.0 electrode: 2-2000us/cm
10.0 electrode: 0.02-20ms/cm
Temperature Range0-100 ℃
Measuring medium Liquid
 Accuracy2%
Communication
RS485, Modbus-RTU
Signal output4-20mA
Power SupplyAC 220V±10%  50Hz
Operating temperature-10℃~60℃
Storage temperature-20℃~70℃
Shell MaterialABS
Relative humidity(10~85)%RH

|

 Advantages


  • Isolating transmitting output, with little interference.

  • Isolating RS485 communication.

  • EC/TDS measurement, temperature measurement, top/bottom limit control, transmitting output, RS485 communication.

  • Configurable manual and auto temperature offset function.

  • Configurable upper/lower limit warning and delay.
