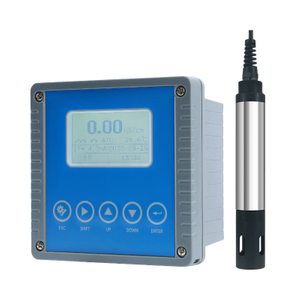

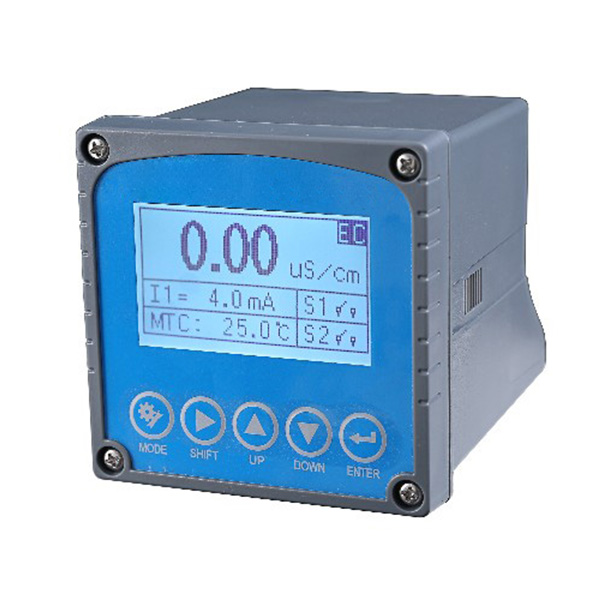

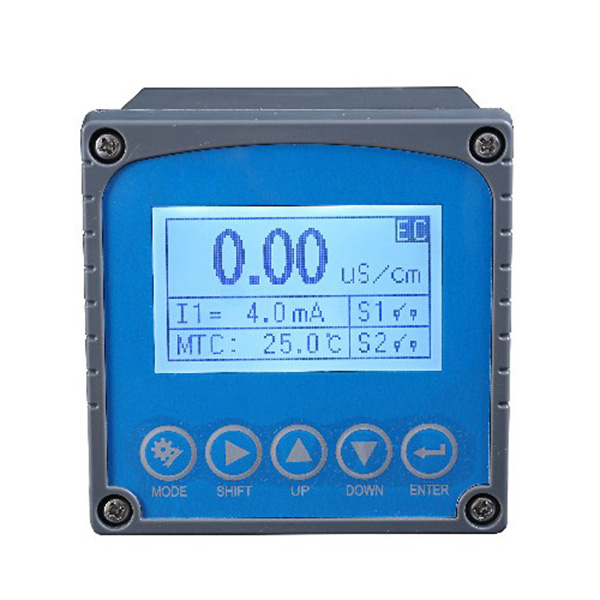

ACT12 Online Conductivity Meter

● Measuring Range: 0.01～20 uS/cm; 0.1～200 uS/cm; 1～2,000 uS/cm; 10～20 mS/cm; (Can be customized)

● Measure Parameters: Conductivity, TDS (Total Dissolved Solids), Salinity and Resistivity;

● Support RS485 digital communication based on Modbus (RTU), 4-20mA output;

Availability:
Quantity:
Inquire

facebook sharing button
twitter sharing button
line sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

|

 Technical Parameters of Online Conductivity Meter

Product  TDS meter, EC controller
Model ACT 12
Measure range 0.01 electrode: 0-20.00us/cm
0.1 electrode: 0.2～200.0us/cm
1.0 electrode: 2-2000us/cm
10.0 electrode: 0.02-20ms/cm
Operating temperature -10℃~60℃
Storage temperature -20℃~70℃
Power Supply 100V～240V, 50～60Hz; 24V
Protection level IP65

|

 Introduction

Online conductivity meter is widely applied for continuous monitoring and measurement of EC value or TDS value or EC value and temperature in the solution in the industry of thermal power, chemical fertilizer, environmental protection, metallurgy, pharmacy, biochemistry, food and water, etc.

|

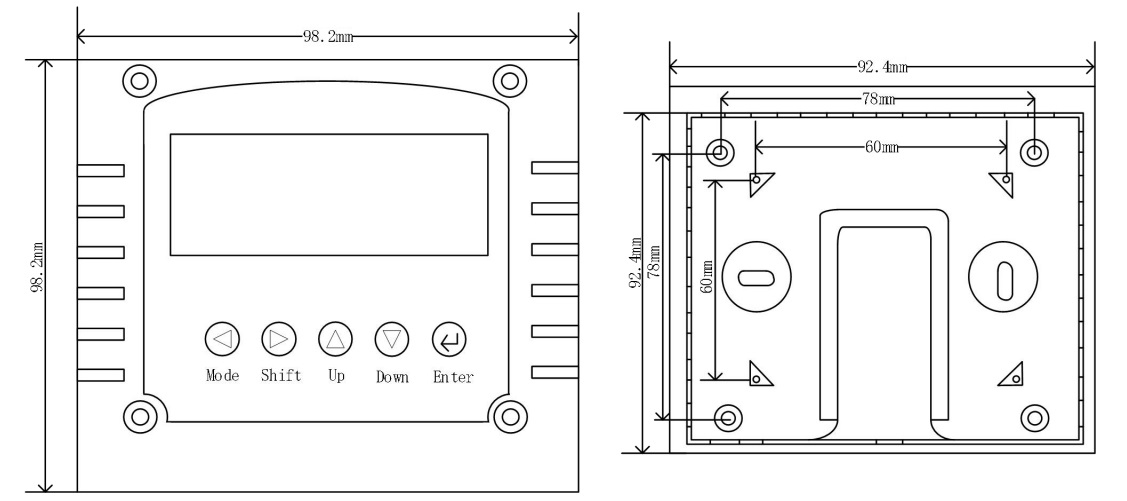

 Dimension

industrial Online conductivity meter
