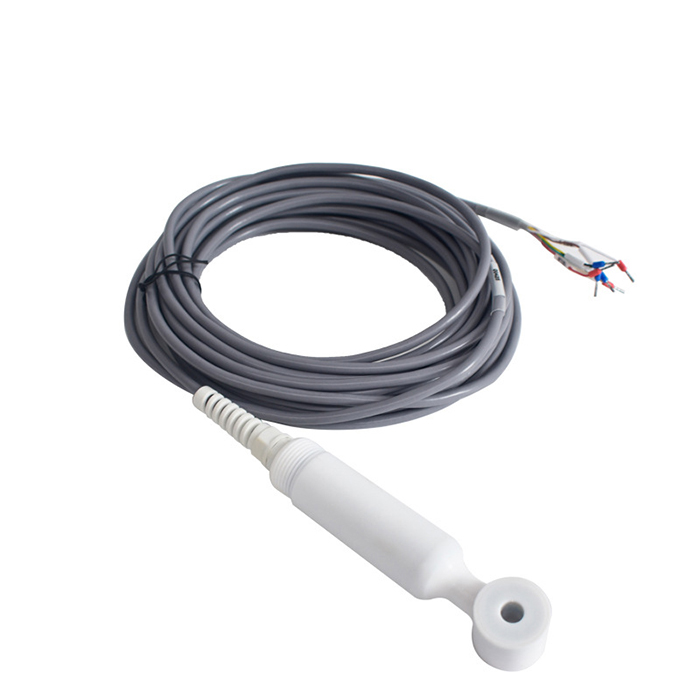

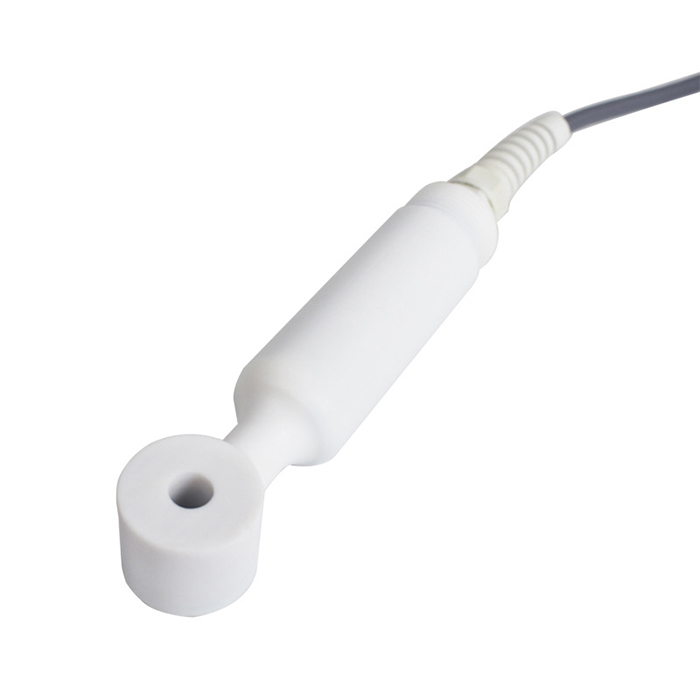

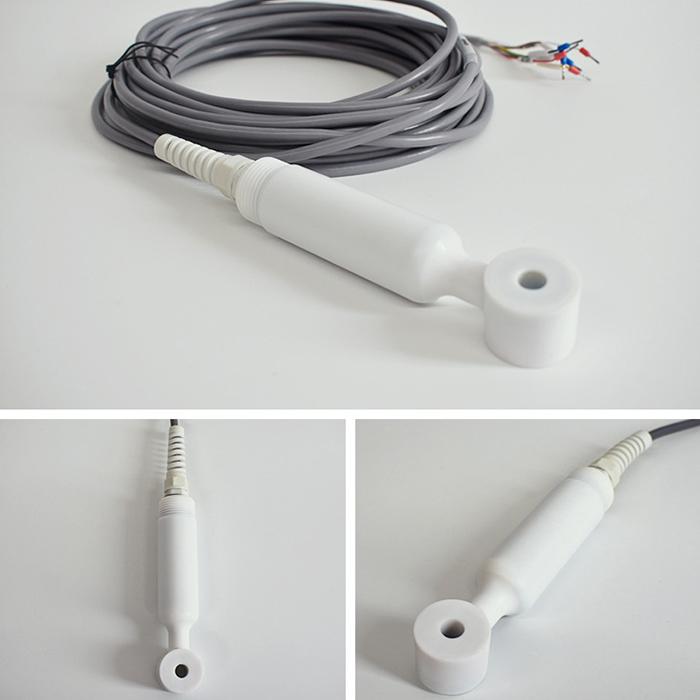

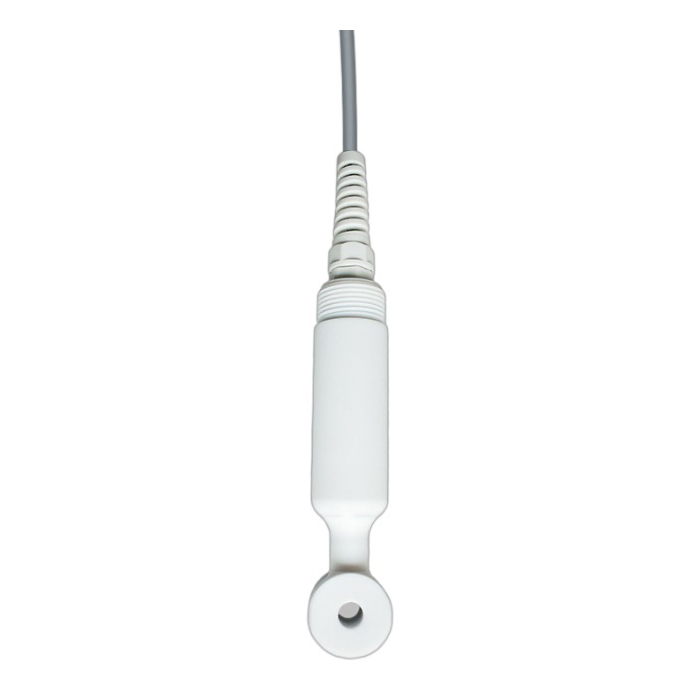

Inductive conductivity electrodes are mainly used to measure conductivity and concentration values in liquid media. This product is a digital online analysis sensor that integrates measurement and communication with an instrument embedded inside the sensor. It directly outputs RS485 digital signals (final net data) and can realize distortion-free data transmission to industrial computers, PLCs, touch screens, etc., digitizing Sensors will be directly integrated into the Internet+ system.
Specification
| Measurement | Inductive conductivity electrodes |
Measuring method | Inductive/non-contact |
Measuring range | 0~1000mS/cm, 0~2000mS/cm (customizable) |
Resolution | 0.1mS/cm, 0.1℃ |
Accuracy | ±2%FS, +0.5℃ |
temperature compensation | 0~100℃℃ Temperature compensation NTC 10K |
RS-485 interface | Supports IoT (MODBUS protocol) |
Working conditions | 0~60℃ or 0~120℃ (optional) |
Output load | 4~20mA load <500Ω (optional) |
Working voltage | DC 12V |
Protection level | IP68 |
1. This product is a digital sensor, can directly output RS-485 signal and 4~20mA signal;
2. The product has high precision, high stability, anti-interference ability.
3. Shell using polytetrafluoroethylene (PTFE) material, with excellent corrosion resistance and electrical insulation.
4. high-temperature cable using tin-plated Teflon material, high temperature resistance, up to 200 ° C;
5. without instrumentation, can be directly connected to the computer, PLC and other equipment with RS-485/4~20mA signal interface, through the network of the sensor for data acquisition, debugging and maintenance, etc;
6. Sensors can be set up through RS-485 communication.
Inductive conductivity electrodes are mainly used to measure conductivity and concentration values in liquid media. This product is a digital online analysis sensor that integrates measurement and communication with an instrument embedded inside the sensor. It directly outputs RS485 digital signals (final net data) and can realize distortion-free data transmission to industrial computers, PLCs, touch screens, etc., digitizing Sensors will be directly integrated into the Internet+ system.
Specification
| Measurement | Inductive conductivity electrodes |
Measuring method | Inductive/non-contact |
Measuring range | 0~1000mS/cm, 0~2000mS/cm (customizable) |
Resolution | 0.1mS/cm, 0.1℃ |
Accuracy | ±2%FS, +0.5℃ |
temperature compensation | 0~100℃℃ Temperature compensation NTC 10K |
RS-485 interface | Supports IoT (MODBUS protocol) |
Working conditions | 0~60℃ or 0~120℃ (optional) |
Output load | 4~20mA load <500Ω (optional) |
Working voltage | DC 12V |
Protection level | IP68 |
1. This product is a digital sensor, can directly output RS-485 signal and 4~20mA signal;
2. The product has high precision, high stability, anti-interference ability.
3. Shell using polytetrafluoroethylene (PTFE) material, with excellent corrosion resistance and electrical insulation.
4. high-temperature cable using tin-plated Teflon material, high temperature resistance, up to 200 ° C;
5. without instrumentation, can be directly connected to the computer, PLC and other equipment with RS-485/4~20mA signal interface, through the network of the sensor for data acquisition, debugging and maintenance, etc;
6. Sensors can be set up through RS-485 communication.
