What Is a Conductivity Sensor Made Of?

A conductivity sensor is an instrument used to measure the electrical conductivity of liquids and is widely applied in water quality monitoring, environmental testing, and the chemical industry. As a key indicator of dissolved salt concentration in water, conductivity directly affects water treatment performance, environmental protection, and product quality control in industrial processes.

Core Components of a Conductivity Sensor

A conductivity sensor mainly consists of the following parts: electrodes, sensor housing, transmitter, and connectors.

1. Electrodes

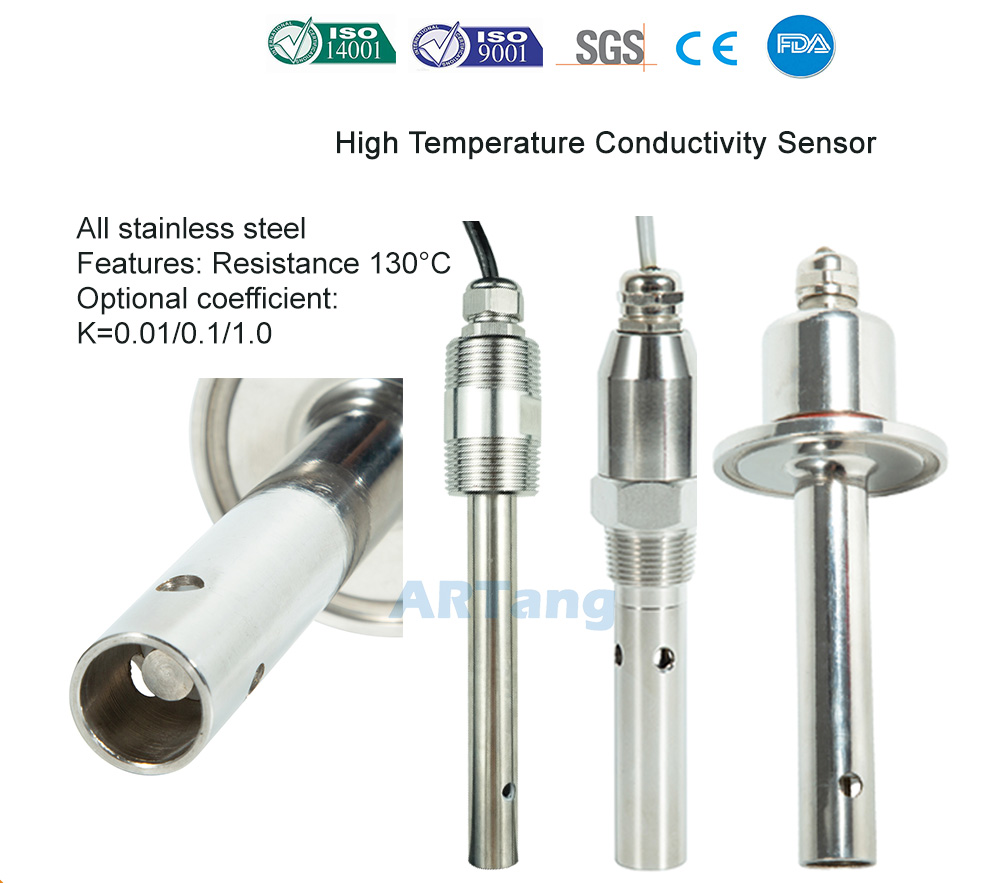

The electrodes are the core components of a conductivity sensor and are responsible for the actual conductivity measurement. They are typically made of highly conductive materials such as stainless steel, platinum, or gold-plated materials. By allowing electric current to pass through the liquid, the electrodes measure its electrical conductivity.

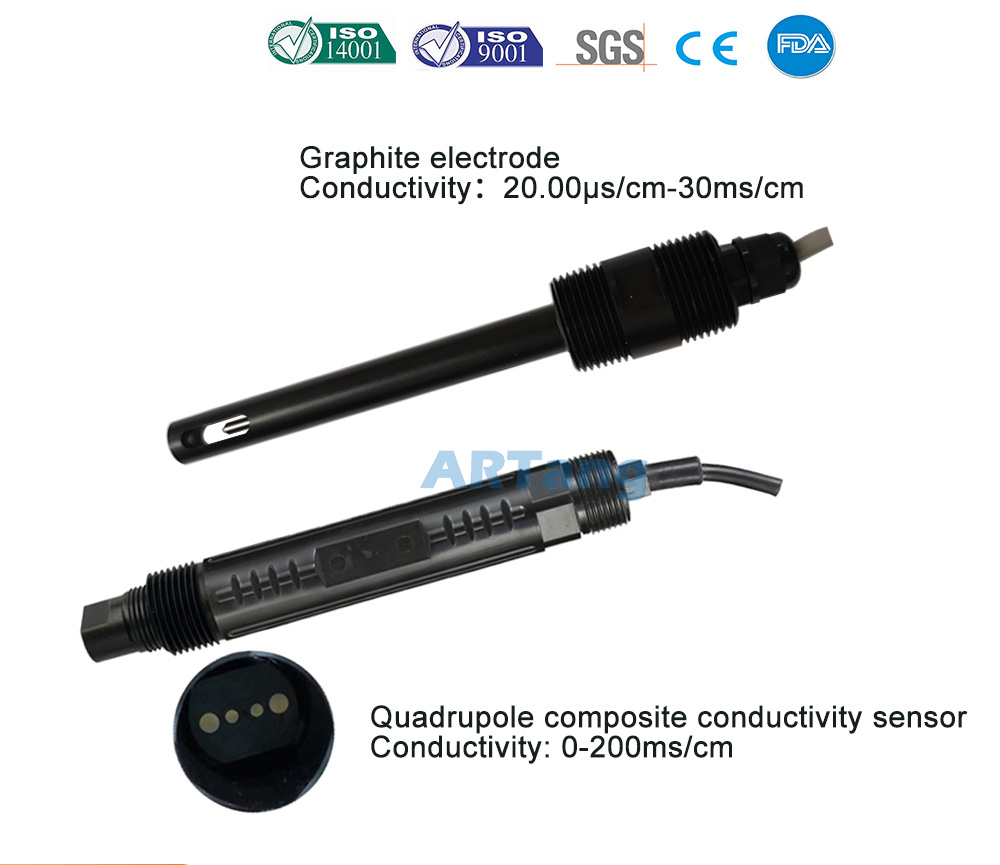

The number and configuration of electrodes affect measurement accuracy. Common designs include two-electrode and four-electrode systems. In a four-electrode system, two electrodes are used to apply current, while the other two measure voltage. This design effectively minimizes errors caused by electrode fouling and provides more accurate and reliable conductivity readings.

2. Sensor Housing

The sensor housing plays a critical role in protecting the electrodes and internal components from external environmental influences. It is usually made from corrosion-resistant, high-temperature-resistant, and pressure-resistant materials such as PVC, PVDF, or stainless steel. These materials ensure long-term stability and reliability, especially in harsh operating conditions commonly found in industrial and environmental monitoring applications.

3. Transmitter (Converter)

The transmitter of a conductivity sensor is responsible for converting the electrical current signals collected by the electrodes into digital signals for processing and output. It translates changes in electrode current into conductivity values, then applies internal algorithms for compensation and standardization to deliver accurate conductivity readings. A high-quality transmitter not only improves measurement accuracy but also minimizes the impact of environmental variations, ensuring reliable performance under a wide range of operating conditions.

4. Connectors

Connectors serve as the interface between the conductivity sensor and external devices such as data loggers or control systems. Their design must ensure stable signal transmission while protecting the system from environmental factors such as moisture and corrosive gases. Typically, connectors feature waterproof designs to prevent poor contact and ensure reliable operation during long-term use in submerged or high-humidity environments.

Applications of Conductivity Sensors

1. In the food and beverage industry, conductivity sensors are used to monitor product purity and quality. For example, conductivity can be used to detect impurities and contaminants in water, such as salts, minerals, and microorganisms. In the pharmaceutical industry, these sensors are applied to monitor production processes to ensure product quality and safety. In the chemical industry, they are used to track chemical reactions and ensure that processes proceed correctly.

2. In the power industry, conductivity sensors are used to monitor the quality and performance of transformer oil. The conductivity of transformer oil reflects the presence of moisture and impurities, helping determine whether the oil needs to be replaced or treated. In addition, these sensors are also used to monitor the conductivity of cooling fluids in power equipment to ensure proper operation of cooling systems.

3. In the environmental protection sector, conductivity sensors are widely used to monitor water quality and evaluate wastewater treatment performance. For instance, conductivity can be used to detect harmful substances in water, such as heavy metal ions and organic pollutants. During wastewater treatment, changes in conductivity indicate treatment effectiveness and help guide process optimization.

As a powerful water quality monitoring tool, a conductivity sensor offers multiple functions, including conductivity measurement, temperature compensation, signal output and conversion, high sensitivity and stability, and strong resistance to interference. Its wide application in water quality monitoring, environmental monitoring, industrial process control, and scientific research provides essential data support for environmental protection, industrial production, and scientific studies.
