Output Signal Types for Electromagnetic Digital Flow Meters

Thanks to their high measurement accuracy, wide measuring range, and absence of mechanical wear, electromagnetic digital flow meter are widely used in industries such as petrochemicals, wastewater treatment, and food and beverage processing. However, the flow data measured by an electromagnetic flow meter must be transmitted to an automation or control system through specific output signals in order to enable precise process control. Different types of output signals determine how well the electromagnetic flow meter integrates with control systems, as well as the stability of data transmission and the overall ease of system integration.

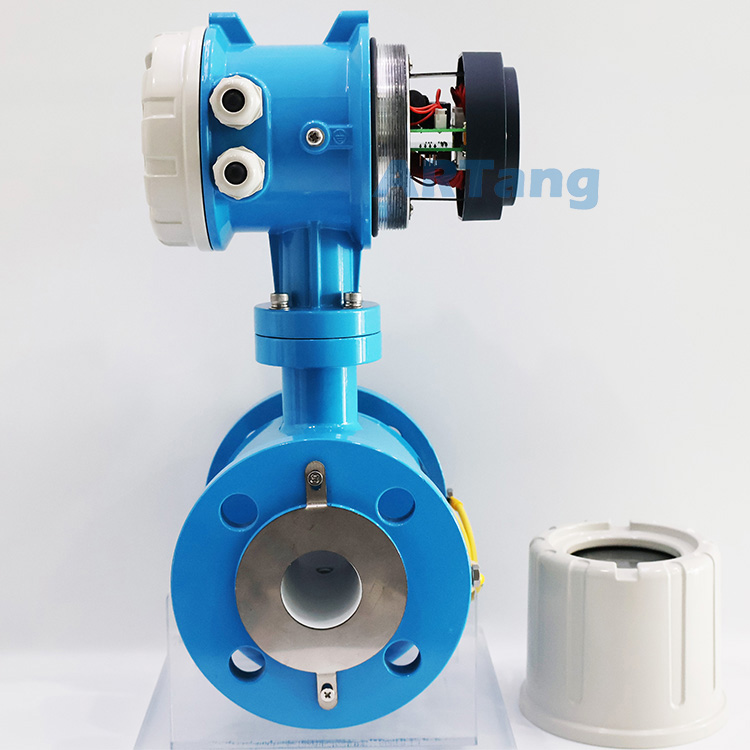

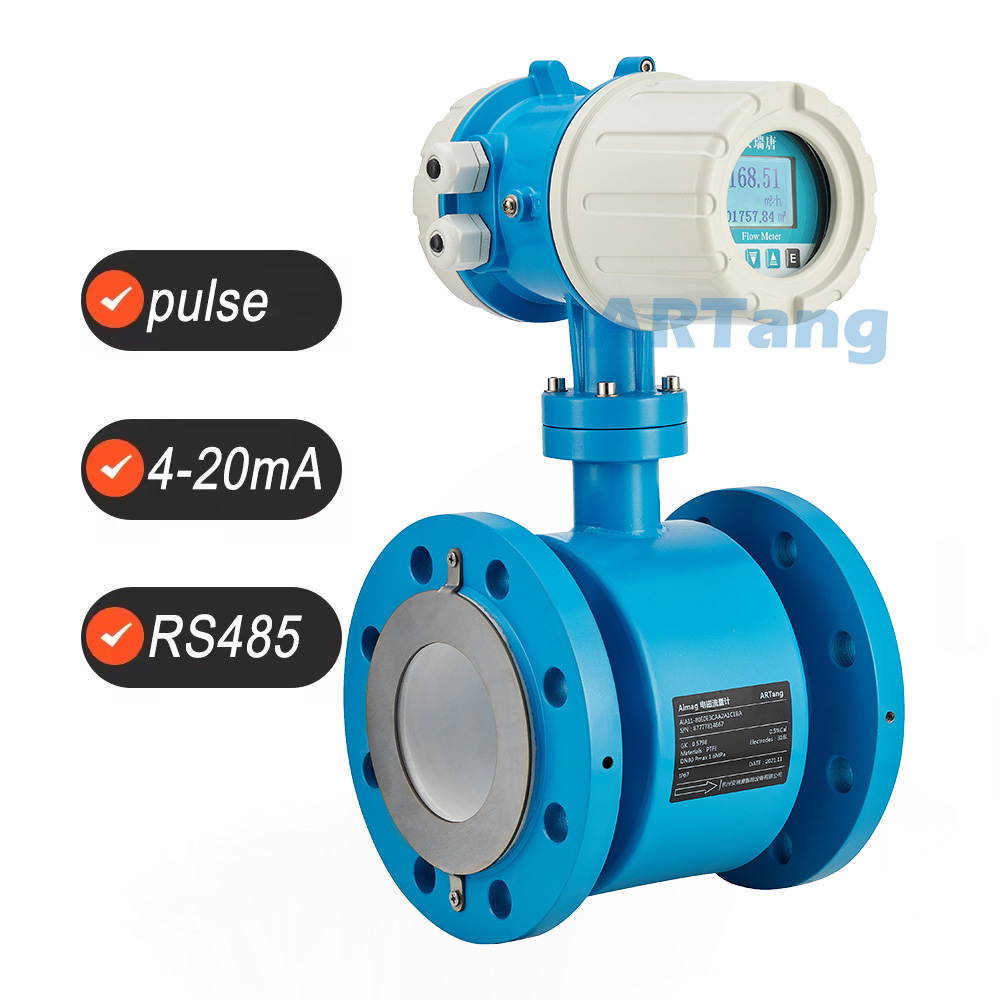

Common Output Signal Types of Electromagnetic Digital Flow Meters

1. Analog Output Signals

4–20 mA Current Signal:

The 4–20 mA current signal is the most commonly used analog output for electromagnetic digital flow meter. A 4 mA signal represents the lower limit of the flow measurement range, while 20 mA corresponds to the upper limit. The current value between these points is linearly proportional to the actual flow rate. Because it uses current transmission, this signal offers strong resistance to electromagnetic interference and is well suited for long-distance transmission in complex industrial environments, typically reaching several hundred meters.

0–10 V Voltage Signal:

The 0–10 V voltage signal is another common type of analog output. In this case, 0 V indicates the minimum flow rate and 10 V represents the maximum. Compared with the 4–20 mA current signal, the 0–10 V voltage signal is more susceptible to electromagnetic interference and signal attenuation during transmission, so the effective transmission distance is usually limited to several tens of meters.

2. Digital Output Signals

RS485 Communication Signal:

RS485 is a serial communication interface standard. When an electromagnetic digital flow meter uses RS485 output, it enables bidirectional data transmission via a two-wire connection (A and B lines). It supports networking of multiple devices on the same bus. RS485 uses differential signal transmission, providing strong resistance to interference and allowing transmission distances of up to several thousand meters.

HART Protocol Signal:

The HART protocol is a communication protocol that superimposes digital signals on an analog signal. When an electromagnetic digital flow meter supports HART output, it retains the 4–20 mA analog signal for standard flow indication and control while enabling bidirectional digital communication. Using a HART handheld communicator or host software, users can remotely perform parameter configuration, calibration, and fault diagnostics. The HART protocol offers flexible application options for industrial users.

Profibus DP/PA Signal:

Profibus DP is mainly used for high-speed data transmission and is suitable for connecting distributed I/O devices, while Profibus PA is designed specifically for process automation and supports intrinsic safety for use in hazardous areas. When an electromagnetic digital flow meter is equipped with Profibus DP/PA output, it can be directly integrated into a Profibus network, enabling high-speed and reliable communication with other field devices and controllers. In large-scale industrial projects such as chemical plants and power facilities, this type of signal helps build highly integrated and intelligent control systems.

3. Special Output Signal Types

Pulse Signal:

Some electromagnetic digital flow meter can output a pulse signal. This signal can be used to count the volume of fluid passing through the meter, making it ideal for applications that require precise measurement of fluid volume.

Switch Output Signal:

In certain applications, electromagnetic digital flow meter are equipped with switch output signals, commonly in the form of relay contacts or transistor outputs. When the flow reaches a preset upper or lower threshold, the switch output changes state—for example, closing a relay contact or turning on a transistor. This type of signal can be used to trigger audible or visual alarms to alert operators of abnormal flow conditions, or to control related equipment, such as automatically closing a valve when flow is too low to ensure system safety.

The wide variety of output signal types available for electromagnetic digital flow meter provides multiple options for integration with automation control systems. From traditional analog signals to advanced digital communication signals, each type offers unique advantages and is suited to specific applications. By selecting the appropriate output signal and using proper compatibility methods, electromagnetic flow meters can work efficiently with automation systems, supporting the development of automated and intelligent industrial processes.
