Mag Flow Water Meter in Pulp and Paper Making

For paper mills, flow measurement and control is more important. The pulp flow into the paper machine for measurement, mag flow water meter can be used with the concentration meter as a paper quantitative control of the feed-forward; in the pulp distribution system for measurement of the pulp, electromagnetic flowmeter can be realized in the continuous or intermittent control of the ratio of the pulp and so on.

Pulping preparation process

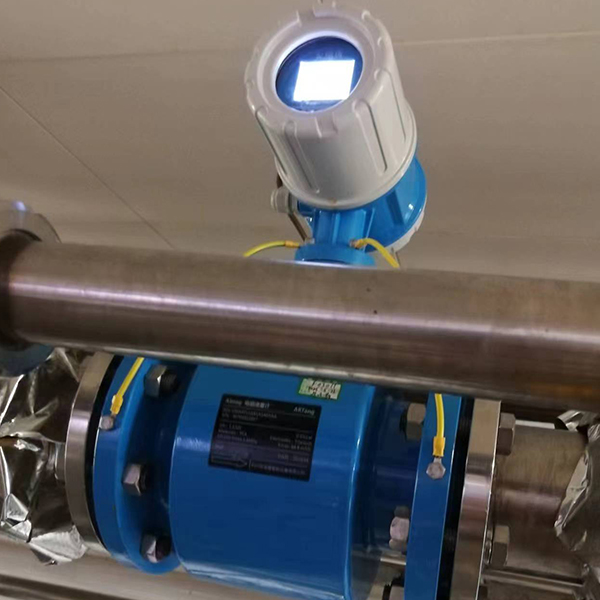

The main task of the preparation section is to make different raw materials into pulp, the main raw materials used are mechanical pulp, chemical pulp, deinking pulp, bleaching chemical machine pulp. Whether the pulp is natural color or bleached pulp, mag flow water meter is mainly involved in the flow measurement of polished pulp, water and acid or alkali in the pulping process. Generally after mechanical grinding the temperature of the pulp should reach 80 ℃, when the wood or grass and other materials as raw materials for pulping often also through the cooking process. As the cooking liquid is alkali such as Ca(OH)2 or NaOH solution, the slurry are alkaline, so the measuring instrument puts forward high requirements. Generally speaking, the slurry magnetic flow meter adopts high temperature resistant PTFE lining, corrosion resistant electrode material, and adopts split structure installation.

In the slurry proportioning process manufacturers to get different quality of paper, using different and the slurry proportioning concentration, but often due to a slight difference in the slurry and lead to unqualified finished products, from the forehead to cause greater material and economic losses. So the paper mills in each of the pipeline to participate in the proportion of slurry magnetic flow meter are equipped with a measurement of the flow of slurry into the total pipe of the instantaneous and total flow, but also in the lower end of the pipe are installed on-line concentration meter to detect the effect of the slurry. If there is any deviation from the set concentration, the valve opening will be adjusted immediately to adjust the corresponding slurry flow. Here the electromagnetic flowmeter is required to be highly accurate, and has good repeatability and dynamic response.

For non-deinking pulp, the slurry magnetic flow meter is mainly used to measure the amount of water used for pulping according to the pulp consistency. Through the accurate measurement of mag flow water meter, the pulping degree can be better controlled and the pulp consistency can be adjusted stably, which provides a good precondition for the pulp to be formed in the future. For large-scale papermaking enterprises, the water used for pulping is generally recycled water, which does not have high requirements for electromagnetic flow meters, generally using PTFE lining and 316L electrode can be used.

Dilution of stock

The purpose of stock dosing is to provide a continuous and stable supply of absolute dry stock according to the speed and dosing requirements of the paper machine, while the purpose of dilution is to dilute the stock to a suitable consistency according to the requirements of the paper machine for the formation of a uniform wet sheet of paper during the copying process. In general, the amount of adjustment and dilution is carried out at the same time. Paper stock dilution generally uses concentrated white water from the web to conserve water, recover material and energy from the white water, and reduce environmental pollution.

Logs or waste paper after pulping into the required fiber pulp, waste paper pulping for washing and bleaching treatment, which slurry magnetic flow meter mainly measures the intervening pulping after the addition of water flow. Most of the water around the river water slightly treated after intervention, so the water quality is poor, but no corrosive, slurry magnetic flow meter using conventional rubber lining and stainless steel electrodes can be.

Mag Flow Water Meter in Pulp and Paper

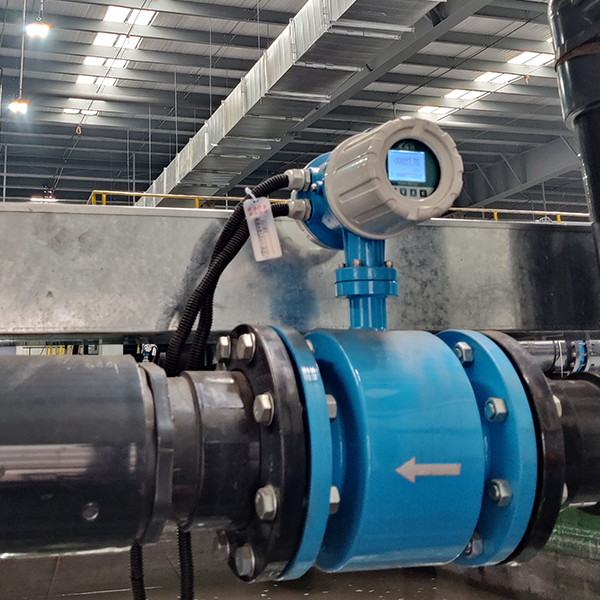

The printing and dyeing industry belongs to the three high industries of high energy consumption, high water consumption and high pollution. mag flow water meter is used in the paper industry for pulp flow, paint and ink placement, cooling water flow, wastewater treatment monitoring and energy management. It ensures quality, stabilizes production, saves energy and reduces emissions, and improves production efficiency and environmental sustainability.

ARTang instrumentation products are currently used in many parts of the printing and dyeing industry, and their stable and reliable performance can help you effectively improve on-site processing efficiency and save production costs.

1、Preparation process

The main task of the preparation section is to make different raw materials into slurry. ARTang mag flow water meter is mainly involved in the flow measurement of the grinding slurry, water and acid or alkali during the pulping process. Generally the temperature of the slurry has to reach 80°C after mechanical grinding. When the wood or grass and other materials as raw materials for pulping is often also through the cooking process. As the cooking solution for alkali such as Ca (OH) 2 or Na0H solution, the slurry are alkaline, so the electromagnetic flowmeter is mostly used in high-temperature-resistant polytetrafluoroethylene lining and split-type structure type. In the choice of electrode materials to consider the selection of corrosion-resistant materials. Alkaline slurry is generally used Hastelloy Hc, titanium Ti and other materials, do not choose tantalum electrode; and if the measurement of acidic slurry, the requirements are not high, you can also choose acid-resistant steel 316SS.

Many enterprises use waste paper pulping, that is, waste paper pulping and then washing and bleaching treatment, here mag flow water meter is mainly used to measure the water flow after participating in the pulping. Most of the water for the nearby river water slightly processed to participate in the operation, so the water quality is poor, but no corrosive, electromagnetic flow meter with conventional rubber lining and stainless steel electrodes can be used; and to participate in the deinking process of deinking agent (common deinking agent Na0H, Na2SiO3, Na2O2 or H2O2) measurement, electromagnetic flow meter electrodes and lining selection should be careful.

2. Screening and bleaching section

Mag flow water meter is used to measure the inflow of each pulp pool from each stock preparation plant into the paper making plant and the flow rate from each pool out of the distribution pool, where a total of five types of pulps (chemical pulp, deinking pulp, CTMP, machine pulp, and lossy pulp) are involved in the distribution process. Here machine pulp and CTMP pulp temperature up to 50-80 ℃, flowmeter lining material should be considered to choose PTEE.

electromagnetic flowmeter in the field of papermaking is commonly used PTFE or other fluorine plastic lining: electrode according to the nature of different liquids are selected.
