Installation Considerations for Vortex Air Flow Meters

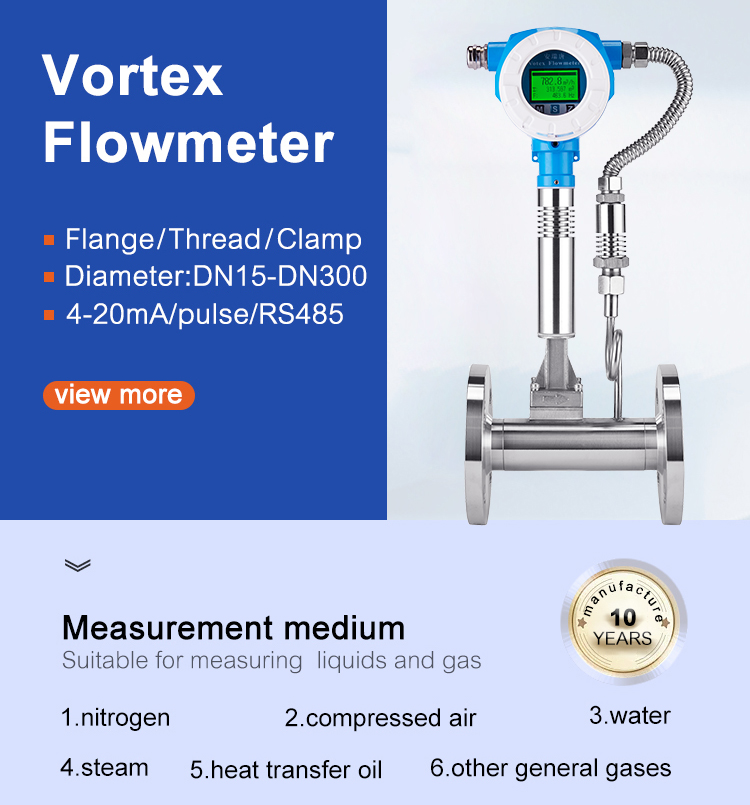

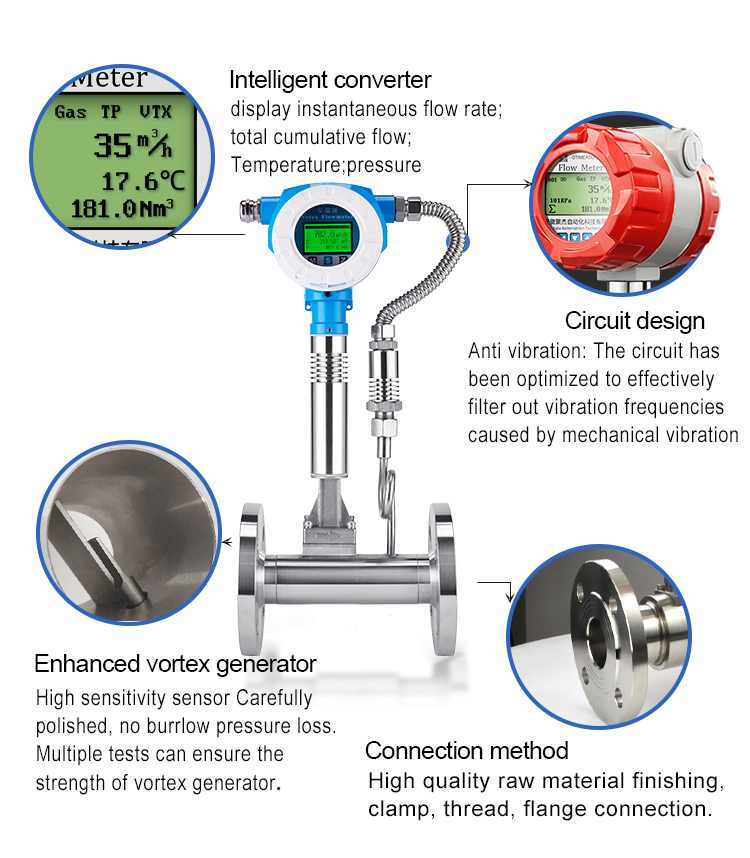

The correctness of vortex air flow meter installation directly determines measurement accuracy and equipment stability. Particularly, the differing characteristics of various media (gas, steam, liquid) impose specific requirements on the installation process. Mastering the scientific installation method is the key prerequisite to ensure the flow meter performs optimally.

I. Measuring Gas or Steam: Preventing Liquid Retention and Avoiding Bubbles is Core

1. Pipeline Configuration to Prevent Liquid Retention

In gas or steam measurement, liquid retention can disrupt flow field stability, leading to measurement deviation.

• Prioritize vertical pipeline installation to utilize gravity and prevent fluid accumulation.

• If horizontal installation is necessary, elevate the pipeline section containing the flow meter to create a natural drainage slope and prevent liquid pooling.

2. Avoiding Bubble Interference

Two-phase flow (gas-liquid mixture) can severely affect measurement accuracy. Prevention requires attention to pipeline design and valve placement:

• Optimize pipeline configuration to minimize bubbles generated by fluid turbulence and ensure unidirectional media flow.

• Valves must be installed downstream of the vortex air flow meter. This avoids bubbles generated by sudden pressure drops when fluid passes through the control valve, which would interfere with vortex detection.

II. Measuring Liquid: Ensuring a Full Pipeline is Key

The core requirement for liquid measurement is to guarantee that the pipeline at the flow meter is always completely filled with fluid, avoiding empty or partially filled pipe conditions.

1. Standardize Fluid Flow Direction and Pipeline Layout

• For vertical installation, ensure fluid flows upward. This utilizes gravity to maintain a full pipe state.

• For horizontal installation with downward fluid flow, the downstream pipeline must be elevated to form a liquid seal structure, preventing the formation of vapor pockets or air cavities within the pipeline.

2. Enhance Pipeline Sealing

• Prior to installation, inspect the sealing integrity of all pipeline connections. Leakage can allow air ingress, disrupt the full-pipe condition, and compromise measurement accuracy.

III. Handling Mixed-Phase Flow: Strictly Avoid Introducing Multi-Phase Media in Single-Phase Measurement Scenarios

Vortex air flow meters are designed solely for measuring single-phase media (pure gas, pure liquid, pure steam). Accurate measurement is impossible under mixed-phase flow conditions.

• Before installation, confirm the phase state of the measured medium is stable, avoiding gas-liquid or vapor-liquid mixtures.

• For media prone to phase change, install phase stabilization devices upstream and downstream of the flow meter. This ensures the medium passes through the instrument in a consistent, single-phase state.

IV. General Installation Requirements: Details Determine Measurement Accuracy

In addition to medium-specific requirements, the following general specifications must be strictly followed:

1. Straight Pipe Section Requirements

• Reserve sufficient straight pipe sections upstream and downstream as specified in the instrument manual. Typically, the upstream straight section should be ≥10D, and the downstream straight section should be ≥5D (where D is the pipe inner diameter), with exact lengths determined by actual operating conditions. This prevents flow field distortions caused by components such as elbows and valves from affecting measurement accuracy.

2. Environment and Protection

• Avoid installing the vortex air flow meter in environments with strong electromagnetic interference, severe vibration, or rapid temperature fluctuations.

For corrosive media, select a flow meter made of compatible materials and implement appropriate pipeline corrosion protection measures.
