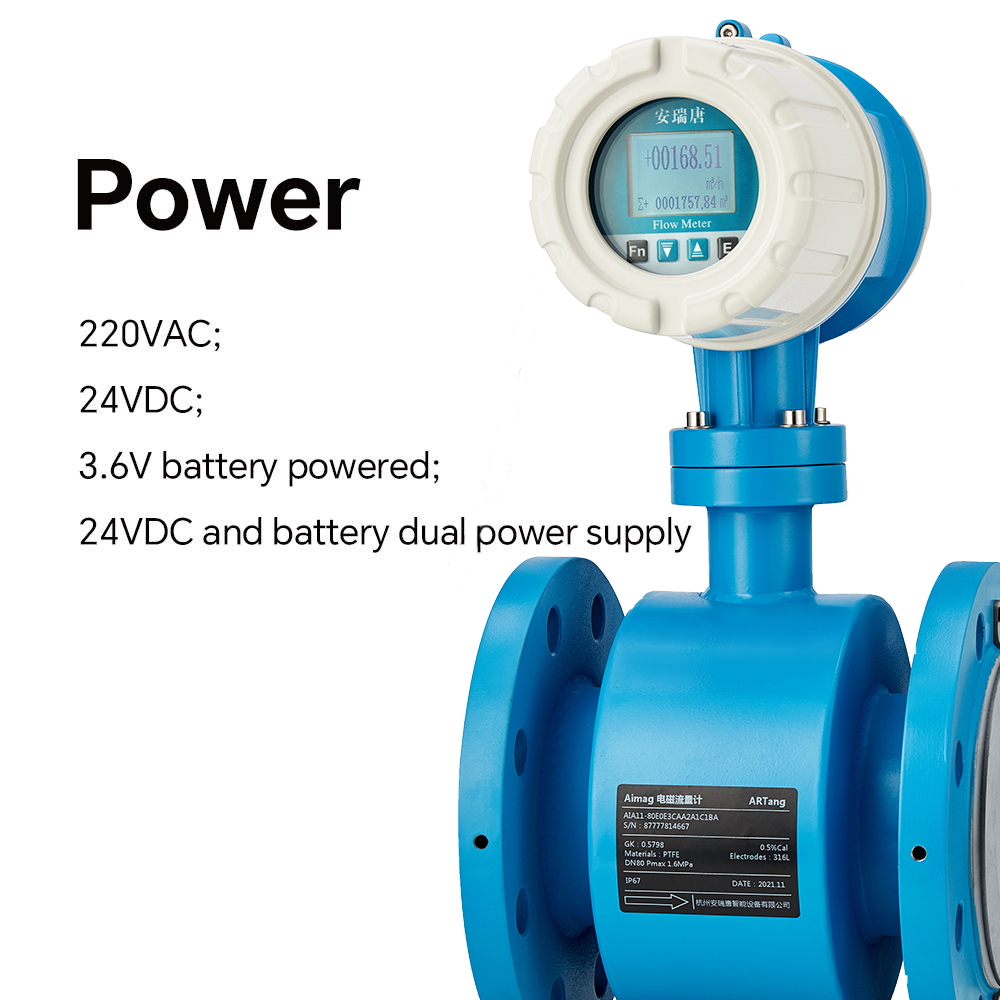

What Factors Affect the Accuracy of Magnetic Flow Meters?

The accuracy of a magnetic flow meters is affected by multiple factors, which can generally be classified into fluid properties, installation conditions, electromagnetic interference, meter-related factors, and environmental conditions. The following is a detailed explanation:

Electrical Conductivity

The fluid must have sufficient electrical conductivity (typically ≥ 5 μS/cm, depending on the model) to generate an induced current.

Impact:

Conductivity too low (e.g., pure water, oil, alcohol, or other non-conductive or weakly conductive fluids): the induced signal is very weak, making stable measurement difficult and causing reading drift or no display. Non-uniform conductivity (e.g., due to air bubbles or impurities): sudden local changes in conductivity can introduce measurement errors.

Flow Velocity Distribution

The optimal flow velocity range for magnetic flow meters is 0.5–10 m/s. At low velocities (< 0.5 m/s), the induced signal is weak and the signal-to-noise ratio is low. At high velocities (> 10 m/s), excessive fluid scouring may cause electrode wear or flow disturbances.

Fluid Density and Viscosity

Magnetic flow meters measure volumetric flow and are theoretically independent of fluid density and viscosity. However, in special cases—such as high-viscosity fluids—wall slip may occur, altering the velocity profile and indirectly affecting measurement accuracy.

Air Bubbles or Solid Particles in the Fluid

High air content: air bubbles interrupt the magnetic field but do not conduct electricity, reducing the induced voltage and resulting in lower readings.

Large solid particles (e.g., particle diameter greater than one-tenth of the pipe diameter): may block electrodes or disturb the flow field, causing signal fluctuations.

Gas–liquid two-phase flow (e.g., steam mixed with liquid): unstable flow conditions can lead to accuracy errors exceeding 10%.

Installation Location

An magnetic flow meters should be installed in a straight pipe section where the pipe is completely full and the flow velocity profile is uniform. Improper installation—such as locations close to pump outlets or control valves that generate strong disturbances—can cause unstable flow conditions and reduce measurement accuracy.

Example:

When an magnetic flow meters is installed directly at a pump outlet, pressure pulsations and flow fluctuations generated by the pump can lead to unstable measurement signals and increased measurement error.

Straight Pipe Length

Typical requirements:Upstream straight pipe length ≥ 5 times the pipe diameter (5D). Downstream straight pipe length ≥ 3D

If flow-disturbing components such as elbows, valves, or pumps are present upstream, the upstream straight length should be extended to 10D–20D

Impact: Insufficient straight pipe length can result in a disturbed flow profile, causing measurement errors of 5%–20%.

Pipe Orientation / Full Pipe Condition:

The sensor must be installed either horizontally or vertically (for vertical installation, flow should be upward). The pipe must be completely full of fluid. If the pipe is not full—for example, air accumulating at the top of a horizontally installed pipe—the effective conductive area is reduced, leading to lower readings.

Pipe Vibration

Pipe vibration can cause slight displacement of the measuring tube and electrodes, altering the induced electromotive force and introducing measurement errors.

Example: When an magnetic flow meters is installed on piping near vibration sources such as large motors or compressors, vibrations can be transmitted through the pipe and fluid to the meter, negatively affecting measurement accuracy.

Stray Current Interference

Principle: In industrial environments, stray currents may be present due to poor grounding, improper cable routing, or nearby electrical equipment. These stray currents can introduce interference into the flow meter’s measurement circuit and affect accuracy.

Example: When installed near high-power electrical equipment, an magnetic flow meters with inadequate grounding may allow stray currents to enter the measurement circuit through the grounding system, resulting in inaccurate readings.

External Magnetic Field Interference

Installing an magnetic flow meters near large transformers or electric motors may cause external magnetic fields to superimpose on the meter’s magnetic field, leading to measurement errors.

Improper Selection of Electrode and Lining Materials

When measuring highly corrosive fluids such as strong acids or alkalis, electrodes that lack sufficient corrosion resistance may suffer surface damage, resulting in distorted signals. Similarly, if the lining material is not chemically resistant, it may deteriorate and allow the fluid to come into direct contact with the measuring tube, leading to reduced measurement accuracy.

Instrument Aging and Wear

Over time, components of an magnetic flow meters—such as electrodes, linings, and coils—may experience aging and wear. Electrode surfaces can become coated or oxidized, linings may thin or crack, and coil insulation performance may degrade, all of which can negatively affect measurement accuracy.

Zero Drift

In environments with significant day-to-night temperature variations, the zero point of an magnetic flow meters may drift as temperature changes, resulting in measurement errors.

Temperature Variations

In high-temperature environments, the resistance of the flow meter’s coils increases, which can alter magnetic field strength. At the same time, fluid viscosity may decrease and the velocity profile may change, all of which can affect measurement results.

Humidity Effects

In humid environments such as underground pipelines or coastal areas, moisture may penetrate the electronic circuitry of the magnetic flow meters, potentially causing short circuits or leakage currents and reducing measurement accuracy.

Summary

Electromagnetic flow meters are high-precision flow measurement instruments widely used in industrial processes. However, their measurement accuracy can be influenced by multiple factors, including fluid characteristics, piping conditions, installation quality, instrument condition, and calibration.
