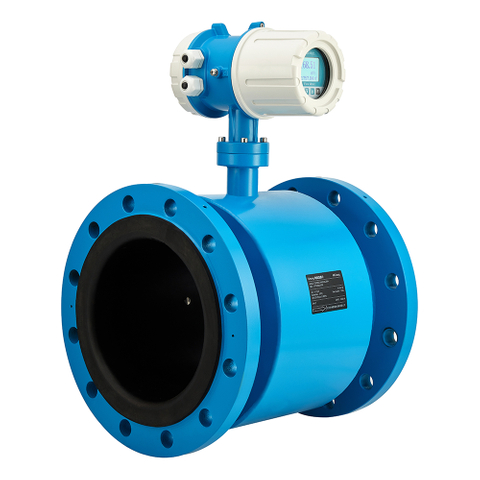

Slurry Magnetic Flow Meter

The Slurry Magnetic Flow Meter is a new design, through excellent processing technology and high-quality raw materials, the performance of Slurry Magnetic Flow Meter up to a higher standard. We are perfect for every detail of the Slurry Magnetic Flow Meter, guarantee the quality level, so as to bring you the perfect product experience. ARTang is a professional China Slurry Magnetic Flow Meter manufacturer and supplier, if you are looking for the best Slurry Magnetic Flow Meter with low price, consult us now!
  • Digital Electromagnetic Flowmeter Liquid Water Slurry Magnetic Flow Meter
    Accuracy: ±0.2%/±0.5%
    Size: DN3-DN3000
    Electrode: SUS316L, Hastelloy B, Hastelloy C
    Structure: compact, remote
    Liner: PFA,F46,Neoprene,PTFE, FEP
    PH electrode: 316 stainless steel, HC/HB, Ti, Da, Pt
    Output Signal: 4~20 mA, Pulse
    Communication: RS485, HART, PROFIBUS
    Protection Grade: IP65 std, IP68
    Ambient Temperature:-45℃~80℃
    Conductivity: > 5 μS/cm
    Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
    Sensor material: carbon steel (std), SS304 / SS316 (optional)
    Flange: ANSI, DIN, JIS, etc.
  • Electromagnetic Flow Meter for Sewage Slurry
    Size: DN3-DN3000
    Accuracy: ±0.2%RS/±0.5%RS
    Electrode: SUS316L, Hastelloy B, Hastelloy C
    Structure: compact, remote
    Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
    Output Signal: 4~20 mA, Pulse
    Communication: RS485, HART, PROFIBUS
    Protection Grade: IP65 std, IP68 optional for remote
    Velocity: 0.1~15 m/s
    Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm
    Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
    Sensor material: carbon steel (std), SS304 / SS316 (optional)
    Flange: ANSI, DIN, JIS, etc.
    Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis
