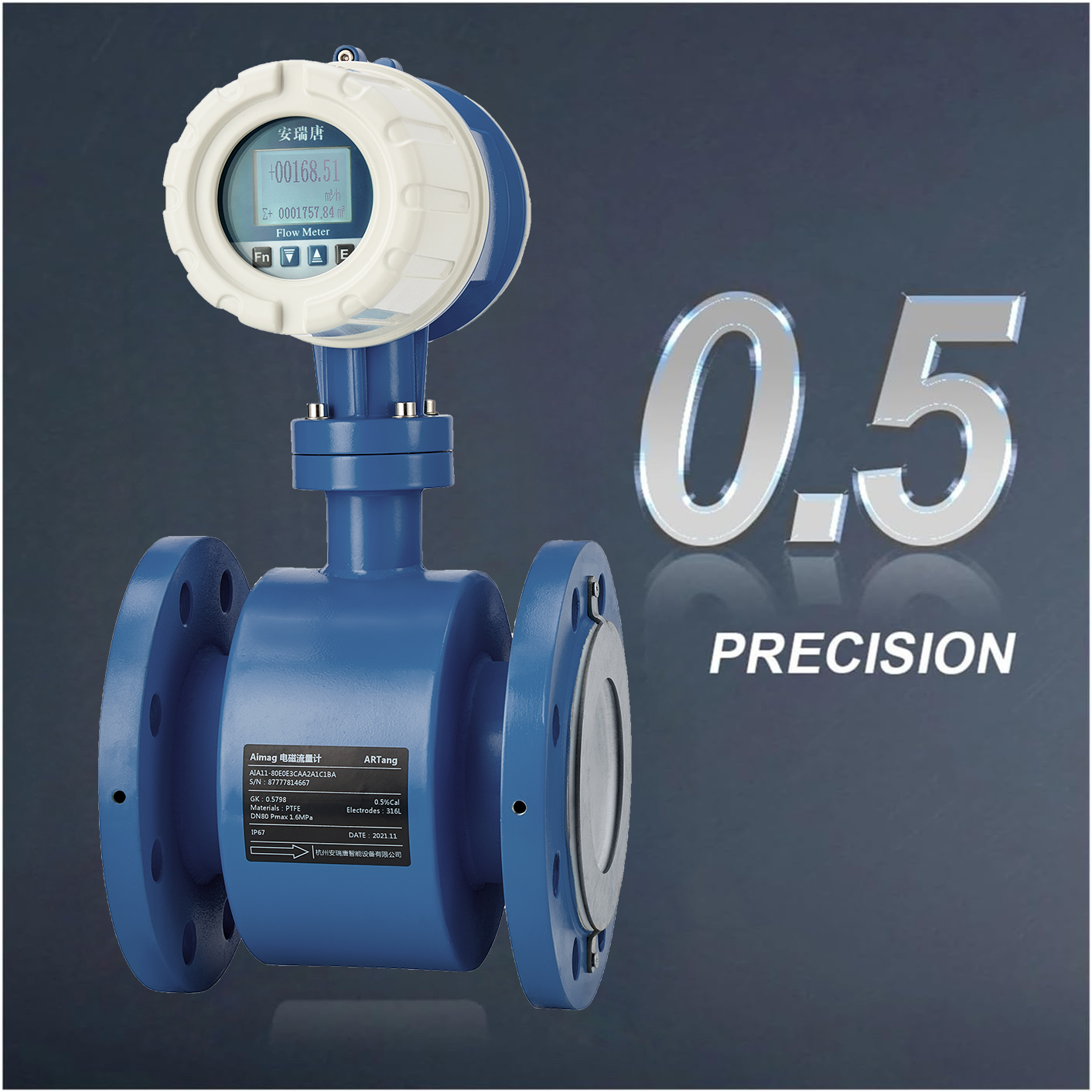

Main Points for Maintenance of Electromagnetic Meter

In chemical production, electromagnetic meters play a critical role—from accurate raw-material dosing to monitoring the flow rates of various liquids during reactions—ensuring precise process control and stable product quality. In the power industry, they provide real-time monitoring of the flow and temperature of fluids such as steam and water, supporting the reliable operation of generating units. In water-treatment applications, whether for measuring supply flow in municipal water plants or monitoring discharge in wastewater facilities, electromagnetic meters deliver accurate data that help promote efficient water-resource management and environmental protection.

1. Inspection of Appearance and Connection Points

Regular inspection of an electromagnetic meter external condition is essential for identifying potential issues early and ensuring proper operation. Check whether the housing has any cracks, damage, or peeling coatings, as these conditions may expose internal components to the environment and cause deterioration. If cracks are present, rainwater or corrosive gases may enter and corrode electronic components, leading to failures.

Also inspect whether the display is clear and free of damage or blurring. Since the display is the direct interface for viewing flow data, any display abnormalities can affect accurate interpretation.

Additionally, check all connection points to ensure the sealing gasket is not aged or deformed, which could cause leakage, and verify that the bolts are tight to prevent displacement that may impact measurement accuracy.

2. Electrode and Liner Maintenance

The electrodes and liner are critical components of an electromagnetic meter and directly affect both measurement accuracy and service life. Regularly inspect the electrodes: if the surface shows pitting or wear, it can alter the electric field distribution and cause measurement errors. Scale or deposits on the electrodes can interfere with electrical contact between the electrodes and the liquid, disrupting the measurement signal.

Mechanical cleaning can be used—carefully scraping off deposits with a blade, while controlling the force to avoid damaging the electrodes. Ultrasonic cleaning is another option, which uses ultrasonic vibrations to break up and remove buildup; it provides effective cleaning with minimal risk of electrode damage.

Inspect the liner for any cracks, bubbles, or delamination. These issues can allow fluid to seep in and damage the sensor. If any liner defects are found, it should be replaced promptly to ensure proper sealing and insulation of the measuring tube.

3. Signal Cable Inspection

The signal cable carries the measurement signal, and its condition has a major impact on accuracy. Regularly check the cable’s exterior for any damage or breaks, which can interrupt signal transmission. Inspect the insulation layer for aging or cracks; poor insulation can allow external interference to enter the signal loop, causing fluctuations or distortion in the measurement signal.

Also check the terminal connections to ensure they are tight and free of oxidation, ensuring solid contact. In complex industrial environments, if the signal cable runs parallel to high-voltage power cables, it may be affected by electromagnetic interference, leading to a 5%–8% deviation in measurement. To avoid this, ensure the signal cable does not run parallel or cross closely with power cables, maintaining stable signal transmission.

4. Regular Calibration

Typically, calibration electromagnetic meter is performed once a year. For industries with higher accuracy requirements—such as pharmaceuticals and food & beverage—calibration every six months is recommended. In harsh environments or high-frequency applications, such as wastewater treatment plants, calibration every three months may be necessary.

Electromagnetic Meter Troubleshooting and Handling

During long-term operation, an electromagnetic meter may experience various issues that affect measurement accuracy and stability. Timely troubleshooting and corrective action are essential.

• One common issue is inaccurate measurement. If the displayed value is higher or lower than the actual flow, the cause may be improper installation—such as insufficient straight pipe length, leading to unstable flow conditions. In this case, the installation position should be adjusted to ensure the required upstream and downstream straight-run lengths.

• If the properties of the medium have changed—such as a change in conductivity—the flowmeter may need recalibration or, in some cases, replacement with a model suited to the new medium. Contaminated or worn electrodes may also cause abnormal signal transmission and should be cleaned or replaced.

• If the measurement value fluctuates significantly, the fluid may contain air bubbles. Installing a gas–liquid separator upstream of the meter can help remove entrained air. Another possibility is electromagnetic interference from the surrounding environment; the area should be inspected to ensure the instrument is kept away from interference sources, with enhanced shielding and grounding as needed.

• A lack of signal output is another issue that should not be ignored. If the problem is related to the power supply, check the power wiring and fuses to ensure proper voltage. Poor cable connections—such as loose terminals, open circuits, or short circuits—should be corrected by reconnecting or replacing the cables. Sensor faults, including damaged electrodes or a compromised liner, require prompt repair or replacement. For converter-related failures, check the parameter settings and circuit board; repair or replacement may be needed.

As a critical instrument in industrial flow measurement, an electromagnetic meter requires proper attention throughout its lifecycle. Before installation, understanding the operating conditions and selecting the correct model establishes the foundation for stable performance. During installation, strict control of environmental conditions, mounting position, and connections helps eliminate potential risks. In routine maintenance, regular inspection of the housing, electrodes, cables, and scheduled calibration keeps the device in optimal condition. When faults occur, swift troubleshooting and timely corrective measures help minimize impact and ensure reliable operation.
