Effluent Flow Meters

An effluent flow meter is an essential component of any wastewater treatment system. Different types of flow meters operate based on various principles and are suited to different application scenarios. Choosing the right effluent flow meter requires a comprehensive understanding of the wastewater characteristics, required measurement accuracy, and other key factors. Efficient monitoring of effluent flow helps optimize treatment processes, conserve energy, improve effluent quality, and protect environmental safety—ultimately supporting the sustainable development of wastewater treatment. Depending on their measurement principles and application environments, effluent flow meters come in various types, such as electromagnetic flow meters, ultrasonic flow meters, and vortex flow meters.

Characteristics of Effluent Flow Meters and Key Selection Considerations

Wastewater can be categorized into domestic and industrial types. Its quality is often poor—sometimes containing oil, solid particles, or suspended matter, and even larger-diameter solids. It can also be corrosive. Fluid conditions may vary greatly (sometimes changing daily), with a wide range of flow rates, varying accuracy and reliability requirements, and different user budgets. Selecting the most practical and cost-effective effluent flow meter for a specific application requires a comprehensive evaluation of many factors.

Several additional aspects must also be considered when selecting an effluent flow meter. Flow measurement is not intuitive, and it’s difficult to directly assess accuracy on-site. Wastewater pipelines often use large diameters and operate at low velocities, which creates challenges for flow measurement. Since most effluent flow meters are directly connected to the pipeline and typically cannot be removed while in operation, any malfunction may lead to interruptions in flow and be difficult to repair without stopping the process.

Key points to consider when selecting an effluent flow meter include:

a.Flange standards – including Chinese national standards (GB), European (DIN), and American (ANSI) systems;

b. Piping dimensions – pipe diameter generally refers to the outer diameter, and wall thickness can vary between pipes of the same nominal size;

c. Meter material selection – in most cases, stainless steel 316L meets performance and corrosion resistance requirements;

d. Application purpose – it's important to define whether the meter will be used for precise metering, general flow indication, flow control, or simply to observe instantaneous flow without requiring totalization;

e. Enterprise energy metering standards (GB/T 17167) – for wastewater discharge measurement, the required accuracy is ±0.5% of full scale (FS);

f. Medium characteristics – including physical and chemical properties, pressure loss, and state of the medium;

g. Flow measurement range – each meter type has minimum and maximum flow velocity limits that must be respected;

h. Installation environment and conditions – such as whether the pipeline diameter and space allow proper installation and maintenance, the presence of upstream/downstream straight runs and valves, potential vibration, power availability, electromagnetic interference, ambient temperature/humidity, and explosion-proof requirements;

i. Output signal type – it is essential to clarify whether local display, digital pulse, analog signal, or HART protocol output is needed.

How to Choose the Right Effluent Flow Meter？

There are many types of effluent flow meters available, with common options including electromagnetic flow meters, ultrasonic flow meters, and turbine flow meters. Below are the main features and typical applications of these meters:

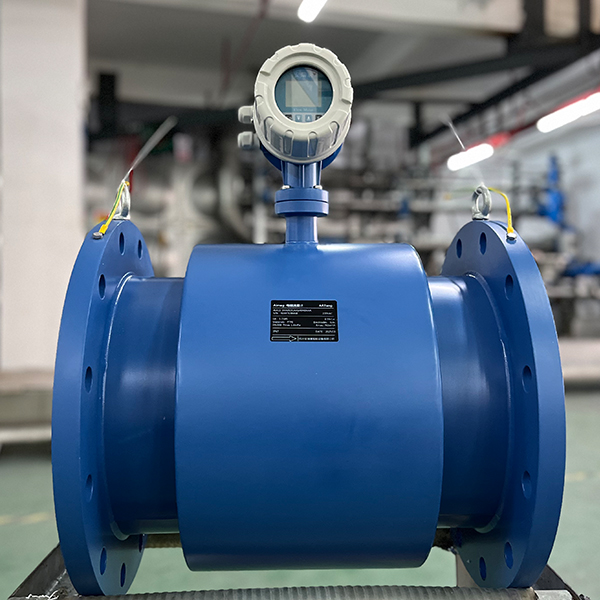

Electromagnetic Flow Meters

Advantages: Ideal for conductive wastewater; provide accurate measurements and are unaffected by changes in fluid temperature, pressure, density, or viscosity.

Typical Applications: Widely used in municipal and industrial wastewater treatment.

Selection Tips: Choose appropriate liner and electrode materials based on the type of wastewater (e.g., rubber lining, 316L electrodes, PTFE lining), and select the correct model based on pipe diameter and flow range.

Ultrasonic Flow Meters

Advantages: Non-contact measurement that does not interfere with fluid flow; suitable for large-diameter pipes and highly corrosive media.

Typical Applications: Ideal for situations where avoiding contact with the fluid is essential.

Selection Tips: Choose the appropriate ultrasonic meter based on pipe material and installation method (clamp-on or insertion type), and consider the impact of impurities in the wastewater on ultrasonic signal transmission.

Choosing the right effluent flow meter requires a holistic approach that considers measurement requirements, meter type, site conditions, and cost-effectiveness. By clearly identifying your measurement needs, selecting the most suitable meter type, and evaluating all relevant factors, you can find the effluent flow meter that best fits your application.
