Differential Transmitter Selection Guide

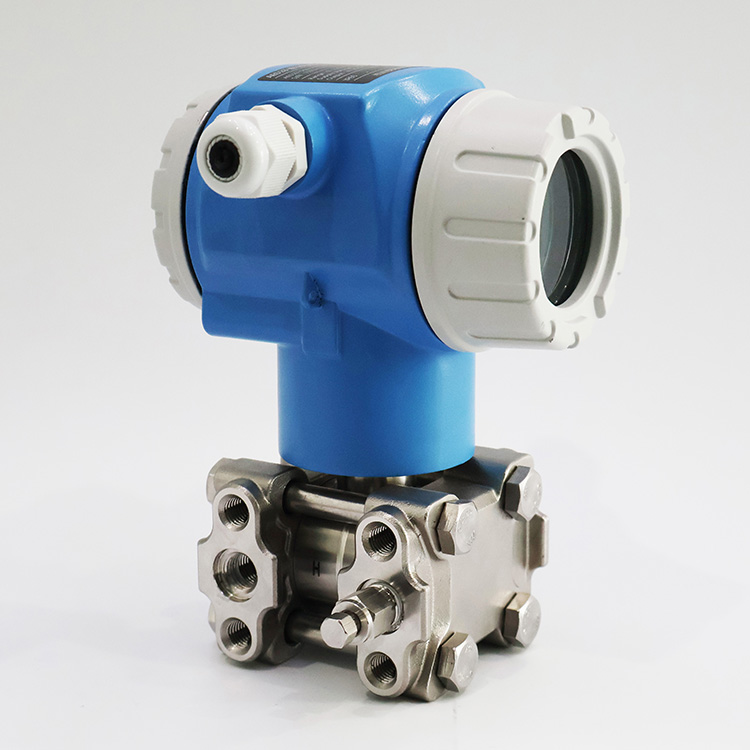

In the field of industrial process control and fluid monitoring, the differential transmitter serves as a core measurement device, precisely capturing the pressure difference between two points to provide critical data support for monitoring parameters such as flow rate, liquid level, and density. They offer measurement accuracy as high as ±0.075% FS, with a response time of ≤1 second, and can operate stably in a wide temperature range from -40°C to 120°C. These transmitters are widely used in industries such as petrochemicals, power generation, and environmental water treatment.

In fields such as petrochemicals, electric power, and pharmaceutical manufacturing, differential transmitters serve as core instruments for process control, and their selection directly affects the accuracy of pressure/flow measurement and system stability. Based on the working principle of differential pressure transmitters, this article systematically reviews the core parameters required for selection (including measurement range, accuracy grade, and medium characteristics compatibility), and combines typical working conditions and practical points to provide engineering and technical personnel with comprehensive selection references.

Differential Transmitter Technical Principles and Core Advantages

Differential transmitters measure the pressure difference between two sides and convert it into a standard electrical signal (such as 4-20mA). The core principles include capacitive, diffused silicon, and vibrating wire types, suitable for different application requirements:

Wide measurement range: It can cover micro-differential pressure (e.g., 0-1 kPa) to high-pressure differential (e.g., 0-10 MPa), with a typical range ratio of 100:1.

Multi-parameter measurement: By combining with flow measurement devices (e.g., orifice plates, Venturi tubes), it can indirectly measure the flow rate of liquids, gases, and steam.

Environmental adaptability: Some models support high-temperature, high-pressure, and highly corrosive medium conditions, making them suitable for complex industrial environments.

Differential Transmitter Selection Criteria

1. Measurement Range and Range Matching

Differential pressure range: Must cover the actual pressure difference and reserve a 20% margin (e.g., if the designed differential pressure is 5 kPa, select a range of 0–6 kPa).

Static pressure and overpressure: Must specify the system static pressure (e.g., 10 MPa) and instantaneous overpressure capability (e.g., 2 times static pressure) to prevent sensor damage.

Measurement Medium: For liquids, consider density and viscosity; for gases, consider temperature and compressibility; for steam, specify whether it is superheated or saturated.

2. Accuracy and Long-Term Stability

Accuracy Grade: Trade settlement applications require high-accuracy models with ±0.1%FS accuracy; process control applications can accept ±0.5%FS accuracy. Long-Term Stability: Select models with annual drift <±0.1%FS and perform regular calibration.

Temperature Compensation: Ensure compatibility with the medium's temperature range (e.g., -40°C to 150°C) to prevent measurement errors caused by temperature fluctuations.

3. Medium Characteristics Compatibility

Corrosive media: Corrosion-resistant materials (such as 316L stainless steel, Hastelloy, or tantalum) must be selected.

High-viscosity media: Self-cleaning structures or wash rings must be selected to prevent blockages.

Particulate-containing media: Large diaphragms or protective covers must be selected to reduce wear.

4. Environmental Adaptability

Protection Rating: IP67 waterproof rating is required for outdoor applications, and Ex d IIC T6 certification is required for explosion-proof applications.

Electromagnetic Interference: Shielded or intrinsically safe types are required for high electromagnetic environments.

Installation Method: Flange installation is suitable for pipeline systems, and bracket installation is suitable for tanks or containers.

5. Output and Communication Methods

Output Signal: Analog output (4-20mA) is suitable for traditional control systems; digital output (HART, FF bus) is suitable for intelligent scenarios.

Communication Protocol: Must support protocols such as Modbus and Profibus to be compatible with DCS/SCADA systems.

Display and Operation: Must be equipped with a local display screen (such as an LCD) or a remote monitoring interface.

Differential Transmitter Installation and Maintenance

1. Installation Guidelines: Minimizing Interference and Errors

Pressure Tap Selection: Avoid turbulent areas such as elbows and valves. It is recommended to install the pressure tap on a straight section of the pipeline (upstream ≥ 10D, downstream ≥ 5D).

Pressure-Conducting Tube Installation: For liquid media, the tube should slope downward; for gas media, it should slope upward to prevent bubble or condensate accumulation.

Grounding and Shielding: Signal cables must use shielded cables and be grounded separately (resistance <4Ω).

2. Maintenance Strategy: Extend Service Life

Routine Inspection: Inspect the diaphragm for deformation and the pressure-conducting tubes for blockages quarterly.

Calibration Cycle: Calibrate every 6 months in high-precision scenarios and every 12 months in general scenarios. Calibration must use a standard pressure source (accuracy ±0.02% FS).

Winter Maintenance: Install insulation layers or electric heating in low-temperature scenarios to prevent medium crystallization from blocking the pressure-conducting tubes.

Differential Transmitter Application Scenarios

1. Petrochemical Industry

Oil Tank Liquid Level Monitoring: By measuring the differential pressure between the static pressure of the liquid inside the oil tank and atmospheric pressure, the liquid level height of the oil tank can be precisely calculated, enabling real-time monitoring and control of the oil tank liquid level.

Pipeline Flow Monitoring: In petrochemical pipelines, differential pressure transmitters can be used to measure the flow rate of fluids within the pipeline. By measuring the differential pressure between the two ends of the pipeline and combining parameters such as the density of the fluid and the cross-sectional area of the pipeline, the flow rate of the fluid can be calculated.

2. Pharmaceutical Industry

Pressure and Liquid Level Control in Reactors: In pharmaceutical processes, pressure and liquid level inside reactors are critical parameters. Differential pressure transmitters can be used to precisely measure the pressure and liquid level inside reactors, thereby enabling precise control of the reaction process.

3. Power Systems

Steam Flow and Boiler Water Level Monitoring: In power systems, differential pressure transmitters can be used to monitor steam or gas flow in steam turbines or gas turbines, as well as boiler water levels. These parameters are critical for ensuring the safe and stable operation of power systems.

4. Water Treatment Applications

Flow and Level Monitoring: In water treatment systems, differential pressure transmitters can be used to measure the flow rate and level of fluids within pipelines. By monitoring these parameters, precise control of the water treatment process can be achieved to ensure water quality compliance.

5. Gas Analysis Field

Monitoring Gas Composition and Pressure Changes in Boilers or Burners: Differential pressure transmitters can be used to monitor gas composition and pressure changes in boilers or burners to control the combustion process and flow rate. By measuring the differential pressure of the gas, the gas flow rate can be calculated, enabling precise control of the combustion process.

6. Environmental Monitoring Applications

Measuring atmospheric pressure, wind speed, and other parameters: Differential transmitters can also be used in environmental monitoring applications, such as measuring atmospheric pressure, wind speed, and other parameters. These parameters are crucial for understanding environmental changes and predicting weather conditions.

7. Other Application Scenarios

High-temperature viscous media: Differential transmitters are suitable for measuring high-temperature viscous media, ensuring stable operation and accurate measurement results.

Crystallizable media: For crystallizable media, differential transmitters can also perform measurements, avoiding the impact of crystallization on measurement accuracy.

High hygiene and cleanliness requirements: In food, beverage, and pharmaceutical industrial production, differential transmitters not only require the parts in contact with the medium to meet hygiene standards but also should be easy to clean to prevent cross-contamination between different batches of medium.
