Non-intrusive ultrasonic flowmeters, as instruments used for non-contact fluid flow measurement, are widely applied across industrial, energy, environmental protection, and many other fields. They measure fluid velocity by detecting changes in the propagation speed of ultrasonic waves and then accurately calculate the flow rate. Ultrasonic flowmeters offer advantages such as easy installation, no moving parts, and low maintenance costs, making them an essential tool in modern flow measurement.
Transit-Time Ultrasonic Flowmeters
Transit-time ultrasonic flowmeters use paired ultrasonic transducers to measure the time it takes for ultrasonic signals to travel between the transducers in both the upstream and downstream directions. By comparing the difference in travel time, the fluid velocity can be accurately calculated. This type of flowmeter is ideal for measuring clean, homogeneous liquids and offers high accuracy and repeatability.
Doppler Ultrasonic Flowmeters
Doppler flowmeters measure fluid velocity based on the reflection of ultrasonic signals off particles or bubbles within the fluid. When the ultrasonic signal encounters gas bubbles or solid particles, a frequency shift occurs. The flowmeter detects this frequency shift to determine flow velocity. This type is commonly used for fluids containing gas or suspended solids, such as wastewater or slurries.
Non-Intrusive ultrasonic flowmeters offer a wide range of benefits, making them widely adopted in both industrial and commercial applications.
Non-intrusive Measurement: ultrasonic liquid flow meter do not need to come into direct contact with the fluid, and installation does not require cutting into the pipe or interrupting flow. This non-intrusive nature reduces installation time and maintenance, making them a convenient and cost-effective flow measurement solution.
High Accuracy and Wide Measurement Range: These flowmeters typically offer measurement accuracy within ±1%, with pipe size compatibility ranging from 10 cm to 6 m, making them suitable for various industrial requirements.
No Direct Contact with the Fluid: Clamp-on ultrasonic sensors do not touch the fluid directly, preventing contamination. This makes them ideal for applications in food processing, medical fields, chemical processes, biotechnology, and other industries requiring strict hygiene standards.
Multiple Output Options and Data Storage: Ultrasonic flowmeters can be equipped with various outputs, including 4–20 mA, pulse, relay, RS485, Modbus, M-Bus, HART, batch controllers, and more. Modbus, in particular, enables easy network setup and provides convenient data access and system monitoring for remote locations.
Low Maintenance Cost: Since ultrasonic flowmeters have no moving parts, wear and mechanical failures are minimized. This reduces long-term maintenance and replacement frequency, ultimately lowering overall service costs.
Flexible Installation: They can be installed on the outside of the pipe without cutting or welding, which is especially valuable in applications where minimizing downtime is critical.
non-Intrusive water flow meter

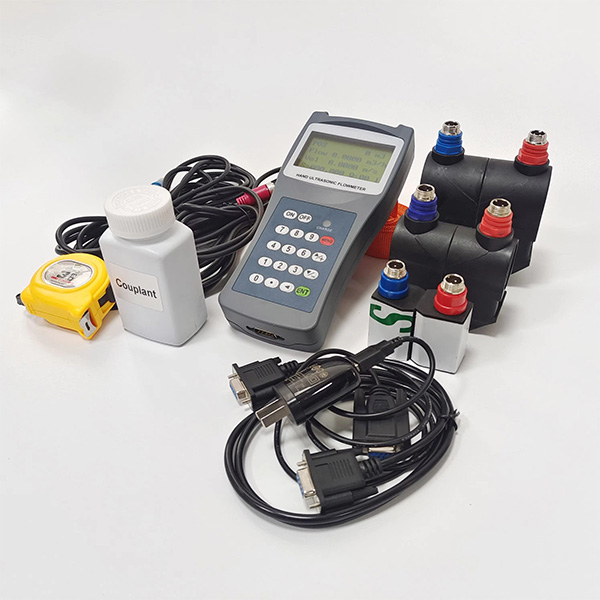

Portable Water Flow Meter
Industrial Process Monitoring:
Non-Intrusive ultrasonic flowmeters are widely used in chemical manufacturing, food and beverage production, and pharmaceutical processing to monitor the flow of liquids and gases. Their high accuracy and non-intrusive measurement design make them suitable for corrosive, high-viscosity, or impurity-laden media. With a wide measuring range, they can handle everything from very small flows to extremely large flow rates in complex industrial conditions.
Water and Wastewater Management:
They are used to monitor water consumption, detect leaks, and measure the flow of water and wastewater in distribution networks and treatment plants.
Hydraulic and Environmental Monitoring:
ultrasonic liquid flow meter play an important role in hydraulic engineering and environmental monitoring. They can measure the flow in reservoirs, rivers, and irrigation channels, providing essential data for water resource management, flood forecasting, and ecological restoration. For example, in flood early-warning systems, ultrasonic liquid flow meter can track real-time river flow changes and issue timely alerts.
Energy Management and Optimization:
In the energy sector, ultrasonic flow meters measure the flow of steam, hot water, and other media, supplying accurate data for energy monitoring. Their high accuracy and low power consumption make them ideal for optimizing energy usage and reducing waste.
HVAC and Building Automation Systems:
ultrasonic liquid flow meter are integrated into heating, ventilation, and air-conditioning (HVAC) systems to measure the flow of water and other fluids, enabling precise temperature control and energy savings. Their non-intrusive installation and high accuracy make them an excellent fit for building automation and energy-efficient HVAC solutions.
When selecting a non-intrusive water flow meter, it is important to consider the characteristics of the fluid, such as its composition, temperature, pressure, viscosity, and conductivity. Different types of ultrasonic flow meters vary in their adaptability to different fluid properties, so the appropriate type should be chosen based on the actual application. In addition, pipeline conditions are also key factors when selecting an ultrasonic flow meter. The pipe shape, material, inner diameter, and inner wall condition can all affect the meter’s performance.
When choosing a non-intrusive water flow meter, pipeline conditions must be assessed comprehensively to ensure accurate and reliable measurement results. Finally, the operating environment is another critical factor. Environmental temperature, humidity, vibration, and electromagnetic interference can all influence the performance of a non-intrusive water flow meter. Therefore, when selecting a portable water flow meter, it is essential to consider the specific environmental conditions to ensure proper operation and stable measurement performance.
Conclusion
Ultrasonic flow measurement is the only truly non-intrusive flow measurement technology. It does not require cutting the pipe to install the flow meter, is virtually maintenance-free, and can even be used as a portable flow measurement device. A non-intrusive water flow meter is a high-accuracy and reliable instrument used to measure the flow velocity of fluids in pipes or conduits. The transit-time principle performs best with clean liquids, while the Doppler principle is ideal for liquids containing suspended solids or air bubbles.
Non-Intrusive ultrasonic flowmeters offer multiple advantages, including high accuracy, non-intrusive operation, a wide measurement range, and strong versatility. As a result, they have become increasingly popular across various industries because they can accurately measure the flow of liquids and gases without contacting the fluid being measured.
