Can Mag Meters Handle Extreme Temperatures?

Mag meters have a certain level of high-temperature resistance, but the actual capability depends on the specific model. It is essential to select an electromagnetic flowmeter that is suitable for high-temperature environments.

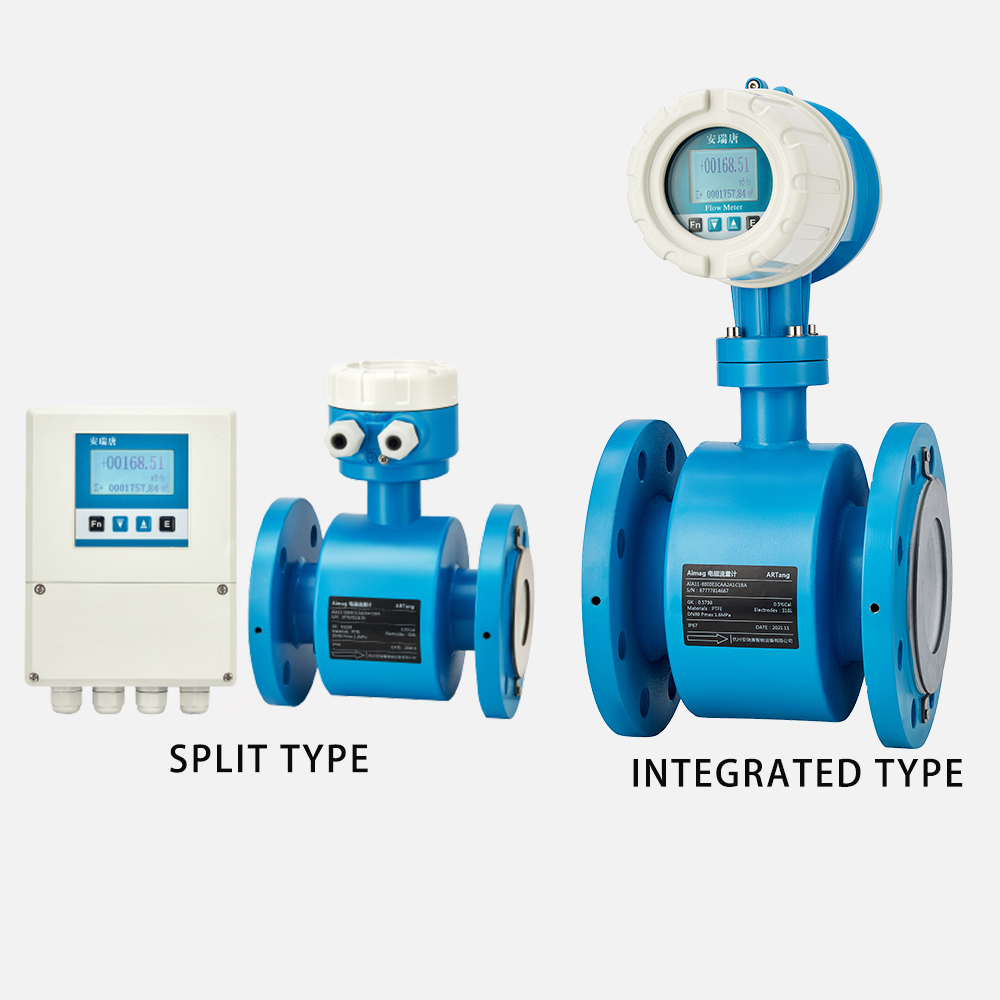

Mag Meters in High-Temperature Conditions

In high-temperature applications—such as steam-traced pipelines above 100°C or the outlets of chemical reactors—even stainless-steel–housed intelligent mag metersface challenges. First, the maximum allowable operating temperature of the transmitter must be carefully considered. Standard stainless-steel transmitters typically have a temperature rating of −20°C to 80°C, while high-temperature versions can withstand up to 120°C. Therefore, when selecting a transmitter, its temperature limit must match the actual operating conditions, and operation beyond the rated temperature must be strictly avoided.

Second, prolonged exposure to high-temperature radiation can negatively affect the transmitter’s performance and service life. To mitigate this, heat dissipation measures such as heat sinks or cooling fans can be added to help the transmitter dissipate heat effectively.

In addition, high-temperature environments may generate volatile corrosive gases that can penetrate the transmitter housing and cause internal corrosion. As a result, sealing inspections should be strengthened to ensure proper sealing performance and prevent corrosive gases from entering the transmitter.

Mag Meters in Low-Temperature Environments

In low-temperature environments—such as cold storage facilities below −20°C or outdoor pipelines in northern regions—the primary concern is preventing condensation or freezing inside the transmitter. Moisture condensation or ice formation can disrupt normal circuit operation and may even cause short circuits or permanent damage. Therefore, it is recommended to select transmitter models equipped with low-temperature heating functions. These designs can automatically generate heat in cold conditions to prevent internal condensation.

If replacing the transmitter is not feasible, installing a thermal insulation jacket on the existing transmitter is an effective alternative. This helps maintain the operating temperature above −10°C, ensuring stable performance of the internal circuitry. In addition, low temperatures can cause sealing materials to harden and become brittle, compromising sealing performance. As a result, low-temperature-resistant sealing materials should be used, and sealing integrity should be inspected regularly to prevent leakage.

How Do Mag Meters Adapt to High-Temperature Environments?

1. Material Selection

High-Temperature-Resistant Liner Materials:

Selecting heat-resistant liner materials is critical. For example, PFA (perfluoroalkoxy resin) can be used continuously over a temperature range of −200°C to 260°C and offers excellent chemical stability and high-temperature resistance. Ceramic liners are also suitable for high-temperature applications due to their high hardness, excellent heat resistance, and strong wear and corrosion resistance.

Electrode Materials:

In high-temperature environments, electrode materials must provide good corrosion resistance and oxidation resistance. Platinum–20% iridium alloy is an ideal electrode material, featuring a very low corrosion rate (less than 0.002 inches per year) and the ability to withstand temperatures up to 248°F (120°C).

Sealing Materials:

High-temperature-resistant seals, such as silicone rubber seals, should be selected to ensure reliable sealing performance under elevated temperatures.

2. Structural Design

Thermal Insulation:

Thermal insulation should be applied to the sensor and connecting pipelines using high-temperature-resistant insulating materials such as rock wool or aluminum silicate fiber. This reduces the impact of external heat on the instrument.

Dual Cooling Systems:

Internal or external cooling methods can be used to lower the operating temperature of the mag meters. Internal cooling involves installing cooling devices inside the flowmeter to directly cool internal components, while external cooling uses heat dissipation devices mounted outside the flowmeter housing.

Reduction of Thermal Stress:

The design should be simplified as much as possible, minimizing the number of joints and seals to reduce the effects of thermal stress and thermal expansion on the flowmeter.

3. Temperature Compensation and Calibration

Temperature Compensation Technology:

Errors caused by temperature variations can be compensated in real time through hardware (such as temperature sensors) or software (such as intelligent algorithms).

Regular Calibration:

Under high-temperature operating conditions, regular on-site calibration is required to ensure measurement accuracy.

4. Additional Measures

Extended Straight Pipe Runs:

For high-temperature fluids, extending the upstream and downstream straight pipe lengths helps stabilize flow conditions and reduce measurement errors.

Flexible Connections:

Flexible connections can be used to compensate for thermal expansion in piping, preventing mechanical stress caused by heat expansion.

Conclusion

The measurement accuracy of mag meters can indeed be affected in high-temperature environments. These effects mainly result from changes in the performance of sensor components and liner materials, reduced stability of electronic components, and increased electromagnetic interference. To ensure accuracy and stability under high-temperature conditions, it is essential to select appropriate models and materials, implement thermal insulation measures, perform regular maintenance and calibration, and, when necessary, combine mag meters with other measurement methods for comprehensive evaluation.
