Aisonic Remote Type Ultrasonic Liquid Level Transmitter

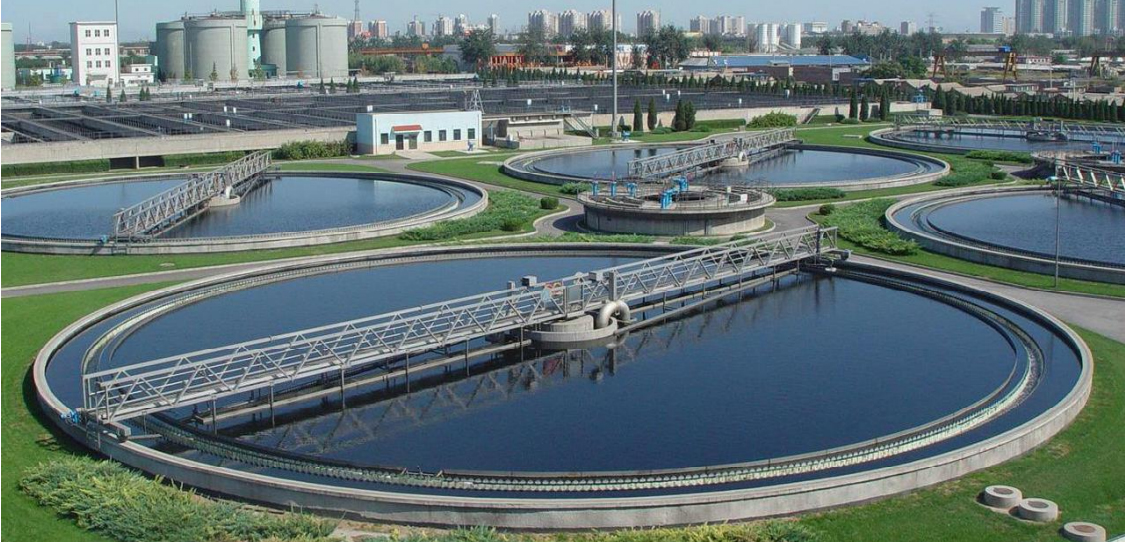

Aisonic separated ultrasonic level meter adopts non-contact measurement technology, the measured medium is almost unlimited, and it can be widely used for level measurement of municipal inland river, urban groundwater level, sewage treatment station, waterworks, etc.
facebook sharing button
twitter sharing button
line sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button



Model Number Aisonic Remote
Structure Type Remote Type
Measuring Range 5m、8m、10m、15m、20m、30m、50m、60m、70m
Process Temperature -20℃ ~ +80℃
Process Pressure 0~3bar
Process Connection Thread, Flange Connection
Measurement Accuracy ±0.5% or ±1%
Resolution 5mm or 0.1%
Power Supply Voltage 24VDC or 220VAC, 50Hz
Current Output 4~20 mA
Relay Output 250VAC/8A or 30VDC/5A (State is programmable)
Host Shell Material ABS
Sensor Housing Material ABS、PVDF、PTFE
Communication RS485, RS232 communication output is optional
Blind Zone According to the range
Ambient Temperature -20℃~+60℃
Cable Length 10 ~ 100m
Protection Grades IP65(Sensor IP68)

● Suitable for non-contact measurement of liquid, slurry, sludge and other medium.

● Maximum measuring range up to 50 meters.

● Customer-friendly menu for quick and easy commissioning.

● 4-20mA current output, Modbus485 communication optional.

● Provides an alarm current output to prevent the level from entering the blind spot or exceeding the range.

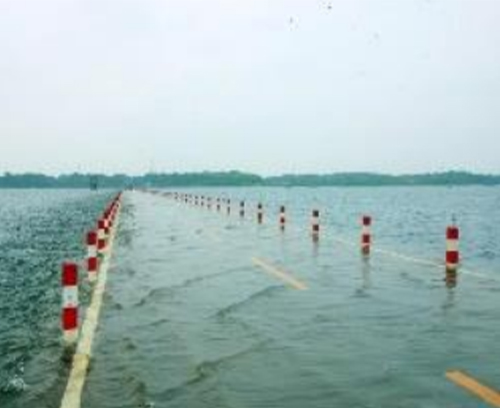

Dam Water Level Monitoring


River Monitoring


Environmental Water Level Monitoring

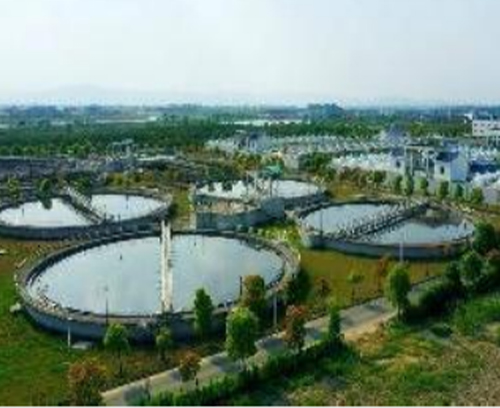

Pool Water Level Monitoring


Compact Ultrasonic Level Transmitter:

● Built-in temperature compensation to ensure measurement accuracy.

● Various connection methods such as thread and flange.

● The waterproof shell is adopted, and the shell material is corrosion-resistant.

● Non-contact, maintenance-free measurement.

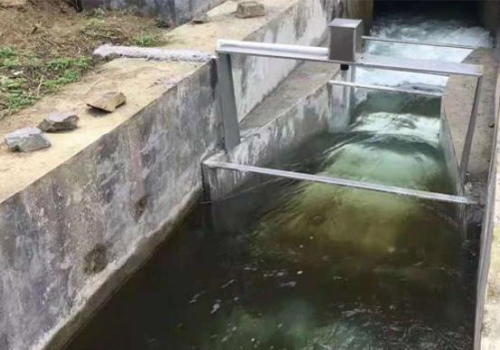

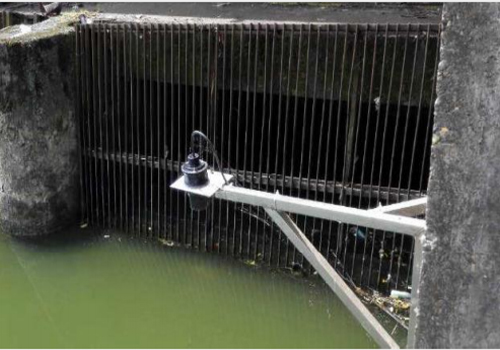

Typical Application - River Water Level Measurement:

The river water level monitoring system is an important means to grasp the changes of river water conditions in any time, scientifically warn flood disasters, improve flood control command ability, and reduce the losses of flood disasters.
