What to Consider When Choosing a Flow Meter?

Flow meters are widely used in industrial applications. When selecting and using a flow meter, the following key aspects should be carefully considered:

Selection Consideration

1. Fluid Compatibility

The properties of the fluid have a direct impact on the selection of a flow meter. For corrosive fluids, such as strong acids or alkalis used in chemical production, a flow meter constructed with corrosion-resistant materials is essential. For example, in electromagnetic flow meters, both the electrode and lining materials must be selected based on the fluid's corrosiveness. Highly acidic fluids may require electrodes made of Hastelloy and liners made of PTFE (Teflon) to prevent damage to the meter.

For fluids containing solid particles, such as pulp in the paper industry, it is important to consider whether the meter’s bore diameter and internal structure may be prone to clogging. While vortex flow meters can handle fluids with low solid content, fluids with larger or highly concentrated particles may require more robust options such as target flow meters, which offer higher tolerance to impurities.

Fluid viscosity is another critical factor in selection. High-viscosity fluids behave differently in pipelines compared to low-viscosity fluids. In the petroleum industry, for instance, positive displacement (PD) flow meters are often more suitable for measuring high-viscosity crude oil than turbine flow meters. This is because the measurement principle of PD meters is not affected by changes in fluid viscosity, allowing for more accurate measurement of high-viscosity flows.

2. Flow Range and Accuracy Requirements

Industrial processes often involve significant variations in flow rates. For example, in water supply systems, flow rates can range from low daily usage to high emergency demand. It is essential to select a flow meter with a suitable measurement range that can accommodate these variations. When choosing an electromagnetic or ultrasonic flow meter, ensure that its minimum and maximum flow range covers the actual operational conditions.

The required accuracy and calibration frequency vary depending on the type of flow meter and its application:

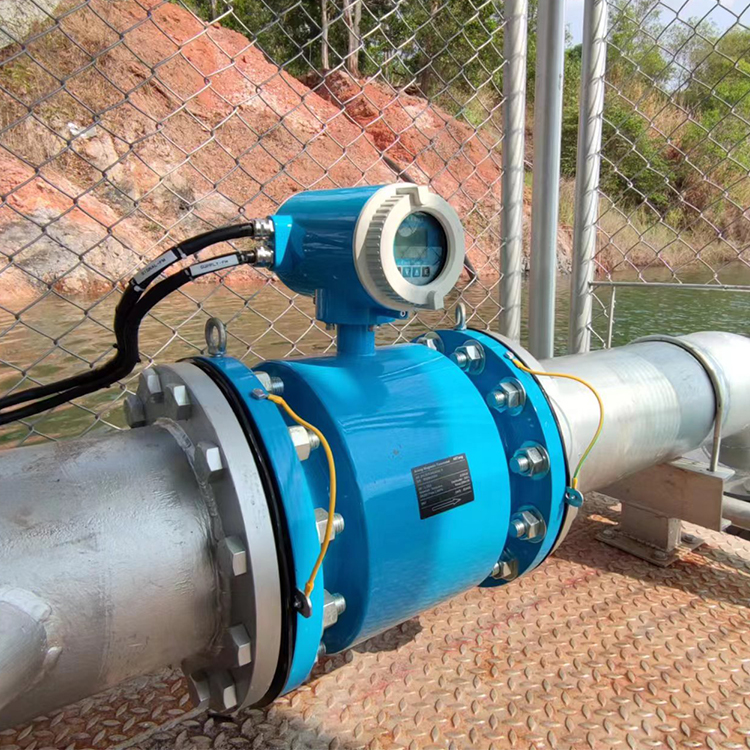

Electromagnetic Flow Meters:  The electromagnetic flow meters are highly accurate, typically with an accuracy of ±0.2% to ±0.5% of the measured flow rate.

Ultrasonic Flow Meters: Wide measurement range with high precision, usually ±1% to ±2%.

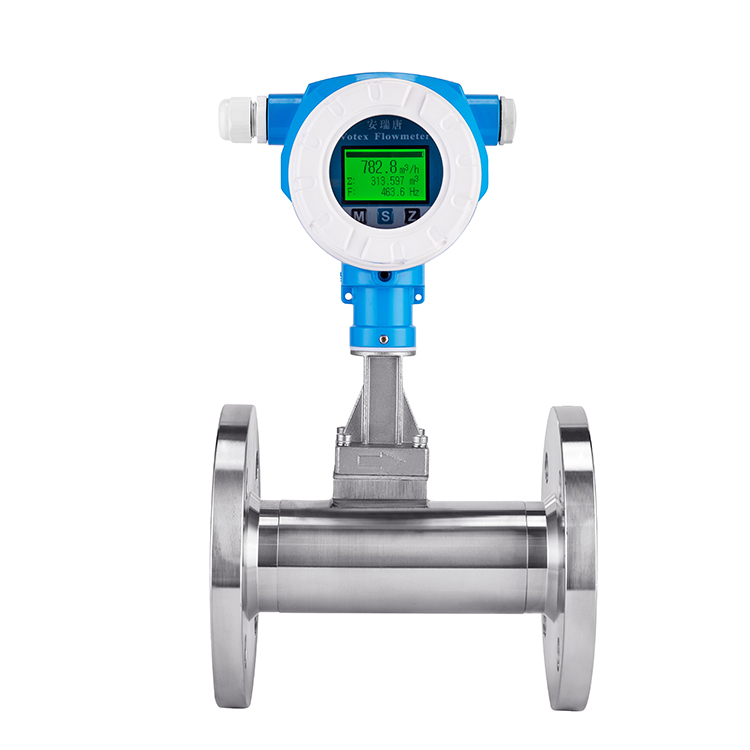

Vortex Flow Meters: The vortex flow meters can measure the flow of various media, including gases, liquids, and steam, with a typical accuracy of ±1% to ±1.5%.

Turbine Flow Meters: High accuracy at low to medium flow rates, generally ±0.5% to ±1%.

Coriolis Flow Meters: Exceptional accuracy with direct mass flow measurement, typically ±0.1% to ±0.5%.

Positive Displacement (PD) Flow Meters: Excellent accuracy at low flow rates, often ±0.5% to ±1%.

The calibration frequency depends on the specific application. Critical processes requiring high precision may need more frequent calibration to maintain accuracy. Additionally, factors such as changes in temperature or pressure can affect performance and may necessitate recalibration.

3. Operating Environmental Factors

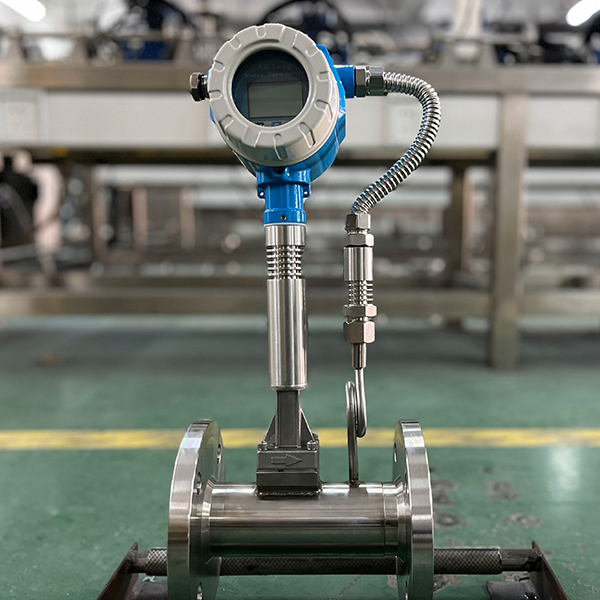

Industrial operating environments can vary significantly in temperature and pressure conditions. In high-temperature settings, such as blast furnace operations in the metallurgical industry where ambient temperatures can exceed a thousand degrees Celsius, it is essential to select a flow meter capable of withstanding extreme heat. For example, high-temperature vortex flow meters are specifically designed with heat-resistant sensors and transducers to ensure reliable performance under such demanding conditions.

In high-pressure environments, like high-pressure transmission pipelines in the oil and gas industry, the pressure resistance of the flow meter is critical. It is important to choose a flow meter that meets the pressure rating requirements of the pipeline system, with connection components and seals capable of withstanding the operating pressure to prevent leaks or damage.

For industrial settings with flammable gases or combustible dust, such as methane monitoring in coal mines or ventilation systems in chemical storage facilities, explosion-proof flow meters must be used to ensure safety. These meters are specially designed to prevent internal electrical components from generating sparks that could ignite an explosive atmosphere.

Installation Considerations

1. Installation Location

The flow meter should be installed in a stable flow section of the pipeline. Locations near valves, pump outlets, or other areas with significant fluctuations in fluid velocity and pressure should be avoided, as these can adversely affect measurement accuracy.

For example, when installing electromagnetic or turbine flow meters, it is generally required to provide an upstream straight pipe section of at least 5 to 10 times the pipe diameter and a downstream straight pipe section of at least 3 to 5 times the pipe diameter. This ensures a fully developed and stable flow profile before the fluid reaches the meter.

Some flow meters, such as ultrasonic flow meters, have specific installation requirements. Their sensors must be mounted at precise locations on the pipeline, and the pipe material and wall thickness must meet specified standards. Generally, the installation position should allow ultrasonic signals to penetrate the pipe wall and fluid effectively. Areas with welds, bends, or other structural irregularities that could interfere with signal transmission must be avoided.

2. Installation Orientation and Vertical Alignment

Most flow meters have specific installation direction requirements. For example, the turbine shaft in a turbine flow meter must align with the direction of fluid flow. Incorrect orientation may result in measurement errors.

When installing flow meters in vertical pipelines, such as certain types of positive displacement flow meters, it is essential to ensure that the meter is mounted vertically. Deviation from the correct alignment can interfere with the movement of internal mechanical components and compromise measurement accuracy.

3. Piping Connections and Sealing

The connection between the flow meter and the pipeline must be secure and reliable. For flanged flow meters, ensure that the gaskets are properly installed and that the bolts are tightened to the specified torque requirements to prevent leaks.

In the case of welded connections, it is essential to follow proper welding procedures to prevent welding slag or debris from entering the flow meter and damaging its internal components.

Effective sealing is critical to preventing fluid leakage. When measuring toxic, hazardous, or high-value fluids, leaks can lead to environmental contamination, safety risks, and economic losses.

Operation and Maintenance

1. Calibration and Verification

Flow meters require regular calibration and verification to ensure measurement accuracy. The calibration interval depends on factors such as the type of flow meter, operating environment, and required precision. For example, high-precision mass flow meters may require calibration every six months, while vortex flow meters operating in stable industrial environments with lower accuracy demands may be calibrated annually. Calibration must be performed using standard flow calibration equipment and strictly adhere to the manufacturer's specified procedures.

For on-site verification, portable calibration devices—such as handheld ultrasonic flow meters—can be employed. By comparing measurements from the device under test with the reference instrument, deviations can be promptly identified and corrected.

2. Routine Maintenance and Troubleshooting

Routine maintenance includes cleaning the exterior of the flow meter and inspecting connected components. For flow meters equipped with filters, regular cleaning is essential to prevent clogging. For example, when using a target flow meter to measure fluids containing impurities, a clogged filter can lead to increased measurement errors.

In the event of a malfunction, prompt troubleshooting is necessary. Begin by checking the power supply and signal connections for abnormalities. Next, examine whether the fluid conditions have changed, such as the introduction of new impurities or deviations in temperature and pressure beyond the normal operating range. For complex issues, professional technicians may need to perform diagnostics and repairs using specialized equipment. For instance, if an electromagnetic flow meter exhibits signal abnormalities, potential causes may include electrode contamination, liner damage, or electromagnetic interference. Each of these factors must be systematically investigated to restore normal operation.
