Selection and Selection of Sewer Flow Meters for Sewage

Sewer flow meters for sewage play a critical role in monitoring and controlling waste treatment processes, ensuring that operations run efficiently. The data collected by an sewer flow meters for sewage can be used to optimize treatment workflows. By analyzing flow patterns and wastewater volume, authorities and industries can identify areas for improvement and implement strategies that enhance overall efficiency. This not only reduces operating costs but also minimizes the environmental impact of waste treatment activities.

Types of Sewer Flow Meters for Sewage

Sewer flow meters for sewage come in a wide variety of types, each with its own advantages, limitations, and suitable applications. The most commonly used types include electromagnetic flow meters, ultrasonic flow meters, open-channel flow meters, and vortex flow meters.

Electromagnetic Flow Meters

Working Principle:

Based on Faraday’s law of electromagnetic induction, a conductive liquid moving through a magnetic field generates an induced voltage. By measuring this voltage, the flow velocity can be calculated.

Key Advantages:

No moving or intrusive components inside the measuring tube, ensuring minimal obstruction to suspended solids in wastewater and resulting in extremely low pressure loss.

High measurement accuracy and excellent stability.

Unaffected by changes in fluid density, viscosity, or temperature.

Typical Applications:

Municipal wastewater plants: Accurate measurement at key points such as inlet pipes, outlet mains, return sludge lines, and chemical dosing pipelines.

Industrial wastewater: Suitable for flow monitoring of various conductive industrial effluents.

Ultrasonic Flow Meters

Working Principle:

Ultrasonic flow meters calculate flow velocity by measuring the time difference between ultrasonic pulses traveling with and against the flow. They are available in clamp-on types and in-line types.

Key Advantages:

Clamp-on type: Completely non-contact installation, does not interrupt operations, requires no shutdown—ideal for retrofit projects.

In-line type: High accuracy with relatively simple installation.

Typical Applications:

Large-diameter pipelines: Especially suitable for DN300 and above, such as wastewater plant inlet pipes and discharge lines, offering excellent cost performance.

Temporary measurement and verification: Clamp-on ultrasonic meters are portable and are often used for temporary flow monitoring or on-site validation of other flow meters.

Open-Channel Flow Meters

Working Principle:

These systems use specially shaped hydraulic structures—such as Parshall flumes or weirs—installed in open channels. The flow creates a predictable water level difference at a specific point, and the meter calculates flow rate based on the established level–flow relationship.

Key Advantages:

Simple structure with minimal clogging risks, ideal for wastewater containing large amounts of suspended solids.

Lower initial cost and reduced maintenance requirements.

Typical Applications:

Wastewater treatment plants: Widely used for measuring flow in influent channels, effluent channels, and discharge outlets across various treatment stages.

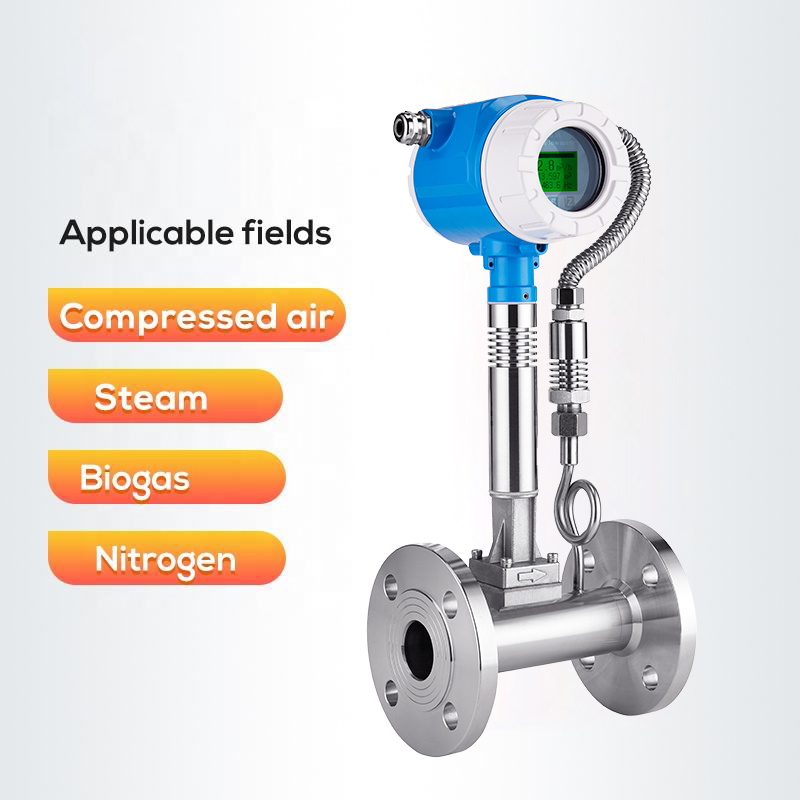

Vortex Flow Meters

Working Principle:

A bluff body (vortex generator) is placed in the fluid stream, generating alternating vortices downstream. The frequency of these vortices is proportional to the flow rate and is measured to determine flow.

Key Advantages:

Robust design with no moving parts, providing high reliability and a wide turndown ratio.

Application Limitations:

Sensitive to vibration.

Not suitable for wastewater containing long fibers or easily entangling materials, as clogging can occur.

Typical Applications:

Primarily used for relatively clean, low-viscosity industrial process wastewater.

Factors to Consider When Selecting a Sewer Flow Meters for Sewage

When choosing a sewer flow meters for sewage, several key factors should be taken into account, including the following:

1. Selection of Diameter and Measurement Range

The transmitter diameter is typically selected to match the diameter of the pipeline system. If the pipeline has yet to be designed, the diameter can instead be determined based on the expected flow range and flow velocity.

The measurement range of the transmitter should follow two principles:

The full-scale range of the meter must exceed the anticipated maximum flow rate.

The normal operating flow rate should exceed 50% of the meter’s full-scale range to ensure measurement accuracy.

2. Temperature and Pressure Requirements

Sewer flow meters for sewage operate within specific pressure and temperature limits. The operating pressure must always remain below the meter’s rated working pressure.

The operating temperature depends on the liner material. Standard sewer flow meters for sewage typically support 5–70°C, though special designs can exceed this range. Transmitters generally allow media temperatures between -40°C and +130°C.

3. Selection of Liner and Electrode Materials

The liner and electrode materials of the transmitter must be selected based on the physicochemical properties of the medium. Choosing the wrong materials can lead to corrosion of the liner or electrodes, resulting in rapid meter failure. For highly corrosive media, leakage may also pose serious safety risks. Therefore, the materials must be chosen carefully according to the exact process conditions and fluid characteristics.

4. Environmental Conditions

Consider the environmental conditions where the meter will be installed—such as temperature, humidity, and the presence of corrosive substances—to ensure the device can withstand those conditions.

5. Installation Requirements

Consider installation constraints and requirements to ensure compatibility with existing systems and infrastructure.

Comparison of Meter Types for Sewage Applications

Each type of flow meter has its own advantages and limitations. Selection should be based on actual process needs:

Electromagnetic Flow Meters

These offer stable measurement and wide applicability, suitable for a variety of media. However, they can be affected by electromagnetic interference. Their cost also increases significantly with larger pipe diameters.

Ultrasonic Flow Meters

These are relatively low-cost, provide high accuracy, operate stably, and are easy to install and maintain. Unlike electromagnetic meters, their cost does not rise substantially with pipe diameter, though it may increase with the number of ultrasonic paths.

Open-Channel Flow Meters

These have a wide measurement range and are not affected by changes in media properties. However, they are limited by the size and design of the flume or weir. In open-channel systems with sufficient installation conditions and large flow volumes, weir-type and flume-type meters are often used to measure sewage flow.

Benefits of Using an Sewer Flow Meters for Sewage

Using an sewer flow meters for sewage provides numerous advantages for regulatory authorities as well as the wastewater treatment industry. Key benefits include:

• Accurate Monitoring:

Sewer flow meters for sewage deliver real-time, precise flow measurement with minimal error. In the event of an unexpected leak or abnormal discharge, the meter can trigger alerts within seconds, enabling rapid response and reducing potential environmental impact.

• Early Problem Detection:

Sewer flow meters for sewage help identify blockages or issues within the wastewater system at an early stage. This allows timely maintenance and prevents equipment failures, system downtime, or overflow incidents.

• Process Optimization:

The data collected by an sewer flow meters for sewage can be used to analyze flow patterns and optimize wastewater treatment processes, resulting in improved efficiency and reduced operating costs.

• Water Resource Protection:

By continuously monitoring and controlling wastewater flows, sewer flow meters for sewage play a vital role in preventing contamination, protecting natural water resources, and safeguarding ecosystems and public health.

When selecting an sewer flow meters for sewage, it’s important to evaluate the specific application, fluid characteristics, and project budget. Electromagnetic and ultrasonic flow meters are typically preferred in wastewater treatment due to their high accuracy and wide applicability. Vortex and mechanical flow meters can also perform well under certain operating conditions. Understanding the strengths and limitations of each type will help you make the most informed choice and achieve higher efficiency and effectiveness in wastewater management.

If you need a highly accurate and reliable sewer flow meters for sewage for your wastewater treatment operations, contact ARTang—a trusted and experienced flow meter manufacturer.
