Introduction

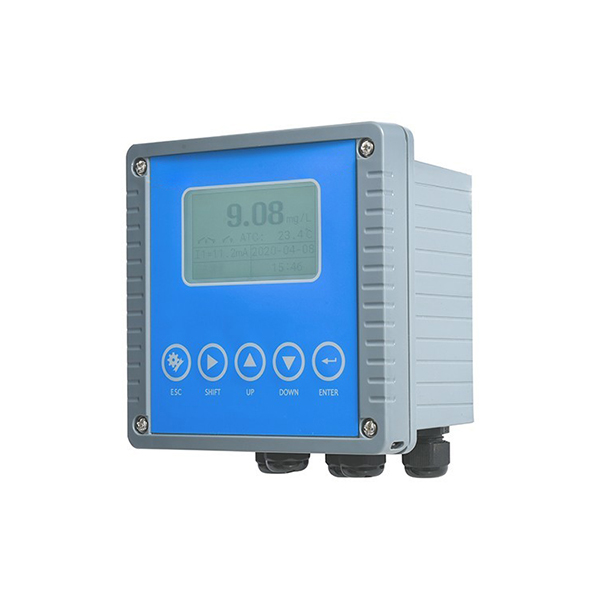

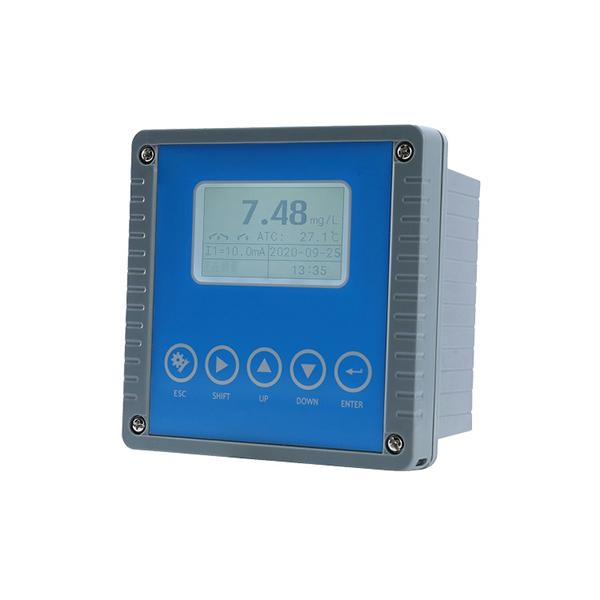

Industrial Dissolved Oxygen Analyzer is a smart instrument connected to the host computer through RS485 or 4-20mA, measuring the dissolved oxygen value in water instantly and widely used in multiple applications. Equipped with a special mounting bracket, it features a high-definition large screen, automatic switching of measuring range units, and a standard MODBUS communication protocol, making it easy to integrate. With 100% QC inspection before shipment, ISO, CE, and SGS standards, and a factory price, this analyzer provides a one-stop solution for water quality analysis and monitoring.
|
Specification
| Product | Industrial Dissolved Oxygen Analyzer |
| Model | AOT15 |
| Power supply | 24V DC, 220V AC (optional) |
| Signal output | One channel 485, two channels 4-20mA |
| Relay | Three-way relay |
| Installation | Plate/Wall mounting |
| Size | 138*138mm |
| Storage Temperature | -40℃～70℃ |
| Relative humidity | 0%～95%RH (non-condensing) |
| Working environment | -20℃～50℃ |
| Protection class | IP65 |
| Sensor input | AOS13 |
