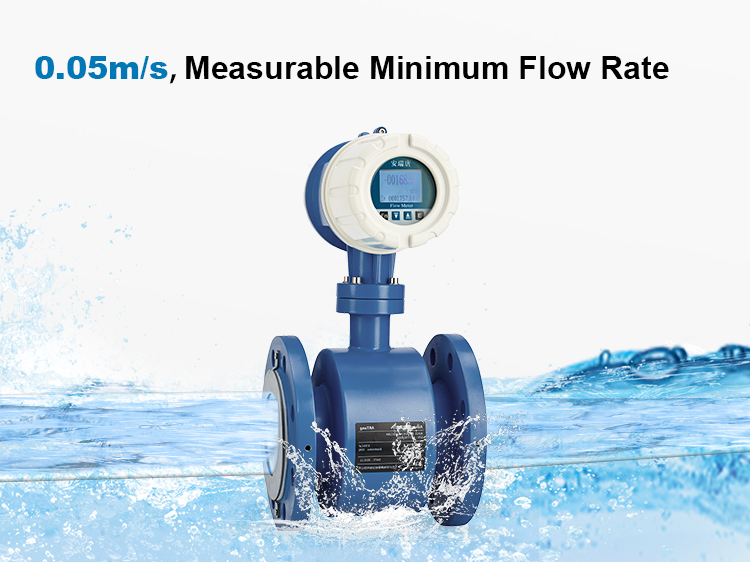

Electromagnetic flow meters are widely used for measuring conductive liquids in water treatment, chemical processing, food and beverage, pulp and paper, mining, and other industrial applications. During long-term operation, dirt, scale, fibers, sludge, or other impurities may build up on the electrodes or liner surface, affecting signal stability and measurement accuracy.
There is no fixed cleaning interval for every electromagnetic flow meter. The cleaning schedule should be determined based on the measured medium, process conditions, application industry, and the actual operating status of the instrument.
This guide explains when cleaning is needed and how to clean the flow meter body, electrodes, and inner liner safely.
There is no fixed cleaning interval for every electromagnetic flow meter. In most cases, cleaning should be arranged based on the actual operating condition of the instrument and the measured medium.
The following conditions can be used as general cleaning triggers.
If the actual flow in the pipeline does not change significantly, but the flow meter reading jumps or fluctuates greatly, the electrode surface may be contaminated.
Dirt or deposits on the electrodes can change the contact resistance between the electrodes and the liquid, which may affect the induced signal and cause unstable readings.
If the actual flow remains stable, but the flow meter reading becomes obviously higher or lower than expected, scale, dirt, or fibrous impurities may have attached to the electrodes or liner.
This can interfere with the measurement signal and lead to inaccurate flow measurement.
Zero drift means that the flow meter does not show zero when the pipe is full of liquid and the liquid is stationary.
One possible reason is that contaminants have attached to the electrodes and changed the potential of the measuring circuit.
Some electromagnetic flow meters have electrode impedance self-diagnosis functions.
When the system detects an abnormal increase in electrode circuit impedance and gives an alarm code, the flow meter should be stopped and cleaned.
During system maintenance or technical modification, the pipeline and flow meter are often shut down, drained, and inspected.
This is also a suitable time to carry out routine internal cleaning and inspection of the electromagnetic flow meter.
Different industries and media usually require different cleaning intervals. The following suggestions can be used as references:
Municipal water and clean water applications
For clean water or similar media, cleaning can usually be arranged every 6 to 12 months.
Food, beverage, dairy, and alcohol production
These applications usually include CIP cleaning before production. Operators should also check whether the readings fluctuate and whether the transmitter shows any alarm.
Chemical, wastewater treatment, and pulp & paper applications
These media are more likely to cause scaling on the liner and electrodes, and may contain fibers or impurities. Regular inspection every 1 to 3 months is recommended, and cleaning should be carried out immediately when necessary.
Slurry, high-concentration pulp, and high-solid media
Inspection is recommended about once a month. These applications are more likely to cause wall buildup and sedimentation, and the electrodes and liner may also be subject to wear, so frequent inspection and cleaning are required.
Before cleaning, make sure the flow meter is in a safe condition for maintenance.
Cut off the power supply
Turn off the power supply before cleaning to ensure safe operation.
Isolate the flow meter
Close the upstream and downstream valves. Make sure there is no medium inside the flow meter, and confirm that the pipeline has been depressurized.
Wear protective equipment
Wear proper protective equipment, such as gloves, protective clothing, and safety goggles.
The external housing of the flow meter should be cleaned and checked regularly, especially in humid, dusty, or outdoor environments.
Wipe the surface
Use a dry or slightly damp soft cloth to wipe the external surface of the flow meter.
Remove dirt and water around the meter
Clean mud, dirt, and accumulated water around the flow meter and cable connections.
Check the sealing
Make sure the cable glands are tightened and sealed properly. Also check whether the transmitter cover, sensor cover, and connection parts are well sealed.
Electromagnetic flow meters may use two-electrode, three-electrode, or four-electrode structures. ARTang electromagnetic flow meters generally use a four-electrode structure, including two measuring electrodes and two grounding electrodes, to help ensure reliable grounding.
The electrodes are key components of an electromagnetic flow meter. Their material, shape, and installation method have a major influence on measurement performance and service life.
Common electrode cleaning methods include the following:
Soft brush cleaning
Use a soft brush or soft cloth with a neutral cleaning agent to gently wipe the electrode surface. Do not use hard abrasive materials, as they may scratch the electrode surface.
Chemical soaking cleaning
Use a suitable cleaning agent or chemical solution to soak and clean the electrode surface, then rinse it thoroughly with clean water.
Ultrasonic cleaning
An external ultrasonic generator can be used at a frequency of about 45–65 kHz. Ultrasonic energy helps break down stubborn dirt and deposits without damaging the electrode when used properly.
Electrochemical cleaning
Electrochemical cleaning uses electrochemical principles to remove attachments from the electrode surface. It is especially effective for conductive scaling such as metal oxide deposits.
For sticky sludge, sediment, dirt, or other deposits inside the measuring tube, use a flexible cleaning tool or a suitable cleaning agent to clean the inner liner.
The liner surface should remain smooth and intact. Do not use metal tools to scrape the liner, as this may scratch the liner and cause instrument damage or even make the flow meter unusable.
After cleaning, complete the following checks before restarting the flow meter:
Rinse thoroughly
Use distilled water or clean water to rinse away any remaining chemical agents.
Check the sealing
Reinstall the flow meter carefully and make sure the transmitter and sensor are properly assembled to avoid leakage.
Perform zero calibration
Cleaning may change the measurement condition of the flow meter. After the flow meter is reinstalled, zero calibration should be performed again.
After these steps are completed, the electromagnetic flow meter cleaning process is finished.
