Flow Meter Classification and Selection

A flow meter, also known as a flow transmitter or flow indicator, is a critical instrument in industrial environments used to accurately measure the flow rate of liquids, gases, or mixtures. Precise flow measurement is essential for ensuring the efficiency, safety, and optimal performance of many systems. This comprehensive guide explores the various types of flow sensors and flow meters, their working principles, applications, advantages, and how to select the right flow measurement device based on specific needs.

What Is a Flow Meter?

A flow meter is a device used to measure the flow rate of a fluid—whether it’s a gas, liquid, or multiphase mixture—within a system. These instruments are fundamental in industries such as oil and gas, water treatment, chemical processing, and manufacturing. Flow meters not only help monitor process efficiency but also play a vital role in maintaining product quality, ensuring safety, and optimizing resource utilization.

The Key Importance of Flow Meters

• Operational efficiency: Accurate flow monitoring ensures processes run smoothly and efficiently.

• Safety and compliance: In hazardous environments, precise measurement is critical to prevent leaks or explosions.

• Cost management: Proper flow measurement minimizes waste, leading to significant cost savings.

How Do Flow Meters Work?

Understanding how different types of flow meters operate is essential for selecting the right one for your application. Below is a comparison of several common types:

• Electromagnetic Flow Meter

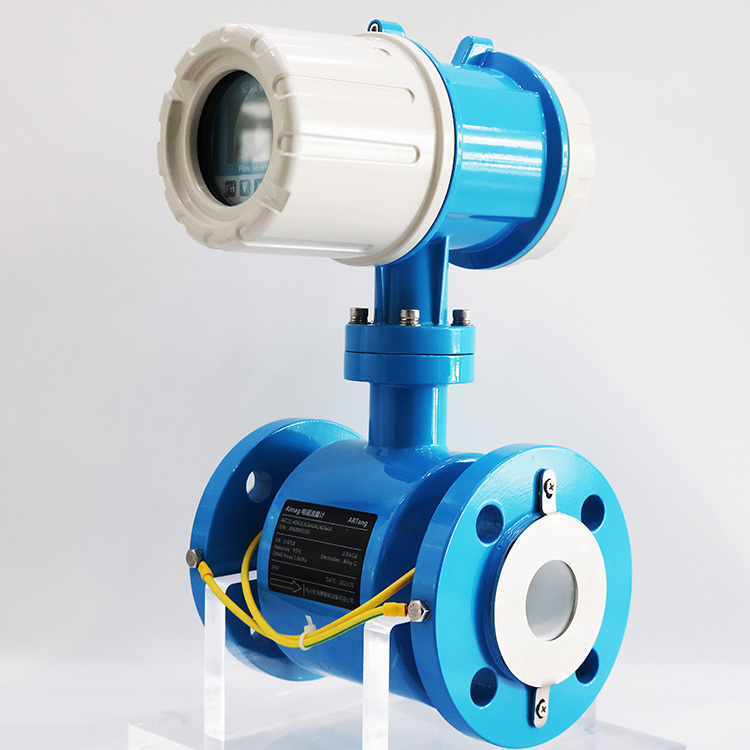

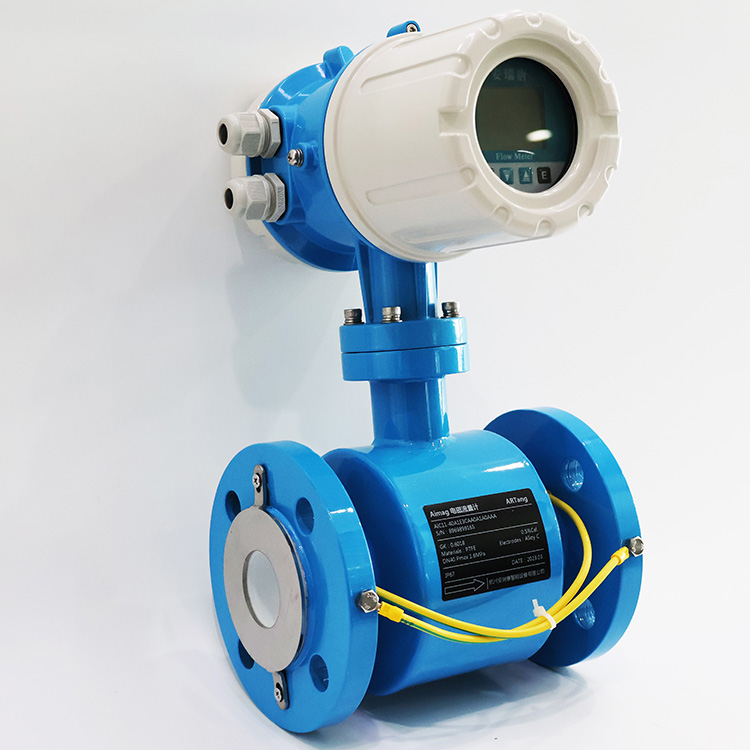

An electromagnetic flow meter (also called a mag meter) operates based on the principle of electromagnetic induction. These meters are ideal for measuring the flow of conductive liquids such as water and are commonly used in wastewater treatment and the chemical industry.

• Coriolis Flow Meter

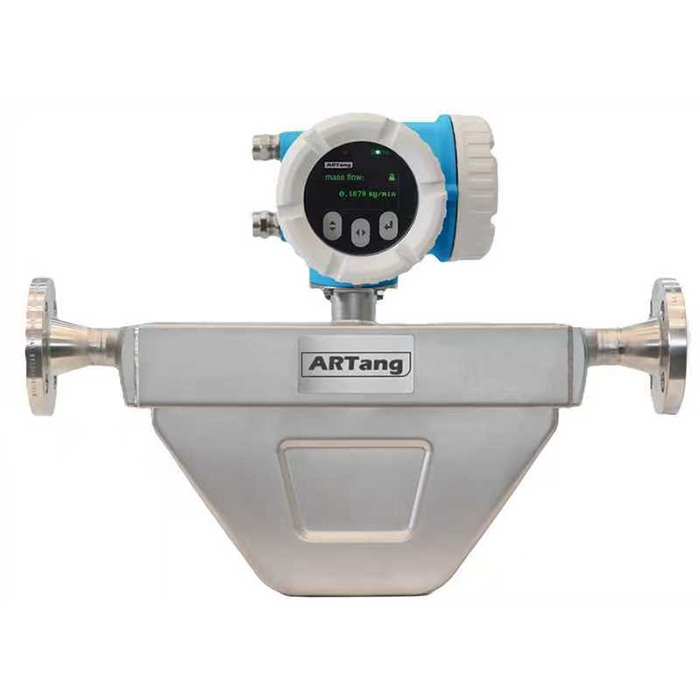

A Coriolis flow meter measures mass flow rate by detecting the twisting force (Coriolis effect) generated as the fluid passes through vibrating tubes. Known for their high accuracy, these meters are widely used in applications that require precise liquid or gas measurement, such as the oil and gas industry.

• Ultrasonic Flow Meter

An ultrasonic flow meter measures the velocity of a fluid within a pipe or conduit using ultrasonic sound waves. It consists of two ultrasonic transducers mounted on opposite sides of the pipe, which alternately transmit and receive sound waves to determine flow velocity.

• Clamp-On Flow Meter

A clamp-on flow meter uses ultrasonic sensors attached to the outside of the pipe to measure flow, making it ideal for applications where invasive installation is not possible. These versatile meters are widely used in HVAC, water treatment, and other industrial sectors.

Performance of Different Types of Flow Meters

• Electromagnetic Flow Meter

Electromagnetic (magnetic) flow meters offer good accuracy, typically within ±0.5% of the flow rate, making them suitable for many industrial applications where precision is important but not critical.

• Coriolis Flow Meter

Coriolis flow meters are known for their exceptional accuracy and precision, often achieving accuracy levels within ±0.1% of the actual flow rate. They are considered the gold standard for high-precision applications.

• Ultrasonic Flow Meter

Ultrasonic flow meters provide moderate accuracy, generally within ±1% of the flow rate. While not as precise as Coriolis or electromagnetic meters, they are reliable, durable, and a cost-effective choice for many industries.

• Clamp-On Flow Meter

Clamp-on flow meters typically have an accuracy range of ±1–2%, depending on the installation quality and fluid characteristics. They are a flexible option for temporary installations or systems where pipe modifications are not possible.

Service Life of Flow Meters

• Coriolis Flow Meter

These instruments are extremely durable and require minimal maintenance, often operating reliably for many years even in harsh environments.

• Electromagnetic Flow Meter

Magnetic flow meters are highly reliable, long-lasting, and have low maintenance costs. Their non-intrusive design makes them ideal for applications involving corrosive or abrasive fluids.

• Ultrasonic Flow Meter

Ultrasonic flow meters typically last 5–10 years, depending on operating conditions and maintenance practices. Their simple design and few moving parts reduce the risk of mechanical failure.

• Clamp-On Flow Meter

Although not as durable as permanently installed models, clamp-on meters offer flexibility and easy maintenance, making them suitable for temporary setups or applications where pipe materials cannot be altered.

Choosing the Right Flow Meter for Your Application

• Coriolis Flow Meter

Applications: High-precision chemical dosing, enclosed oil and gas transfer.

Reason: Provides unmatched mass flow accuracy and reliability, even under harsh operating conditions.

• Electromagnetic Flow Meter

Applications: Wastewater treatment, chemical processing.

Reason: Ideal for measuring the flow of conductive liquids and delivers strong performance in corrosive environments.

• Ultrasonic Flow Meter

Applications: Water supply systems, large-scale industrial processes.

Reason: Cost-effective and durable, suitable for measuring large-diameter pipes and high-volume flows.

• Clamp-On Flow Meter

Applications: HVAC systems, temporary flow monitoring setups.

Reason: Features non-invasive installation, making it perfect for retrofits or situations where pipe integrity must be preserved.

How to Choose the Right Flow Meter for Your Needs

Selecting the right flow meter depends on several factors, including fluid type, required accuracy, installation constraints, and budget. For purchasing managers and application engineers, balancing these factors is essential to find a cost-effective and reliable solution.

• Data Requirements

Instantaneous or cumulative flow: Do you need real-time data or totalized measurements?

Local or remote data: If remote, determine how data will be transmitted (analog/digital) and how frequently updates are required.

• Fluid and Flow Characteristics

Understand the fluid’s physical properties, such as pressure, temperature, density, and viscosity.

Consider the fluid’s composition and behavior in operation—for example, whether it forms bubbles, contains solids, or coats surfaces.

• Pressure and Temperature Range

Define the operating pressure and temperature range, including maximum, minimum, and normal values.

Identify other flow conditions, such as backflow, slugging, or pulsating flow.

• Pipe and Installation Area

Consider pipe size, material, and layout, including straight-pipe requirements.

Take into account environmental conditions such as vibration, magnetic fields, or hazardous areas, which may affect installation and performance.

• Key Questions to Ask

What type of fluid is being measured? Do you need flow rate or totalized data?

What is the required flow range, pressure, and temperature?

What display and output options are needed?

• Flow Rate and Accuracy

Define the minimum and maximum flow rates and the required accuracy (expressed as %AR, %CS, or %FS).

Consider the importance of accuracy versus repeatability for your specific application.

• Accuracy and Repeatability

Favor flow meters with no moving parts to reduce issues related to wear and calibration.

If accuracy is critical across the entire flow range, choose a full-bore meter rather than a point sensor.

• Mass vs. Volume Measurement

Determine whether mass flow or volume flow measurement is more suitable for your fluid.

For compressible fluids, mass flow is usually more reliable. For liquids, suspended bubbles or density changes can affect volume flow accuracy.
