Aquaculture Sensor Equipment

Aquaculture monitoring systems integrate a variety of advanced sensors capable of continuously measuring key water-quality parameters such as water temperature, pH, conductivity, and dissolved oxygen. These parameters are critical indicators of water conditions and play a vital role in the growth and overall health of aquatic organisms. With real-time monitoring, farmers can quickly detect water-quality changes and take timely corrective actions to ensure that cultured species remain in an optimal environment.

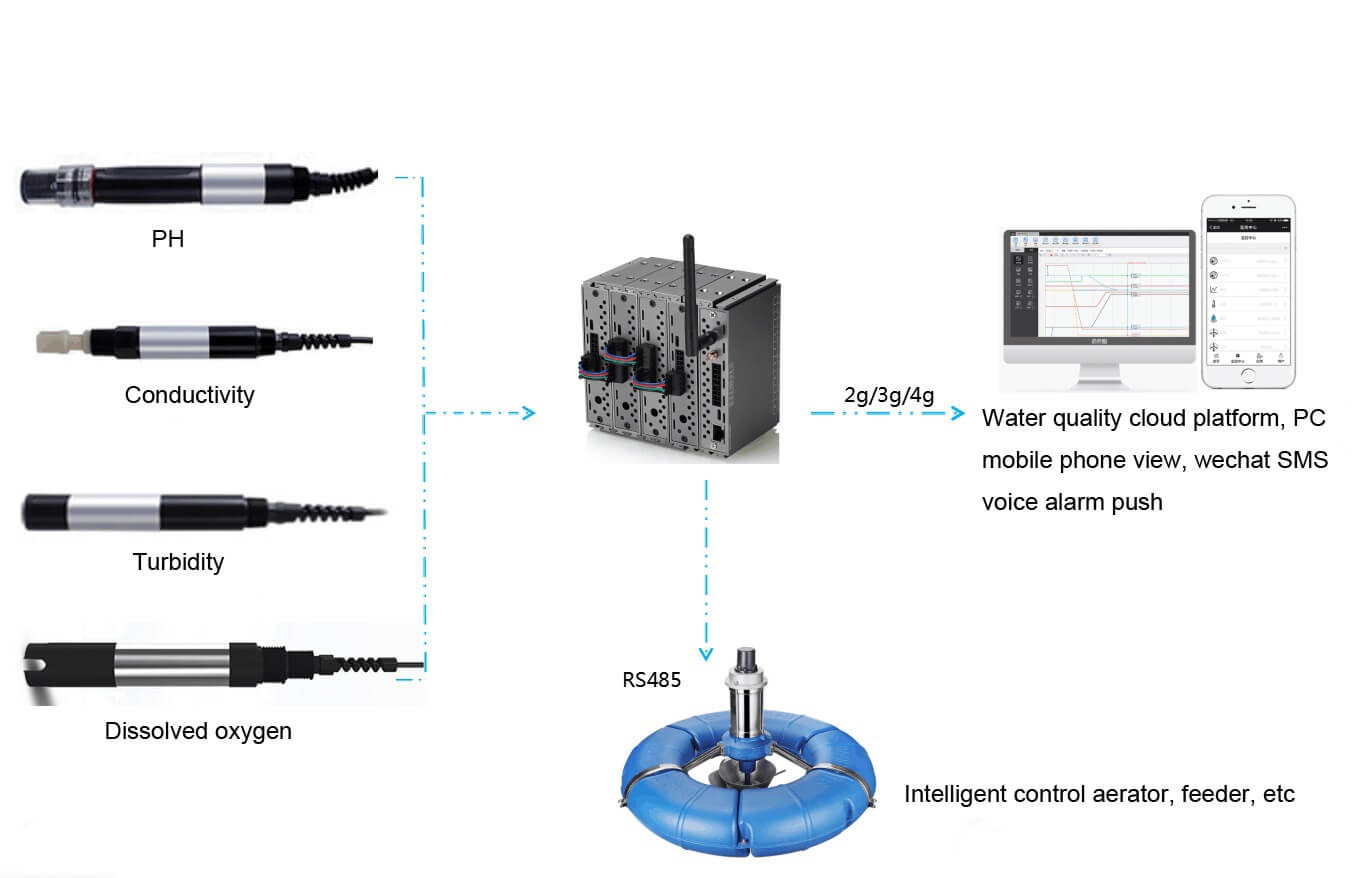

A major advantage of aquaculture monitoring equipment is the real-time transmission and processing of data. The system can upload collected data directly to a cloud platform or customer server. Users can then access water-quality information anytime and anywhere through web dashboards, local interfaces, or mobile apps.

Commonly Used Sensors in Aquaculture

1. Dissolved Oxygen Sensor

Function: Measures the amount of dissolved oxygen in the water, which is essential for the growth and survival of aquatic organisms. Low dissolved oxygen levels can lead to insufficient oxygen supply, causing suffocation or poor growth.

Application: With dissolved oxygen sensors, farmers can monitor oxygen levels at any time and add aeration when necessary. In smart aquaculture systems, IoT technology can remotely control aerators, enabling automatic oxygenation.

2. Water Temperature Sensor

Function: Monitors water temperature in real time, which is critical for successful aquaculture. Different aquatic species have different temperature requirements, so maintaining an appropriate water temperature is key.

Application: Temperature sensors continuously track water temperature and send data to the smart aquaculture management system. When the temperature rises or falls outside the safe range, the system can automatically alert farmers to make adjustments, helping maintain optimal conditions for healthy growth.

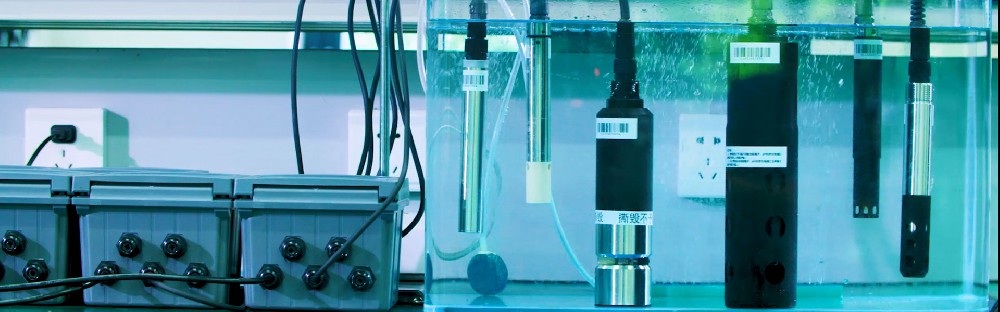

3. pH Sensor

Function: Monitors the acidity or alkalinity of the water in real time. Aquatic species can tolerate only a certain pH range, and staying within that range is important for healthy growth.

Application: pH sensor data is transmitted to the smart aquaculture system. If the pH becomes too high or too low, the system alerts farmers so they can take corrective actions and maintain a suitable pH level for healthy aquaculture.

4. Other Sensors

In addition to the three sensors above, smart aquaculture systems may also use other types of sensors to monitor water quality, such as:

Salinity Sensor: Measures water salinity, especially important for marine aquaculture.

Ammonia Nitrogen Sensor: Detects ammonia levels; high ammonia can be toxic to aquatic organisms.

Nitrite Sensor: Measures nitrite levels, which also affect the growth and health of aquatic life.

Chlorophyll Sensor: Tracks chlorophyll concentration, reflecting the degree of eutrophication and algae growth.

5. Integrated Sensors

In real smart aquaculture environments, integrated sensors may be used to improve efficiency and reduce costs. These devices can simultaneously monitor multiple parameters—including dissolved oxygen, temperature, pH, salinity, ammonia, nitrite, and more. Integrated sensors are easy to use and provide comprehensive water quality data.

Calibration Methods for Aquaculture Equipment Sensors

Calibrating sensors is essential for ensuring measurement accuracy and reliability. Below are common calibration methods for various aquaculture monitoring sensors:

Temperature Sensor Calibration

Steps:

1. Use a calibrated reference thermometer and compare it with the sensor in water of a known temperature (such as an ice–water mixture or boiling water).

2. Place both the sensor and the reference thermometer in the same water bath, record the readings, and adjust the sensor output based on any differences.

Dissolved Oxygen (DO) Sensor Calibration

Steps:

1. Zero calibration: Place the sensor in an oxygen-free environment (such as a sodium sulfite solution or chemical deoxygenation setup) and adjust it to zero.

2. Slope calibration: Place the sensor in water with a known oxygen concentration (typically using a standard DO solution) and adjust it to match the correct value.

pH Sensor Calibration

Steps:

1. Use two standard buffer solutions—typically pH 4.01 and pH 7.01, or pH 7.01 and pH 10.01—for calibration.

2. Immerse the sensor in each buffer solution sequentially and adjust the readings to match the known pH values.

Conductivity Sensor Calibration

Steps:

1. Calibrate using a standard solution with a known conductivity value.

2. Immerse the sensor in the standard solution and adjust it until the correct conductivity reading is displayed.

Ammonia Nitrogen (NH₃–N) Sensor Calibration

Steps:

1. Use a standard solution with a known ammonia-nitrogen concentration.

2. Immerse the sensor in the standard solution and adjust the reading to match the known concentration.

Nitrite Sensor Calibration

Steps:

1. Similar to the ammonia-nitrogen sensor, use a standard solution with a known nitrite concentration.

2. Immerse the sensor in the solution and adjust the reading as needed.

Turbidity Sensor Calibration

Steps:

1. Use a standard turbidity solution or a turbidity reference plate for calibration.

2. Align the sensor with the standard sample and adjust it to display the correct turbidity value.

Water Level Sensor Calibration

Steps:

1. Use a measuring ruler or cylinder with a known water height.

2. Compare the sensor reading with the scale or measuring cylinder and adjust it to show the correct water level.

Flow Sensor Calibration

Steps:

1. Use a standard flow meter (such as an electromagnetic or volumetric flow meter) as a reference.

2. Connect the sensor to the standard flow meter and calibrate it by comparing the flow readings.

Q1. What are the key water quality parameters monitored in aquaculture?

The most important parameters monitored in aquaculture include dissolved oxygen, pH, temperature, ammonia, nitrates, turbidity, and salinity. These factors directly affect fish health, growth, and overall farm productivity.

Q2. How do smart aquaculture monitoring systems benefit fish farmers?

Smart monitoring systems provide real-time data, automatic alerts, and continuous tracking of water quality parameters. This helps improve fish survival rates, increase yield, shorten production cycles, and significantly reduce energy use for farmers.

Q3. What challenges are associated with implementing aquaculture monitoring technology?

Common challenges include high initial equipment costs, sensor maintenance requirements, technical complexity, and potential infrastructure limitations in remote areas—such as lack of electricity or internet access.

Q4. How often should water quality be monitored in fish farms?

With smart monitoring systems, water quality can be monitored continuously, typically collecting data every minute. This high-frequency monitoring allows for immediate detection of dangerous fluctuations, enabling quick intervention to maintain optimal conditions.

Q5. Are there affordable monitoring solutions for small-scale fish farmers?

Yes. Small-scale farmers can start with simplified systems focusing on key parameters such as temperature, pH, and dissolved oxygen. Solar-powered devices and government incentive programs can help offset costs, making monitoring more accessible for smaller farms.
