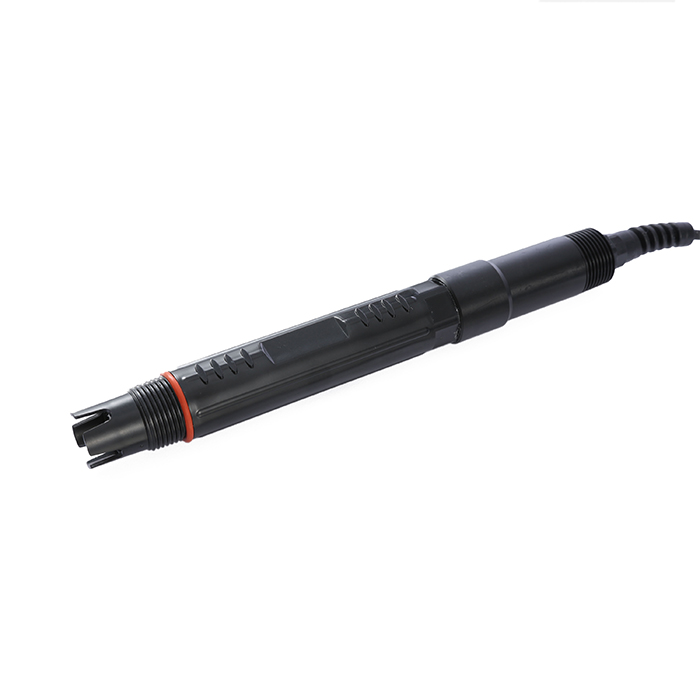

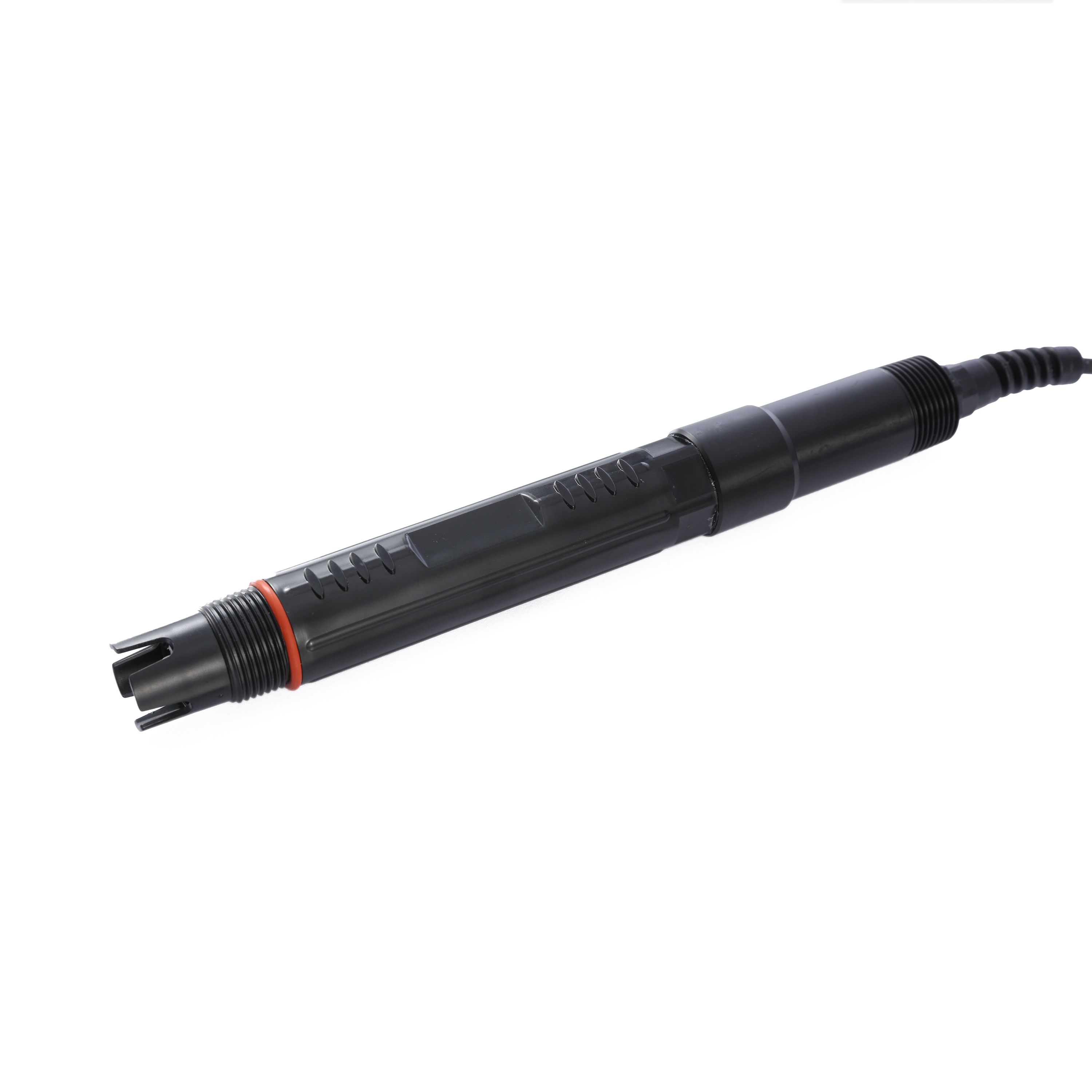

APS12 Sewage pH electrode

Measurement range: 0-14pH
Temperature range: 0-60℃
Resolution: 0.01pH, 1mV
Cable: 5 meters (customizable)
Availability:
Quantity:
Inquire

facebook sharing button
twitter sharing button
line sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

|

 Specification

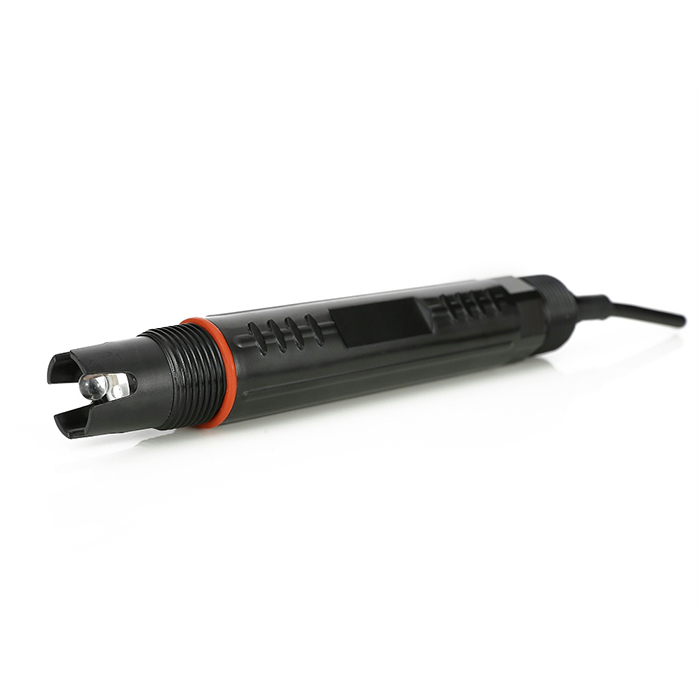

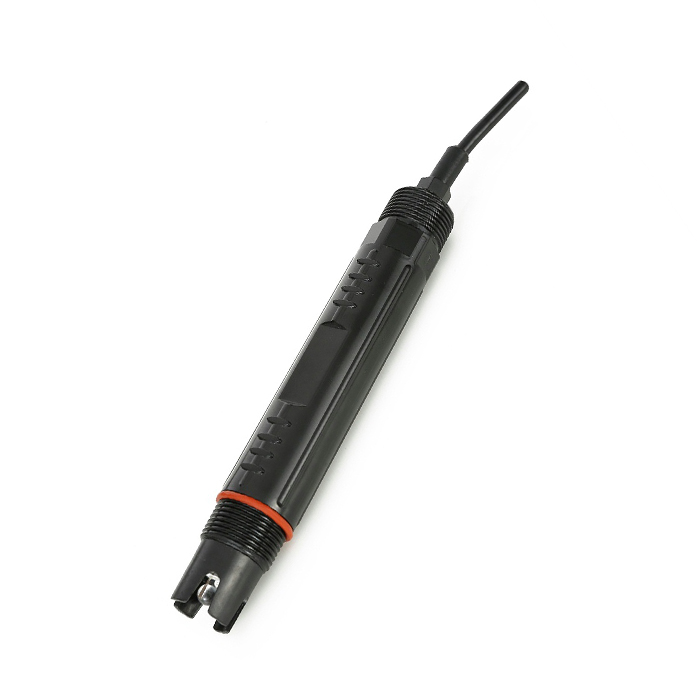

Product Plastic pH electrode Probe
ModelAPS12
Measurement Range0～14pH
Process Temperature Range0～60℃、0～80℃
Pressure Range≤0.3MPa
Accuracy±0.05pH
Resolution0.01pH
Internal Resistance≤250MΩ（25℃）
Theoretical Percentage Slope
≥95%
Temperature Compensation10k
Shell MaterialPC、PTFE
Process connectionUpper and lower NPT3/4 external thread
CableLow noise cable
Protection levelIP56

|

 Introduction

  • pH electrode built-in temperature probe, temperature compensation can be accurate measurement results, fast and stable response.

  • The ring-shaped large cross-sectional area of 130m㎡ TEFLON diaphragm, anti-clogging, anti-pollution, easy maintenance

  •  Response time <15S

  • Adopt low noise cable to reduce signal interference.

  • Average service life up to 12 months or more (conventional sewage, tap water)
