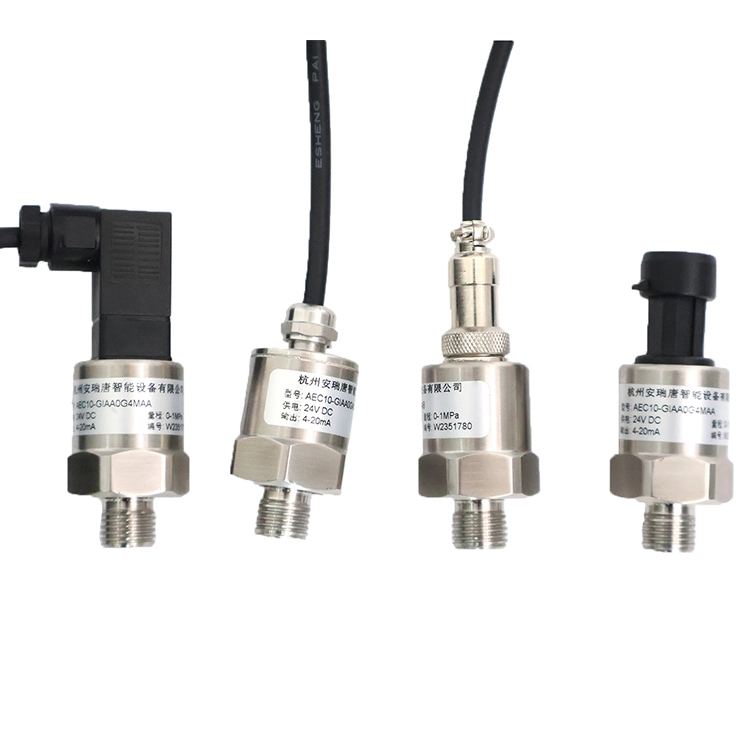

Compact pressure transducer with threaded process connection and 4-20mA output

Smart pressure transducer with threaded connection and different electrical interfaces

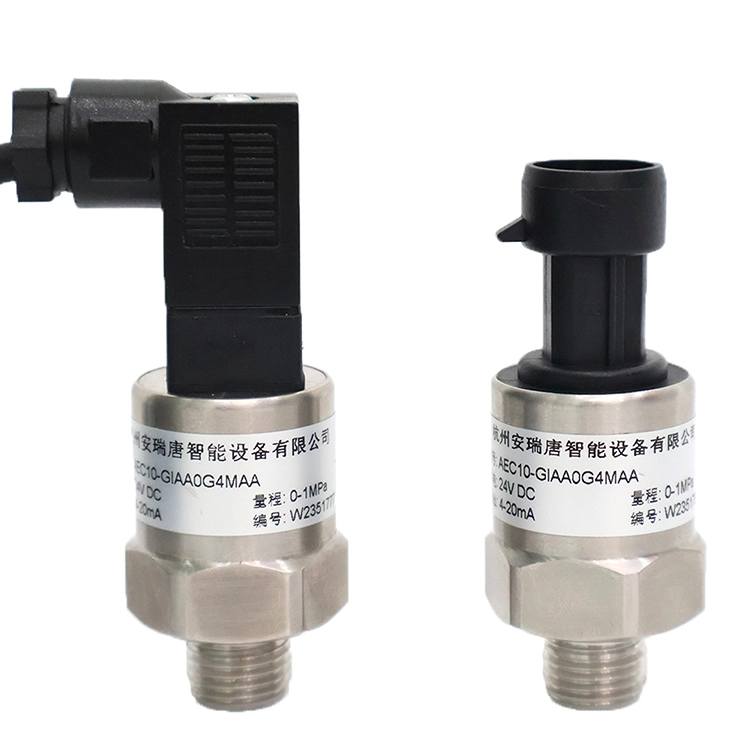

AE10 pressure transducer with DIN plug and cable connection options

AE10 Smart Pressure Transducer

The AE10 Series Compact Pressure Transmitter features a small size and compact structure, with excellent vibration resistance, making it suitable for installation in space-limited environments.

The AE10 uses a ceramic sensor element, providing strong corrosion resistance, wear resistance, and long-term stability.

It can directly output standard voltage, current, or digital signals, including 4–20 mA, 0–10 VDC, and low-power 0.5–4.5 VDC analog signals, allowing easy integration into various control systems.

Measuring Range: 0–2, 5, 10, 25, 40…600 bar

Sensor Element: Ceramic sensor element

Accuracy: ±1% FS, ±0.5% FS

Pressure Connection: NPT1/8, NPT1/4, G1/4; other specifications can be customized

Electrical Connection: Hirschmann connector (DIN 43650), M12 circular connector, Packard connector, or direct cable output

Categories: Pressure, Pressure Transmitter

Product Description

Unlike traditional oil-filled silicon sensors, the AE10 Compact Pressure Transmitter adopts an advanced dry ceramic measuring cell (Al₂O₃). This oil-free ceramic design eliminates the risk of process contamination, making it highly suitable for water treatment, hygienic applications, and general industrial pressure measurement.

In addition, the extremely hard ceramic diaphragm provides excellent resistance to abrasive particles and corrosive media, ensuring a long, maintenance-free service life even in demanding industrial environments.

The AE10 ceramic pressure transmitter also offers outstanding vibration resistance, ensuring reliable operation even under high-frequency vibration conditions.

100% customization is available, including tailored pressure ranges, thread connections, and private labeling for your specific equipment or OEM applications.

Specification

Parameter	Specification
Model number	AE10
Measuring range	Any range between 0–2, 5, 10, 25, 40...600 bar
Sensor element	Ceramic sensor element
Output signal	4–20 mA, 0–10 VDC, 0–5 VDC, 0.5–4.5 VDC, 0.5–2.5 VDC
Accuracy	±1% FS, ±0.5% FS
Pressure connection	NPT1/8, NPT1/4, G1/4; other specifications can be customized
Electrical connection	Hirschmann connector (DIN 43650), M12 circular connector, Packard connector, or direct cable output

Industry Applications & Scenarios

The ARTang AE10 Compact Pressure Transmitter is widely used across various industrial applications that require stable, accurate, and compact pressure measurement.

Industrial Process Control

Provides continuous and accurate pressure monitoring for liquids and gases in automated production lines and factory equipment.

HVAC & Refrigeration

Monitors refrigerant and compressor pressure to help maintain optimal cooling system efficiency.

Construction Machinery

Delivers vibration-resistant pressure measurement for heavy-duty hydraulic and pneumatic systems.

Automotive & Consumer Electronics

Can be integrated into vehicle systems and consumer devices that require compact, low-power pressure sensors.

Medical & Sanitary Applications

Provides clean and precise pressure readings for critical healthcare, sanitary fluid systems, and hygienic equipment.

Pressure Calibration Equipment

At ARTang, every pressure transmitter is calibrated through automated multi-point pressure control systems. Full-range verification ensures temperature stability and signal integrity for traceable accuracy in industrial applications.

Factory Strength & Quality Assurance

ARTang supports industrial measurement projects with in-house production, strict calibration, certified quality control, and global exhibition experience.
