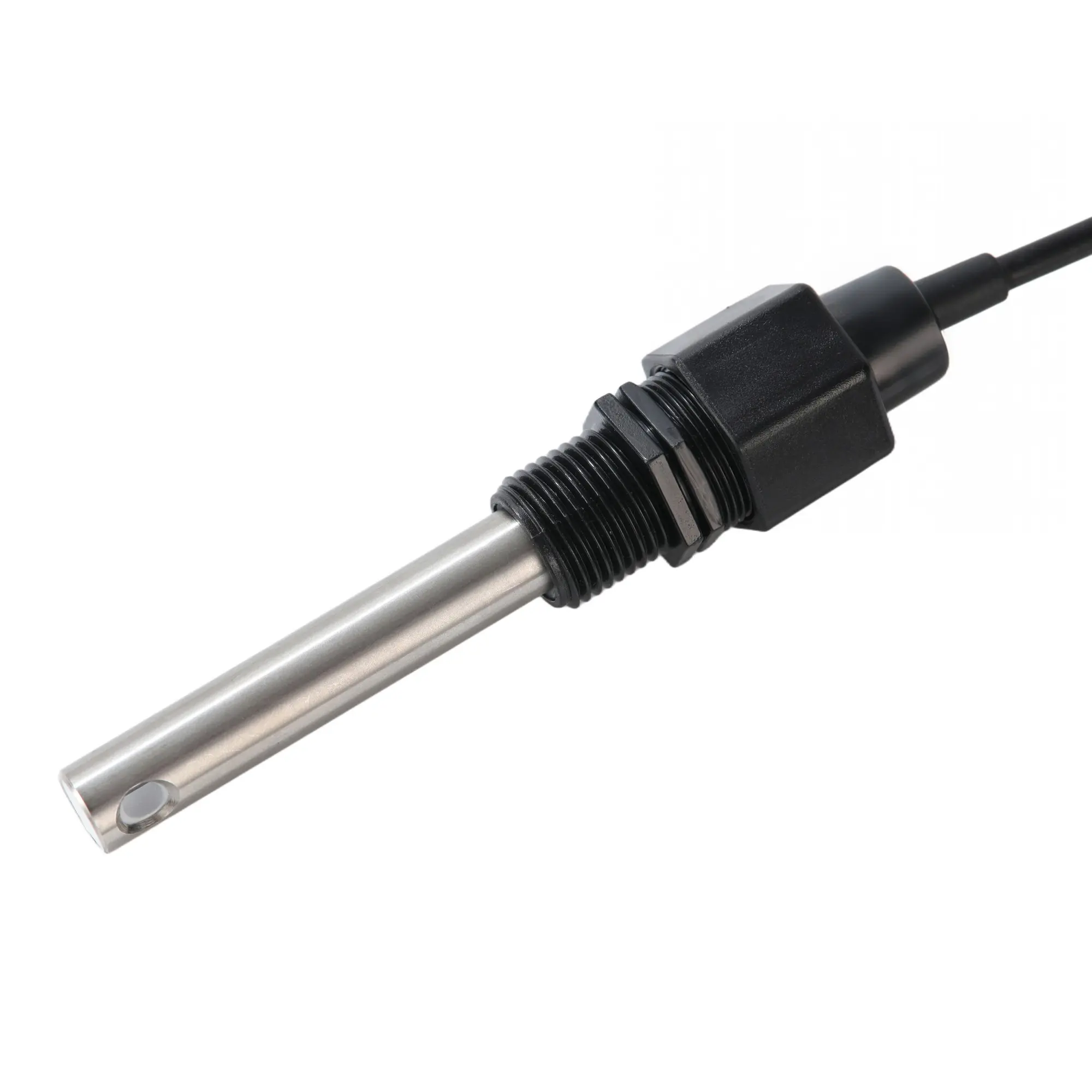

ACS125 Stainless Steel Conductivity Sensor for Water and Process Monitoring
The ARTang ACS125 conductivity sensor features a 316L stainless steel housing and electrodes for conductivity measurement in water and compatible aqueous solutions. It offers threaded or clamp connections for integration into water-treatment equipment and process monitoring systems.
Cell Constants: K = 0.1 or 1.0 cm⁻¹
Measurement Ranges: 0–20 μS/cm; 0–2,000 μS/cm; 0–20 mS/cm

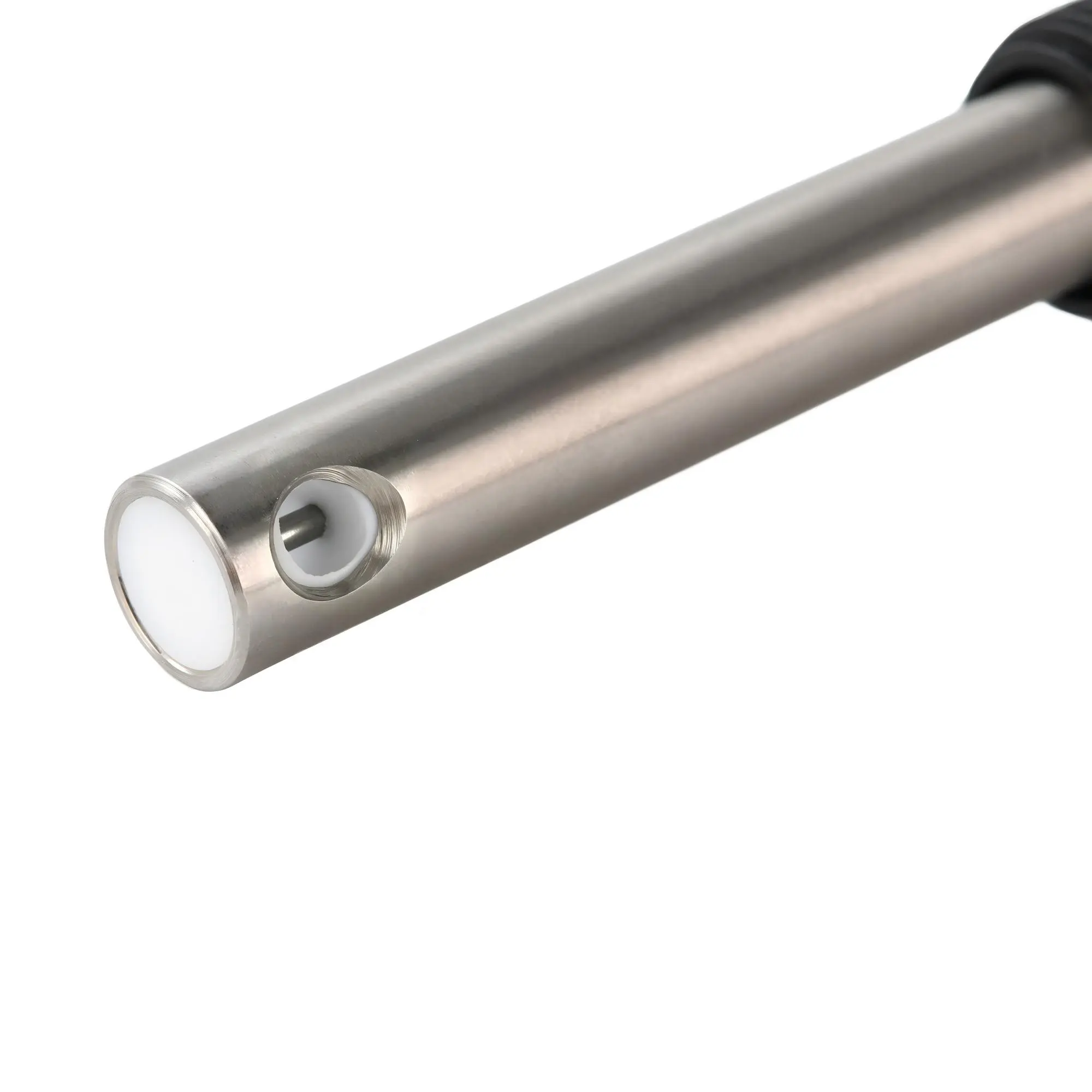

Housing and Electrode Material: 316L stainless steel
Temperature Element: NTC10K or PT1000

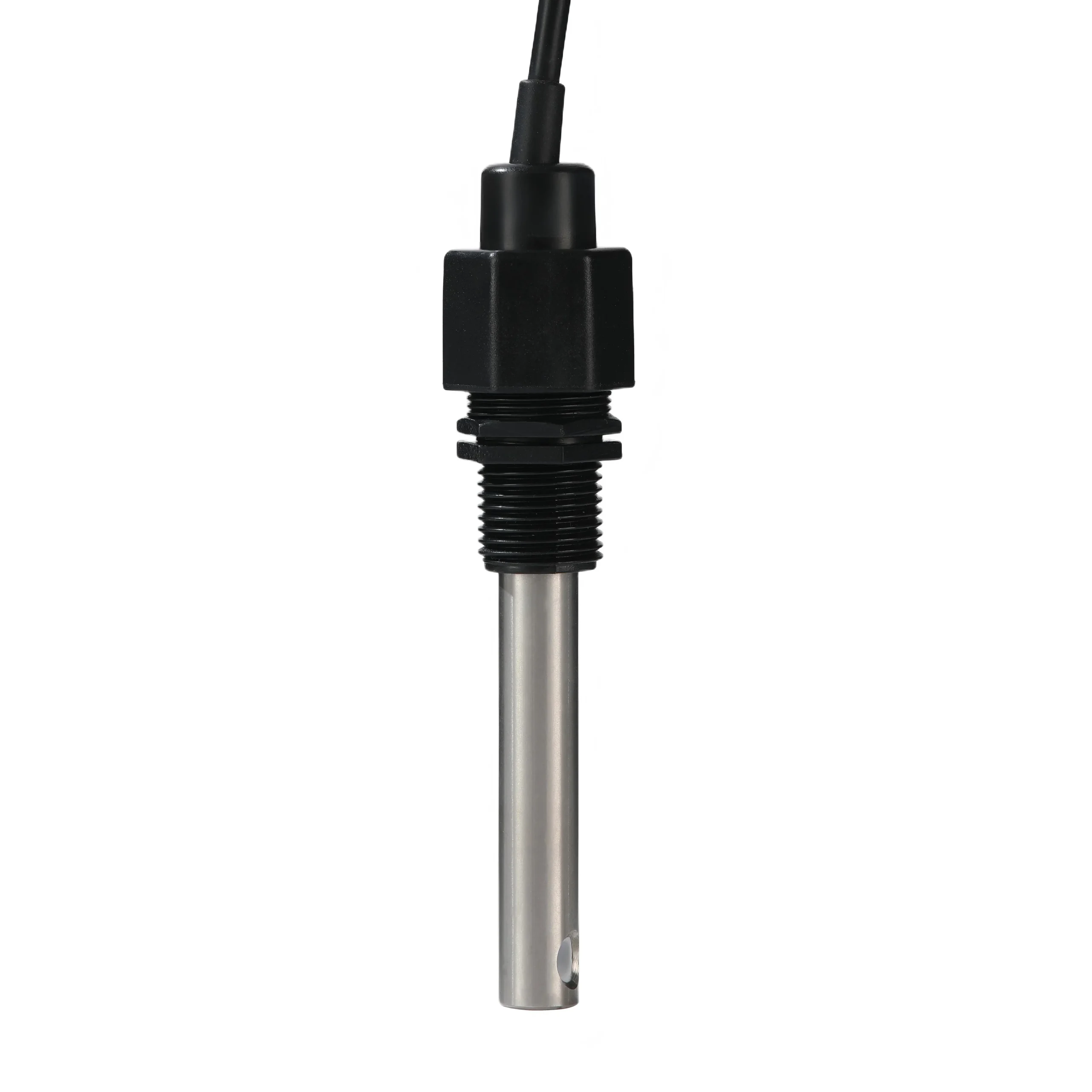

Process Connections: 1/2″ NPT or 50.5 mm clamp connection
Product Description
The ACS125 is a stainless steel conductivity electrode for use with a compatible conductivity transmitter or controller. It provides conductivity measurement for water-treatment systems, process-water monitoring and OEM equipment.
Specification
|
Parameter |
Specification |
|---|---|
|
Model |
ACS125 |
|
Product Type |
Conductivity Sensor / Conductivity Electrode |
|
Cell Constant |
K = 0.1 cm⁻¹ or K = 1.0 cm⁻¹ |
|
Measurement Ranges |
0–20 μS/cm; 0–200 μS/cm; 0–2,000 μS/cm; 0–20 mS/cm |
|
Housing Material |
316L stainless steel |
|
Electrode Materials |
316L stainless steel |
|
Temperature Element |
NTC10K or PT1000 |
|
Process Connection |
1/2" NPT or 50.5 mm clamp connection |
|
Operating Pressure |
0–0.5 MPa |
|
Process Temperature |
0–100°C |
|
Standard Cable Length |
5 m |
Product Features
- 316L stainless steel construction:Stainless steel housing and electrodes for compatible water and process-liquid applications.
- Two cell constants:K=0.1 and K=1.0 cm⁻¹ options to match different conductivity measurement requirements.
- Temperature element options:NTC10K or PT1000 for connection to a compatible transmitter.

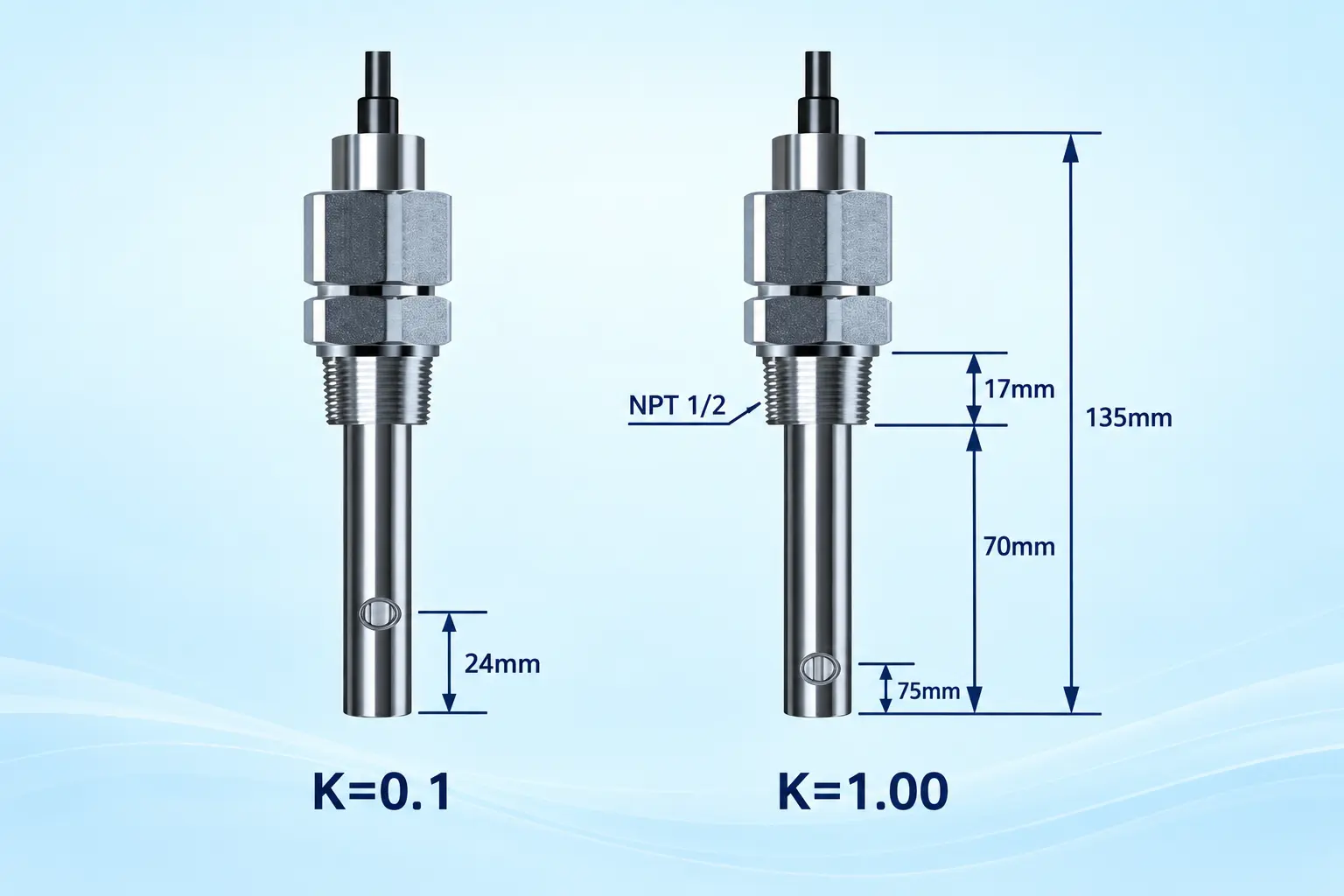

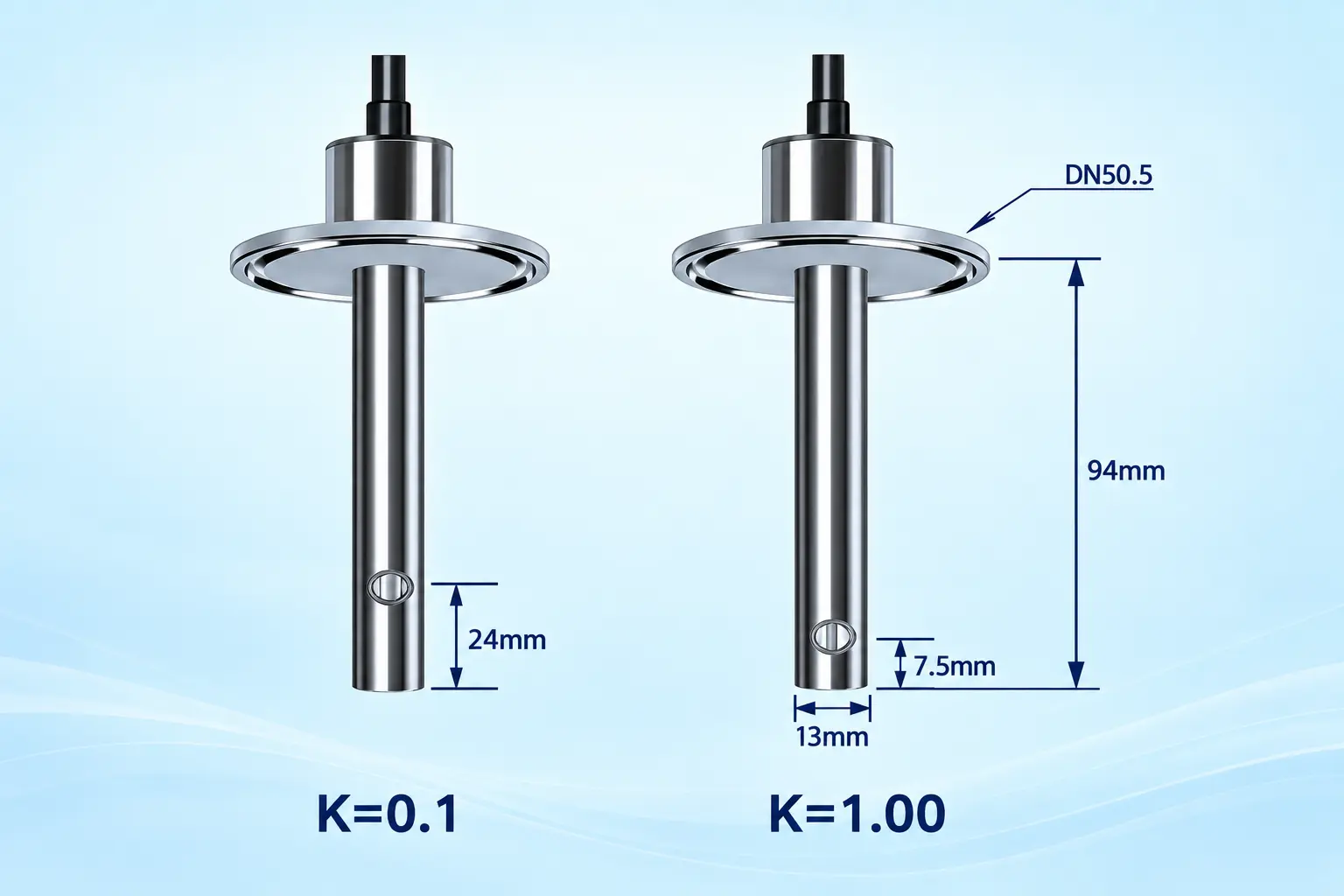

- Threaded or Clamp Installation: 1/2" NPT threaded or 50.5 mm clamp connection.
- Process temperatures up to 100°C:Specified operating temperature range of 0–100°C.
Typical Applications
Water Treatment and RO Systems
- Feed-water and treated-water conductivity monitoring
- Reverse-osmosis system monitoring
- Rinse-water quality monitoring
- Water-treatment skid integration
Industrial Process Water
- Process-water supply monitoring
- Circulating-water systems
- Cooling-water monitoring within the specified temperature range
- Conductivity monitoring of compatible aqueous solutions
OEM Equipment
- Water-treatment equipment
- Conductivity monitoring panels
- Bypass sampling systems
- Liquid-processing skids with threaded or clamp connections
FAQ
The ACS125 is available with K=0.1 or K=1.0 cm⁻¹. Selection depends on the expected conductivity range and the connected transmitter.
The specified process temperature range is 0–100°C, and the operating pressure range is 0–0.5 MPa.
The ACS125 normally requires a compatible conductivity transmitter or controller. PLC integration depends on the output or communication options of that instrument.
Discuss Your Application
Send ARTang your conductivity range, liquid composition, temperature, pressure and installation requirements. Our technical team can help confirm the ACS125 cell constant, process connection, temperature element and transmitter compatibility.
