An electromagnetic flow meter measures the volumetric flow rate of electrically conductive liquids using Faraday’s law of electromagnetic induction. As the liquid moves through a magnetic field, electrodes detect a voltage proportional to its average velocity, and the transmitter converts this signal into a volumetric flow rate.
With no moving parts in the measuring tube, it provides an open flow path suitable for water, wastewater, conductive chemicals and many slurries. However, the pipe must remain full, and the technology is not suitable for gases, steam or non-conductive liquids such as hydrocarbon oils.
What Is an Electromagnetic Flow Meter?
An electromagnetic flow meter—also called a magnetic flow meter, mag meter or electromagnetic flowmeter—is an instrument used to measure the volumetric flow of conductive liquids in a closed pipe.
Unlike turbine and paddle-wheel flow meters, it does not determine flow by monitoring the rotation of a mechanical component. Instead, it measures the electrical voltage generated when a conductive liquid moves through a controlled magnetic field.
Typical measurable liquids include water, wastewater, conductive chemicals, beverages, pulp and conductive slurries. Final suitability depends on whether the liquid meets the flow meter’s minimum conductivity requirement.
Electromagnetic flow meters measure volume per unit of time, such as cubic metres per hour, litres per minute or gallons per minute. They do not directly measure mass flow unless the volumetric result is combined with density information in a separate calculation.
Electromagnetic Flow Meter Working Principle
The electromagnetic flow meter working principle is based on Faraday’s law of electromagnetic induction.
Inside the flow meter, excitation coils generate a magnetic field across the measuring tube. When a conductive liquid flows through this field, the liquid acts as a moving conductor and produces an induced voltage.
Two electrodes positioned on opposite sides of the measuring tube detect the resulting potential difference.
The simplified relationship is:
E = kBDv
Where:
- E is the induced voltage detected by the electrodes
- k is the meter constant
- B is the magnetic-field strength
- D is the internal diameter of the measuring tube
- v is the average liquid velocity
For a given flow meter, the magnetic-field strength and measuring-tube diameter are known. The induced voltage is therefore proportional to the average velocity of the conductive liquid.
As the liquid moves faster, the voltage detected by the electrodes increases. When the liquid stops moving, the ideal flow-related voltage approaches zero.
The transmitter converts the measured velocity into volumetric flow using:
Q = vA
Where:
- Q is the volumetric flow rate
- v is the average liquid velocity
- A is the internal cross-sectional area of the measuring tube
For a circular measuring tube:
A =πD24
In simple terms, an electromagnetic flow meter measures the average velocity of the liquid and calculates volumetric flow using the known internal area of the measuring tube.
Because reversing the flow direction also reverses the polarity of the induced voltage, many electromagnetic flow meters can measure both forward and reverse flow. The available display, output and totalization functions depend on the transmitter configuration.

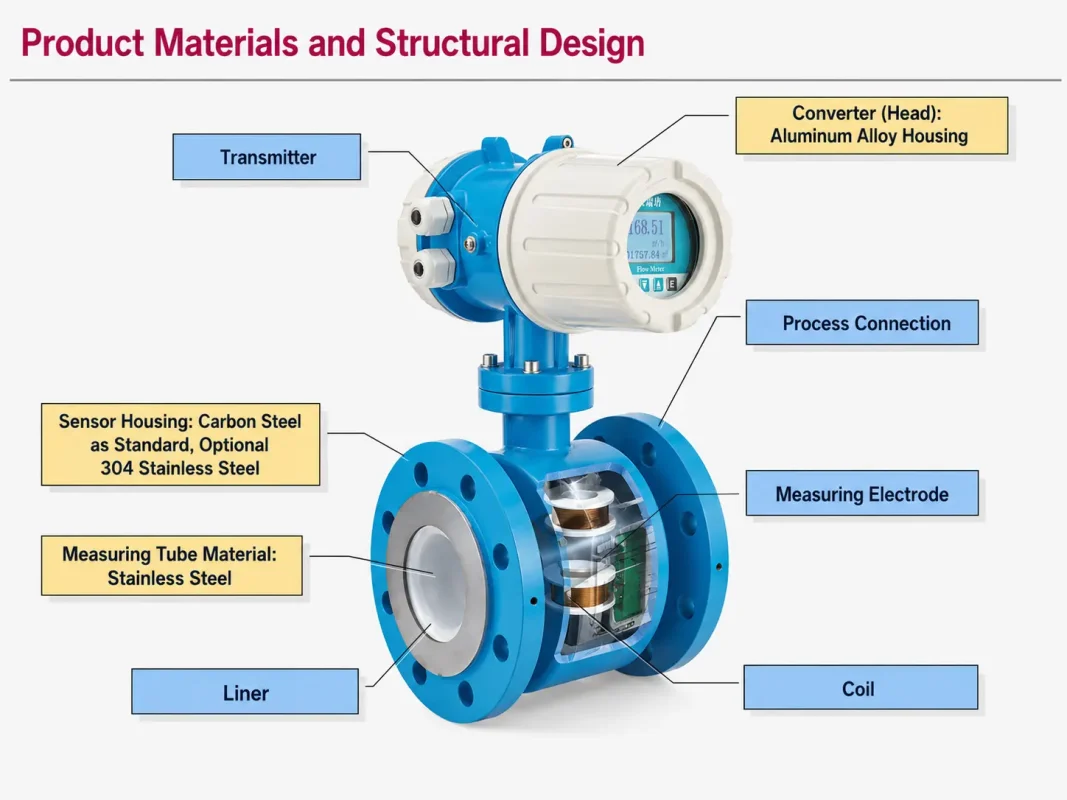

Main Components and Their Functions
The main components of an electromagnetic flow meter work together to generate, detect and process the flow signal.
|
Component |
Function |
|---|---|
|
Measuring Tube |
Provides the flow passage and defines the internal measurement diameter |
|
Excitation Coils |
Generate the magnetic field across the measuring tube |
|
Electrodes |
Detect the voltage produced by the moving conductive liquid |
|
Liner |
Electrically isolates the liquid from the metal meter body |
|
Transmitter |
Processes the electrode signal and calculates the flow rate |
|
Grounding System |
Provides a stable electrical reference for signal measurement |
|
Housing |
Protects the coils, wiring and electronic components |
The liner and electrode materials must be compatible with the liquid’s chemical and physical properties. The grounding arrangement must also provide a stable electrical reference for the electrode signal.
For detailed material guidance, see How to Select Liner and Electrode Materials for an Electromagnetic Flow Meter.
Why Must the Liquid Be Conductive?
The liquid acts as the moving conductor in the electromagnetic measurement system. When it flows through the magnetic field, charged particles in the liquid allow a potential difference to develop between the electrodes.
If the conductivity is too low, the electrode signal may become weak, noisy or unstable. Every electromagnetic flow meter therefore has a minimum conductivity requirement.
Many industrial electromagnetic flow meters require a minimum liquid conductivity of approximately 5 μS/cm. However, this is not a universal value. The actual requirement depends on the flow meter model and application conditions, so the selected product specification should always be checked.
Which Liquids Can an Electromagnetic Flow Meter Measure?
|
Generally Suitable |
Generally Unsuitable |
|---|---|
|
Raw water and drinking water |
Gases and steam |
|
Wastewater and sewage |
Hydrocarbon oils |
|
Acids and alkalis |
Diesel and gasoline |
|
Salt solutions |
Most non-conductive solvents |
|
Conductive chemicals |
Liquids below the conductivity limit |
|
Pulp and conductive slurries |
Most non-conductive organic liquids |
|
Milk, juice and beer |
— |
|
Conductive CIP solutions |
— |
These categories provide general guidance. Final suitability should be based on the liquid’s actual conductivity and operating conditions rather than its name alone.
For example, deionized or ultrapure water may have conductivity below the minimum requirement of a standard electromagnetic flow meter. Conductive liquids may also require special materials or meter construction if they are corrosive, abrasive, aerated or contain a high concentration of solids.
Conditions Required for Reliable Measurement
Faraday’s law explains how the measurement signal is generated, but reliable performance also depends on several basic installation and operating conditions.
Keep the Measuring Tube Full
The measuring tube must remain completely filled so that both electrodes stay in contact with the conductive liquid. A partially filled pipe may cause inaccurate readings, signal instability or an empty-pipe alarm.
Maintain a Suitable Flow Velocity
Very low velocity can weaken the measurement signal and allow solids to settle, while excessive velocity may increase liner wear in abrasive applications.
Meter size should therefore be selected according to the minimum, normal and maximum flow rates, rather than the nominal pipe size alone.
For calculation methods, see How to Size an Electromagnetic Flow Meter Using Flow Rate and Velocity.
Provide Stable Flow and Proper Grounding
Elbows, pumps, partially open valves and abrupt pipe transitions can disturb the flow profile. Follow the manufacturer’s recommended straight-pipe requirements and avoid installation near major flow disturbances.
Proper grounding is also required to provide a stable electrical reference. Plastic or lined pipes may require grounding rings or built-in grounding electrodes.
Avoid Air and Deposits
Air pockets can interrupt electrode contact, while sediment or electrode coating may cause unstable or inaccurate readings. The installation position and operating velocity should help prevent gas accumulation and solids buildup.
For detailed installation requirements, see the Electromagnetic Flow Meter Installation Guide.
Advantages and Limitations
Advantages
The electromagnetic measurement principle offers several practical benefits:
No moving measuring parts, resulting in low maintenance requirements
Open and unobstructed flow passage with minimal additional pressure loss
Suitable for dirty conductive liquids, suspended solids and many slurries
Supports accurate bidirectional flow measurement
Multiple liner and electrode materials are available for different process conditions
Volumetric measurement is not directly affected by changes in liquid density or viscosity
Fluid properties may still influence conductivity, material compatibility and flow conditions.
Limitations
Electromagnetic flow meters have several clear application requirements:
They cannot measure gases, steam or non-conductive liquids such as most oils and solvents
The liquid must meet the meter’s minimum conductivity requirement
The measuring tube must remain full, with proper grounding and installation
Air bubbles, insulating deposits or electrode coating may cause unstable readings
Liner and electrode materials must be compatible with the process liquid
For a more detailed evaluation, see Advantages and Disadvantages of Electromagnetic Flow Meters.
Typical Applications
Electromagnetic flow meters are used across many industries where conductive liquids must be measured.
|
Industry |
Typical Media |
Main Considerations |
|---|---|---|
|
Water and Wastewater |
Raw water, drinking water, sewage and sludge |
Conductivity, full-pipe conditions and solids |
|
Acids, alkalis, salt solutions and conductive chemicals |
Chemical Processing |
Chemical compatibility, temperature and pressure |
|
Food and Beverage |
Milk, juice, beer and conductive CIP solutions |
Hygienic design, process connections and cleaning |
|
Pulp and Paper |
Pulp stock and conductive suspensions |
Solid content, signal stability and abrasion |
|
Mining and Mineral Processing |
Mineral slurry and process water |
Abrasion, particle content and liner selection |
The final flow meter configuration should be selected according to the actual medium and operating conditions rather than the industry alone.

Sewage Treatment

Reverse Osmosis System

Food and Beverage

Slurry Measurement

Water Treatment Flow Monitoring

Wastewater Treatment
FAQ
No. Most oils have insufficient electrical conductivity, while gases and steam do not provide the continuous conductive path required for electromagnetic measurement. A different flow measurement technology is normally required.
It depends on the meter model. Many industrial electromagnetic flow meters require a minimum conductivity of approximately 5 μS/cm, but the selected meter’s specification should always be checked.
Yes, provided the slurry has sufficient conductivity. Solid concentration, abrasiveness, liner material, electrode design and signal stability should also be evaluated.
Grounding provides a stable electrical reference for the low-level electrode signal and helps reduce interference that could cause unstable or inaccurate readings.
Conclusion
Electromagnetic flow meters provide reliable volumetric measurement for conductive liquids without moving parts in the flow path. Their open measuring tube makes them suitable for water, wastewater, conductive chemicals, beverages and many slurries. However, stable measurement still depends on correct sizing, sufficient conductivity, compatible wetted materials, proper grounding and installation.
ARTang offers electromagnetic flow meters for different process conditions. The Aimag-A is suitable for general water and wastewater measurement, while dedicated configurations are available for abrasive slurries, corrosive chemicals, hygienic processes, remote installations and other demanding applications. The final selection should always be based on the actual liquid and operating conditions rather than pipe size alone.
Need Help Selecting an Electromagnetic Flow Meter?
Send us your liquid type, conductivity, pipe size, flow range, temperature and pressure. ARTang will evaluate your application and recommend a suitable meter configuration.
