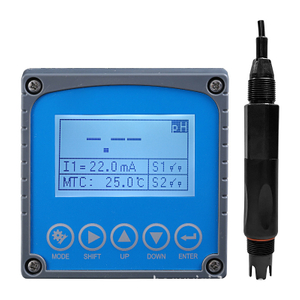

Product Description
The pH and ORP Meter collects pH and temperature signals from the solution via a pH electrode. The signals are processed by the monitor and converted into a standard pH value, which is displayed and transmitted through relay outputs, analog signals (4-20mA, 0-5V, etc.), and RS485 communication for control and monitoring. It features a high-impedance design for stable measurements without fluctuations, precise signal transmission, and manual/automatic temperature compensation. It is widely used in thermal power, chemical fertilizer, metallurgy, environmental protection, pharmaceutical, biochemical, food and tap water industries.
|
Specification
| Product | pH meter, pH controller |
| Model | APT11 |
| Measure range | pH: 0-14 pH, ±0.02 pH |
| ORP: -1000 ~1000mV, ±1mV |
| Measuring medium | Liquid |
| Storage temperature | -40℃～70℃ |
| Current Output | 4-20mA,current output load: max. 500Ω |
| Communication | RS485, Modbus-RTU |
| Measurement temperature | -20℃～50℃ |
| Relative humidity | ≤95%RH (no condensation) |
| Protection level | IP65 |
Rela | Three-way (maximum load: 5A/250VAC or 5A/30VDC) |
|
Key Features of pH and ORP Meter
Fast response and highly accurate pH/ORP sensor
Designed for harsh environments, maintenance-free, and cost-saving
Dual 4-20mA and RS485 output options
Built-in data recording function, allowing users to easily view historical data and trend curves
