| Model Number | Aisonic G |
| Structure Type | Remote Type |
| Measuring Range | 5m、10m、15m、20m、30m、40m、50m、60m、70m |
| Process Temperature | -20℃ ~ +80℃ |
| Process Pressure | 0～3bar |
| Process Connection | Thread, Flange Connection |
| Measurement Accuracy | ±1% |
| Resolution | 5mm or 0.5% |
| Power Supply Voltage | 24VDC or 220VAC, 50Hz |
| Current Output | 4~20 mA |
| Relay Output | 250VAC/8A or 30VDC/5A (State is programmable) |
| Host Shell Material | ABS |
| Sensor Housing Material | ABS、PVDF、PTFE |
| Communication | RS485, RS232 communication output is optional |
| Blind Zone | According to the range |
| Ambient Temperature | -20℃～+60℃ |
| Cable Length | 10 ~ 100m |
| Protection Grades | IP65(Sensor IP68) |

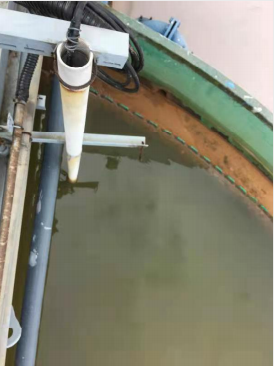

The sensor can be measured normally when immersed in 5-10cm.
Split type.
Measuring accuracy: ± 1% ~ 3%.
4-20mA current output.

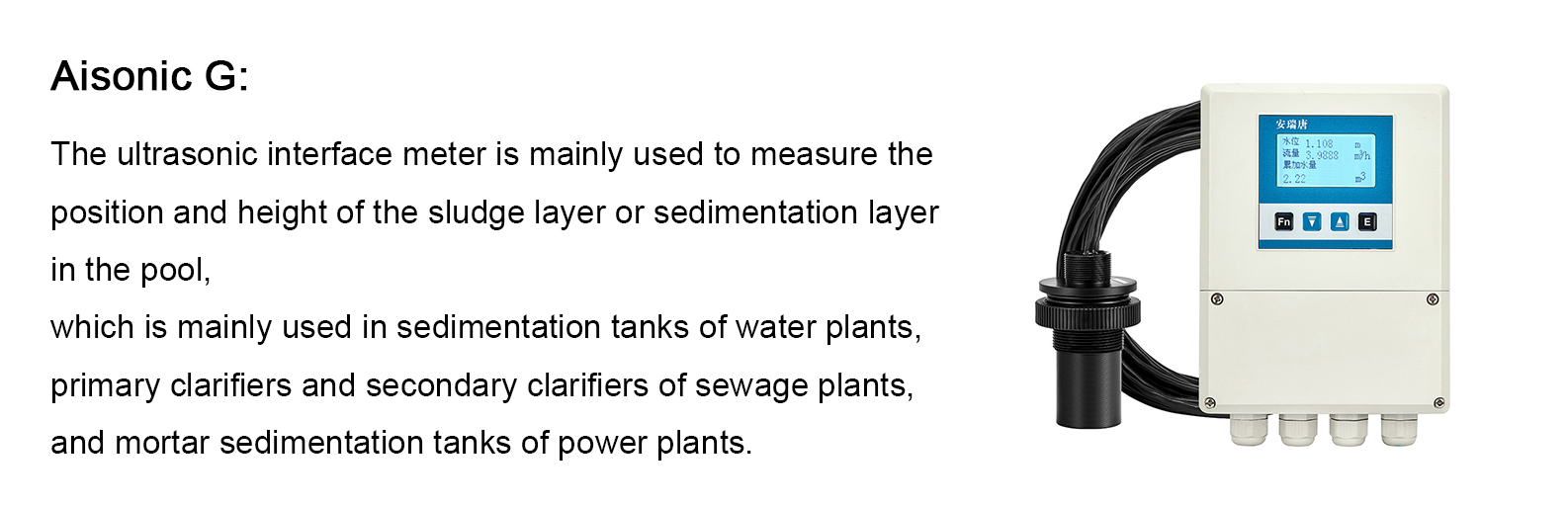

Our sludge level detectors can easily be commissioned thanks to predefined calculation models.

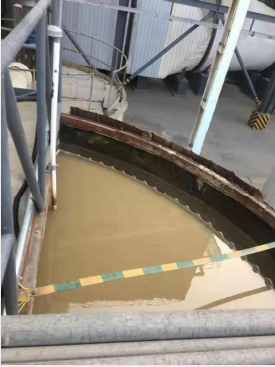

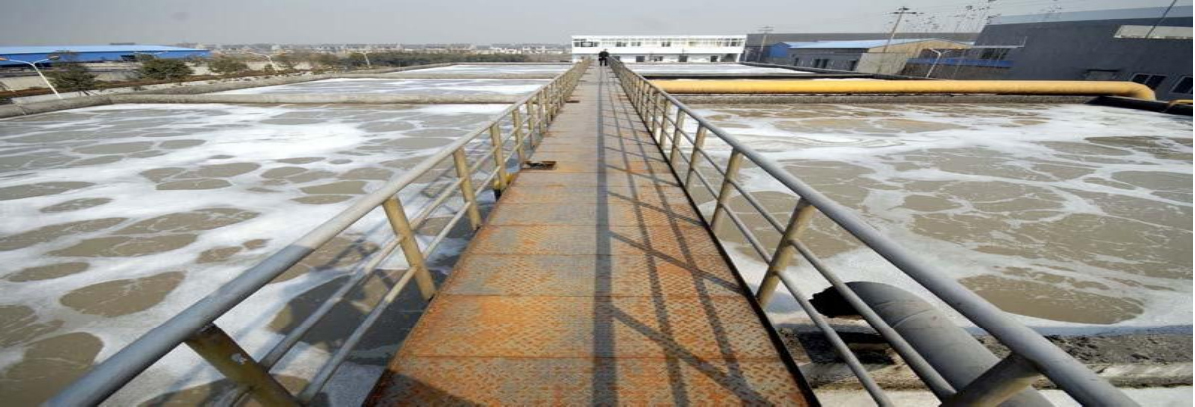

In the sewage treatment system, the sedimentation tank of the water plant needs to measure the height and position of the sludge. Using the ultrasonic sludge interface meter to measure the distance from the probe to the sludge interface, the height of the sludge can be measured. The use of the sludge interface meter ensures the normal use and timely cleaning of the sewage pool, and ensures the stable operation of the sewage plant.
