| Model Number | Aisonic A |
| Structure Type | Compact Type |
| Measuring Range | 5m、8m、10m、15m、20m、30m、50m |
| Process Temperature | -20℃ ~ +80℃ |
| Process Pressure | 0～3bar |
| Process Connection | Thread, Flange Connection |
| Measurement Accuracy | ±0.5% |
| Resolution | 3mm or 0.1% |
| Power Supply Voltage | 24VDC or 220VAC, 50Hz |
| Current Output | 4~20 mA |
| Relay Output | 250VAC/8A or 30VDC/5A (State is programmable) |
| Host Shell Material | ABS |
| Sensor Housing Material | ABS、PVDF、PTFE |
| Communication | RS485, RS232 communication output is optional |
| Blind Zone | According to the range |
| Ambient Temperature | -20℃～+60℃ |
| Protection Grades | IP66(Sensor IP68) |

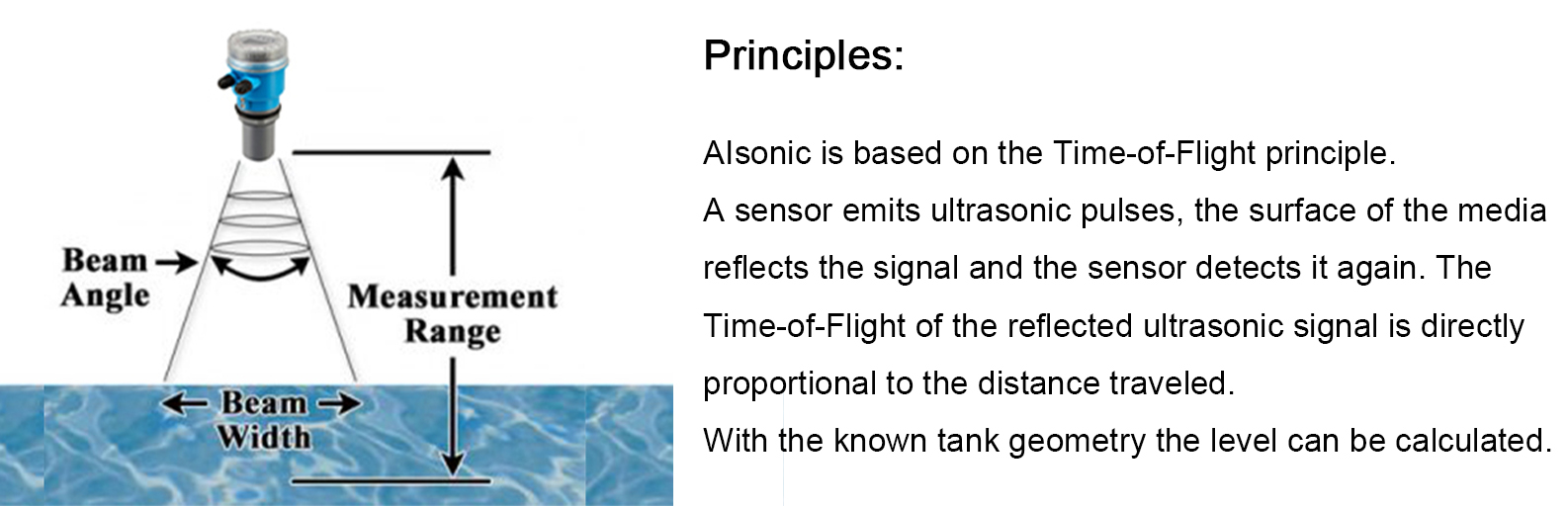

● Suitable for non-contact measurement of liquid, slurry, sludge and other medium.
● Maximum measuring range up to 50 meters.
● Customer-friendly menu for quick and easy commissioning.
● 4-20mA current output, Modbus485 communication optional.
● Provides an alarm current output to prevent the level from entering the blind spot or exceeding the range.
● Built-in temperature compensation to ensure measurement accuracy.
● Various connection methods such as thread and flange.
● The waterproof shell is adopted, and the shell material is corrosion-resistant.
The river water level monitoring system is an important means to grasp the changes of river water conditions in any time, scientifically warn flood disasters, improve flood control command ability, and reduce the losses of flood disasters.
| Model Number | Aisonic A |
| Structure Type | Compact Type |
| Measuring Range | 5m、8m、10m、15m、20m、30m、50m |
| Process Temperature | -20℃ ~ +80℃ |
| Process Pressure | 0～3bar |
| Process Connection | Thread, Flange Connection |
| Measurement Accuracy | ±0.5% |
| Resolution | 3mm or 0.1% |
| Power Supply Voltage | 24VDC or 220VAC, 50Hz |
| Current Output | 4~20 mA |
| Relay Output | 250VAC/8A or 30VDC/5A (State is programmable) |
| Host Shell Material | ABS |
| Sensor Housing Material | ABS、PVDF、PTFE |
| Communication | RS485, RS232 communication output is optional |
| Blind Zone | According to the range |
| Ambient Temperature | -20℃～+60℃ |
| Protection Grades | IP66(Sensor IP68) |
● Suitable for non-contact measurement of liquid, slurry, sludge and other medium.
● Maximum measuring range up to 50 meters.
● Customer-friendly menu for quick and easy commissioning.
● 4-20mA current output, Modbus485 communication optional.
● Provides an alarm current output to prevent the level from entering the blind spot or exceeding the range.
● Built-in temperature compensation to ensure measurement accuracy.
● Various connection methods such as thread and flange.
● The waterproof shell is adopted, and the shell material is corrosion-resistant.
The river water level monitoring system is an important means to grasp the changes of river water conditions in any time, scientifically warn flood disasters, improve flood control command ability, and reduce the losses of flood disasters.
