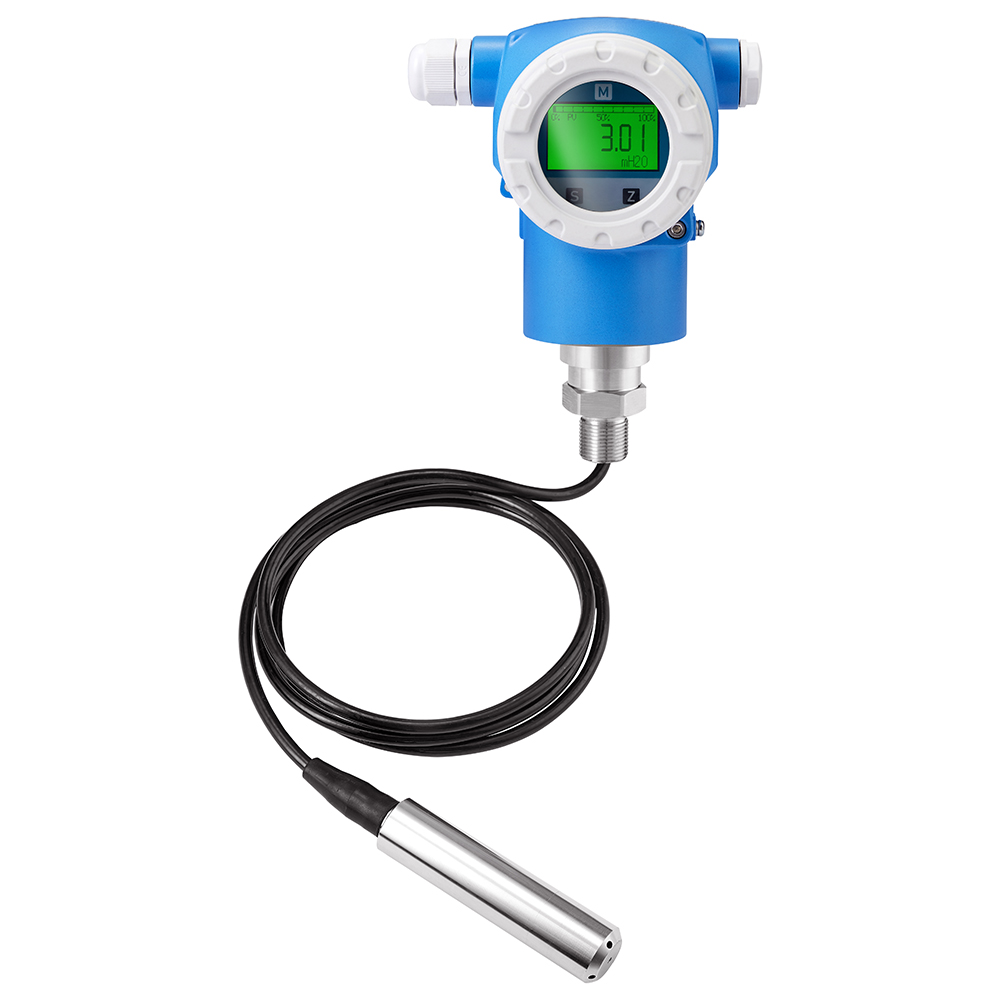

The Submersible level transmitter has the advantages of small size, light weight, good long-term stability, easy installation and use, cost-effective, etc. It is widely used in the fields of sewage treatment, agricultural water conservancy, power plant, urban water supply and drainage, hydrological exploration, etc. for water level or liquid level measurement and control.
| Model Number | AE 12 |
| Application | Liquid Level |
| Connection Process | Thread, Flange |
| Measuring Range | 0~2 Mpa |
| Overload Presure Limit(OPL) | Max 5 Mpa |
| Process Temperature | -20℃ ~ 80℃ |
| Ambient Temperature | -10℃ ~ 70℃ |
| Reference Measurement Accuracy | ±0.2%URL or ±0.1%URL or ±0.075%URL(Optional) |
| Power Supply Voltage | 10~32 VDC |
| Output | 4~20 mA or 4~20mA+HART or MODBUS RS485 |
| Certificate | CE, NEPSI |
| Waterproof Grade | IP67 |
Wide range of media to be measured, can measure oil, water and paste compatible with 316 stainless steel, with a certain degree of corrosion resistance.
Direct input structure, installation, easy to use, can be adapted to a small installation space.
High accuracy, good stability, in addition to the imported original device has been corrected with a laser, but also on the machine in the use of the temperature range of the integrated temperature drift, non-linear fine compensation, so in the use of the temperature range of non-linearity is small, good temperature stability.
Small size, light weight, generally without mounting bracket. No moving parts, zero point, range external continuously adjustable.
4~20mA DC standard current signal output, two-wire work.
Pressure sensor directly senses the measured liquid level pressure, without the influence of medium blistering and deposition.
The submersible level transmitter can be installed separately with meter head display, or installed directly with cable output without meter head display, which is convenient and quick to install and use.
Widely used in sewage treatment, agricultural water conservancy, power plants, urban water supply and drainage, hydrological exploration and other fields for water or liquid level measurement and control.
The Submersible level transmitter has the advantages of small size, light weight, good long-term stability, easy installation and use, cost-effective, etc. It is widely used in the fields of sewage treatment, agricultural water conservancy, power plant, urban water supply and drainage, hydrological exploration, etc. for water level or liquid level measurement and control.
| Model Number | AE 12 |
| Application | Liquid Level |
| Connection Process | Thread, Flange |
| Measuring Range | 0~2 Mpa |
| Overload Presure Limit(OPL) | Max 5 Mpa |
| Process Temperature | -20℃ ~ 80℃ |
| Ambient Temperature | -10℃ ~ 70℃ |
| Reference Measurement Accuracy | ±0.2%URL or ±0.1%URL or ±0.075%URL(Optional) |
| Power Supply Voltage | 10~32 VDC |
| Output | 4~20 mA or 4~20mA+HART or MODBUS RS485 |
| Certificate | CE, NEPSI |
| Waterproof Grade | IP67 |
Wide range of media to be measured, can measure oil, water and paste compatible with 316 stainless steel, with a certain degree of corrosion resistance.
Direct input structure, installation, easy to use, can be adapted to a small installation space.
High accuracy, good stability, in addition to the imported original device has been corrected with a laser, but also on the machine in the use of the temperature range of the integrated temperature drift, non-linear fine compensation, so in the use of the temperature range of non-linearity is small, good temperature stability.
Small size, light weight, generally without mounting bracket. No moving parts, zero point, range external continuously adjustable.
4~20mA DC standard current signal output, two-wire work.
Pressure sensor directly senses the measured liquid level pressure, without the influence of medium blistering and deposition.
The submersible level transmitter can be installed separately with meter head display, or installed directly with cable output without meter head display, which is convenient and quick to install and use.
Widely used in sewage treatment, agricultural water conservancy, power plants, urban water supply and drainage, hydrological exploration and other fields for water or liquid level measurement and control.
