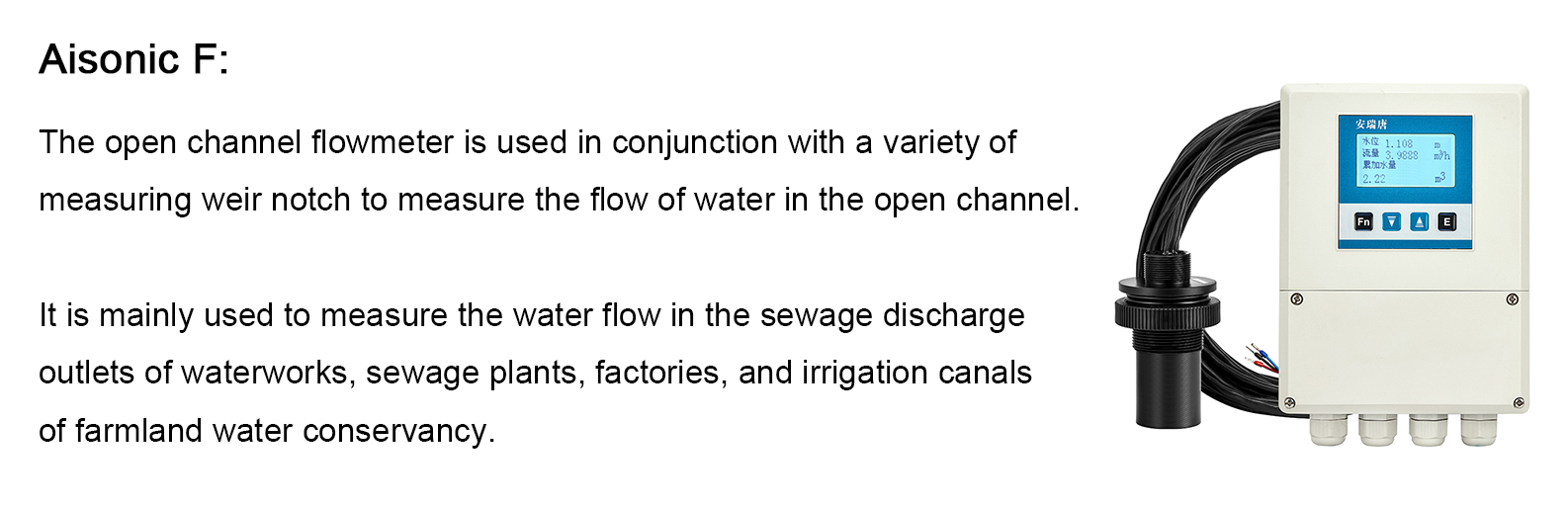

| Model Number | Aisonic F |
| Structure Type | Remote Type |
| Measuring Range | 0.1L/s ~ 99999.99m³/h |
| Process Temperature | -20℃ ~ +80℃ |
| Process Pressure | 0～3bar |
| Process Connection | Thread, Flange Connection |
| Measurement Accuracy | Liquid Level: ±0.5% Flow: ±1% |
| Power Supply Voltage | 24VDC or 220VAC, 50Hz |
| Current Output | 4~20 mA |
| Relay Output | 250VAC/8A or 30VDC/5A (State is programmable) |
| Host Shell Material | ABS |
| Sensor Housing Material | ABS、PVDF、PTFE |
| Communication | RS485, RS232 communication output is optional |
| Blind Zone | According to the range |
| Ambient Temperature | -20℃～+60℃ |
| Cable Length | 10 ~ 100m |
| Protection Grades | IP65(Sensor IP68) |
Non-contact measurement, easy installation and maintenance.
Suitable for measuring a variety of standard drains and sinks.
Built-in temperature compensation, more accurate measurement.
Various process connections available.
Probe protection grade up to IP68.
Non-contact measurement, can measure a variety of medium.
Comes with a variety of fault diagnosis and test functions.
Built-in temperature sensor, automatic correction of sound speed.

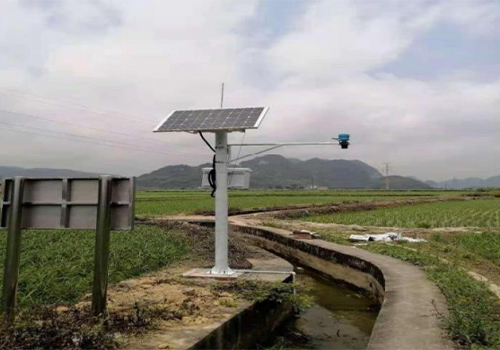

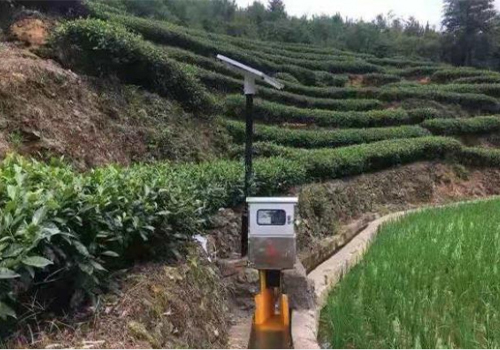

In agricultural irrigation systems, the application of ultrasonic open channel flowmeter can realize the reasonable distribution of water resources and ensure the good operation of farmland water conservancy projects.
